5A26141G09 Emerson Ovation DCS Datasheet & Technical Manual

Availability: 99 left in stock

Emerson 5A26141G09 Ovation DCS I/O Module Configured for precise data communication between controllers and field devices in process networks, the...

SKU: 5A26141G09

Manufacturer: Emerson
Product No.: 5A26141G09
Product Type: Analog Input/Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Emerson 5A26141G09 Ovation DCS I/O Module

Configured for precise data communication between controllers and field devices in process networks, the Emerson 5A26141G09, also cataloged as the 5A26141G09 I/O Module, provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	5A26141G09
Brand	Emerson Automation Solutions
Origin	USA
Weight	0.4 - 0.8 kg
Dimensions	12 x 5 x 16 cm
Operating Temp	-20 to +70 deg C
Power Consumption	Rack powered via 24 VDC nominal
Channel Capacity	16 - 32 channels (variant dependent)
Signal Configurations	Analog (4-20 mA, 0-10 VDC), Digital I/O
Resolution	12-bit or 16-bit conversion
Accuracy	+/-0.1% of full scale
Isolation Voltage	2500 VDC channel-to-backplane isolation
On-Board Diagnostics	Built-in fault detection, LED indicators
Typical Response Time	< 5 ms

Process Control & DCS Instrumentation Characteristics

The hardware interfaces directly via standard 4-20 mA HART loop protocols to maintain signal integrity across long-distance field wiring. It utilizes high-density channel-to-channel isolation parameters to prevent ground loop currents from corrupting the internal analog-to-digital converter (ADC) stages. Cold junction compensation (CJC) circuits are embedded within the terminal blocks to stabilize thermocouple input readings against ambient termination temperature fluctuations.

Frequently Asked Questions

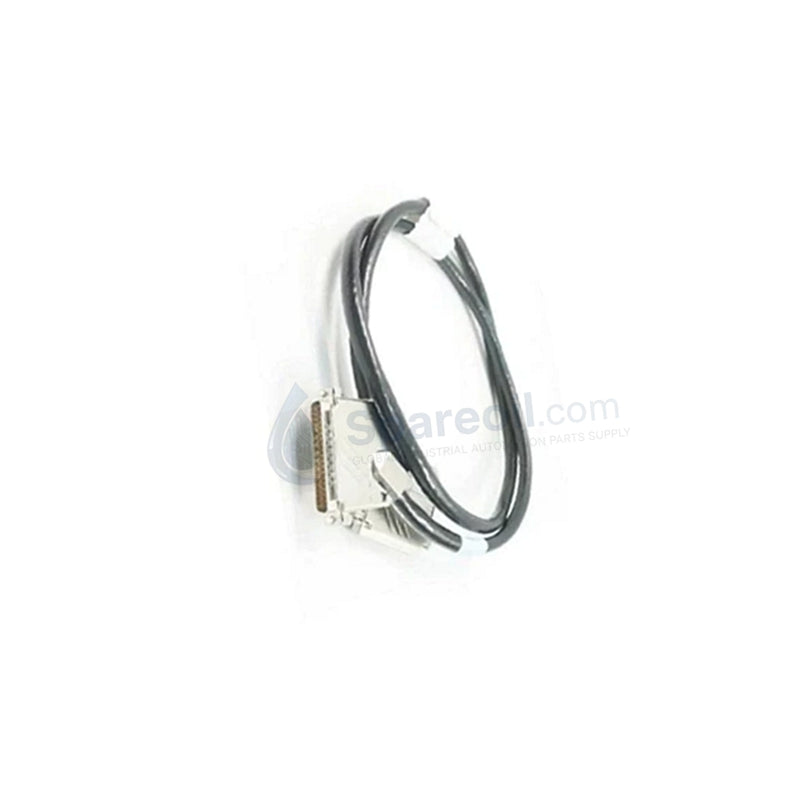

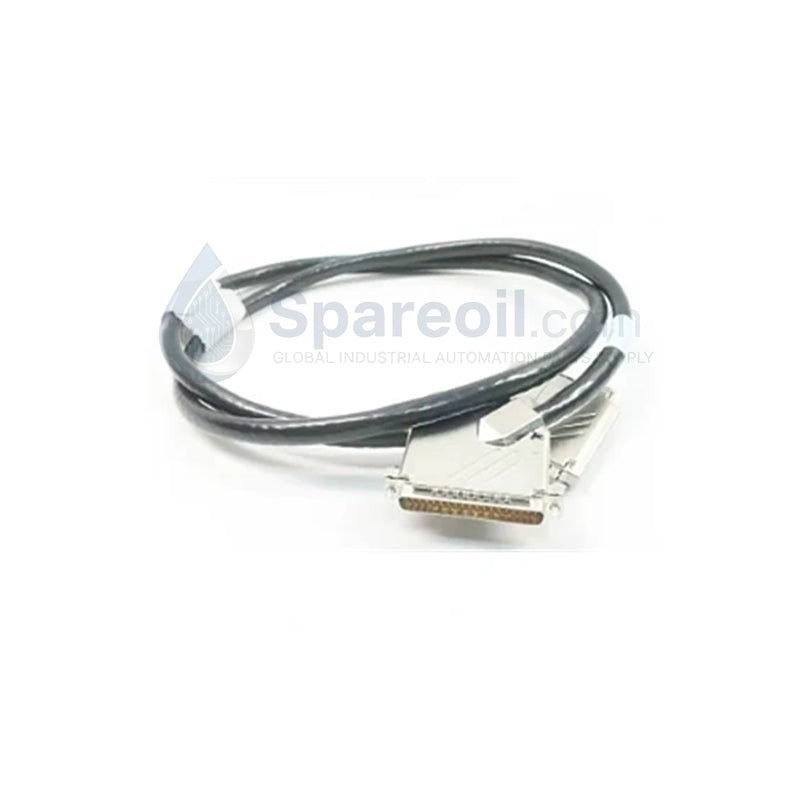

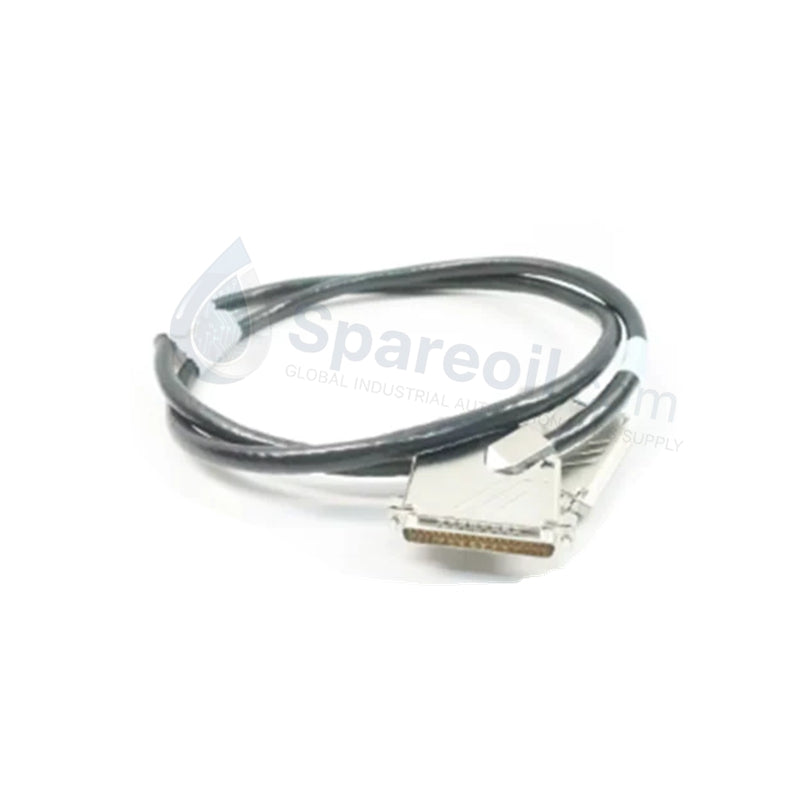

Q: What are the physical constraints and signal limitations when using the local bus cable assembly with this module?

A: The dedicated local I/O bus cable requires specific length restrictions and correct termination to prevent signal reflections. Electromagnetic interference is mitigated through integrated industrial shielding, which must be grounded according to standard backplane specifications to avoid data corruption.

Q: How does the module execute diagnostics when a channel fault occurs?

A: The module runs continuous built-in fault detection loops. When an input or output deviation exceeds the predefined thresholds, the internal logic triggers the corresponding front-panel LED indicator and transmits the diagnostic error bit across the 2500 VDC isolated backplane bus to the controller.

Field Installation Guidelines

Bus Cable Termination: Secure the local I/O bus cable using the integrated compatible connectors. Ensure the specified termination resistance is maintained across the local bus line to prevent signal attenuation.
Shielding and Grounding: Connect the industrial communication cable shield directly to the designated chassis ground bar. Do not loop the shield wire or allow it to contact the signal lines.
Thermal Management: Maintain free convection airflow around the rack assembly. Verify that the ambient operating temperature does not exceed +70 deg C under maximum channel load conditions.
Wiring Separation: Route low-voltage 4-20 mA and 0-10 VDC analog signal lines in separate conduits away from high-voltage AC power distribution cables to minimize electromagnetic coupling.
