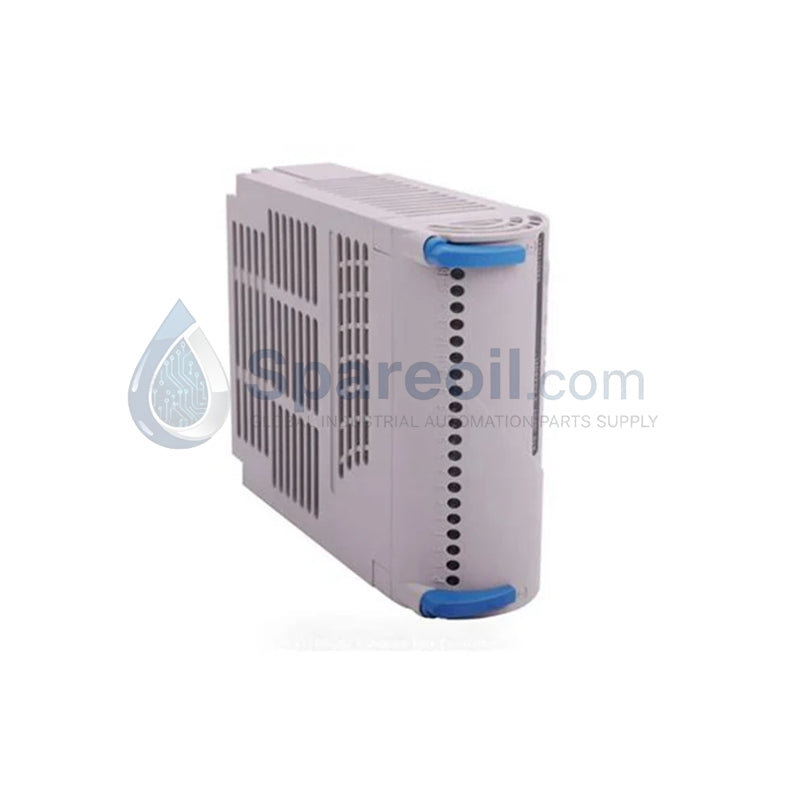

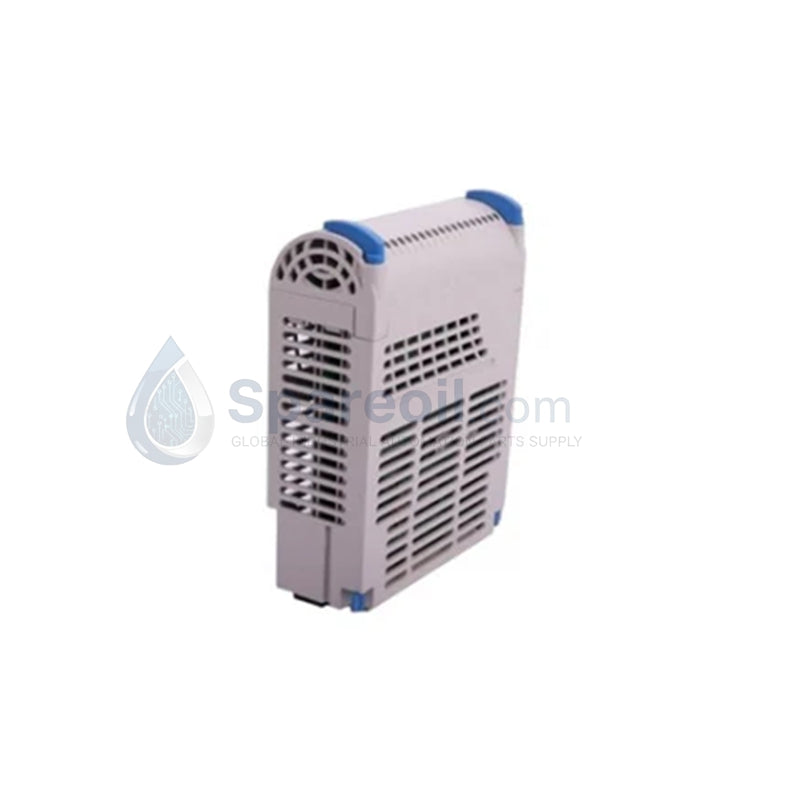

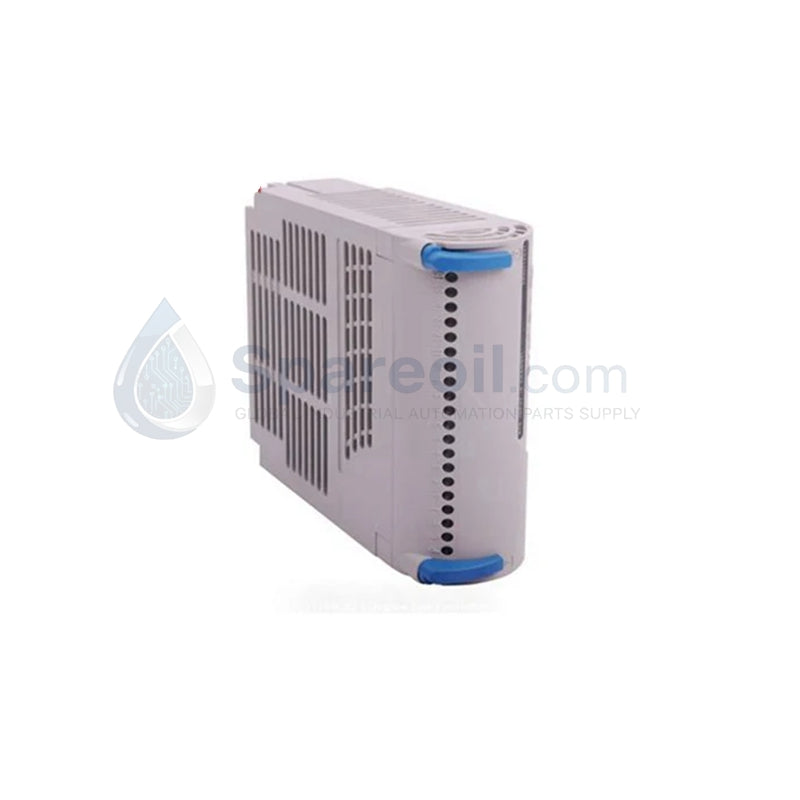

5X00301G01 Emerson Analog Output Module

5X00301G01 Emerson Analog Output Module | New & Original Stock

Availability: 99 left in stock

Emerson 5X00301G01 Ovation Series The Emerson 5X00301G01 serves as the primary 5X00301G01 Analog Output/Interface Module utilized to execute field device...

SKU: 5X00301G01

Manufacturer: Emerson
Product No.: 5X00301G01
Product Type: Analog Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Emerson 5X00301G01 Ovation Series

The Emerson 5X00301G01 serves as the primary 5X00301G01 Analog Output/Interface Module utilized to execute field device control signaling across Emerson Ovation DCS platforms.

Hardware Specifications

Parameter	Specification
Model	5X00301G01
Brand	Emerson
Origin	United States
Weight	1 kg
Dimensions	182 mm x 102 mm x 31 mm
Operating Temp	0 to +60 deg C
Power Consumption	24 VDC nominal
Output Capacity	8 Analog Outputs or 16 Relay Outputs (with 5X00327G01)
Signal Formats	0-10 VDC, 4-20 VDC, 4-20 mA current loop
Communication Protocol	FOUNDATION Fieldbus H1 (31.25 kbps option)
Isolation Rating	Up to 2500 VAC channel-to-backplane
Redundancy Architecture	Hot-standby dual-module configuration

Process Control and DCS Instrumentation

The hardware platform incorporates dedicated channel-to-channel isolation parameters to guarantee physical separation between the internal processing electronics and active field loops. When configured with the FOUNDATION Fieldbus H1 interface variant, the module coordinates deterministic data transfers over H1 networks at execution rates of 31.25 kbps. Digital-to-analog conversion structures execute up to 16-bit resolution to drive final control elements, while loop security is maintained via independent compliance voltage tracking and automatic fail-state tracking lines mapped across the terminal matrix.

Frequently Asked Questions

Q: How is the hot-standby redundancy mechanism executed on this module series?

A: Redundancy is established by pairing the primary 5X00301G01 module with a matching unit via the 5X00327G01 base configuration. Internal hardware voting and backplane sync lines handle tracking, enabling a low-latency bumpless transfer to the backup unit upon a detected hardware fault.

Q: What defines the channel capability variation between the analog and relay configurations?

A: The base hardware natively delivers 8 analog output paths (voltage/current). When mated with the 5X00327G01 terminal block assembly, the physical layer changes to accommodate 16 discrete relay channels with a backplane isolation threshold rating of 2500 VAC.

Q: Does this hardware configuration support online hot-swap maintenance operations?

A: Yes, active hot-swapping is fully supported when the module operates within a redundant cluster, allowing module replacement without cutting power to the rack or interrupting field signaling loops.

Field Installation Guidelines

Chassis Thermal Management: High-density I/O configurations cause local heat buildup near the voltage regulators. Maintain a minimum 20 mm clearance above and below the rack chassis to allow proper passive convective heat transfer.
Shield Grounding Matrix: Connect all instrument drain wires to the designated terminal block earth ground rail. Avoid multi-point grounding schemes to prevent low-frequency ground loops from distorting the 4-20 mA analog circuits.
Fieldbus Segment Impedance: When using the FOUNDATION Fieldbus configuration, verify the presence of active bus terminators at both ends of the segment line to control signal reflections and network signal attenuation.
