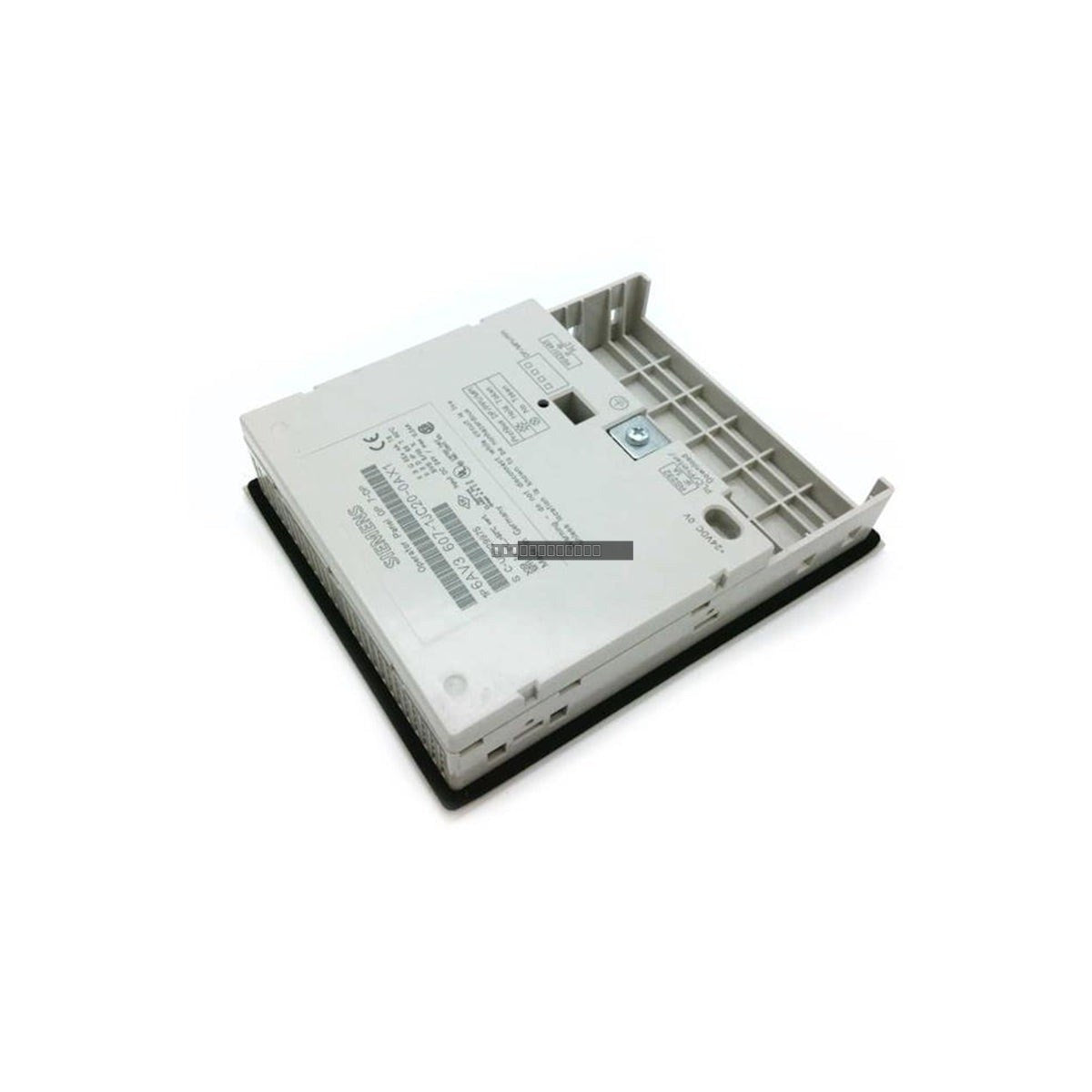

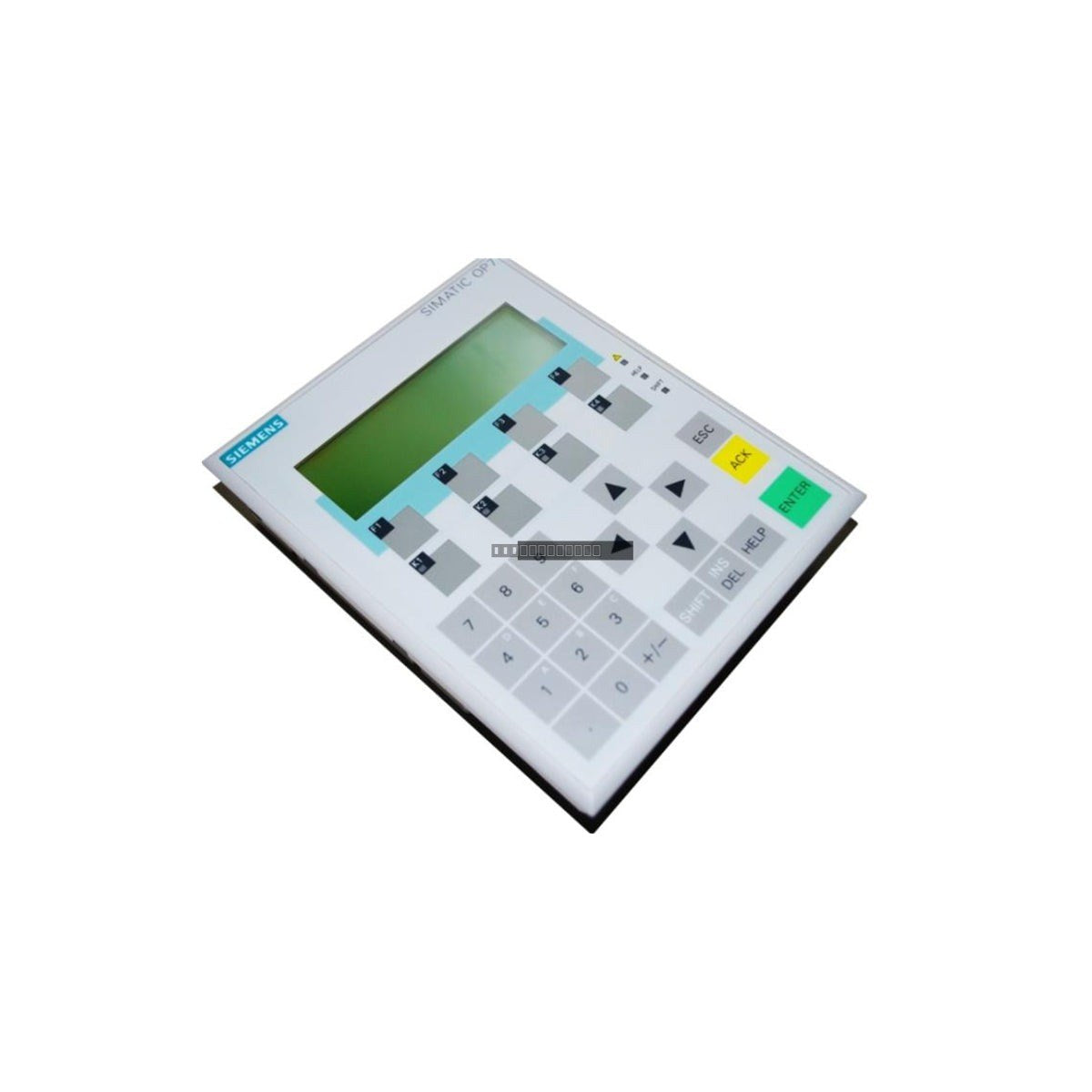

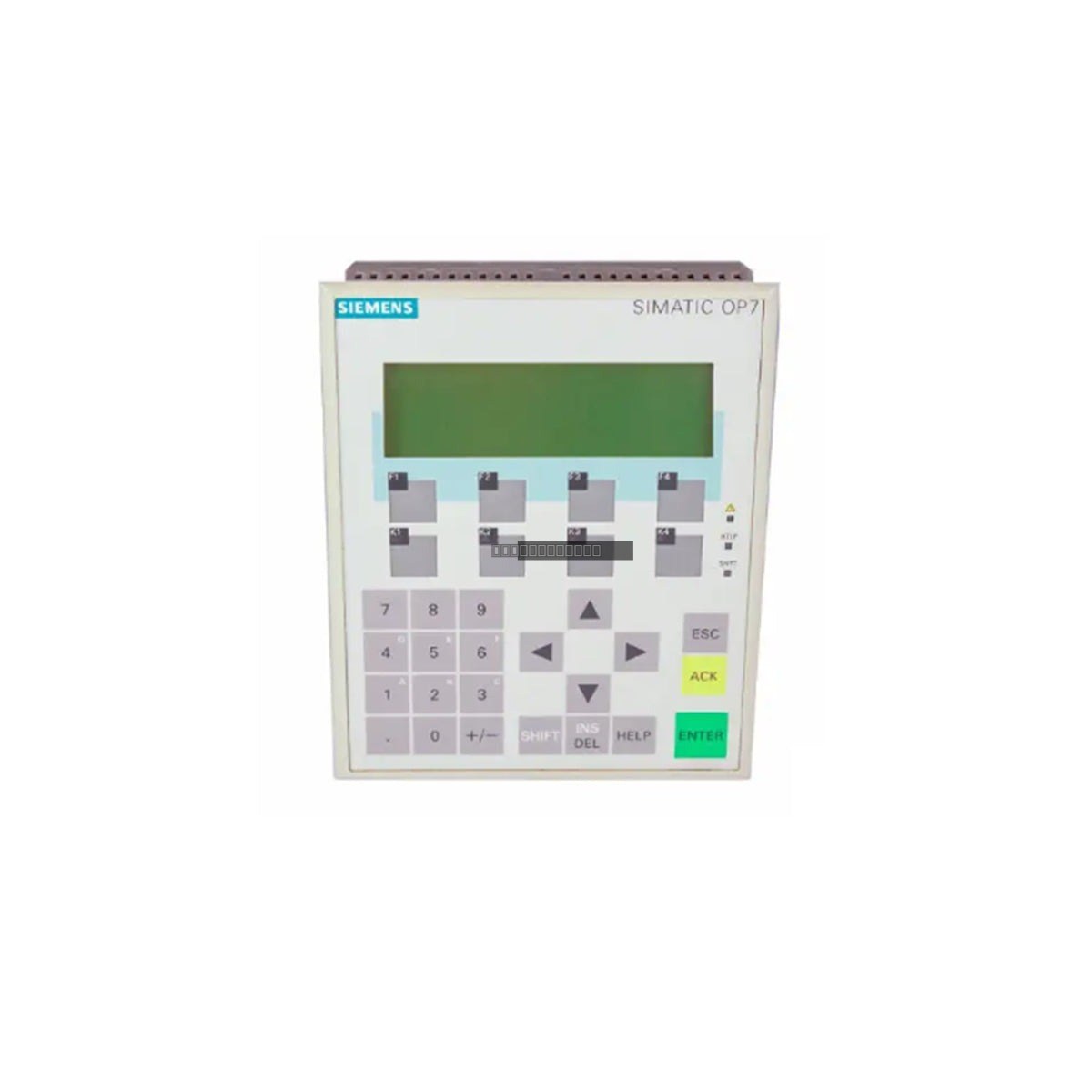

Siemens 6AV3607-1JC20-0AX1 SIMATIC OP7/DP Operator Panel

Availability: 9 left in stock

DescriptionThe Siemens 6AV3607-1JC20-0AX1 is a SIMATIC OP7/DP Operator Panel designed for human-machine interface (HMI) tasks within industrial automation environments. As...

SKU: 6AV3607-1JC20-0AX1

Manufacturer: Siemens
Product No.: 6AV3607-1JC20-0AX1
Product Type: Operator Panel
Product Origin: Germany
Payment:T/T, Western Union
Weight: 420g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6AV3607-1JC20-0AX1 is a SIMATIC OP7/DP Operator Panel designed for human-machine interface (HMI) tasks within industrial automation environments. As part of the legacy SIMATIC S7 operator interface series, this unit provides reliable control and monitoring capabilities for PLC-based systems. Please note that this product was officially discontinued by the manufacturer on October 1, 2018.

Features

High-contrast LC display with integrated LED back-lighting for clear visibility in various lighting conditions.
Display configuration: 4 lines with 20 characters per line, featuring 8 mm character height.
Integrated PROFIBUS-DP communication interface for seamless integration into Siemens S7 automation networks.
Compact operator interface design suitable for panel-mount applications.
Operating voltage: 24 VDC with a current consumption of 0.24 Amp.

Applications

The OP7/DP is typically utilized in manufacturing and process automation sectors for monitoring machine status, adjusting setpoints, and managing diagnostic data in conjunction with SIMATIC S7 controllers.

Technical Specifications

Product Model	6AV3607-1JC20-0AX1
Manufacturer	Siemens
Product Type	Operator Panel (OP7/DP)
Display Type	LC Display with LED Back-lighting
Display Capacity	4 Lines, 20 Characters per line
Character Height	8 mm
Communication	PROFIBUS-DP
Supply Voltage	24 VDC
Current Consumption	0.24 A
Status	Discontinued (01.10.2018)

Installation Guidelines

Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within specified limits.
The unit is designed for panel mounting; ensure the gasket is properly seated to maintain the required ingress protection rating.
Use shielded cables for PROFIBUS-DP communication to minimize electromagnetic interference (EMI).
Verify that the 24 VDC power supply is stable and properly grounded before connecting the device.
Always disconnect power before performing any wiring changes or maintenance to prevent electrical damage.

FAQ

Is the 6AV3607-1JC20-0AX1 still available from the manufacturer?

No, this model was discontinued by Siemens on October 1, 2018. It is currently available only through secondary market channels or as refurbished stock.

What communication protocol does this OP7 support?

This specific model (OP7/DP) supports the PROFIBUS-DP communication protocol for connecting to Siemens SIMATIC S7 controllers.
