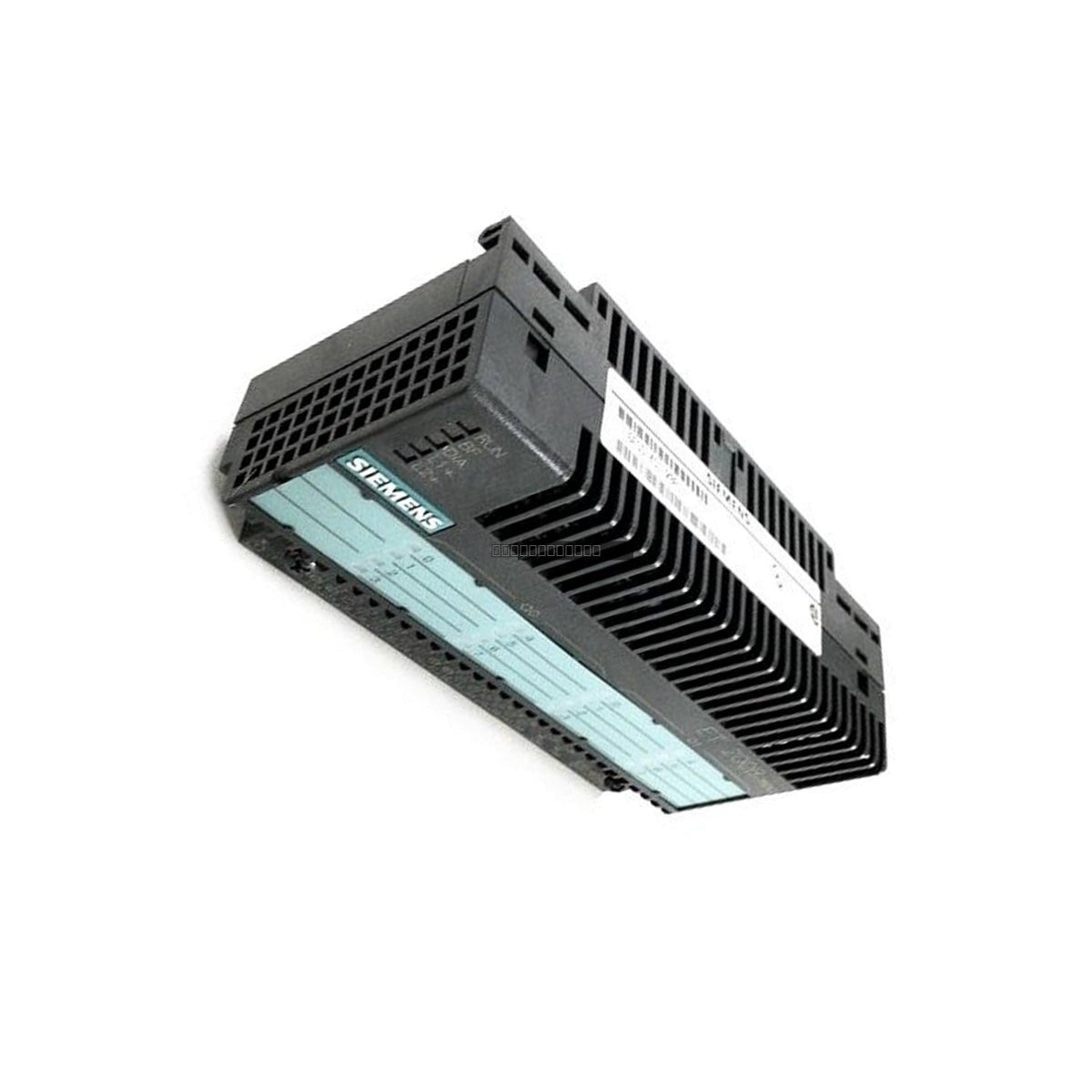

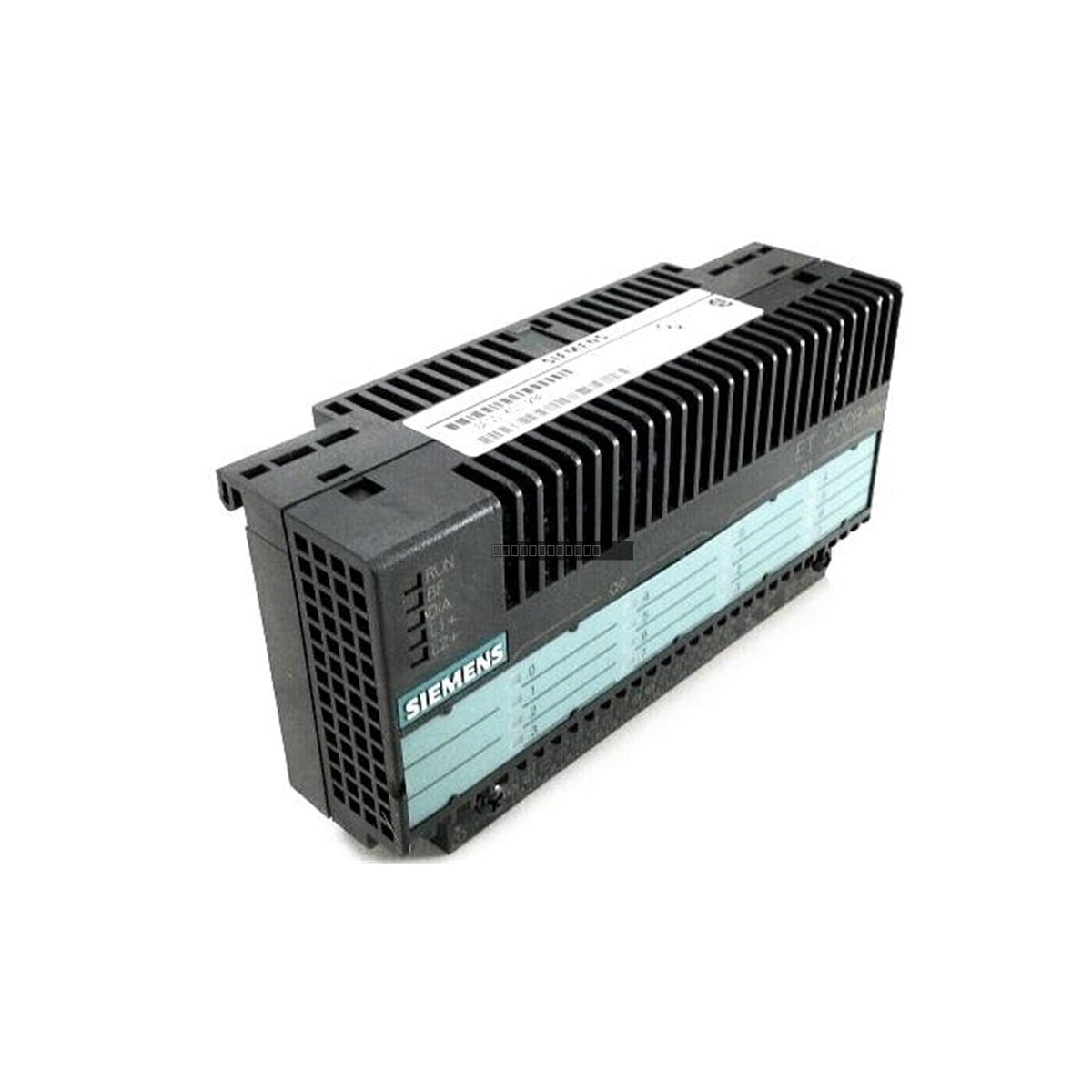

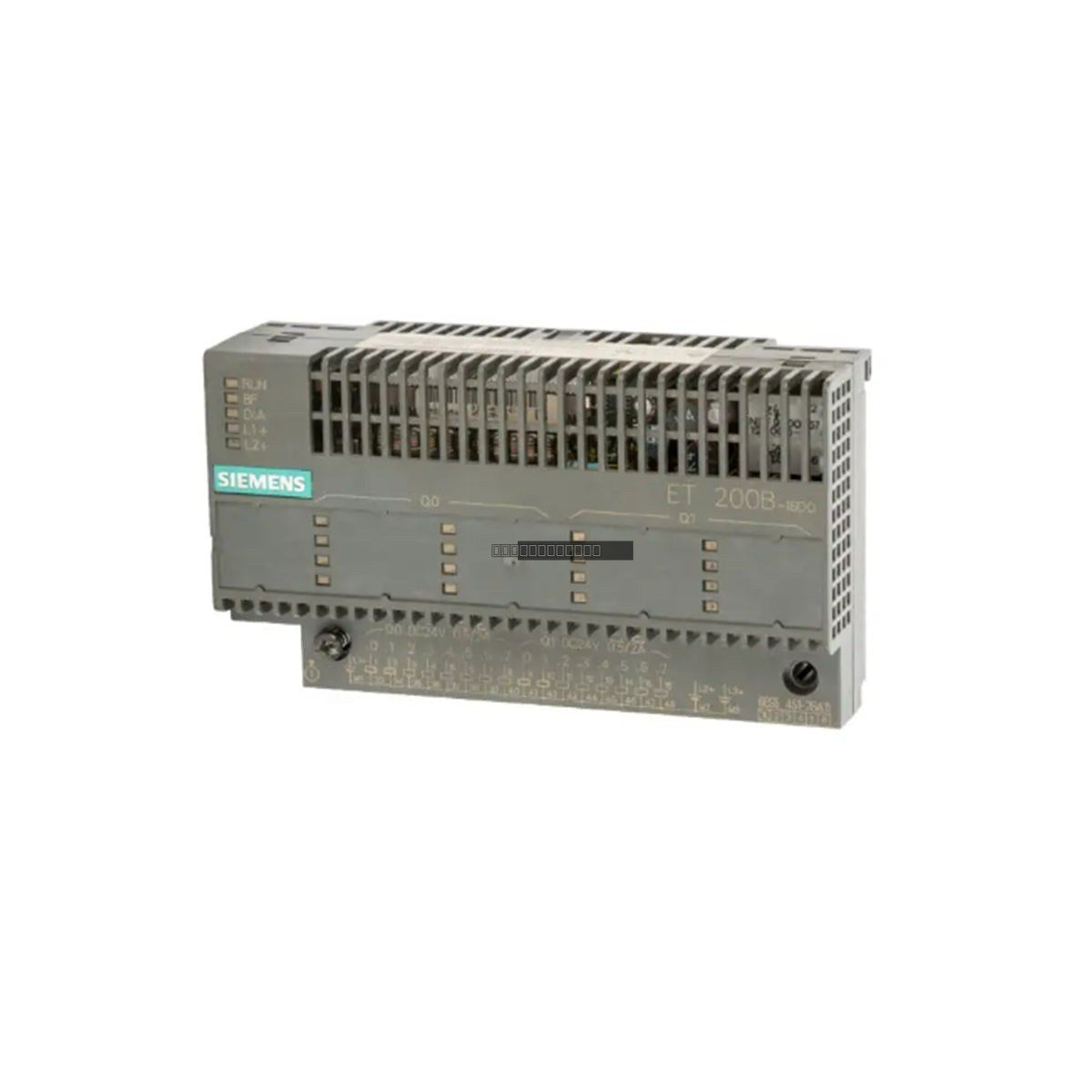

Siemens 6ES5451-2BA11 Simatic S5 Digital Output Module

Availability: 3 left in stock

DescriptionThe Siemens Simatic S5 6ES5451-2BA11 is a digital output module engineered for the ET 200B distributed I/O system. This module...

SKU: 6ES5451-2BA11

Manufacturer: Siemens
Product No.: 6ES5451-2BA11
Product Type: Digital Output Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens Simatic S5 6ES5451-2BA11 is a digital output module engineered for the ET 200B distributed I/O system. This module provides 16 electronic outputs designed for 24 VDC signal levels, serving as a critical interface between a centralized PLC and remote field actuators. It is widely utilized in legacy industrial environments, including automated warehousing, wastewater treatment, and automotive manufacturing, where maintaining the integrity of existing fieldbus nodes is essential for operational continuity.

Features

16-channel digital output configuration.
Designed for integration with the ET 200B distributed I/O system.
Integrated short-circuit and thermal overload protection per channel.
High-speed optocoupler isolation between logic and field circuits to prevent ground loops and inductive interference.
Plug-and-play design for rapid replacement on existing terminal block bases.

Applications

This module is intended for use in distributed control architectures requiring reliable 24 VDC switching. It is suitable for driving solenoids, relays, and indicators within legacy Simatic S5 PROFIBUS DP network segments.

Technical Specifications

Model	6ES5451-2BA11
Brand	Siemens
Series	Simatic S5 / ET 200B
Output Channels	16
Nominal Voltage	24 VDC
Output Current	0.5 A per channel (Max 8 A total)
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 70 deg C
Power Dissipation	4.5 W (nominal)

Installation Guidelines

Ensure the system power is disconnected before installing or removing the module from the ET 200B base.
The module is designed for mounting on an ET 200B terminal block base; ensure the pin matrix is aligned correctly to prevent damage to the connectors.
Maintain adequate ventilation in the control cabinet to ensure the operating temperature remains within the 0 to 60 deg C range.
Use shielded cabling for field connections to minimize EMI, especially in high-noise industrial environments.
Handle with standard ESD precautions to protect internal semiconductor components.

FAQ

Is this module compatible with modern S7 systems?

The 6ES5451-2BA11 is specifically designed for the Simatic S5 / ET 200B architecture. Compatibility with modern S7 systems is generally limited to specific legacy gateways or PROFIBUS DP configurations that support the S5 protocol mapping.

Does this module require external power?

Yes, the module requires a 24 VDC supply for the output load circuits, which is typically provided through the ET 200B terminal block base.
