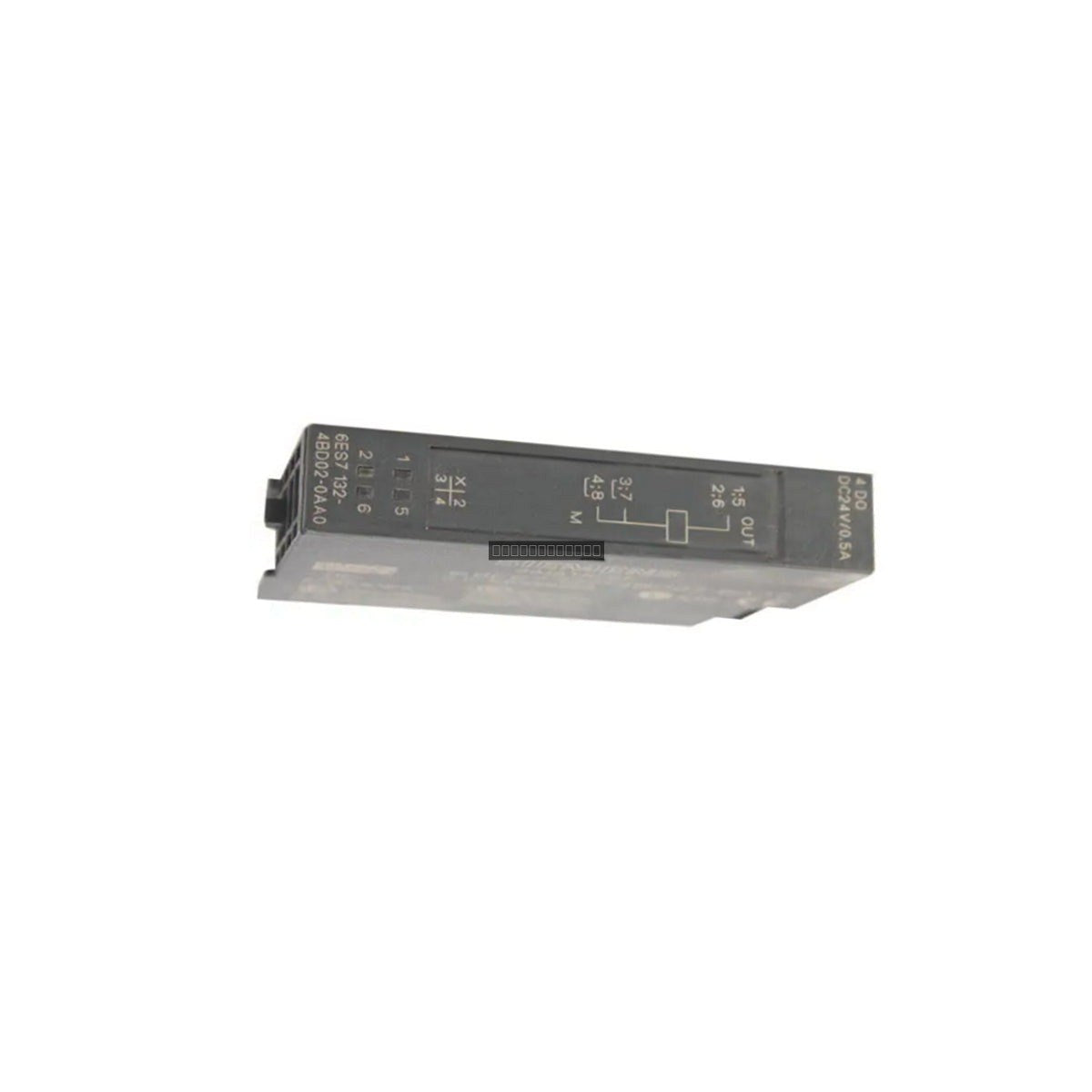

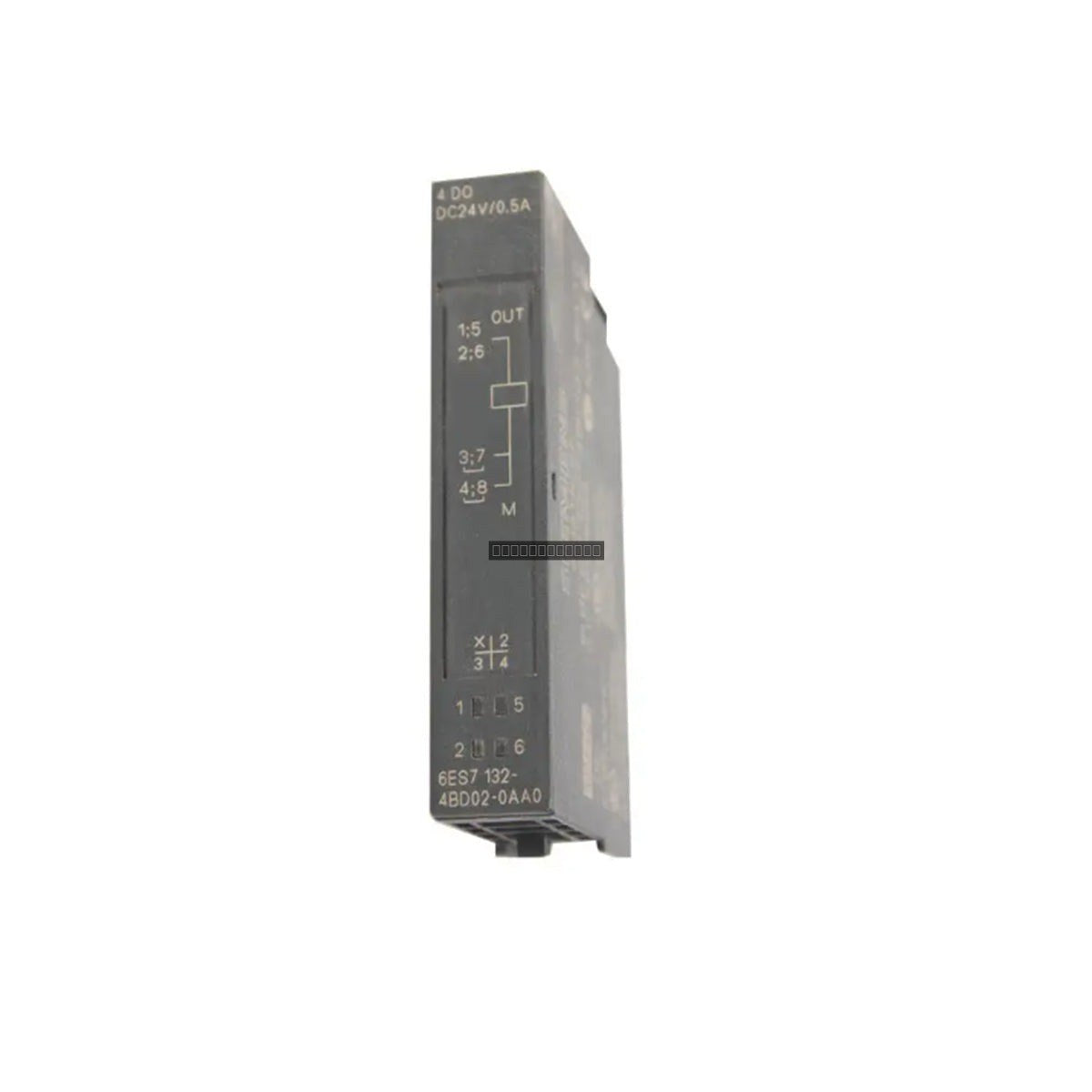

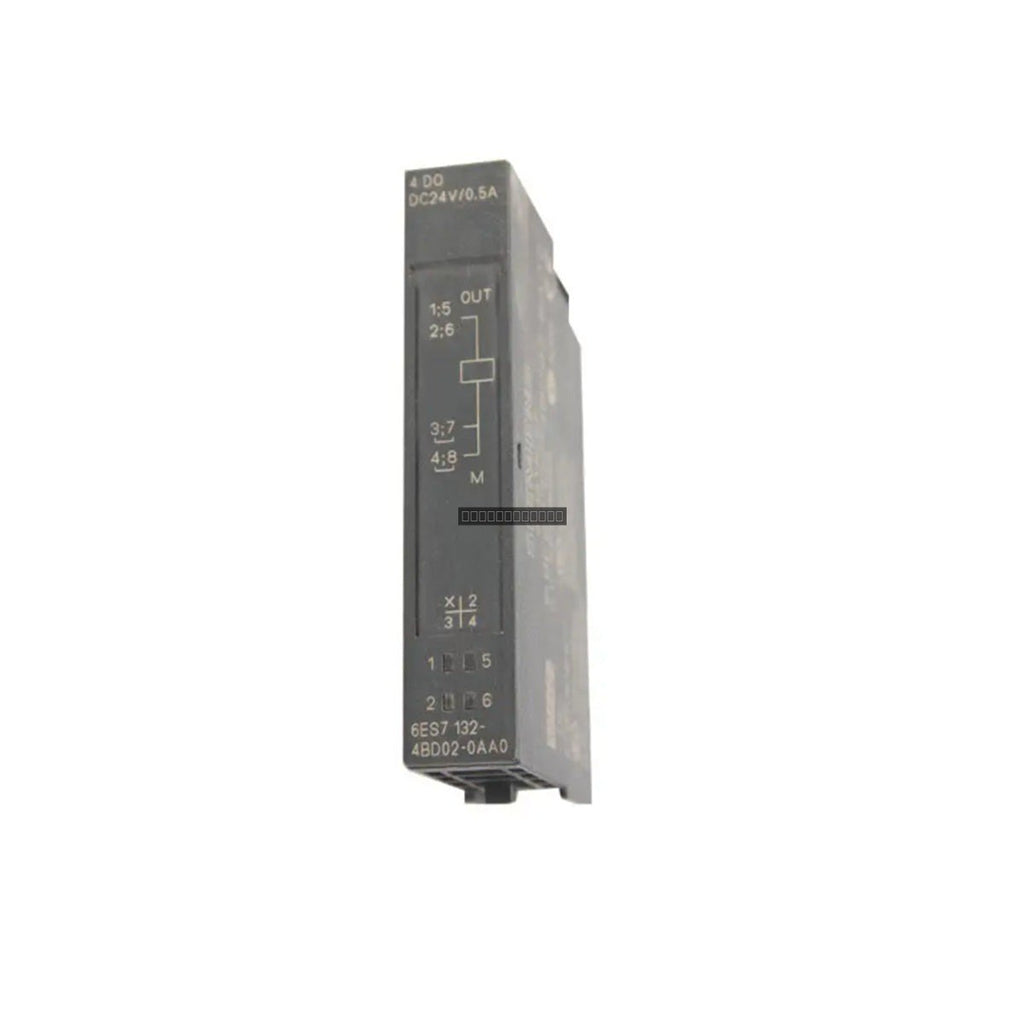

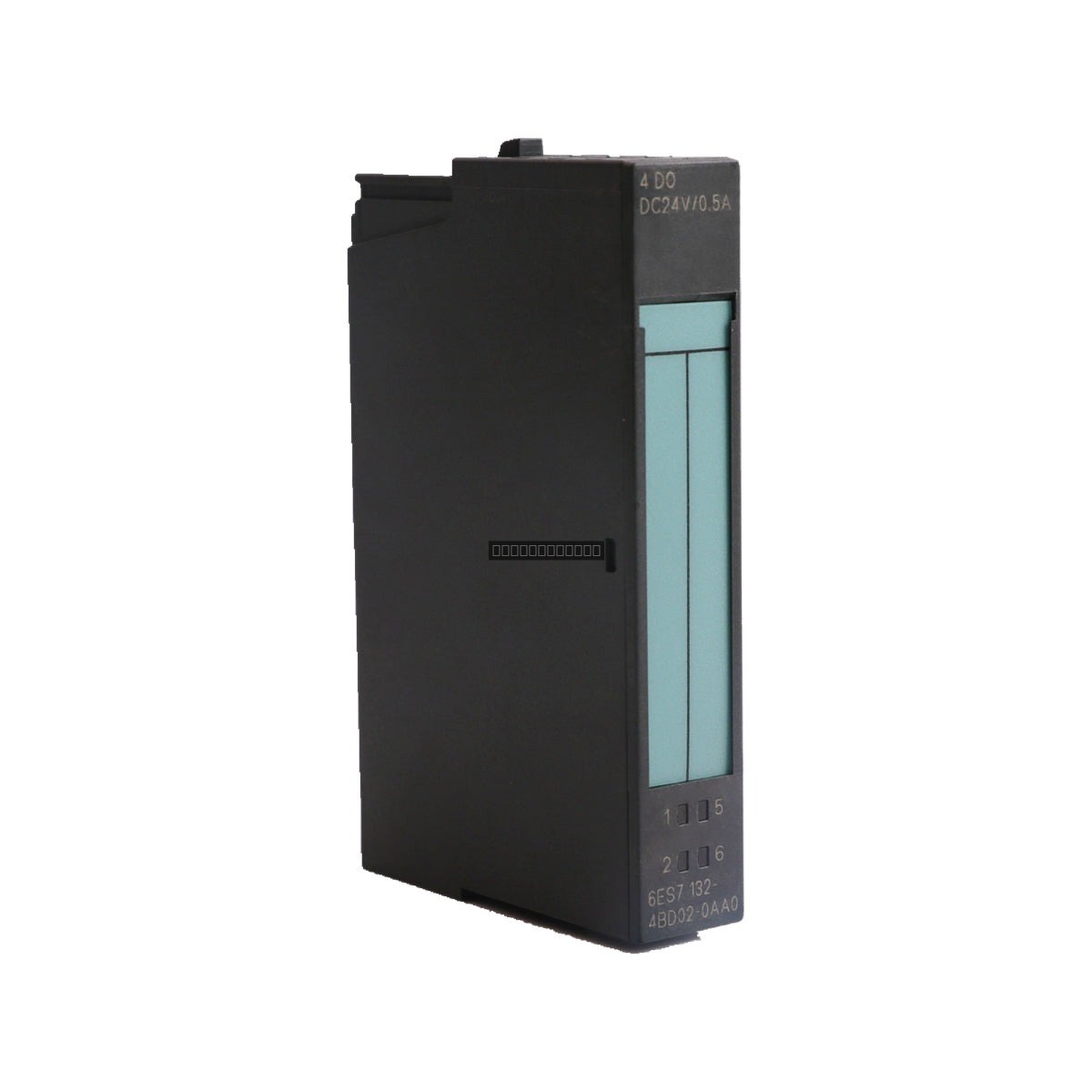

Siemens 6ES7132-4BD02-0AA0 SIMATIC ET 200S Digital Output Module

Availability: 8 left in stock

DescriptionThe Siemens 6ES7132-4BD02-0AA0 is a SIMATIC DP electronic module designed for the ET 200S distributed I/O system. This module provides...

SKU: 6ES7132-4BD02-0AA0

Manufacturer: Siemens
Product No.: 6ES7132-4BD02-0AA0
Product Type: Digital Output Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 40g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6ES7132-4BD02-0AA0 is a SIMATIC DP electronic module designed for the ET 200S distributed I/O system. This module provides 4 digital output channels, each rated for 24 V DC at 0.5 A. Engineered with a compact 15 mm width, it integrates seamlessly into ET 200S stations to provide reliable switching for industrial field devices such as solenoid valves, contactors, and indicator lamps.

Features

4-channel digital output module for ET 200S distributed I/O
24 VDC / 0.5 A per channel output configuration
Integrated short-circuit protection with a typical response threshold of 1 to 1.5 A
Inductive shutdown voltage limitation (L+ minus 55 V to 60 V) for spike suppression
Supports resistive, inductive, and lamp loads
Compact 15 mm module width for high-density I/O configurations

Applications

Manufacturing and assembly lines requiring deterministic timing
Automotive industry conveyors, robotics, and testing stations
Energy and power distribution management systems
Process control in chemical and water treatment facilities
High-speed packaging, sorting, and palletizing systems

Technical Specifications

Product Model	6ES7132-4BD02-0AA0
Manufacturer	Siemens
Rated Voltage	24 V DC
Output Current (per channel)	0.5 A
Total Current (per module)	2 A
Power Loss (typ.)	0.8 W
Response Threshold (short-circuit)	1 to 1.5 A
Isolation Voltage	500 V DC
Switching Frequency (resistive)	Up to 800 Hz
Switching Frequency (inductive)	2 Hz
Switching Frequency (lamp)	10 Hz

Installation Guidelines

Ensure the ET 200S terminal module (Type A or B) is securely mounted on a standard 35 mm DIN rail (EN 60715) before inserting the electronic module.
Power down the ET 200S station before inserting or removing any electronic modules to prevent electrical arcing or backplane bus damage.
Align the electronic module with the terminal module guide rails and press firmly until the mechanical latch clicks, ensuring proper connection to the backplane bus.
Use shielded cabling for field wiring to minimize EMI in high-noise industrial environments.
Verify that the load voltage L+ is correctly applied to the terminal module to enable reverse polarity protection features.

FAQ

What is the 6ES7132-4BD02-0AA0?

The Siemens 6ES7132-4BD02-0AA0 is a 4-channel digital output electronic module used within the SIMATIC ET 200S distributed I/O system.

What terminal module is required for this electronic module?

This module requires a compatible ET 200S terminal module (such as those of type A or type B) to provide the necessary physical wiring connection points.

Does the module support short-circuit protection?

Yes, the module features built-in electronic short-circuit protection to safeguard your system against overcurrents.

What loads can it safely drive?

It is built for solenoid valves, DC contactors, and indicator lights. The maximum switching frequency varies by load type, with up to 800 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads (up to 5 W).
