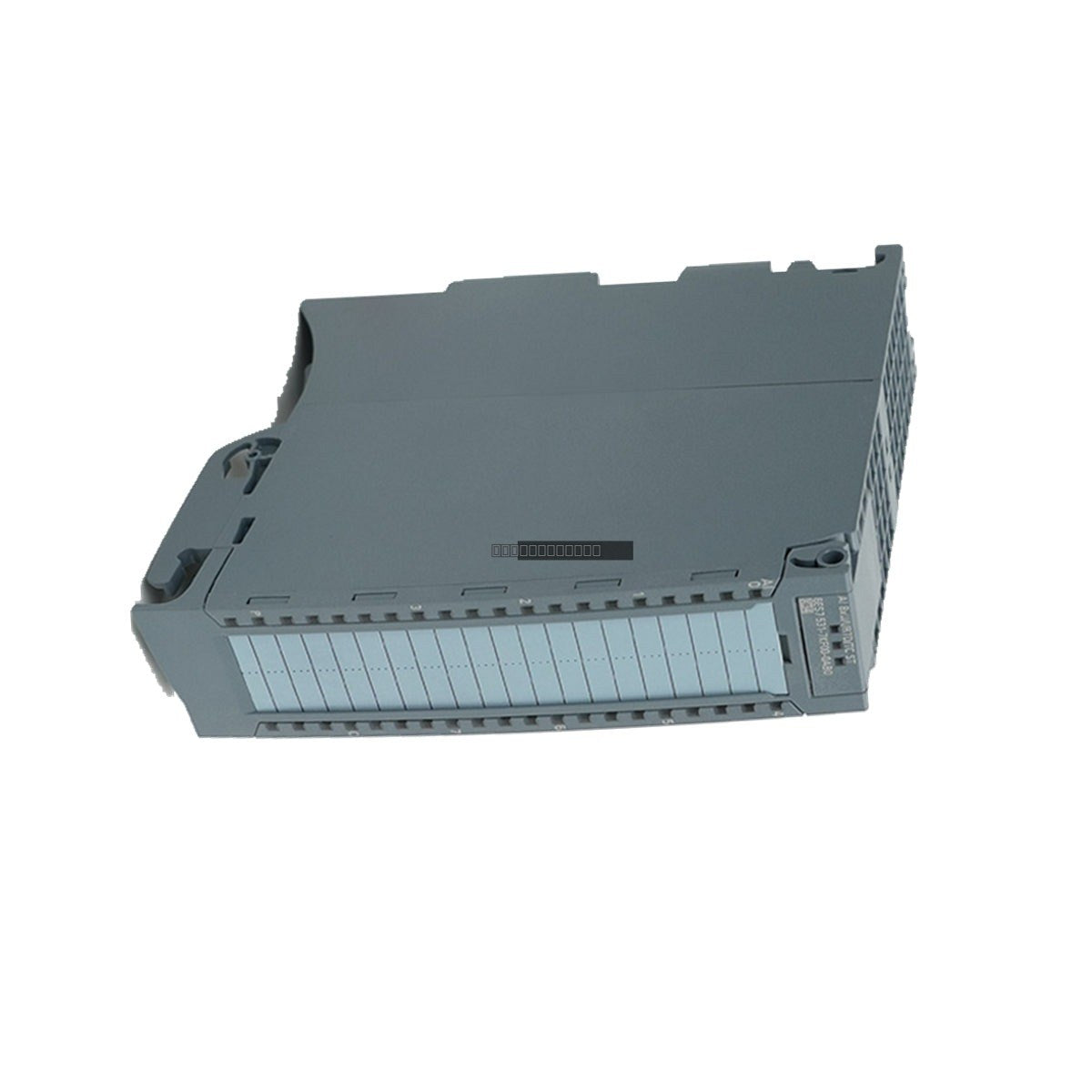

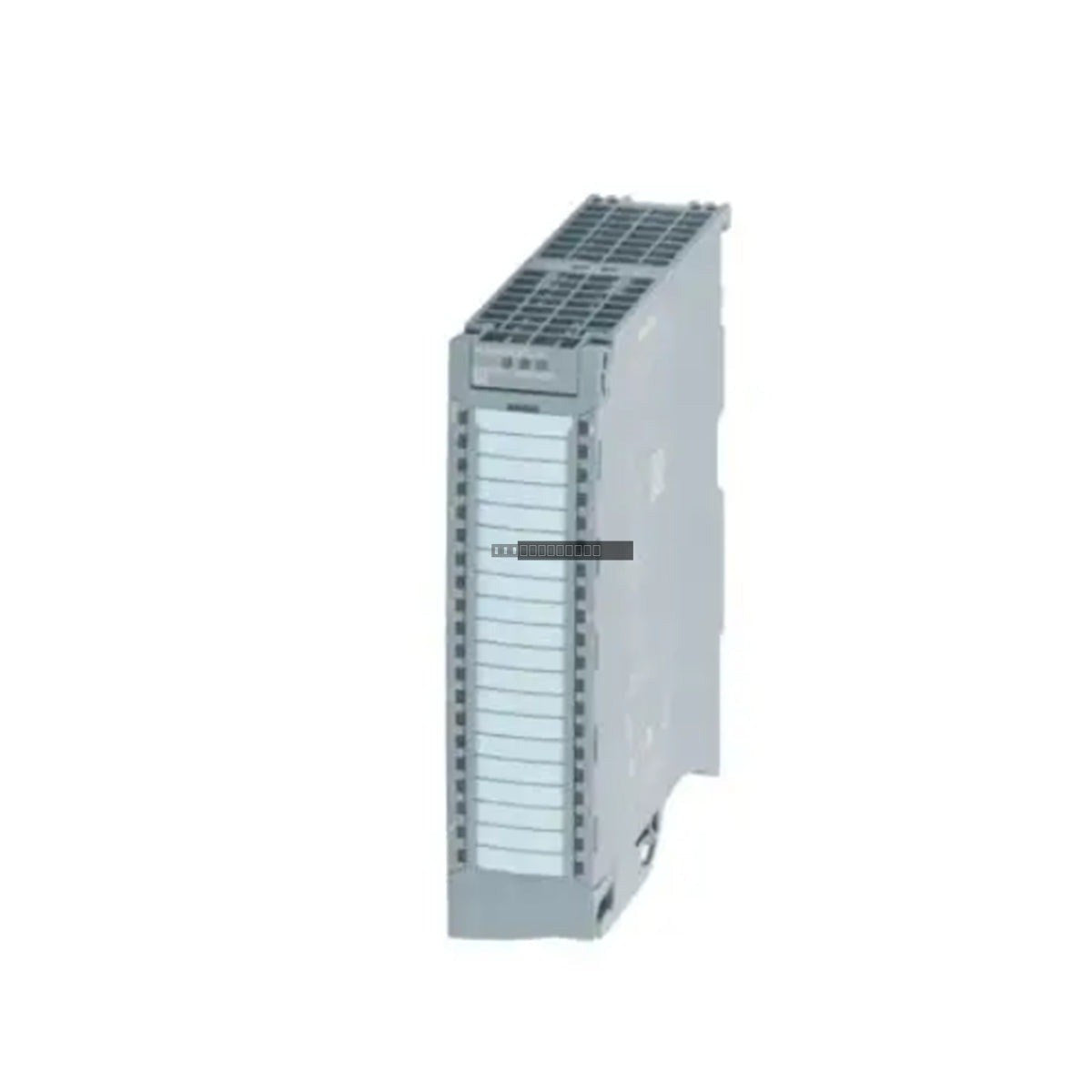

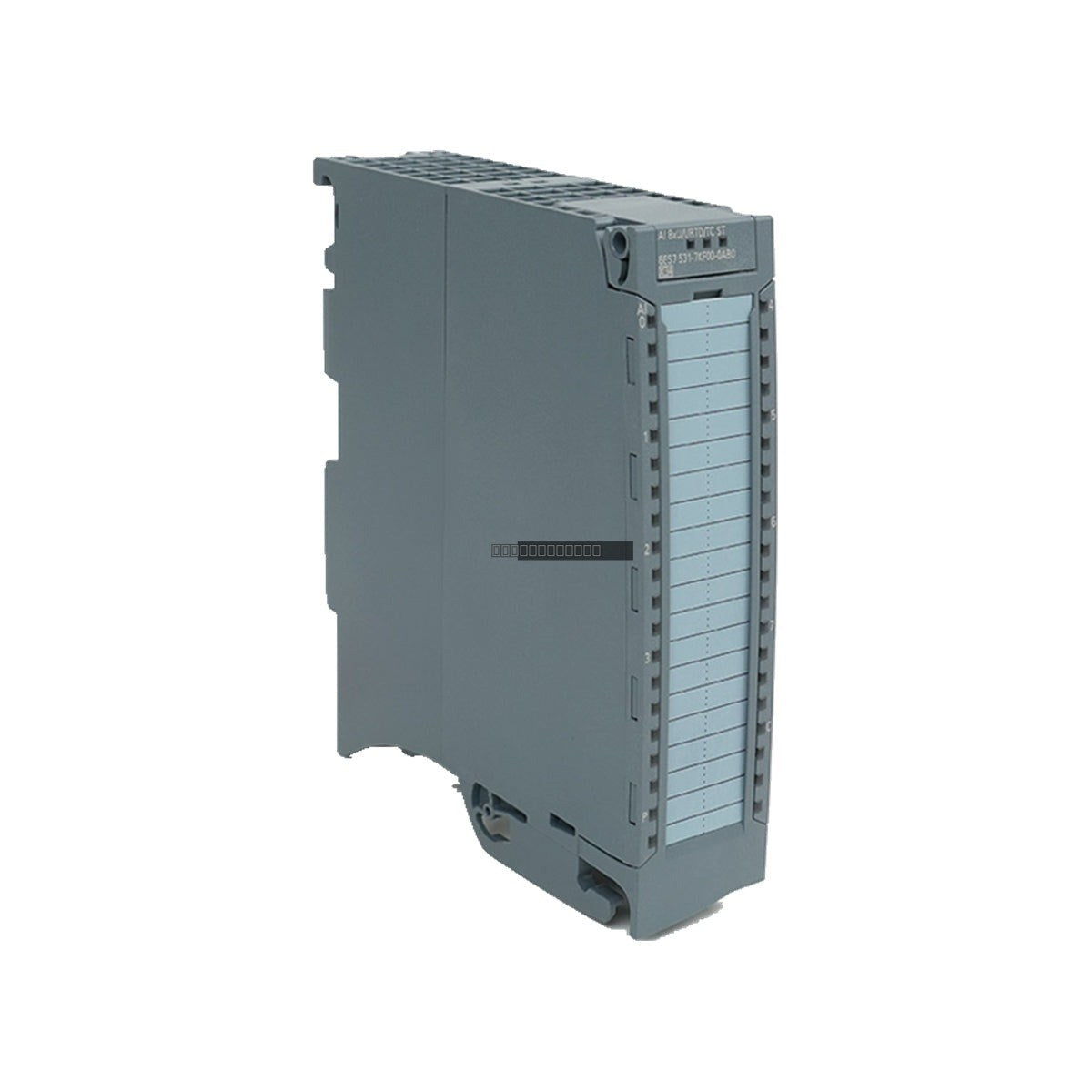

Siemens 6ES7531-7KF00-0AB0 SIMATIC S7-1500 Analog Input Module

Availability: 8 left in stock

DescriptionThe Siemens 6ES7531-7KF00-0AB0 is an analog input module designed for the SIMATIC S7-1500 automation system. This module provides 8 channels...

SKU: 6ES7531-7KF00-0AB0

Manufacturer: Siemens
Product No.: 6ES7531-7KF00-0AB0
Product Type: Analog Input Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6ES7531-7KF00-0AB0 is an analog input module designed for the SIMATIC S7-1500 automation system. This module provides 8 channels of high-resolution analog signal processing, suitable for a wide range of industrial measurement and control applications. It supports various voltage and current input ranges, offering flexibility for connecting sensors and transmitters directly to the PLC backplane.

Features

8 analog input channels with 16-bit resolution for high-precision data acquisition.
Supports multiple input ranges: +/-10V, 0-10V, 0-5V, +/-5V, 0-20mA, and 4-20mA.
Integrated diagnostic functions to monitor signal integrity and module health.
Supports hardware interrupts for time-critical process response.
Compatible with the SIMATIC S7-1500 system architecture.
Requires a separate front connector for field wiring.

Technical Specifications

Model	6ES7531-7KF00-0AB0
Channels	8
Resolution	16-bit
Rated Supply Voltage (DC)	24V (20.4V to 28.8V)
Max. Current Consumption	240 mA (at 24V DC)
Power Loss (typ.)	2.7 W
Backplane Power	0.7 W
Firmware Version	V2.0.0
HW Functional Status	From FS01

Installation Guidelines

Ensure the S7-1500 CPU and power supply are powered down before installing or removing the module from the mounting rail.
Mount the module on a standard 35mm DIN rail using the integrated locking mechanism.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at the entry point to the control cabinet.
The front connector (ordered separately) must be wired according to the specific channel configuration before being seated into the module.
Maintain adequate clearance around the module to ensure proper ventilation and heat dissipation.

FAQ

Does this module include the front connector?

No, the front connector is not included with the module and must be ordered separately.

What is the resolution of the analog inputs?

This module features a 16-bit resolution, providing high-precision conversion for the supported voltage and current ranges.

Is this module compatible with all S7-1500 CPUs?

Yes, the 6ES7531-7KF00-0AB0 is designed for use within the standard SIMATIC S7-1500 product family. Please verify your specific CPU firmware requirements if using advanced features.
