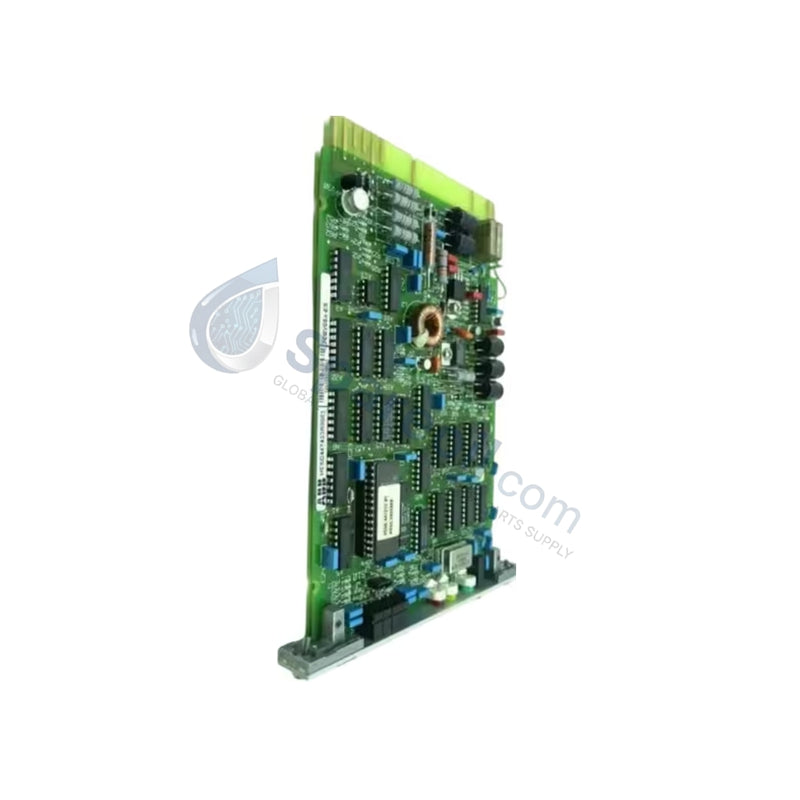

70EA01A-E ABB Industrial Data Acquisition Module Brand New

Availability: 10 left in stock

Product Overview The ABB 70EA01A-E functions as a high-precision universal analog interface for the Procontrol P13 and P14 Distributed Control...

SKU: 70EA01a-E

Manufacturer: ABB
Product No.: 70EA01a-E
Product Type: Analog Input Modules
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The ABB 70EA01A-E functions as a high-precision universal analog interface for the Procontrol P13 and P14 Distributed Control Systems (DCS). This module captures critical field data from a variety of sensors—including pressure transmitters, flow meters, and temperature probes—and converts these signals into high-resolution digital data for system processing. It serves as a vital component for power plant boiler monitoring, turbine control, and complex chemical process regulation.

Technical Specifications

The 70EA01A-E utilizes advanced 16-bit A/D conversion technology to ensure signal integrity across vast industrial networks.

Attribute	Specification Details
Model Number	70EA01A-E
Signal Inputs	Voltage (0-10V, 1-5V), Current (0-20mA, 4-20mA)
Temperature Inputs	RTD (Pt100, etc.), Thermocouples, mV signals
Resolution	16-bit High-Resolution A/D Conversion
Isolation	Optical and Galvanic isolation
Form Factor	Euro-card for P13/P14 subrack mounting
Operating Temp	–25 °C to +55 °C
Storage Temp	–40 °C to +70 °C
Protection	IP20 / Built-in Self-test diagnostics
Weight	0.45 kg

Engineering Advantages

The 70EA01A-E solves complex signal acquisition challenges through several key engineering features:

Universal Input Versatility: This module eliminates the need for multiple specialized cards. By supporting current, voltage, RTDs, and thermocouples on a single platform, it reduces spare part inventory costs and simplifies system design.
Superior Noise Immunity: Galvanic isolation protects the internal system bus from field-side electrical transients and ground loops. This architecture ensures that high-voltage surges in the field do not compromise the integrity of the central DCS logic.
Precision Positioning and Control: The 16-bit resolution provides the granularity required for fine-tuned process control. It detects minute fluctuations in temperature or pressure, allowing the controller to make faster, more accurate adjustments to critical valves and actuators.
Simplified Retrofit Integration: The Euro-card design fits directly into existing Procontrol P13/P14 racks. This makes the 70EA01A-E the ideal choice for lifecycle extension projects where older, lower-resolution analog cards require replacement without full cabinet overhauls.

FAQs

Is the ABB 70EA01A-E supplied as new or refurbished?

We supply the 70EA01A-E as 100% Brand New and Original. Each unit ships in factory-sealed packaging to ensure maximum reliability and longevity for your critical control systems.

Does this module require manual calibration?

The 70EA01A-E features factory calibration and extensive self-diagnostic routines. The module performs internal self-tests and monitors channel health automatically, reporting any drift or hardware faults directly to the Procontrol engineering station.

Can I mix different input types on a single 70EA01A-E module?

Yes. The module configuration allows for various input types across its channels. However, you must verify the specific wiring diagrams and software parameters within the Procontrol configuration tool to ensure correct signal scaling and terminal assignment.

How does the module handle a failed sensor signal?

The module’s built-in diagnostics detect out-of-range signals (such as a broken wire or shorted sensor). It flags these channels as "invalid" or "faulty" in the system bus, allowing the controller to trigger safety interlocks or switch to redundant sensors.
