80KHz High-Speed Counter I/O Original

80KHz High-Speed Counter I/O Original | Emerson IC200MDD841

Availability: 10 left in stock

Product Overview The IC200MDD841 serves as a specialized, high-density solution for applications requiring both standard discrete control and precision pulse sensing. This...

SKU: IC200MDD841

Manufacturer: GE Fanuc
Product No.: IC200MDD841
Product Type: High-Speed Counter Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

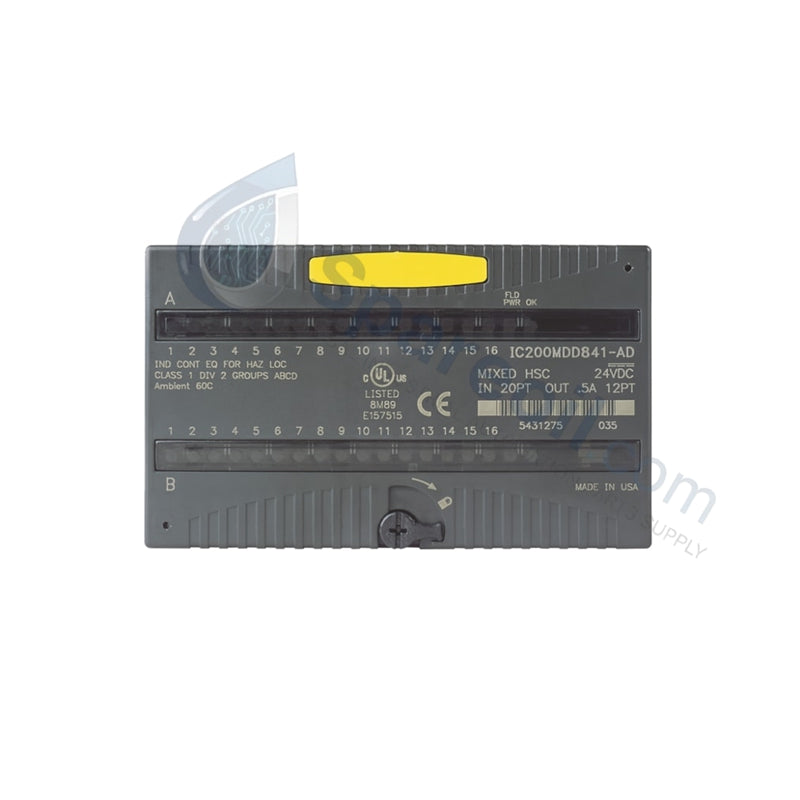

The IC200MDD841 serves as a specialized, high-density solution for applications requiring both standard discrete control and precision pulse sensing. This VersaMax module integrates 32 total I/O points, featuring 20 digital inputs and 12 digital outputs. Most importantly, it includes four Type A High-Speed Counters capable of processing pulse signals up to 80 KHz. This makes it a critical component for motion tracking, flow metering, and high-speed sorting. We supply this module as 100% Brand New and Original, ensuring high-frequency accuracy for your most demanding industrial tasks.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Product Line	VersaMax
Total I/O Points	32 Points (Configurable)
Discrete Inputs	20 Points (24 VDC)
Discrete Outputs	12 Points (24 VDC Transistor)
High-Speed Counter	4 Type A Counters
Max Pulse Frequency	80 KHz
Operating Voltage	24 VDC (Nominal)
Input Current	30 mA
Backplane Power	5 VDC (Draws from carrier)
Weight	0.38 lbs (0.17 kg)

Engineering Advantages

Precision High-Speed Sensing: The four onboard 80 KHz high-speed counters allow the PLC to track rapid mechanical movements that standard input modules would miss. This capability supports precise encoder feedback, turbine flow meter monitoring, and high-velocity pulse-width modulation (PWM) tasks.
Optimized I/O Density: By combining 20 inputs and 12 outputs into a single module width, the IC200MDD841 reduces hardware overhead. This high-density footprint saves significant space on the DIN rail and simplifies cabinet layout for complex OEM machinery.
Fast Transistor Switching: The 12 transistor outputs provide the rapid, bounce-free switching necessary for controlling high-cycle solenoids or triggering external motion drives. Unlike mechanical relays, these solid-state outputs support high-frequency operation with virtually infinite mechanical life.
Versatile Signal Logic: The 24 VDC inputs interface easily with standard industrial sensors. The module processes pulse trains and standard discrete signals simultaneously, allowing it to handle basic interlocking logic and advanced motion counting within the same hardware block.
Advanced Diagnostics: Integrated LEDs provide immediate visual feedback for each I/O point and the overall health of the high-speed counter channels. This transparency streamlines commissioning and reduces troubleshooting time during field maintenance.

FAQs

What is the difference between Type A counters and standard inputs?

Standard inputs are limited by the PLC scan cycle (typically 1–10ms). The Type A High-Speed Counters on the IC200MDD841 operate independently of the CPU scan, allowing them to capture pulses up to 80,000 times per second (80 KHz) for total accuracy in high-speed motion.
Does this module require a specific I/O carrier?

Yes, the IC200MDD841 requires a standard VersaMax I/O carrier (such as the IC200CHS001 or IC200CHS002). The carrier provides the physical wiring terminals and the backplane connection to the PLC CPU or Network Interface Unit (NIU).
Can I use the outputs for Pulse Width Modulation (PWM)?

Yes. The transistor outputs on this module are suitable for high-speed switching tasks, including PWM and pulse-train generation (PTO) for driving stepper or servo controllers, provided the frequency requirements fall within the module's rated switching limits.
Is the 24VDC power isolated from the backplane?

The module features optical isolation between the field-side 24VDC signals and the 5VDC backplane logic. This protects the PLC CPU from electrical surges, transients, and ground loops occurring in the field wiring.
