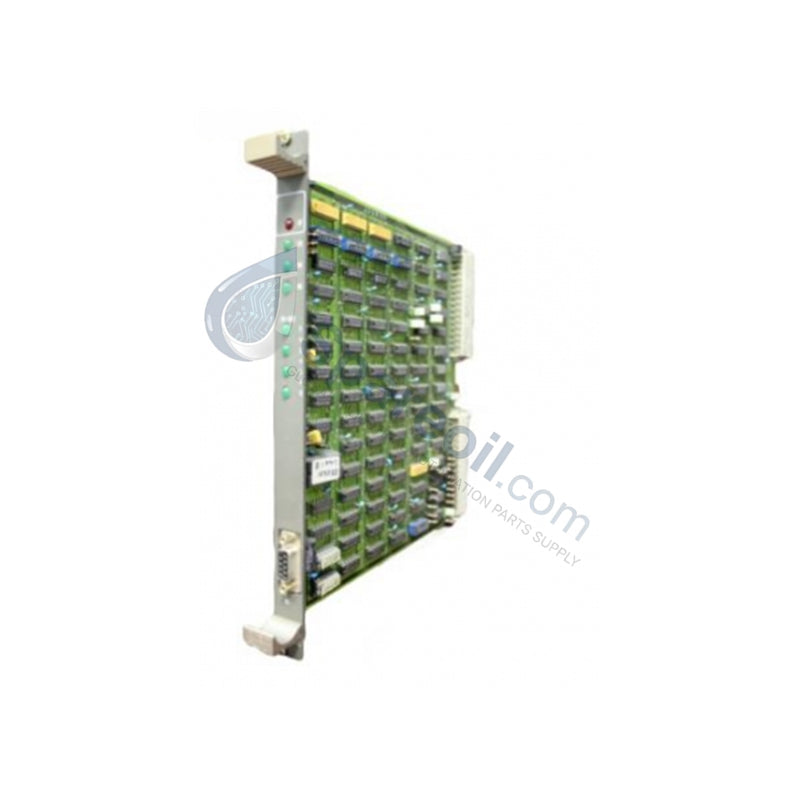

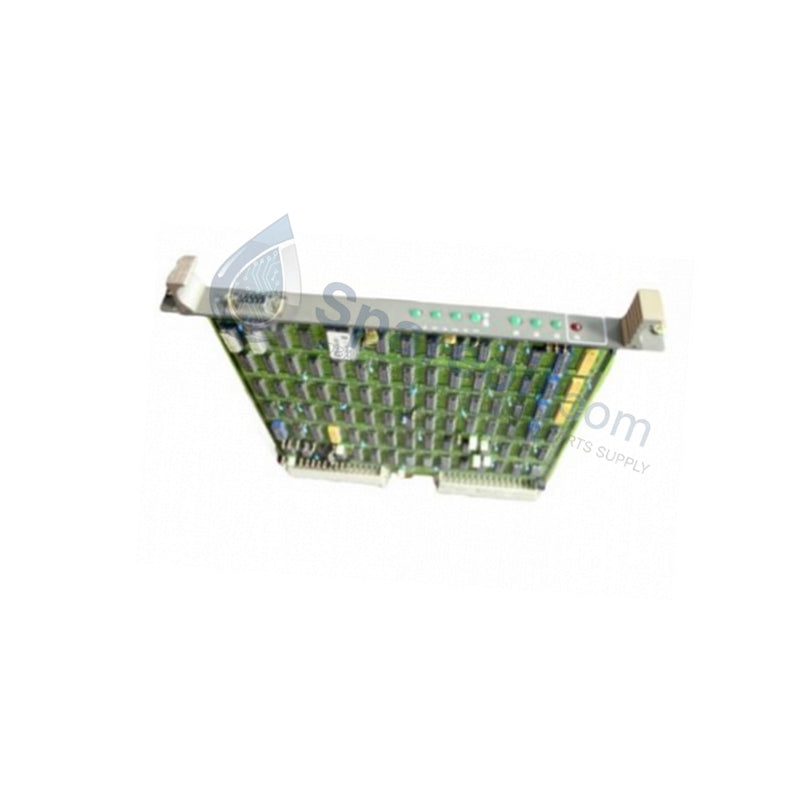

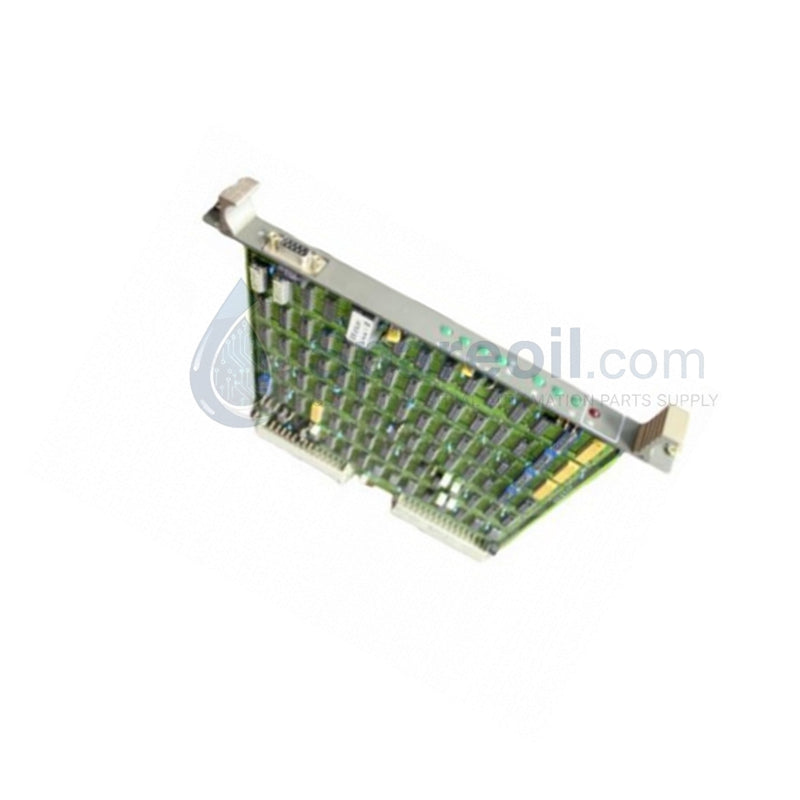

88VK01A-E ABB GJR2312200R1010 Brand New Output Module

Availability: 10 left in stock

Product Overview The ABB 88VK01A-E (GJR2312200R1010) serves as a high-density digital output interface for legacy and modern ABB automation ecosystems,...

SKU: 88VK01A-E GJR2312200R1010

Manufacturer: ABB
Product No.: 88VK01A-E GJR2312200R1010
Product Type: ABB Masterpiece
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The ABB 88VK01A-E (GJR2312200R1010) serves as a high-density digital output interface for legacy and modern ABB automation ecosystems, including Advant OCS, Masterpiece 200/1, and S100 I/O racks. This module translates internal controller logic into 32 discrete 24V DC signals, driving field actuators such as solenoids, relays, and pilot lights. Its rugged Euro-card architecture ensures seamless backplane communication and mechanical stability in high-vibration industrial environments.

Technical Specifications

This module utilizes opto-isolation to shield sensitive control logic from field-side electrical noise and surges.

Attribute	Specification Details
Model Number	88VK01A-E
Part Number	GJR2312200R1010
Output Channels	32 Digital Outputs
Output Voltage	24 V DC
Output Current	0.5 A per channel
Isolation Voltage	2500 V (Opto-isolated)
Architecture	Euro-card for rack installation
Power Consumption	24 V DC via System Bus
Operating Temp	–25 °C to +70 °C
Dimensions	180 × 120 × 20 mm
Weight	0.35 kg

Engineering Advantages

The 88VK01A-E addresses specific industrial infrastructure challenges through its advanced hardware profile:

Noise Immunity in Power Plants: 2500V opto-isolation prevents ground loops and electromagnetic interference (EMI) from migrating from field devices back to the central processor, a critical requirement for power generation and grid monitoring.
Extreme Thermal Resilience: While many modules fail at 50°C, the 88VK01A-E maintains precise switching up to +70 °C. This wider operating window allows for installation in non-air-conditioned field cabinets or high-heat processing zones.
Simplified Maintenance Diagnostics: The module provides real-time diagnostic feedback to the system controller. Engineers identify fault conditions at the channel level, which significantly reduces "mean time to repair" (MTTR) by pinpointing failed actuators without manual tracing.
Legacy Support & Modern Integration: This module bridges the gap between older Masterpiece systems and modern AC800M platforms using S100 I/O. It provides a reliable pathway for plant life-extension projects without requiring a complete rewiring of field instrumentation.

FAQs

Is this 88VK01A-E GJR2312200R1010 unit brand new?

Yes. We supply this module as 100% Brand New and Original in its factory packaging. Despite its compatibility with legacy systems, our stock consists of unused, current-manufacture units to ensure maximum service life.

Can this module drive inductive loads directly?

The 88VK01A-E handles typical 0.5A loads like small solenoids and relays. However, for large inductive loads with high inrush current or significant back-EMF, we recommend using external interposing relays or flyback diodes to prolong the contact life of the module's solid-state drivers.

How does the module signal a channel failure?

The 88VK01A-E incorporates internal monitoring circuitry that detects abnormal output states. It reports these discrepancies via the ABB system bus to your HMI or Engineering Station, allowing for immediate software-based alerting of hardware faults.
