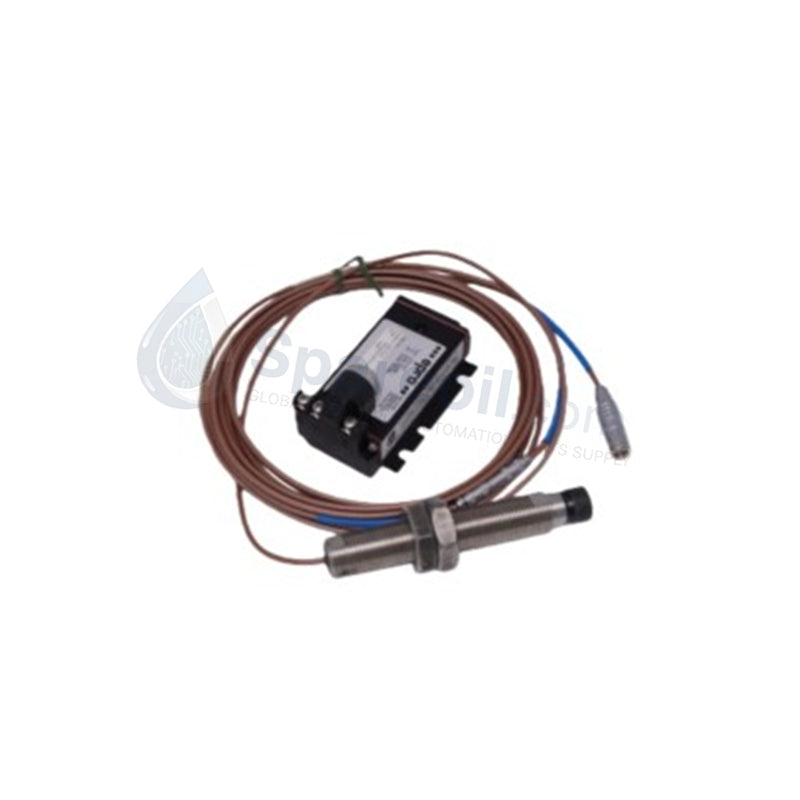

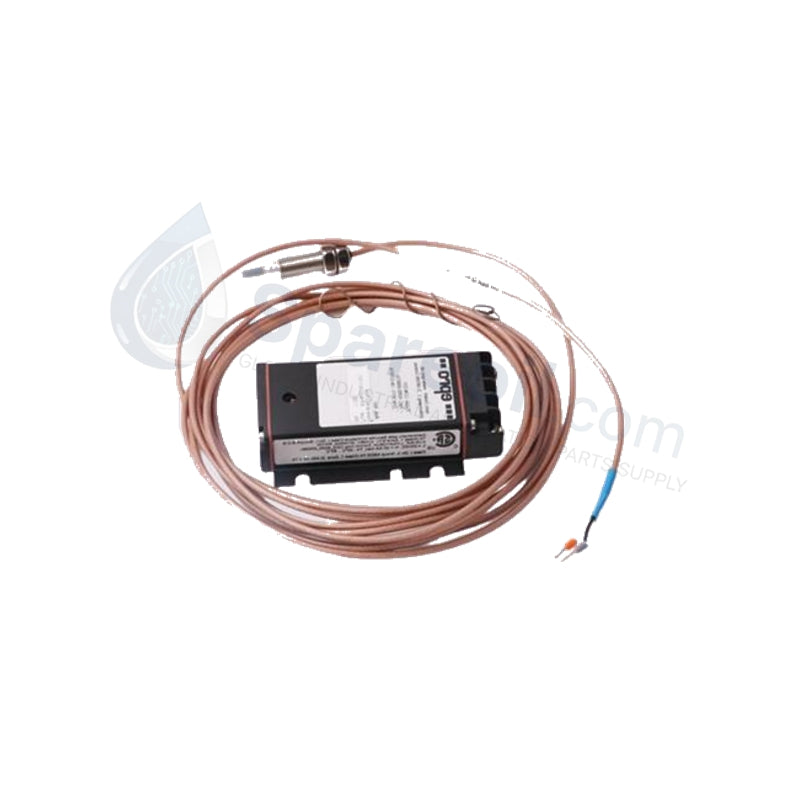

8mm Eddy Current Vibration Probe | PR6423/003-030 Emerson EPRO

Availability: 99 left in stock

Product Overview The Emerson EPRO CON021 + PR6423/003-030 constitutes a precision-engineered eddy-current proximity transducer system. This high-performance set measures shaft vibration and...

SKU: CON021+PR6423/003-030

Manufacturer: Emerson
Product No.: CON021+PR6423/003-030
Product Type: Industrial Monitoring
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Emerson EPRO CON021 + PR6423/003-030 constitutes a precision-engineered eddy-current proximity transducer system. This high-performance set measures shaft vibration and axial displacement in critical rotating machinery by converting physical gap changes into proportional voltage signals. We provide this system as 100% Brand New and Original, ensuring full compliance with API 670 standards for mission-critical monitoring of steam turbines, gas turbines, and high-speed compressors.

Technical Specifications

Feature	Details
Probe Model	PR6423/003-030 (8mm Tip)

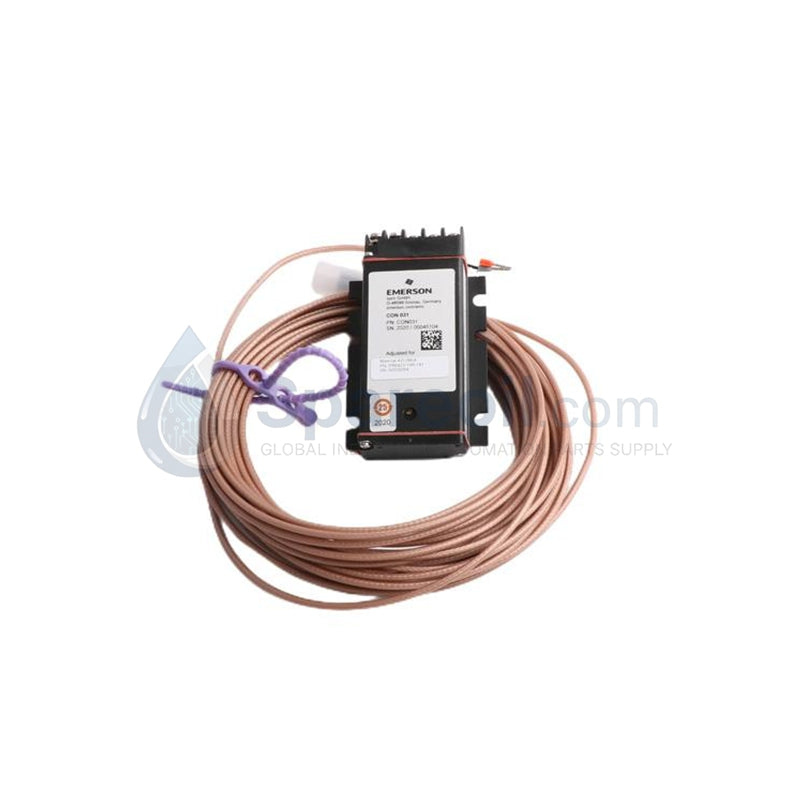

Driver Model	CON021 Proximitor® Signal Conditioner
Sensitivity	7.87 V/mm (200 mV/mil) ±5%
Linear Range	0.25 mm to 2.0 mm (10 to 80 mils)
Nominal Gap	2.0 mm
Target Material	Ferromagnetic steel (AISI 4140 / DIN 1.7225)
System Length	Configurable for 5 m or 9 m total length
Probe Temp Range	–35 °C to +180 °C
Driver Temp Range	–35 °C to +85 °C
Compliance	API 670 Machinery Protection Standard

Engineering Advantages

Optimized 8mm Tip Precision: The PR6423/003-030 probe utilizes a specialized 8mm tip diameter to generate a stable electromagnetic field. This design ensures high-resolution vibration tracking and displacement sensing, even in high-speed machinery environments where standard sensors might suffer from signal jitter.
Superior Signal Conditioning: The CON021 Proximitor® driver processes raw impedance changes into a clean, linear voltage output. This hardware-level conditioning minimizes signal loss over long cable runs and provides a direct, low-impedance interface for Emerson/EPRO monitoring racks or plant DCS systems.
Extreme Thermal Stability: The probe head maintains accuracy in ambient temperatures up to +180 °C. This allows for direct installation near turbine bearings and within high-pressure housings, ensuring continuous surveillance in the hottest zones of the machine train.
Standardized API 670 Integration: The system strictly adheres to the API 670 machinery protection standard. This ensures that the sensitivity, linearity, and mechanical dimensions remain consistent with global industry requirements, facilitating easy maintenance and cross-platform compatibility.

FAQs

1. Does the CON021+PR6423/003-030 system include the extension cable?

This specific part number refers to the probe and driver set. For a functional measurement loop, you must select the appropriate extension cable to achieve a total system length of either 5 meters or 9 meters. The driver comes factory-calibrated for the specific total system length requested.

2. Can I use the CON021 driver with a non-Emerson monitoring system?

While the CON021 generates a standard voltage output proportional to displacement, it functions optimally within the Emerson/EPRO architecture. If connecting to a third-party PLC or DCS, ensure the input card supports a negative voltage signal (typically -2V to -18V DC) and matches the 7.87 V/mm sensitivity.

3. What is the significance of the target material (AISI 4140)?

Eddy current sensors calibrate specifically to the electrical and magnetic properties of the target. The 003-030 probe is calibrated for AISI 4140 ferromagnetic steel. Using a different shaft material (like stainless steel or aluminum) will cause significant errors in sensitivity and linear range without a material correction factor.

4. How do I verify the mechanical gap during installation?

After mounting the probe, measure the DC output voltage. For a standard 200 mV/mil system, a centered gap typically yields approximately -10V DC. Adjust the mechanical position until the voltage reaches this "bias" point to ensure the shaft remains within the linear region during both thermal expansion and vibration events.
