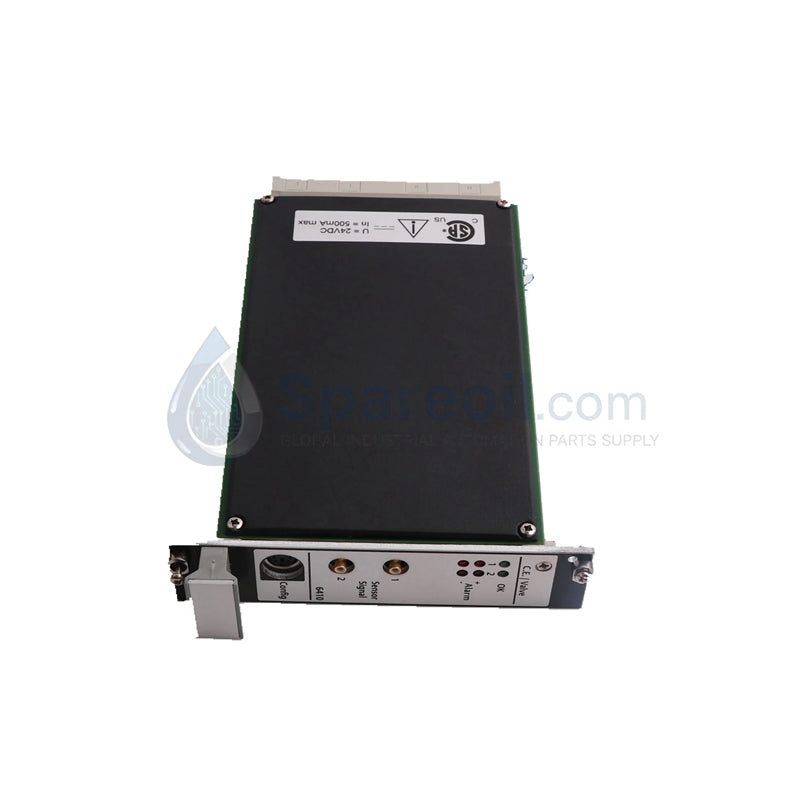

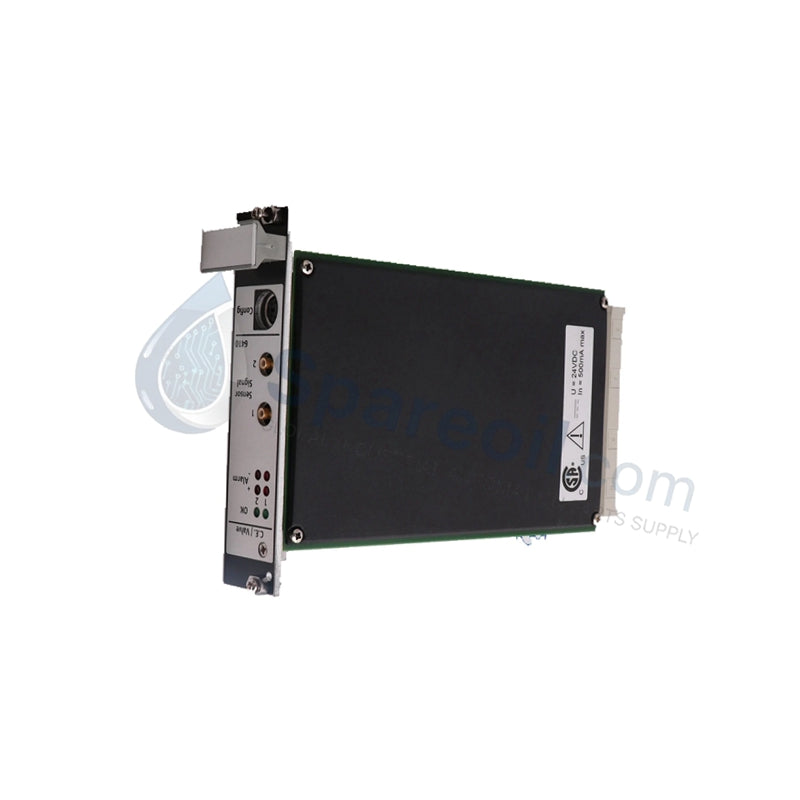

A6410 Emerson Dual Channel Vibration & Position Monitor

Availability: 99 left in stock

Product Overview The Emerson EPRO A6410 serves as a core diagnostic and protection component within the AMS 6500 ATG (Advanced Technology Generation)...

SKU: A6410

Manufacturer: Emerson
Product No.: A6410
Product Type: Overspeed Protection
Product Origin: USA
Payment:T/T, Western Union
Weight: 440g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Emerson EPRO A6410 serves as a core diagnostic and protection component within the AMS 6500 ATG (Advanced Technology Generation) framework. This versatile module processes high-speed signals from eddy current probes, seismic sensors, and piezoelectric transducers to monitor critical turbomachinery parameters. It specializes in dual-channel shaft position and shell (cylinder) expansion measurement, providing the hardware-level logic required for emergency shutdowns and predictive maintenance. We supply this unit as 100% Brand New and Factory Sealed, ensuring your critical rotating assets remain under laboratory-grade surveillance.

Technical Specifications

The A6410 hardware excels in high-density data acquisition and fail-safe signal processing.

Parameter	Specification
System Framework	AMS 6500 ATG (Fits A6500-SR Rack)
Input Channels	Multiple high-speed sensor inputs
Supported Sensors	Eddy current, Piezoelectric, Seismic, Speed sensors
Output Signals	0–10 V DC / 4–20 mA current loops
Communication	Modbus, RS-485, Profibus DP-V1
Power Supply	24 V DC (Standard Industrial)
Operating Temp	-20 °C to +70 °C
Redundancy	Dual communication card support
Weight	0.44 kg
Dimensions	24 cm x 17 cm x 6.5 cm

Engineering Advantages

Comprehensive Multi-Parameter Monitoring: The A6410 monitors relative vibration, absolute displacement, and shell expansion simultaneously. This unified processing prevents the phase-shift errors that occur when using separate, non-synchronized monitoring cards for complex machinery 보호 (protection).
Automated Drift Compensation: Sophisticated internal algorithms compensate for thermal drift and sensor aging automatically. This feature eliminates the need for frequent manual recalibration, maintaining ±1% accuracy across the entire operational lifecycle of the turbine.
Direct DCS/PLC Integration: The module supports industrial-standard Modbus and Profibus DP-V1 protocols. This allow the A6410 to stream high-resolution diagnostic data directly to the control room without requiring intermediate signal conditioners or gateways.
Redundant Fail-Safe Architecture: Designed for high-availability environments, the A6410 supports dual communication paths. This redundancy ensures that the machinery protection system remains functional even during a partial network or hardware failure, preventing uncommanded trips.

FAQs

Can the A6410 monitor both vibration and speed?

Yes. The A6410 features universal input architecture. You can configure the individual channels via the AMS 6500 ATG software to process either dynamic vibration signals or high-frequency pulse inputs for speed and zero-speed detection.
Does this module support hot-swapping within the A6500-SR rack?

The AMS 6500 ATG architecture supports module replacement; however, you must follow strict safety protocols. Always bypass the associated protection and shutdown loops in the DCS before removing an A6410 card to prevent an unintended emergency machine trip.
What is the significance of "Shell Expansion" monitoring?

Shell (or cylinder) expansion monitoring tracks the thermal growth of the turbine casing relative to the foundation. Accurate measurement via the A6410 prevents mechanical interference between the rotor and stator during startup and shutdown phases, where thermal gradients are most extreme.
Is special cooling required for the A6410?

The module operates reliably up to +70 °C. However, in high-density rack configurations or enclosed cabinets where ambient temperatures exceed +55 °C, we recommend forced air cooling to ensure optimal component longevity and signal stability.
