Product Overview

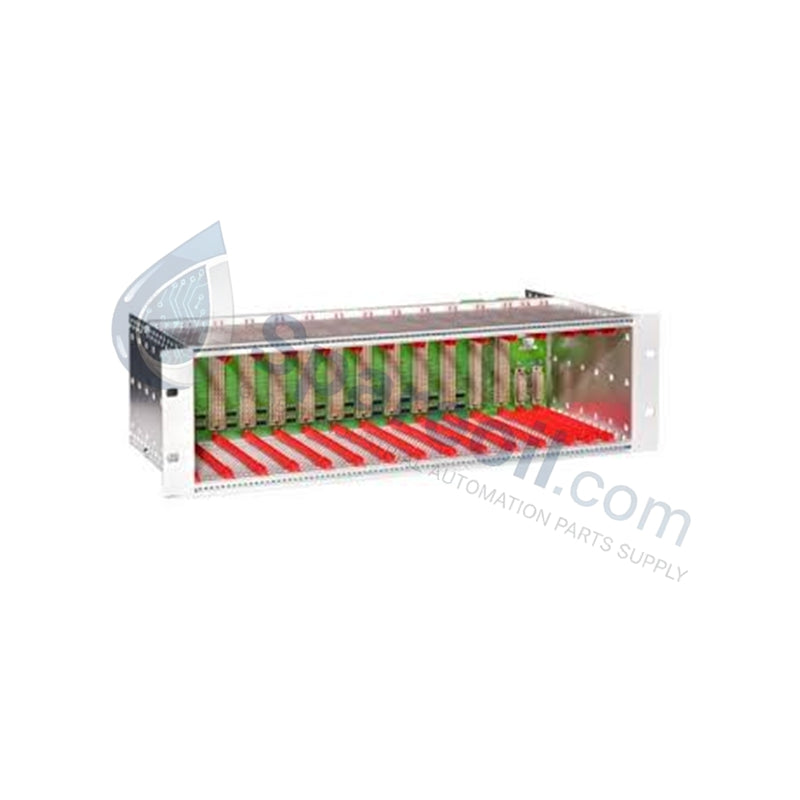

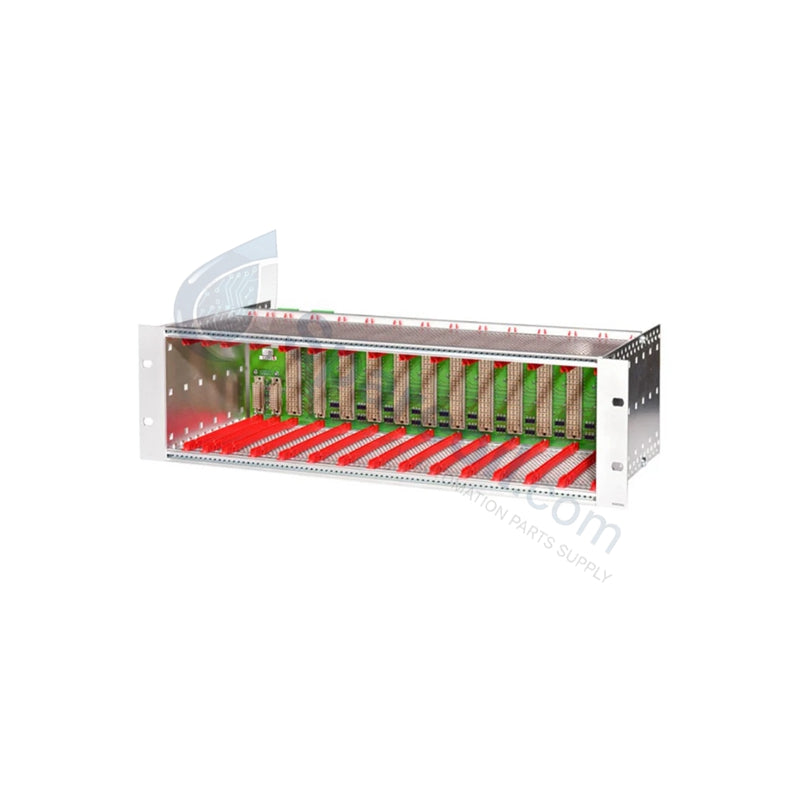

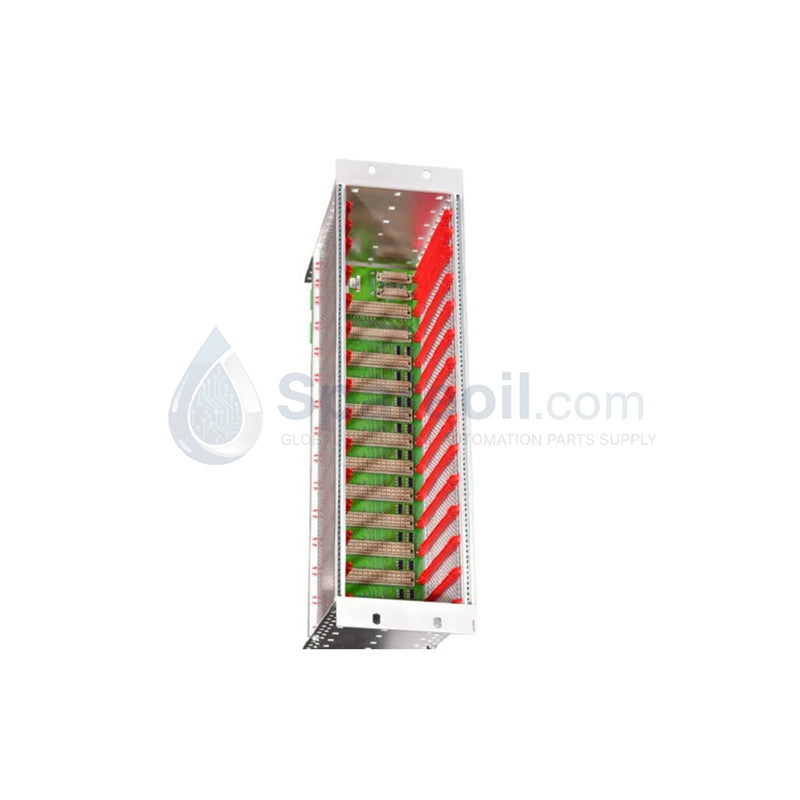

The Emerson A6500-SR serves as the central structural and electrical backbone for the AMS 6500 ATG machinery protection system. This 19-inch, 3RU chassis houses and integrates a full suite of monitoring modules, including vibration, displacement, speed, and temperature cards. It facilitates high-speed data exchange between modules and provides the necessary connectivity for external DCS and PLC systems. We supply this rack as 100% Brand New and Factory Sealed, ensuring a reliable foundation for critical turbomachinery protection in power generation and petrochemical facilities.

Technical Specifications

The A6500-SR combines high-density slot capacity with robust environmental resistance.

Parameter	Specification
Rack Standard	19-Inch Industrial Rack (3RU Height, 84HP Width)
Module Capacity	Up to 11 Universal Protection Cards (A6500-UM/TP)
Auxiliary Slots	1 Relay Card (A6500-RC) and 1–2 Communication Cards
Connectivity	Push-in spring cage and D-Sub connectors
Vibration Resistance	0.15 mm at 20 m/s² (10–55 Hz)
Operating Temp	-20 °C to +70 °C (with forced cooling)
Communication	Supports Redundant Configuration
Weight	2400 g (5.3 lbs)

Engineering Advantages

Optimized Slot Density: The A6500-SR maximizes cabinet space by housing up to 11 universal protection cards in a compact 3RU form factor. This high density allows for the comprehensive monitoring of multiple bearing points from a single rack.
Redundant Data Integrity: The rack architecture supports dual A6500-CC communication cards. This redundancy ensures that the machinery protection system continues to transmit vital health data even if a single network path or card fails.
Universal Sensor Interface: The backplane accepts inputs from a diverse range of sensors, including eddy current probes, piezoelectric accelerometers, seismic sensors, and RTDs. This versatility eliminates the need for separate, specialized racks for different measurement types.
Resilient Field Connections: Push-in spring cage connectors simplify the wiring process and resist loosening caused by industrial vibrations. This design maintains gas-tight electrical contact over long-term operation in high-vibration environments.

FAQs

Can I use the A6500-SR with older EPRO MMS6000 modules?

No. The A6500-SR belongs specifically to the AMS 6500 ATG ecosystem. While it shares a lineage with older EPRO systems, the backplane and module form factors are incompatible with the legacy MMS6000 or MMS3000 series.
What are the cooling requirements for a fully populated rack?

If the internal modules generate significant heat or the ambient temperature exceeds +55 °C, you must implement forced air cooling (fans) within the cabinet. This maintains the operating temperature within the rated -20 °C to +70 °C range and prevents thermal throttling of the protection cards.
Does the rack include the protection cards and power supplies?

The A6500-SR is the physical rack and backplane assembly. You must order individual protection cards (A6500-UM), relay cards, and power supply modules separately based on your specific machine configuration.
How does the rack handle raw sensor signals?

The A6500-SR provides dedicated D-Sub connectors on the rear panel. These ports allow technicians to access raw, unconditioned sensor signals for external portable analyzers without interrupting the primary protection logic.
