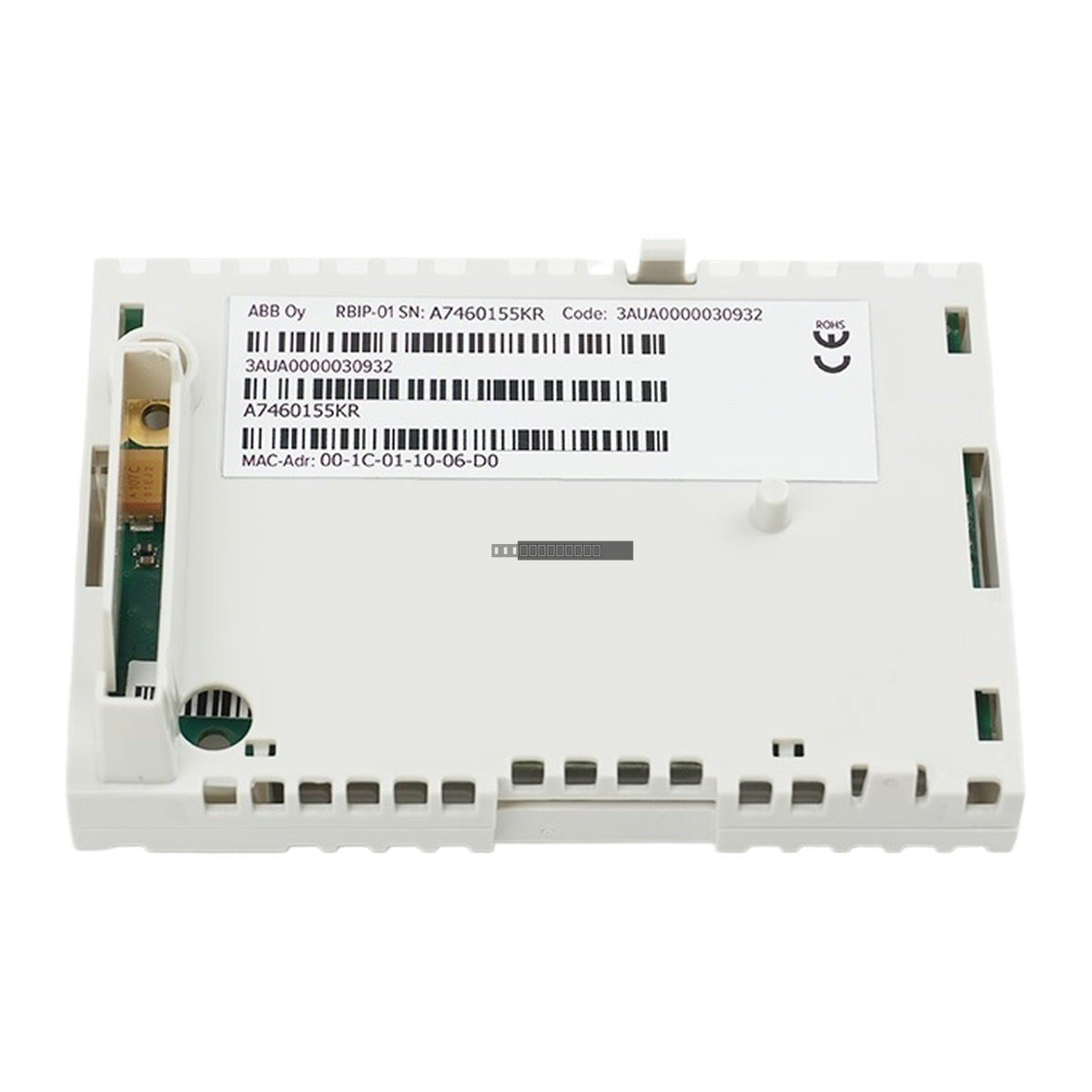

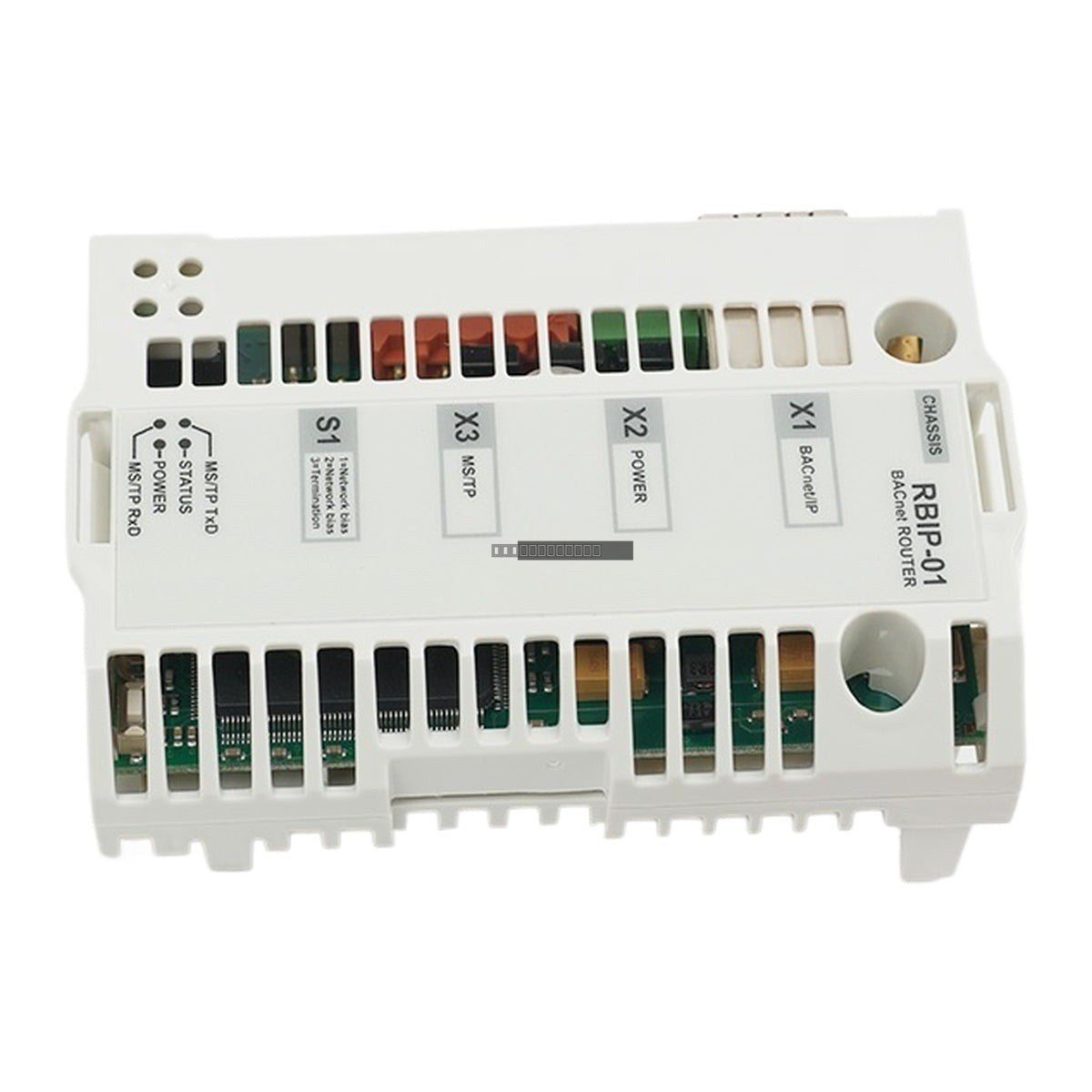

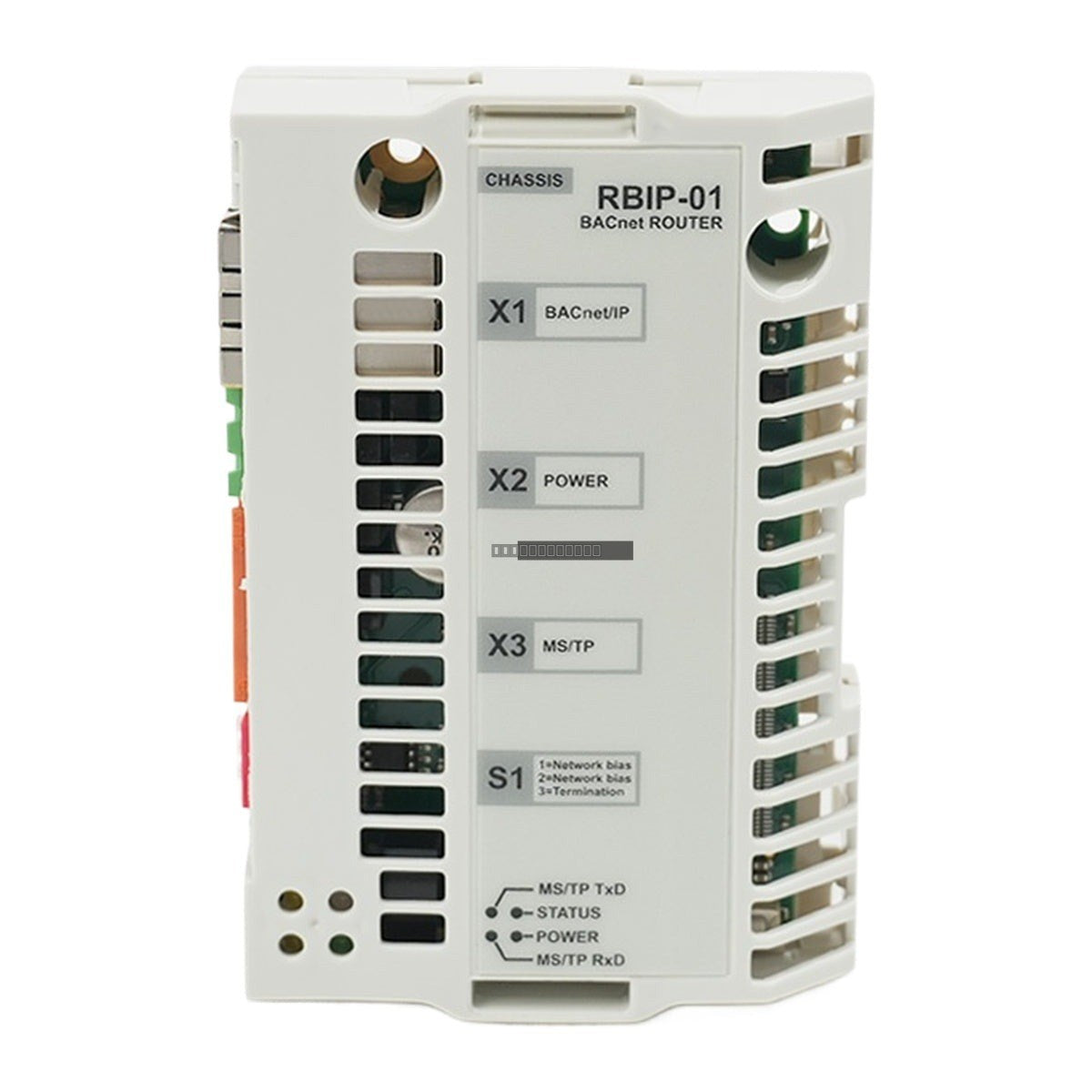

ABB RBIP-01 3AUA0000030932 BACnet/IP Router Module

Availability: 8 left in stock

DescriptionThe ABB RBIP-01 (3AUA0000030932) is a high-performance BACnet/IP Router Module designed to provide seamless connectivity for ABB ACH550 HVAC drives....

SKU: RBIP-01 3AUA0000030932

Manufacturer: ABB
Product No.: RBIP-01 3AUA0000030932
Product Type: Communication Module
Product Origin: Sweden
Payment:T/T, Western Union
Weight: 50g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The ABB RBIP-01 (3AUA0000030932) is a high-performance BACnet/IP Router Module designed to provide seamless connectivity for ABB ACH550 HVAC drives. This module functions as a bridge between BACnet/IP (Ethernet) and BACnet MS/TP (RS-485) networks, allowing building management systems to monitor and control drive parameters without the need for external gateways. It is a snap-on module that installs directly into the drive housing, offering a compact and integrated communication solution.

Features

Designed for ABB ACH550 HVAC drive series
Supports BACnet/IP to BACnet MS/TP routing
Integrated web server for configuration and diagnostics
10/100 Mbps Ethernet transfer rate
EIA-485 serial port for MS/TP communication
Snap-on mounting for internal drive installation

Applications

Air Handling Units (AHUs): Fan speed control and ventilation management
Pumping Stations: Fluid movement control and energy monitoring
Compressors and Chillers: HVAC refrigeration cycle management
Industrial Automation: Integration of frequency converters into larger building management systems

Technical Specifications

Model	RBIP-01
Order Code	3AUA0000030932
Manufacturer	ABB
Power Supply	12...26 V DC / AC, 200 mA
Ethernet Speed	10/100 Mbps
Serial Port	1 x EIA-485 (BACnet MS/TP)
Operating Temperature	0 to 45 degC (32 to 113 degF)
Operating Humidity	20 to 80% relative humidity
Tariff Code	8537101190

Installation Guidelines

Safety Warning: Always switch off mains power and wait at least 5 minutes for the drive's intermediate circuit capacitors to discharge before installing or removing the module.
Mounting: The module is designed for snap-on installation inside the compatible ABB drive. Ensure the module is firmly seated in the designated slot.
Wiring: Use the provided 2-pin connector for power supply and the 4-pin connector for EIA-485 (B+, A-, AGND, Shield) connections.
Configuration: Use the internal web server via a standard web browser to configure IP addresses and routing parameters (BBMD or Foreign Device).
Status Indicators: Solid green indicates correct power; Ethernet link/activity is indicated by flashing or solid green on the RJ-45 port.

FAQs

What is the primary function of the RBIP-01?

The RBIP-01 acts as a BACnet router, enabling communication between Ethernet-based BACnet/IP networks and serial-based BACnet MS/TP networks for ABB ACH550 drives.

Is this module compatible with older ACH550 drives?

Yes, the RBIP-01 is compatible with all ABB ACH550 standard drives for HVAC, including older product generations.

How do I access the module settings?

The module features an internal web server that can be accessed via a standard web browser once connected to the Ethernet network to set IP addresses and view diagnostic logs.
