Description

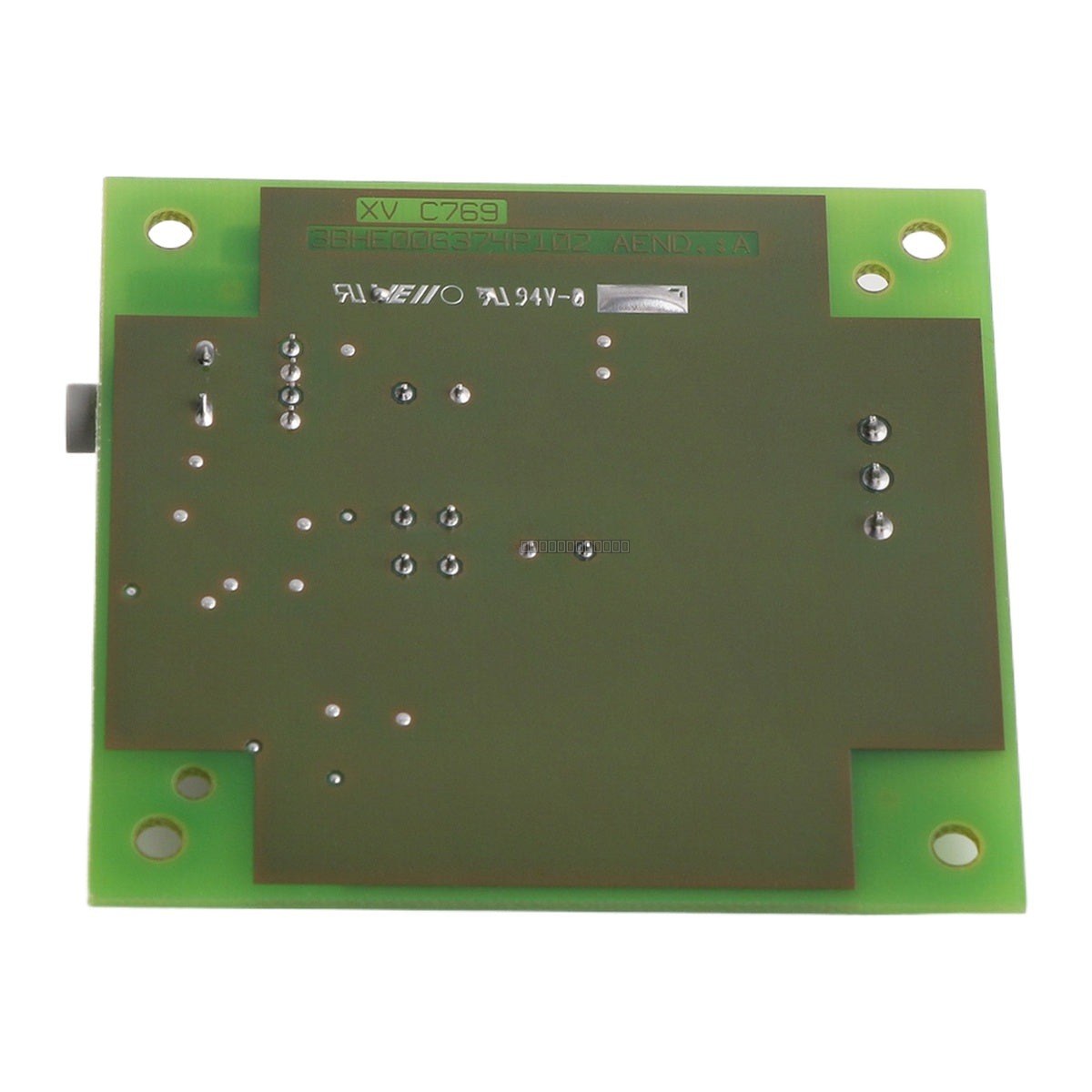

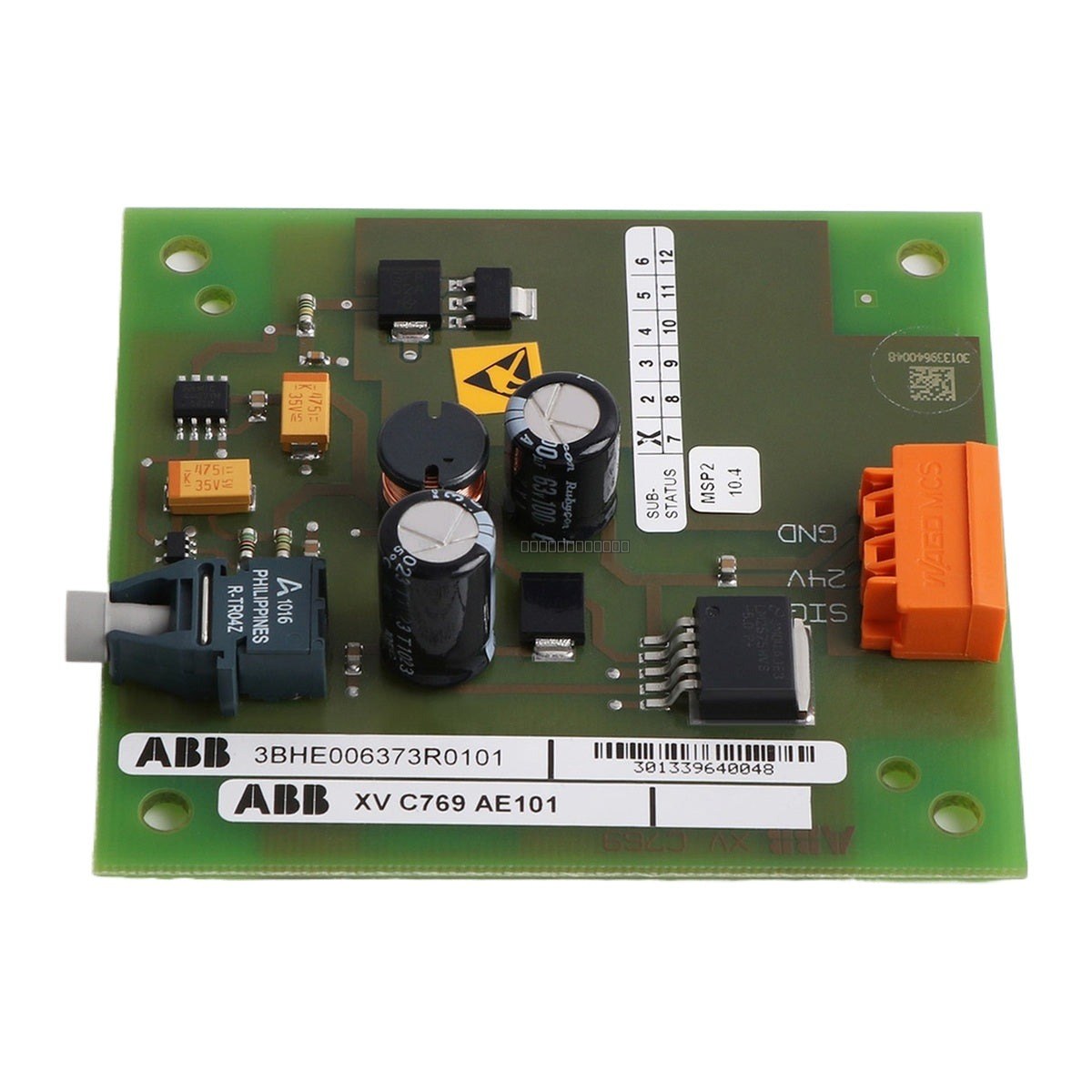

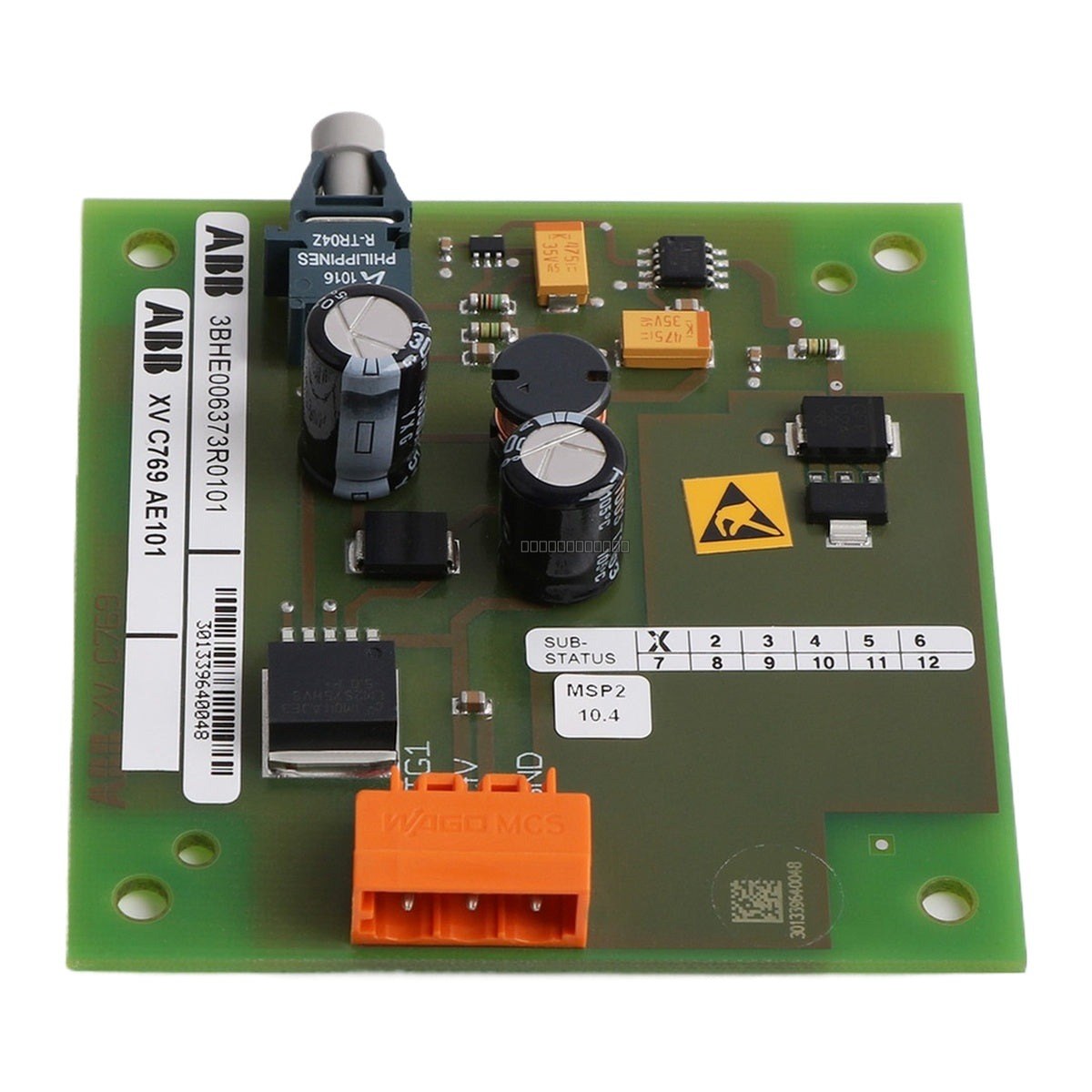

The ABB 3BHE006373R0101 (XVC769AE101) is an OEI-Board designed for integration within the ABB Advant OCS and Advant-800xA control systems. This communication interface module facilitates reliable data exchange between system components, supporting both optical and electrical network standards to ensure robust connectivity in industrial automation environments.
Features
- Supports dual 100BASE-FX optical interfaces (1300nm) for long-distance, noise-immune communication.
- Includes one 10/100BASE-TX electrical interface for standard Ethernet connectivity.
- Designed for high-speed data transmission at 100Mbps in full-duplex mode.
- Provides 1500V AC isolation to protect sensitive control electronics from electrical surges.
- Compact form factor suitable for high-density rack mounting.
Technical Specifications
| Model Number | 3BHE006373R0101 (XVC769AE101) |
| Power Supply | 24V DC (-15%/+20%) |
| Power Consumption | 6W typical |
| Optical Interfaces | 2x 100BASE-FX (1300nm) |
| Electrical Interface | 1x 10/100BASE-TX |
| Isolation | 1500V AC |
| Data Rate | 100Mbps full-duplex |
| Operating Temperature | -25 degC to +70 degC |
| Storage Temperature | -40 degC to +85 degC |
| Humidity | 5-95% non-condensing |
| Vibration Rating | 1G (5-150Hz) |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the OEI-Board to prevent electrical damage.
- Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.
- Verify that the supply voltage is within the specified 24V DC (-15%/+20%) range before powering on.
- Ensure proper seating of the module in the rack to maintain secure electrical contact and thermal dissipation.
- Route optical and electrical cables away from high-EMI sources, such as power cables or heavy-duty motors, to maintain signal integrity.
FAQ
What is the primary function of the 3BHE006373R0101 OEI-Board?
This board serves as an Optical Ethernet Interface (OEI) module, allowing ABB Advant OCS and 800xA systems to communicate over both fiber-optic and copper Ethernet media.
Is this module compatible with standard Ethernet switches?
Yes, the 10/100BASE-TX port is compatible with standard industrial Ethernet switches, while the 100BASE-FX ports require compatible fiber-optic transceivers or switches supporting 1300nm wavelength.
