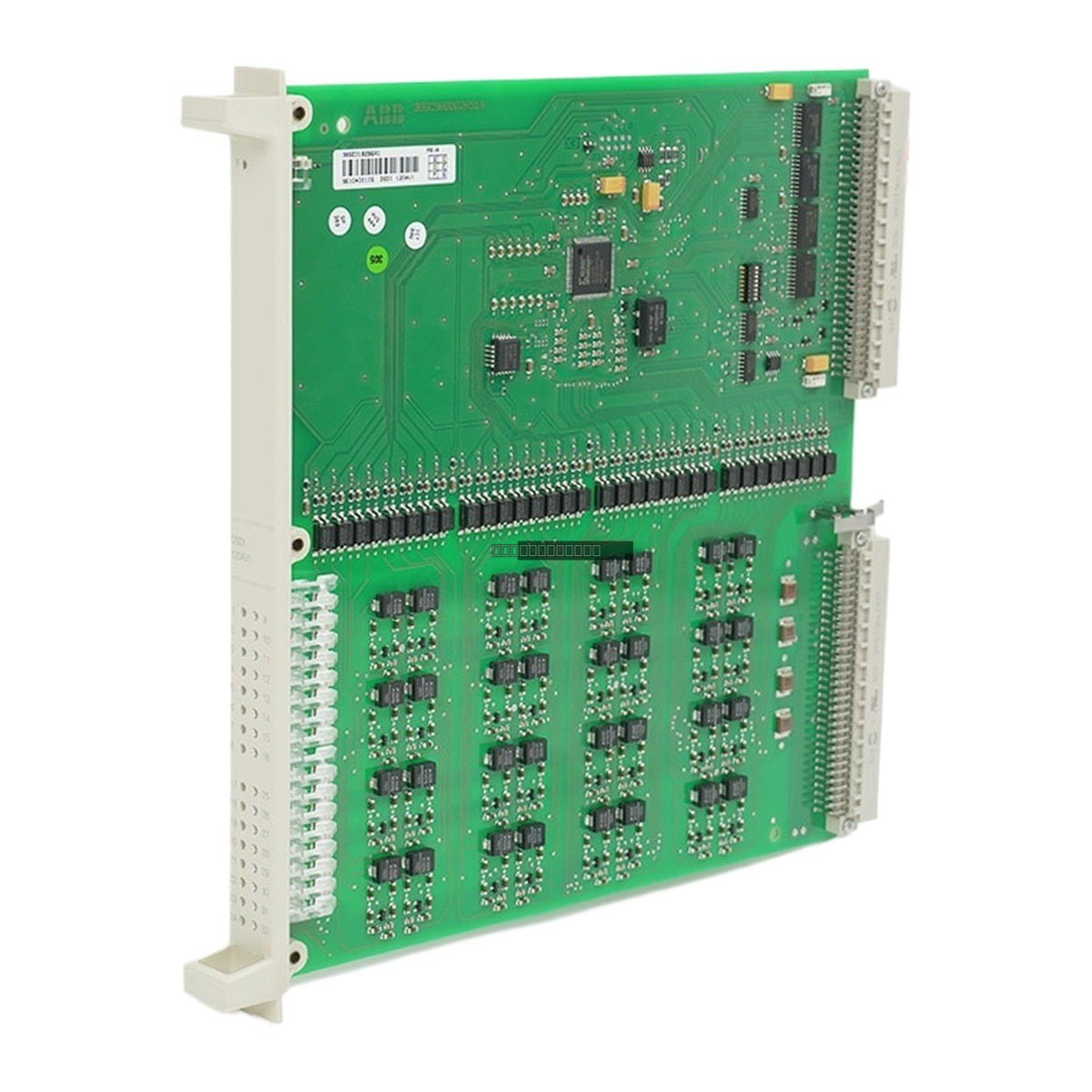

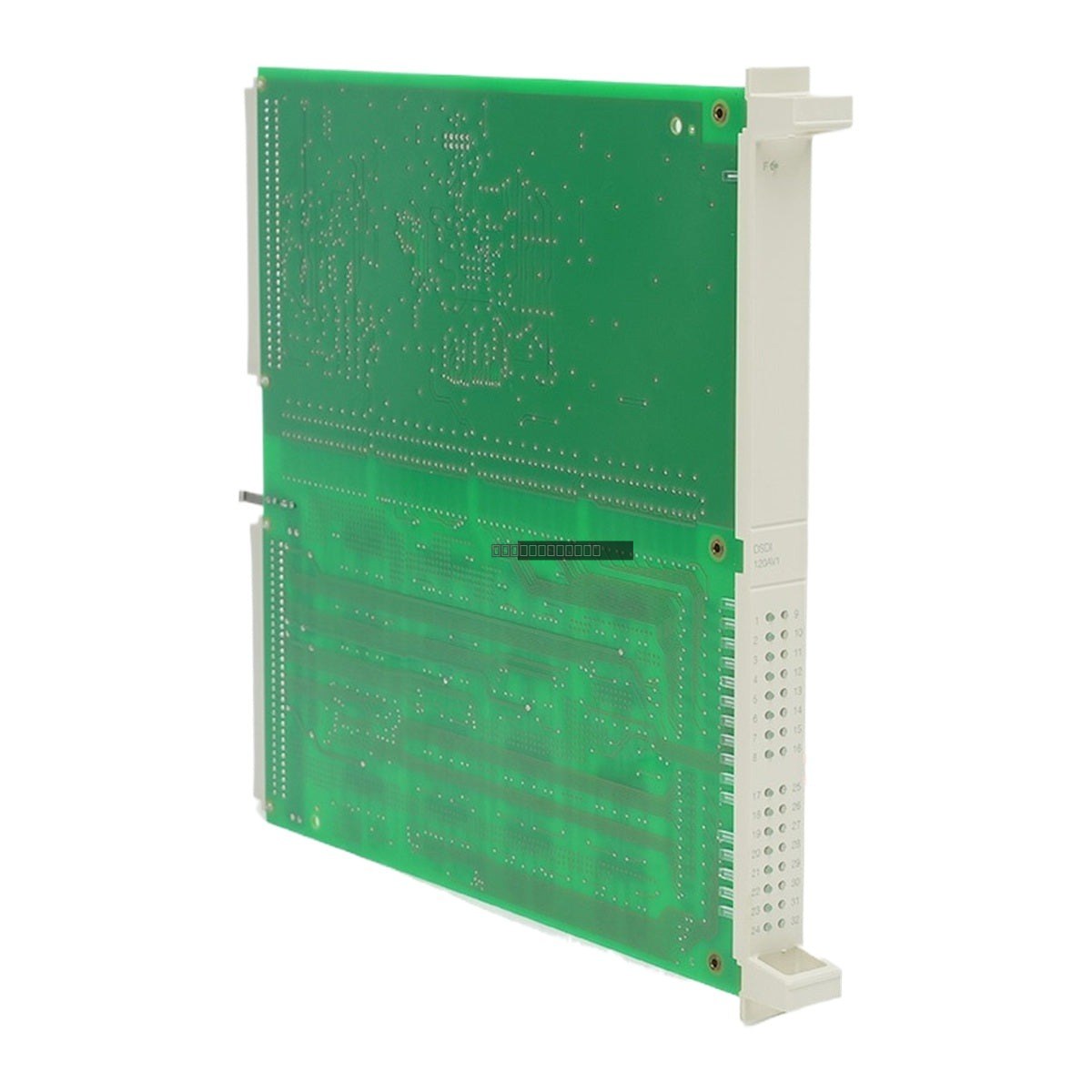

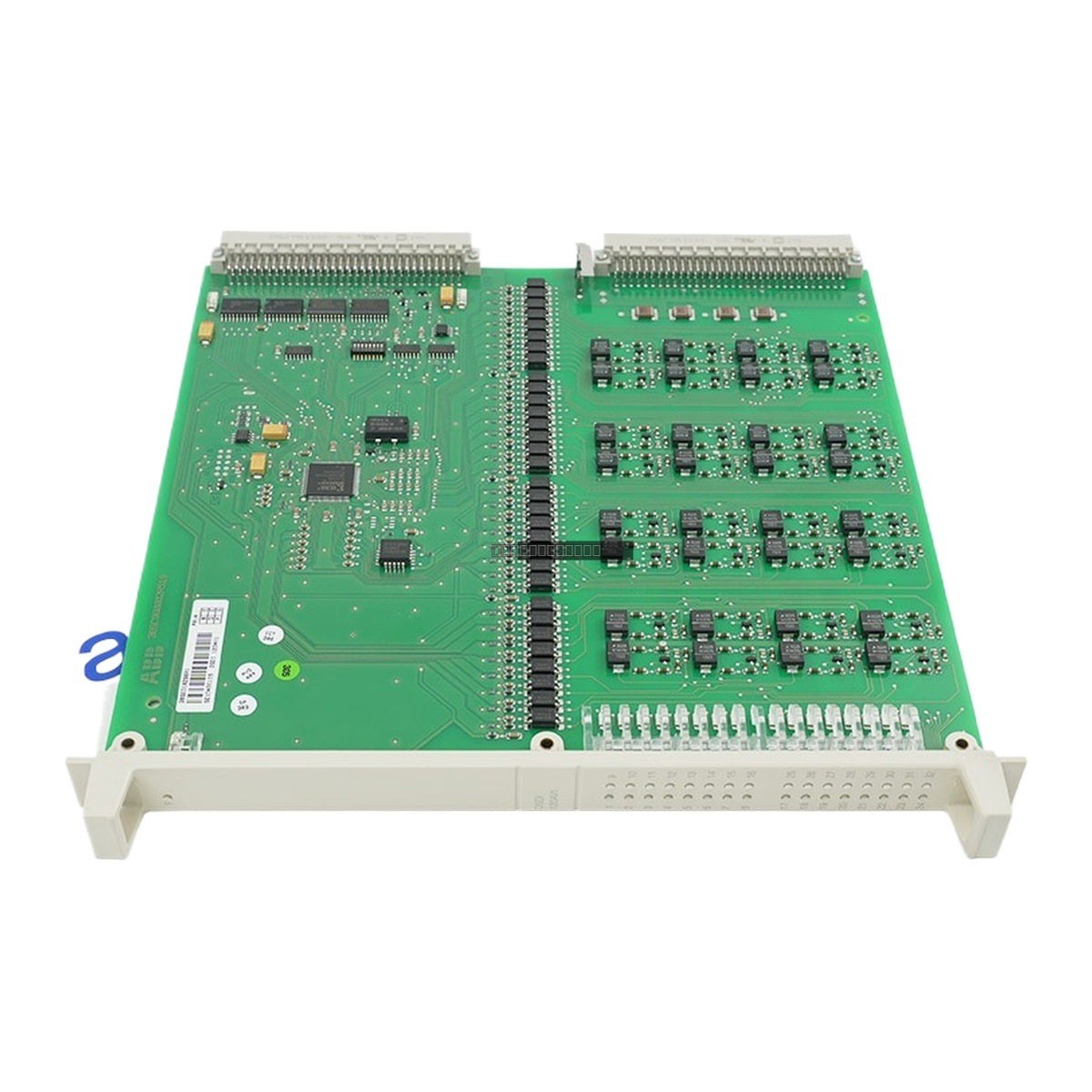

ABB DSDI120AV1 3BSE018296R1 Digital Input Module

Availability: 2 left in stock

The ABB DSDI120AV1 (3BSE018296R1) is a high-density 32-channel digital input module engineered for the Advant S100 I/O system. This module...

SKU: DSDI120AV1 3BSE018296R1

Manufacturer: ABB
Product No.: DSDI120AV1 3BSE018296R1
Product Type: Digital Input Module
Product Origin: Sweden
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The ABB DSDI120AV1 (3BSE018296R1) is a high-density 32-channel digital input module engineered for the Advant S100 I/O system. This module serves as a critical interface between field-level sensors or switches and the control system, facilitating reliable signal acquisition in industrial automation environments.

Features

32-channel digital input capacity for high-density signal processing.
Designed for seamless integration with Advant Controller 250/450 and S100 I/O racks.
Supports nominal input voltages of 24 V DC.
Integrated LED status indicators for rapid diagnostic monitoring.
Module-level isolation to ensure signal integrity.
Supports connection of up to four external connection units (8 inputs each) via standard ABB cabling.

Applications

Oil & Gas and Power Generation: High-speed digital signal acquisition for process control loops.
Automotive Manufacturing: Monitoring assembly line status, robotic motion, and safety stations.
Marine Automation: Integration into shipboard control systems for machinery monitoring.
Material Handling: Tracking product position and status on automated conveyor systems.

Technical Specifications

Model	DSDI120AV1
Order Code	3BSE018296R1
Number of Inputs	32 channels
Nominal Input Voltage	24 V DC
Input Voltage Range	19.2 to 30 V DC
Operating Temperature	0 degC to +60 degC
Storage Temperature	-40 degC to +85 degC
Humidity	5 to 95% non-condensing

Installation Guidelines

Ensure the control system is powered down before inserting or removing the module from the S100 I/O rack.
Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
Ensure proper grounding of the S100 I/O rack to minimize EMI interference.
Route signal cables away from high-voltage power lines and high-EMI sources to maintain signal accuracy.
Verify that the 24 V DC power supply is within the specified 19.2–30 V DC range before energizing.
Each group of 16 channels shares a common 0 V reference; consider external fusing for sub-group protection if required by the application.

FAQ

What is the DSDI120AV1 3BSE018296R1?

The ABB DSDI120AV1 is a 32-channel digital input board designed for the Advant Controller 250/450 or S100 I/O systems, typically operating at 24 VDC.

What is the function of the DSDI120AV1?

It converts 32 input signals from the process field into a format suitable for the Advant Controller 250/450 (AC 250/450) and S100 I/O rack mounting.

What systems is it compatible with?

It is part of the S100 I/O family and is compatible with Advant Controller 450, Advant OCS with Master SW, and can be integrated into System 800xA.

Is it RoHS compliant?

This specific part is generally exempted from the scope of 2011/65/EU (RoHS) as provided in its EU Declaration of Conformity.
