Description

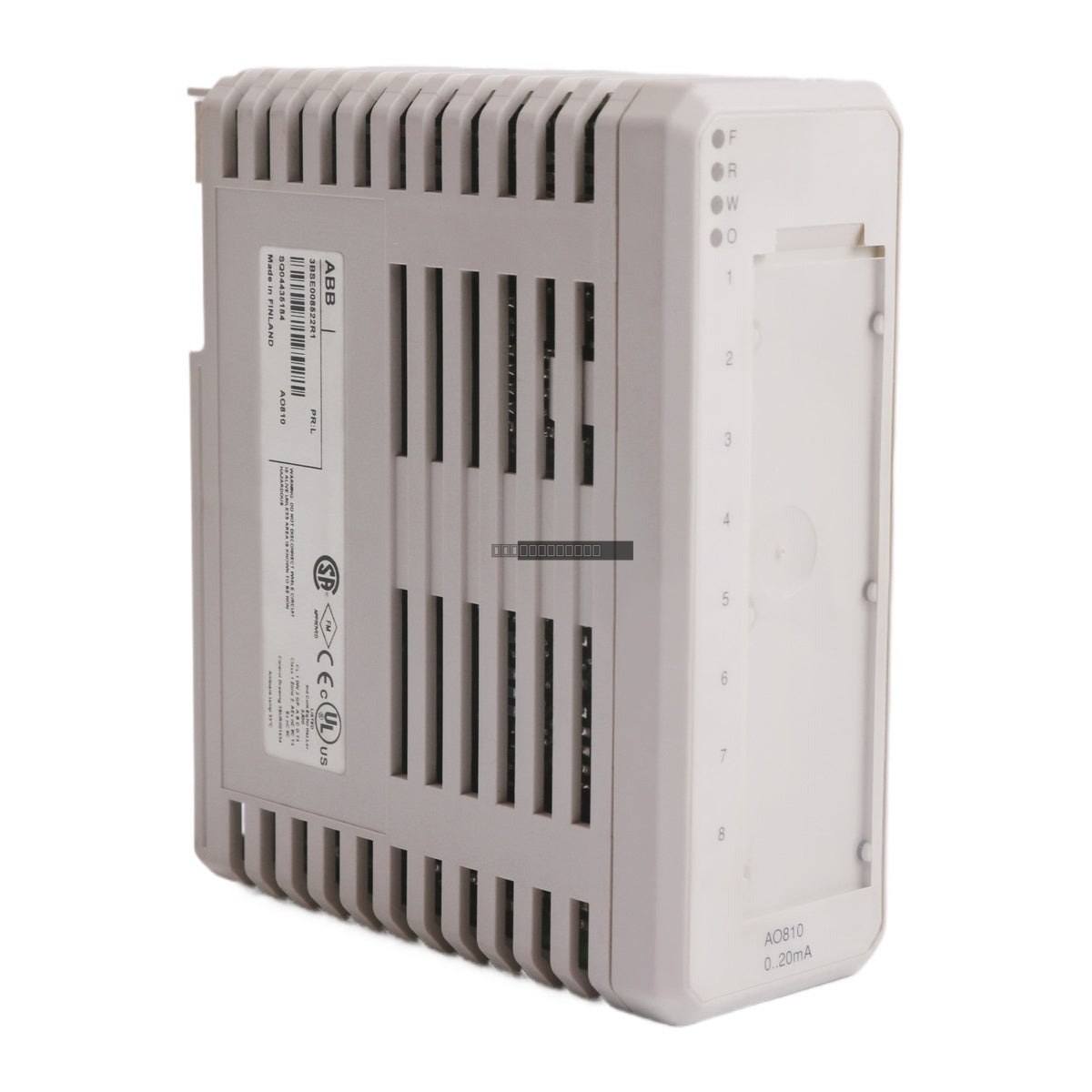

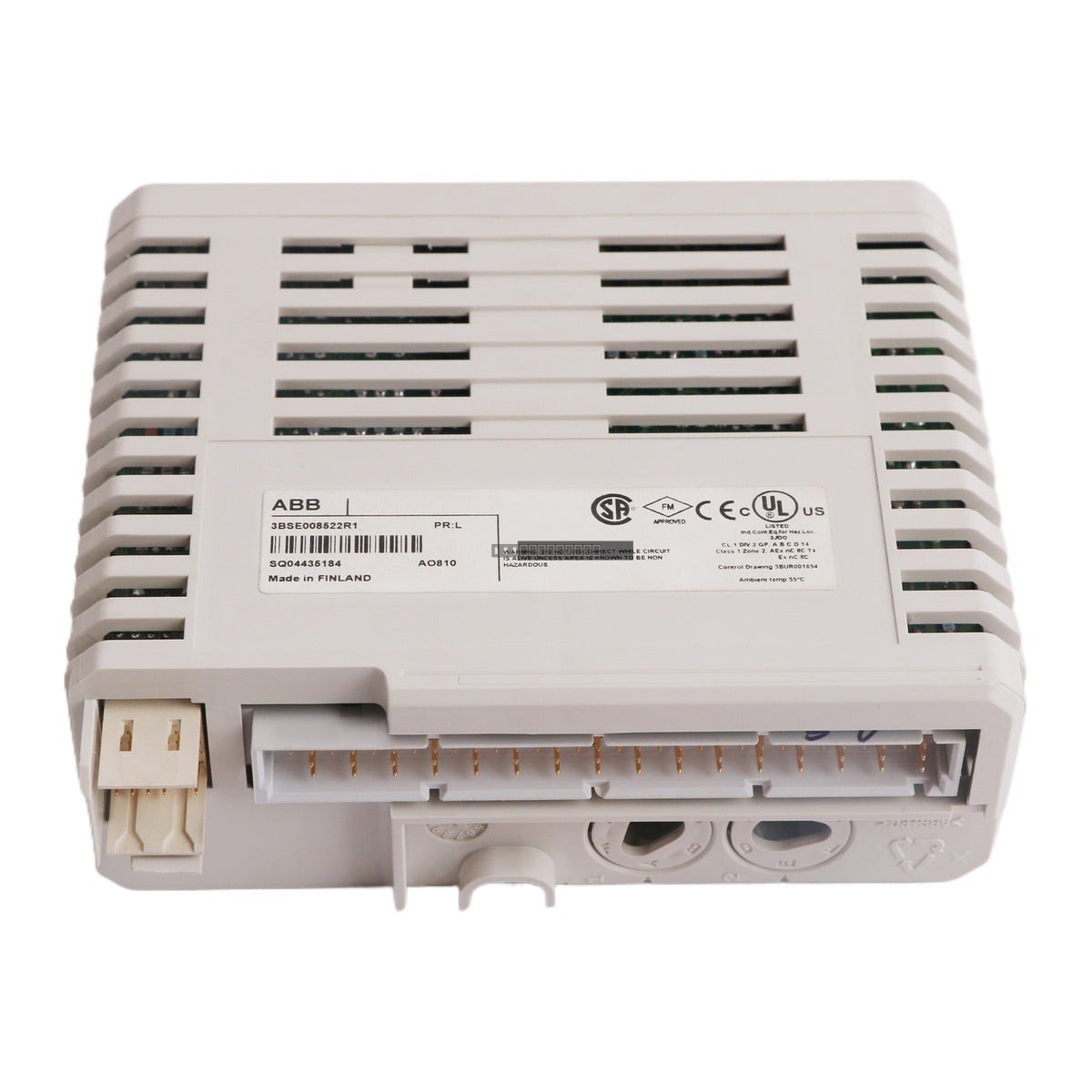

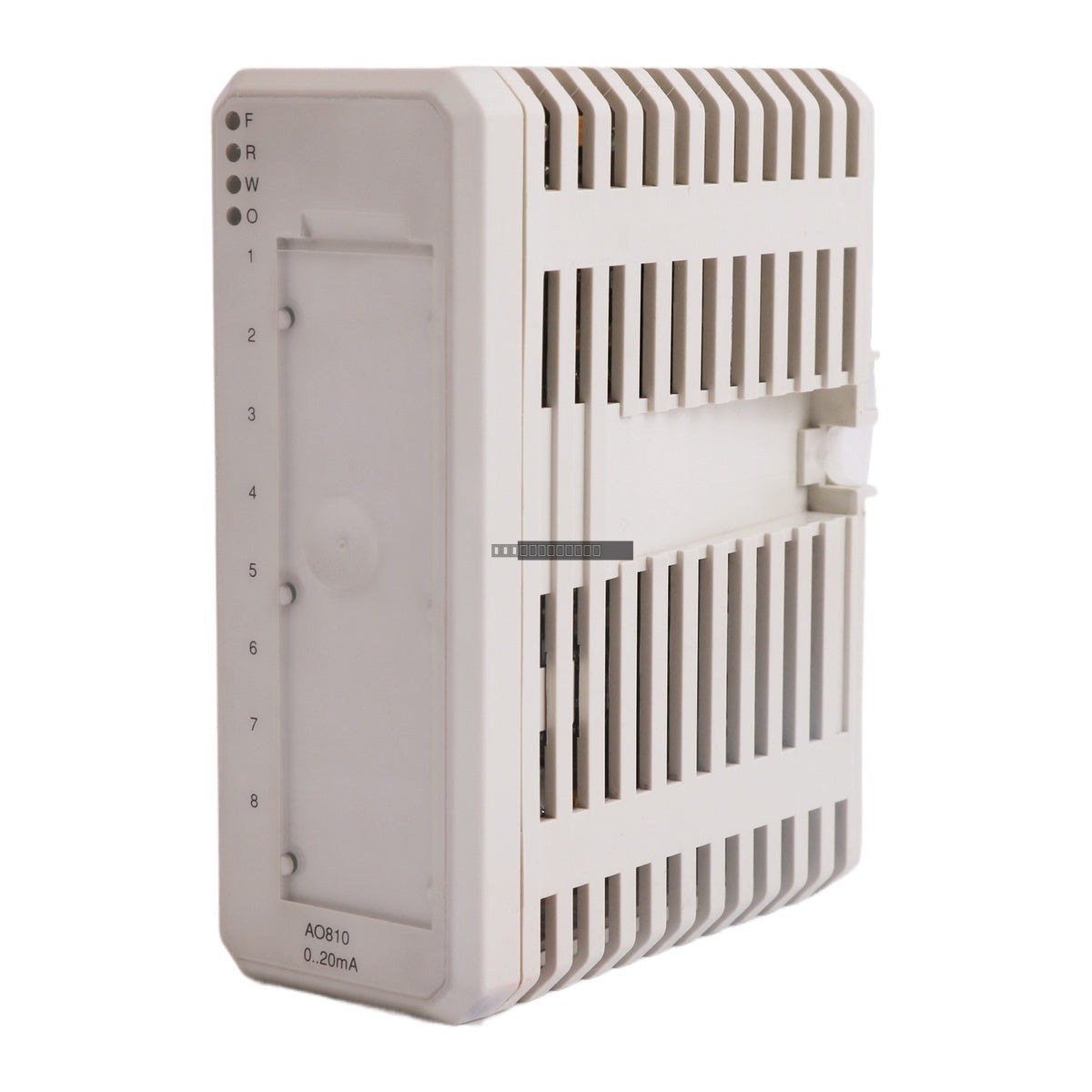

The ABB AO810 (3BSE008522R1) is an analog output module designed for the S800 I/O system. This module provides 8 channels of analog output, suitable for controlling field devices in industrial automation environments. As a component of the Advant S800 I/O family, it offers high-resolution signal conversion and reliable performance for process control applications.
Features
- 8-channel analog output configuration
- 14-bit resolution for precise signal control
- Compatible with the ABB S800 I/O platform
- Designed for standard industrial control loops
- Supports a maximum load resistance of 850 Ohm
Technical Specifications
| Model | AO810 |
| Order Code | 3BSE008522R1 |
| Manufacturer | ABB |
| Number of Channels | 8 |
| Resolution | 14-bit |
| Output Current | 20 mA |
| Max Load Resistance | 850 Ohm |
| Product Type | Analog Output Module |
Installation Guidelines
- Ensure the module is installed in a clean, dry environment within the specified operating temperature range.
- Verify that the S800 I/O base unit is properly mounted on a DIN rail before inserting the module.
- Always power down the I/O rack before inserting or removing the module to prevent electrical damage or signal disruption.
- Ensure proper grounding of the I/O system to minimize EMI and ensure signal integrity.
- Use shielded twisted-pair cabling for analog signals to reduce noise interference in high-EMI industrial environments.
- Check for correct polarity when connecting field devices to the terminal blocks.
FAQ
Is the ABB AO810 still in production?
No, this model has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy systems.
What is the resolution of the AO810 module?
The module features a 14-bit resolution, providing high accuracy for analog control signals.
Can this module be used in any S800 I/O station?
The AO810 is designed for the S800 I/O system; please consult your specific system hardware manual to ensure compatibility with your existing MTU (Module Termination Unit) and controller configuration.
