Description

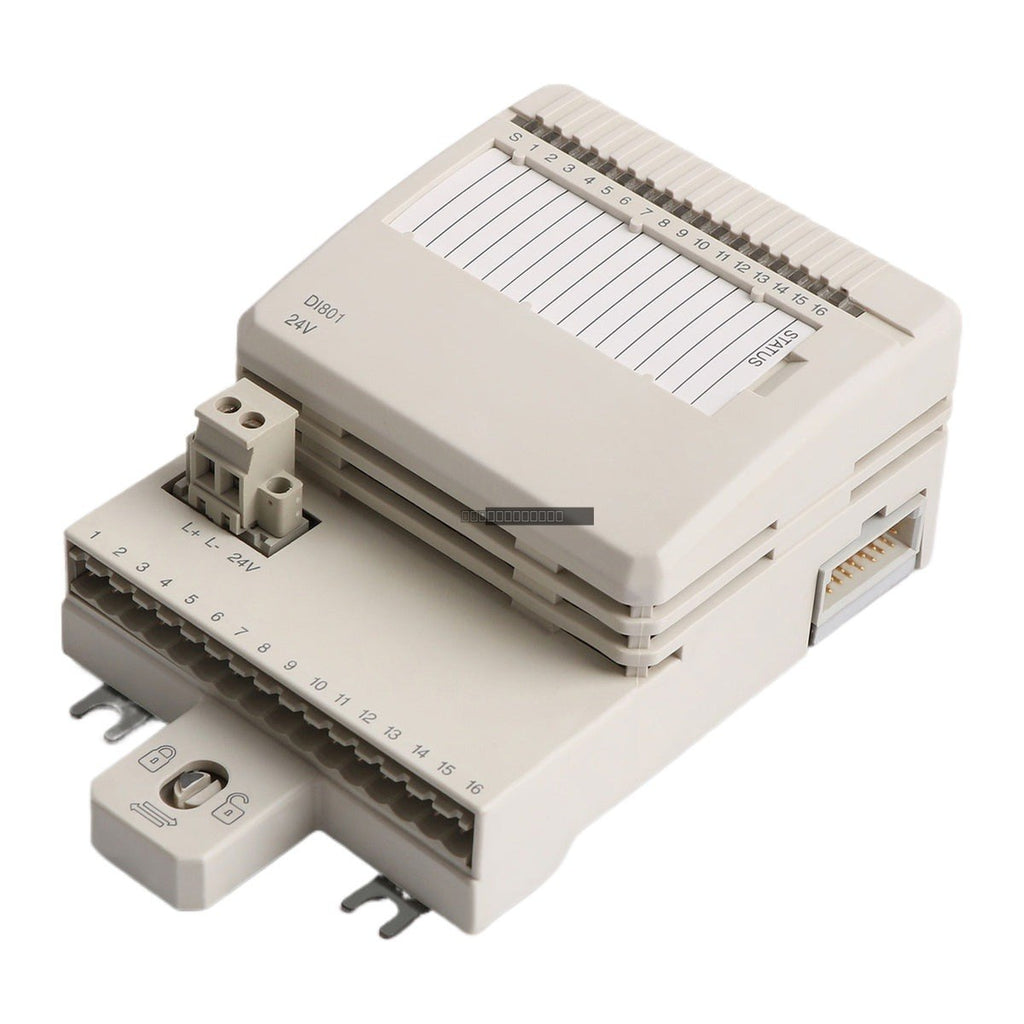

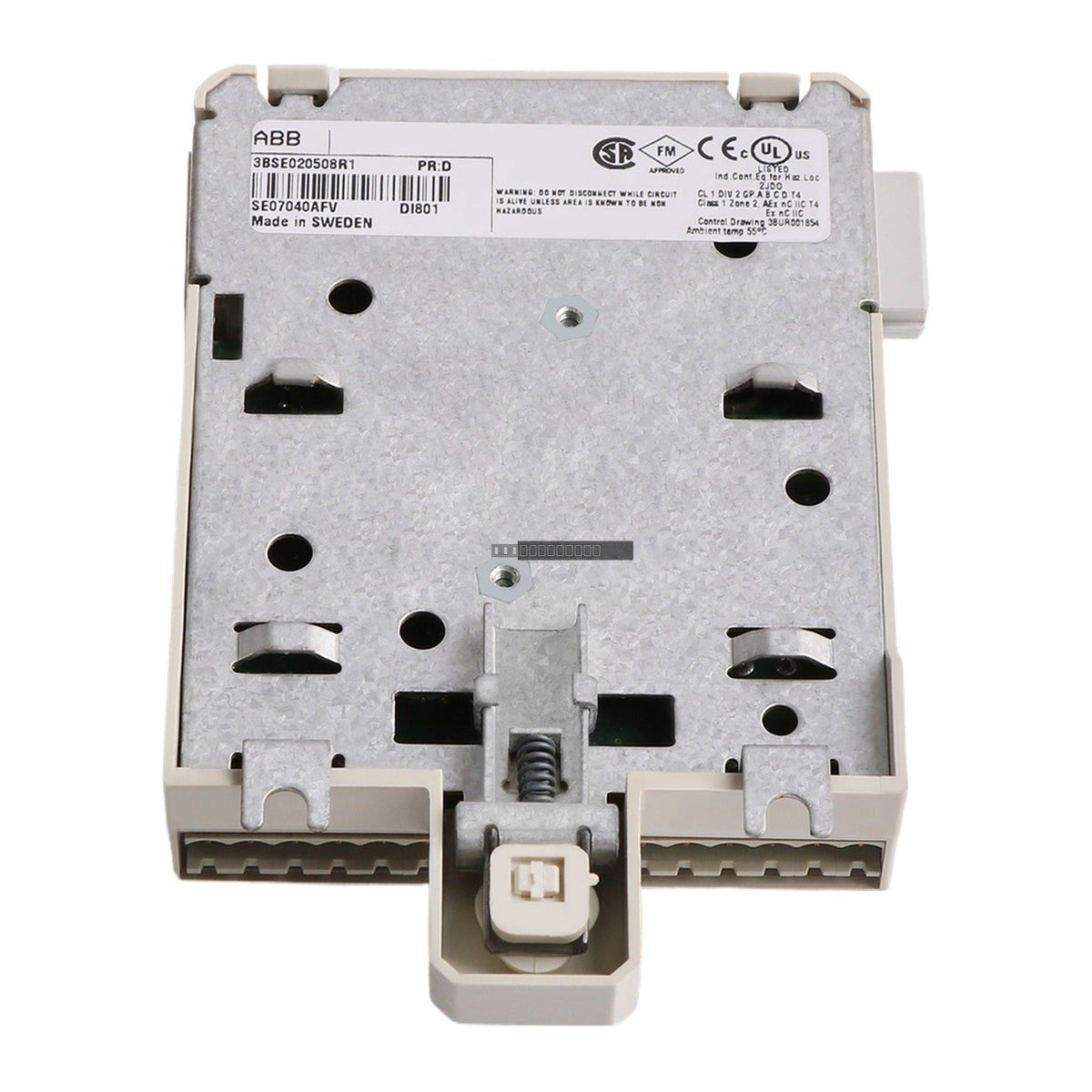

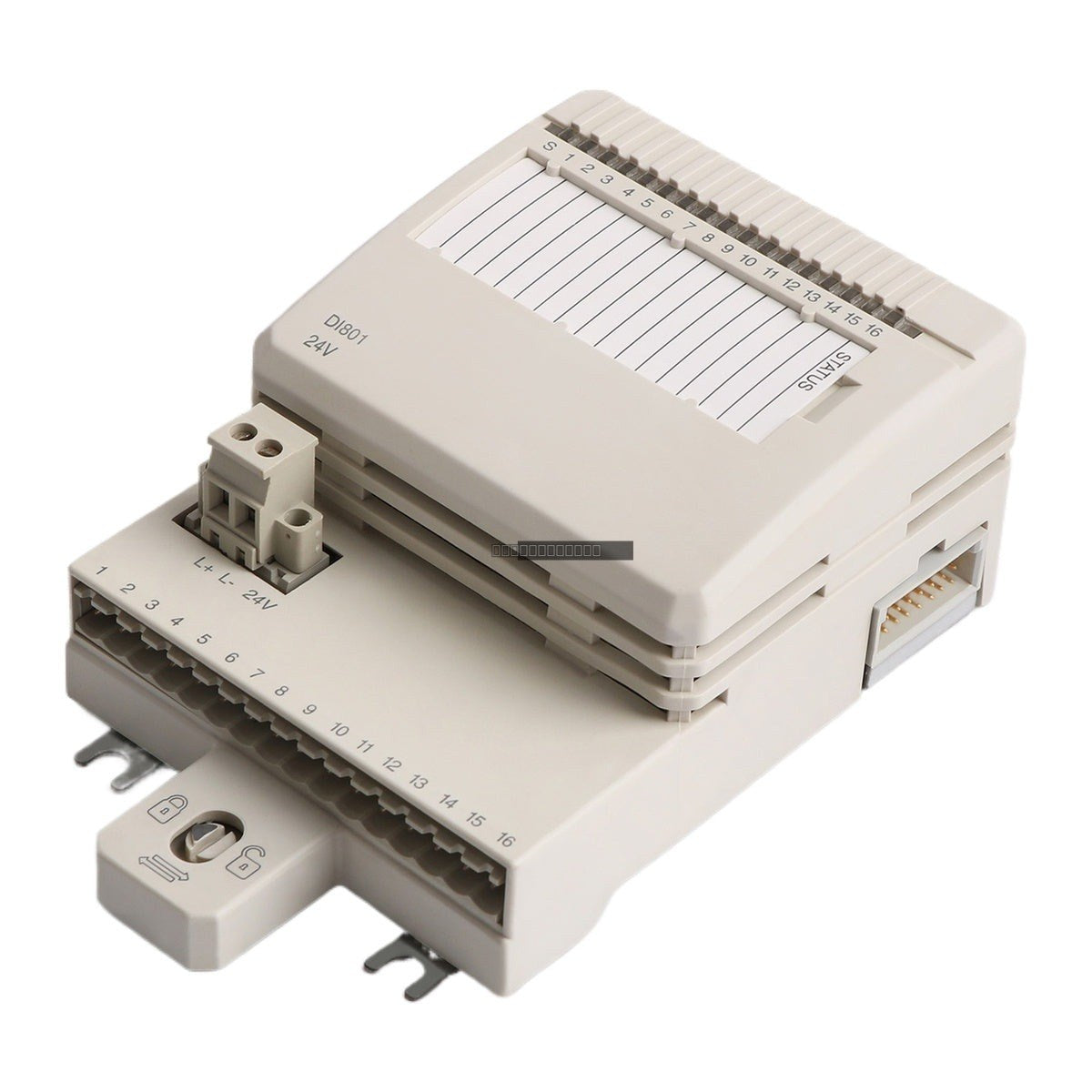

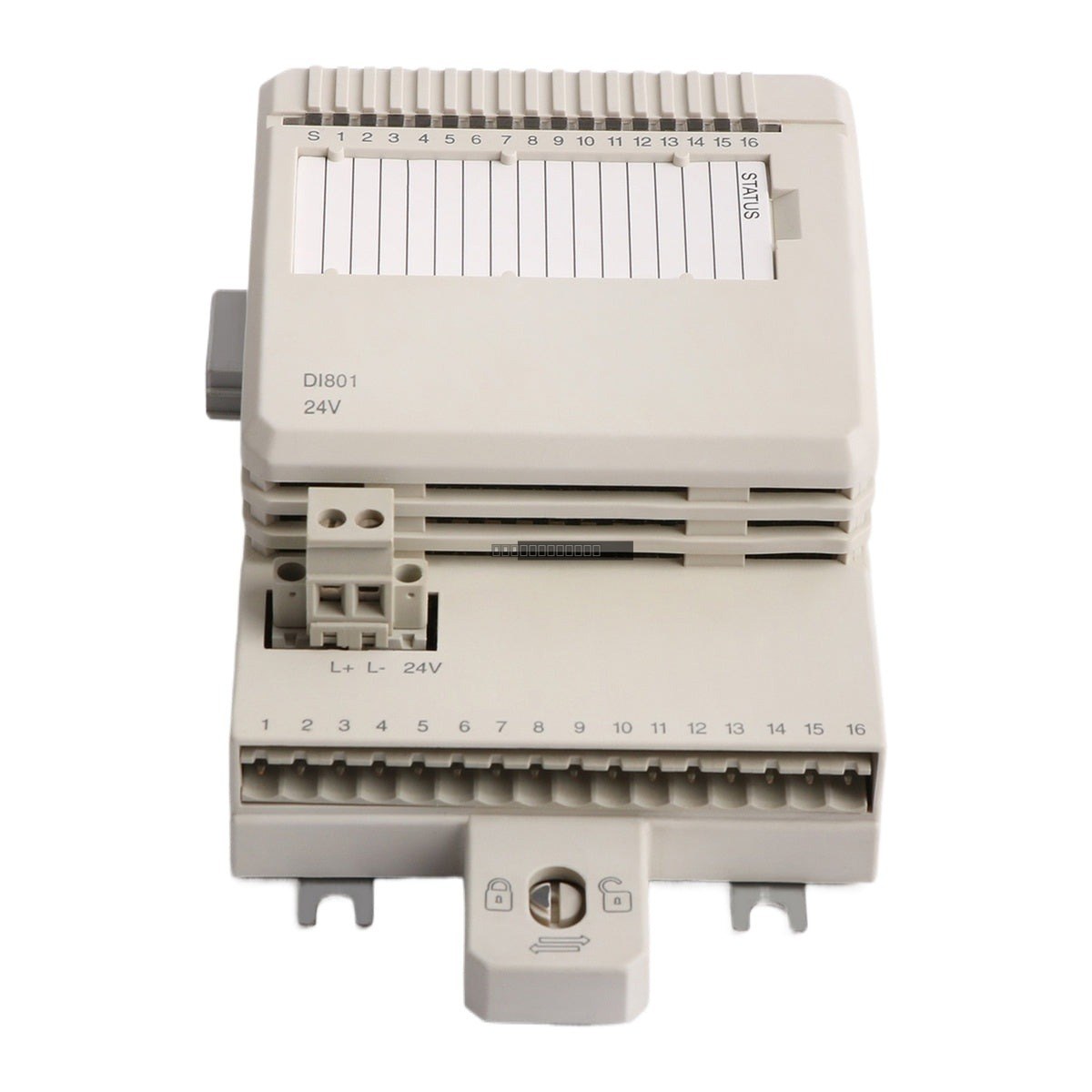

The ABB DI801 (3BSE020508R1) is a high-performance 16-channel digital input module designed for the S800 I/O system. This module is engineered to interface with 24 VDC field signals, providing reliable signal acquisition for industrial automation and control applications within the Advant and 800xA system environments.
Features
- 16 digital input channels for high-density signal monitoring.
- Compatible with 24 VDC input voltage levels.
- Designed for seamless integration with the ABB S800 I/O series.
- Compact modular design for efficient cabinet space utilization.
- Robust construction suitable for demanding industrial environments.
Applications
The DI801 is widely utilized in process automation, power generation, and manufacturing sectors where reliable digital signal monitoring is required. It is commonly deployed in distributed control systems (DCS) to interface with sensors, switches, and proximity detectors.
Technical Specifications
| Model | DI801 |
| Order Code | 3BSE020508R1 |
| Input Type | Digital Input |
| Channel Count | 16 |
| Voltage Rating | 24 VDC |
| Manufacturer | ABB |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the I/O base.
- The module should be mounted on a compatible S800 I/O base unit.
- Maintain proper grounding practices to minimize electromagnetic interference (EMI).
- Use shielded cables for signal inputs to ensure signal integrity in high-noise environments.
- Handle with care to prevent electrostatic discharge (ESD) damage to the internal electronics.
- Ensure adequate ventilation within the control cabinet to maintain operating temperatures within specified limits.
FAQ
What is the primary function of the ABB DI801?
The DI801 is a digital input module used to convert 24 VDC field signals into digital data for processing by an ABB DCS or PLC system.
Is this module compatible with the S800 I/O series?
Yes, the DI801 is a standard component of the ABB S800 I/O family.
What is the order code for this module?
The specific order code for this module is 3BSE020508R1.
