ABB NTDI01 Digital I/O Termination Unit

ABB DSDO115 Symphony Plus Digital Output Spare Part

ABB DSDO115 Symphony Plus Digital Output Spare Part

Availability: 10 left in stock

Product Overview The ABB DSDO115 (57160001-NF) functions as a high-density digital output module for the Advant OCS, Symphony Plus, and...

SKU: DSDO115

Manufacturer: ABB
Product No.: DSDO115
Product Type: Symphony Plus DCS
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

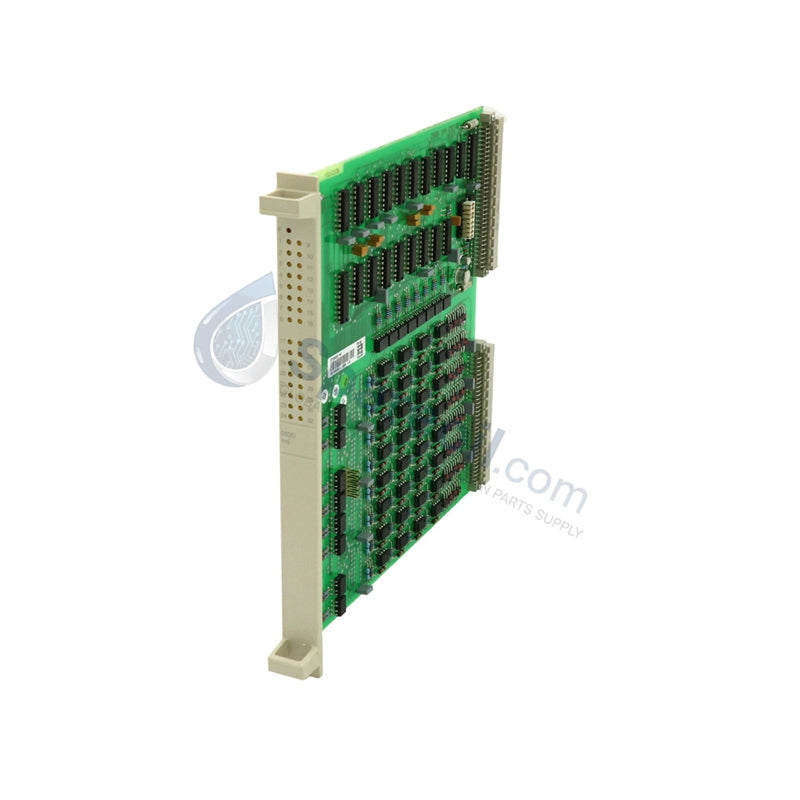

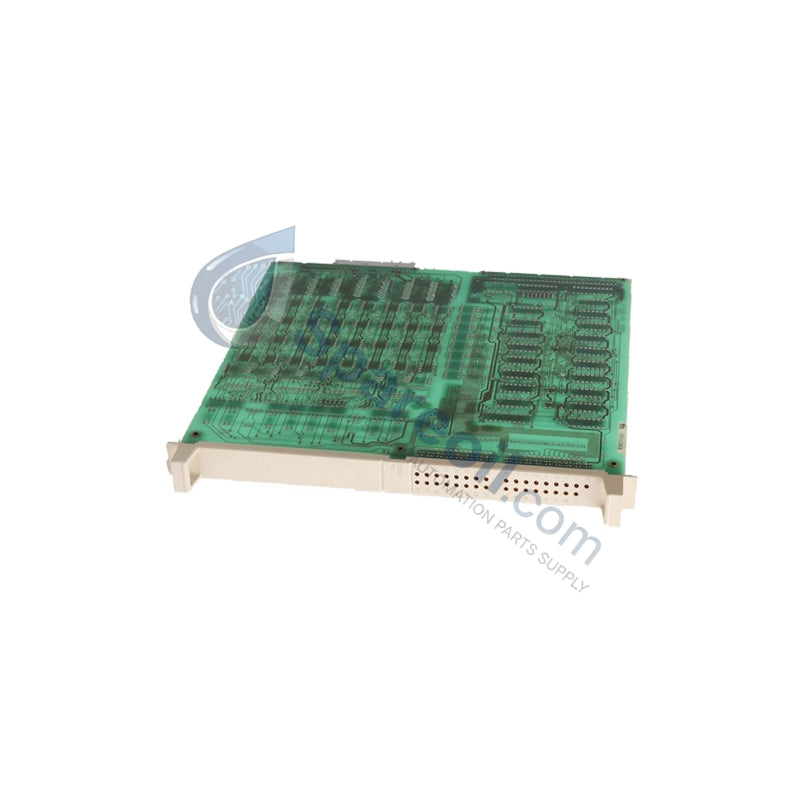

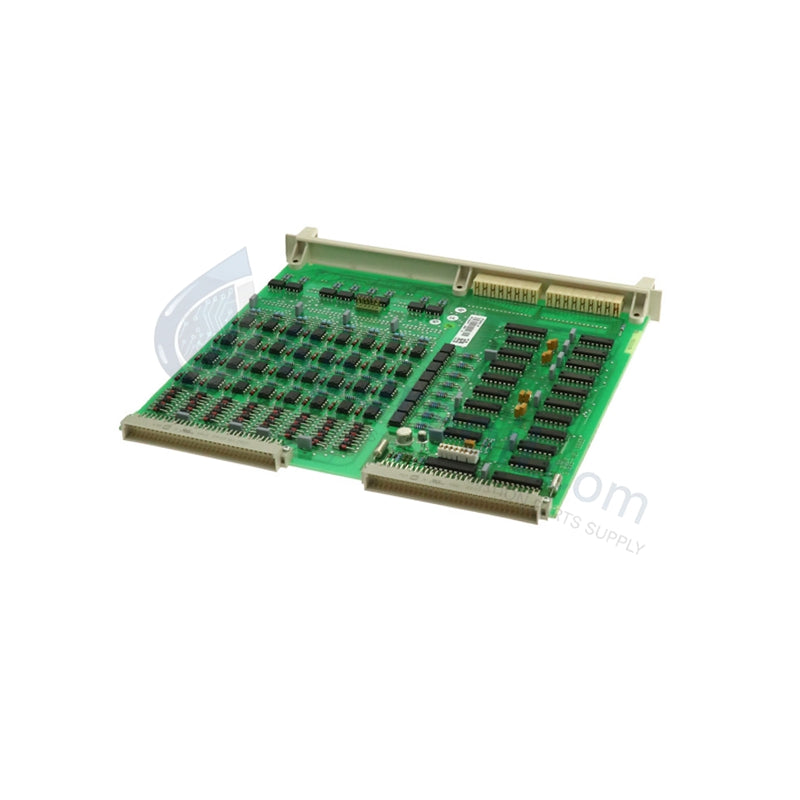

The ABB DSDO115 (57160001-NF) functions as a high-density digital output module for the Advant OCS, Symphony Plus, and S100 I/O platforms. This board provides 32 independent 24V DC channels, allowing the central controller to actuate field devices such as solenoids, interposing relays, and indicator lamps. Despite the manufacturer's discontinued status, we supply this critical spare part in 100% Brand New and Original condition, ensuring long-term lifecycle support for established industrial control systems.

Technical Specifications

The DSDO115 integrates 32 channels into a compact Euro-card format, optimizing cabinet density without sacrificing electrical protection.

Attribute	Specification Details
Model Number	DSDO115
Part Number	57160001-NF
Output Channels	32 Digital Channels
Output Voltage	24 V DC
Output Current	0.5 A per channel (Typical)
Isolation	2500 V Opto-isolation
Diagnostics	Channel status LEDs and fault detection
System Compatibility	Advant OCS / Symphony Plus / S100 I/O
Mounting	Standard S100 I/O Euro-card subrack
Operating Temp	–25 °C to +55 °C
Net Weight	0.40 kg (0.88 lbs)
Country of Origin	Sweden

Engineering Advantages

The DSDO115 addresses specific challenges in process automation and power plant maintenance:

High-Density Control Logic: By packing 32 outputs into a single slot, the DSRF115 maximizes rack utility. This allows engineers to manage extensive valve manifolds or complex MCC (Motor Control Center) interfaces while minimizing the total number of I/O subracks required.
Opto-Isolated System Integrity: 2500V galvanic isolation separates the field-side 24V DC power from the sensitive internal system bus. This protection prevents field shorts or inductive spikes from migrating backward into the DCS processor, effectively eliminating a common cause of system crashes.
Integrated Troubleshooting Diagnostics: Each channel features a dedicated status indicator. Maintenance personnel immediately identify command discrepancies or hardware failures directly at the rack, bypassing the need for time-consuming signal tracing with a multimeter.
Direct Legacy Replacement: The 57160001-NF serves as a direct drop-in replacement for aging S100 I/O cards. It requires no software modifications or terminal base re-wiring, making it the preferred choice for rapid repair and lifecycle extension projects.

FAQs

Is this DSDO115 unit 100% Brand New?

Yes. Although the manufacturer has officially discontinued the series, we supply this module in 100% Brand New and Original condition. It arrives in factory-sealed packaging, ensuring it has never been deployed in a live environment.

What is the difference between DSDO115 and DSDO110?

The DSDO115 serves as a refined version typically optimized for 24V systems. In many S100 I/O configurations, the DSDO115 handles standard 0.5A loads, while other variants may accommodate different voltage ranges or load currents. Always verify your specific system loading requirements before swapping.

Does the module handle inductive loads like solenoids directly?

The DSDO115 supports typical industrial 24V DC solenoids. However, we recommend verifying that the total inrush current does not exceed the channel's surge rating. For extremely high-power inductive loads, utilizing an interposing relay is best practice to protect the module's lifespan.

How does the system report a hardware failure on this board?

The DSDO115 monitors its internal logic and communication with the Modulebus. If an internal fault occurs, the module trips a global "Fault" LED and sends a diagnostic message to the Advant Master controller, triggering a system alarm in the control room.
