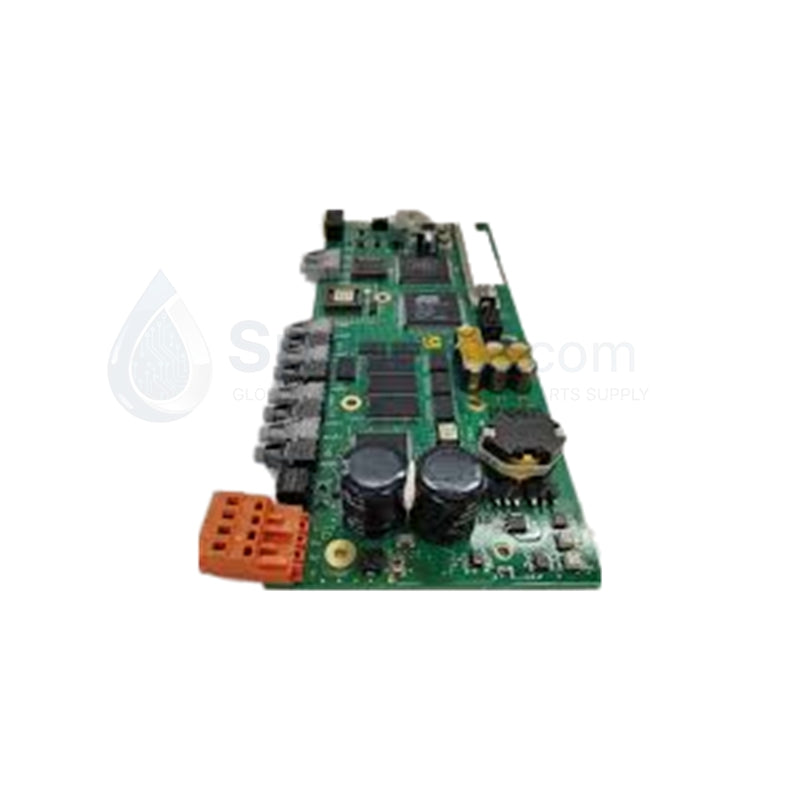

ABB PPC905AE101 Industrial Motion Controller
The ABB PPC905AE101, also cataloged as the 3BHE014070R0101 Industrial Automation Controller, operates as a dedicated hardware component for high-speed axis computation and servo loop management within ABB industrial drive systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PPC905AE101 |
| Brand | ABB |
| Origin | Switzerland |
| Weight | 0.78 kg |
| Dimensions | 250 mm x 105 mm x 30 mm |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | 24 VDC nominal |
| Control Function | Servo drive management and feedback integration |
| Compliance | CE, UL, CSA, RoHS |
Backplane Bus Communication Velocity
The PPC905AE101 utilizes a high-speed backplane interface to execute deterministic data exchanges between the controller module and external drive power units. This communication architecture facilitates the synchronization of multi-axis motion sequences by minimizing latency during the transmission of position loop commands. The onboard processing architecture maintains the integrity of high-frequency encoder feedback signals, ensuring that axis alignment remains consistent with system-wide clock signals. Proper termination of the backplane bus is required to prevent signal reflections that could disrupt the deterministic performance of the servo loop.
Frequently Asked Questions
Q: Can the PPC905AE101 be hot-swapped while the drive system is under power?
A: No. The module must be de-energized and the DC link voltage confirmed as discharged before removing the board from the rack to prevent electrical damage to the backplane pins.
Q: What is the primary function of the X2 interface on this module?
A: The X2 connector is dedicated to high-resolution encoder signal processing, which provides the necessary real-time feedback for precision position loop closure.
Q: How should the module be handled regarding electromagnetic interference?
A: The controller should be installed in a grounded industrial cabinet, and all signal cabling connected to the X1 and X2 interfaces must utilize shielded twisted-pair conductors to mitigate EMI effects.
Field Installation Guidelines
When installing the PPC905AE101 into the drive rack, ensure that the mechanical guide rails are properly aligned before applying pressure to the module faceplate. Verify that the 24 VDC power supply provided via the backplane is stable and free from significant ripple voltage. When connecting feedback sensors to the X2 port, ensure that the cable shielding is terminated at the designated earth connection point to suppress common-mode noise. For multi-axis configurations, confirm that the backplane bus connectors are fully seated and free of oxidation or debris.
