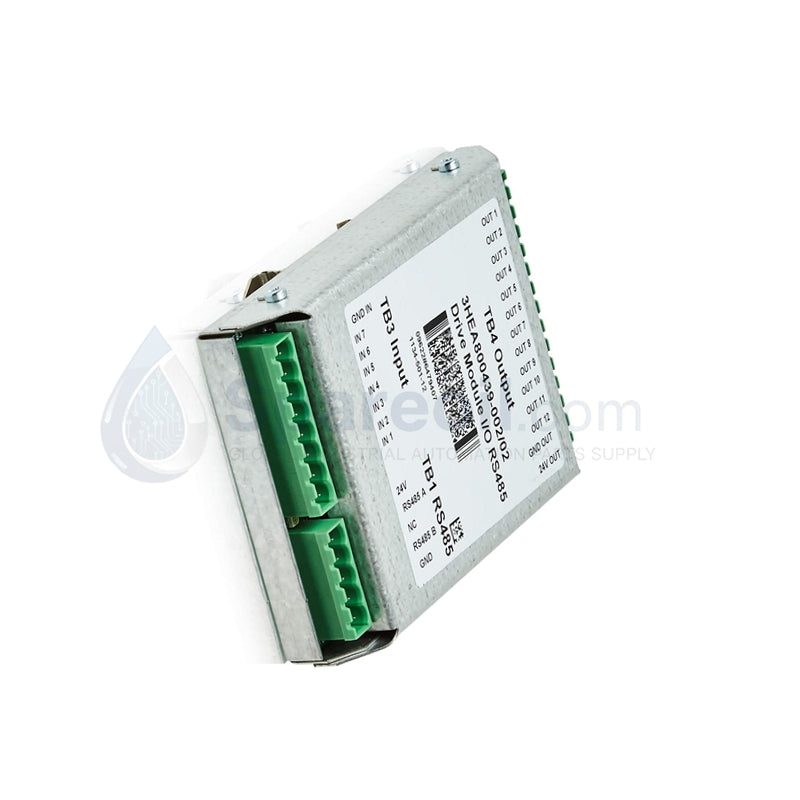

ABB Robotics DSQC651 (3HEA800439-002) 16-Channel I/O

ABB Robotics DSQC651 (3HEA800439-002) 16-Channel I/O

Availability: 10 left in stock

Product Overview The DSQC651 (3HEA800439-002) is a versatile Drive Module I/O interface designed for ABB industrial robotic and automation platforms. Equipped with...

SKU: DSQC651 3HEA800439-002

Manufacturer: ABB
Product No.: DSQC651 3HEA800439-002
Product Type: Drive I/O Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 270g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The DSQC651 (3HEA800439-002) is a versatile Drive Module I/O interface designed for ABB industrial robotic and automation platforms. Equipped with a standard RS485 communication port, this module facilitates high-speed, noise-resistant data exchange between a central controller and various field devices. The DSQC651 (3HEA800439-002) supports a mix of configurable analog and digital channels, providing the 12-bit resolution necessary for precise feedback and control in distributed I/O architectures.

Communication and Interface Integration

The DSQC651 (3HEA800439-002) is specifically engineered to operate within electrically noisy environments. The RS485 differential signaling ensures data integrity even over long cable runs within a factory floor. Its ability to handle both analog outputs (for controlling variable speed drives or valves) and digital signals (for proximity sensors or solenoids) makes it an essential "all-in-one" interface for ABB robotics cells.

Detailed Technical Specifications

Manufacturer: ABB Group
Model: DSQC651
Part Number / Order Code: 3HEA800439-002 (also includes revision /02)
Equipment Type: Drive Module I/O (RS485)
Total Channel Count: 16 Configurable Channels
Signal Types Supported: Analog (0–10 V, 4–20 mA) and Digital I/O
ADC/DAC Resolution: 12-bit for high-accuracy signal processing
Communication Protocol: RS485 Serial Interface
Operating Temperature: -25°C to +70°C (Extended industrial range)
Storage Temperature: -40°C to +85°C
Dimensions (WxHxD): 135 x 85 x 33 mm
Weight: 0.27 kg
Mounting Options: DIN rail or integrated controller rack mounting
Country of Origin: Sweden
Compliance: CE, Industrial Automation Standards
