SPCIS22 ABB Harmony Rack Datasheet & Technical Manual

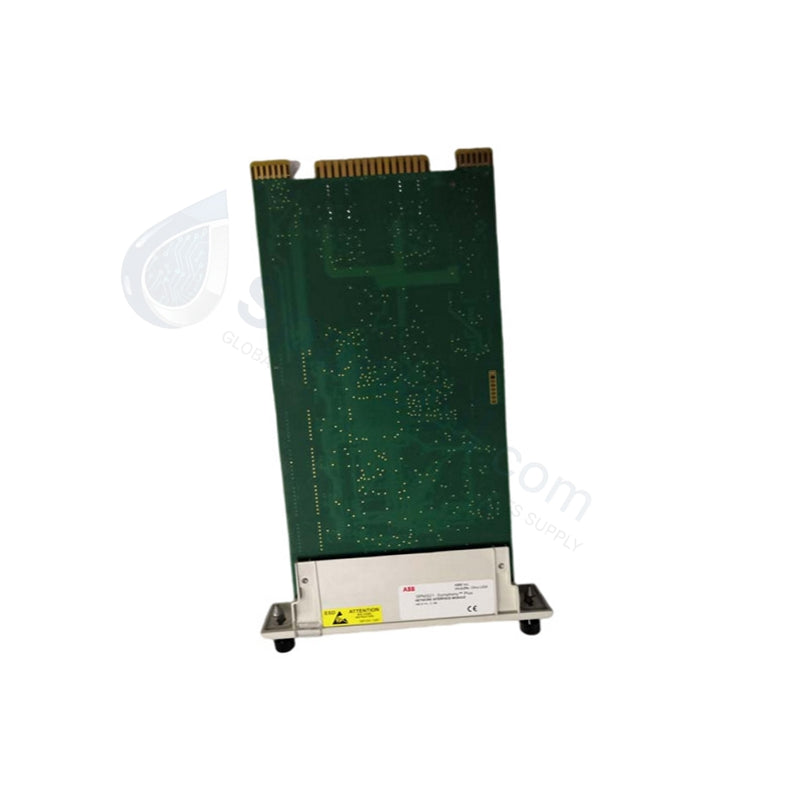

ABB SPCIS22 Symphony Plus Harmony Rack Intelligent Discrete I/O Module

ABB SPCIS22 Symphony Plus Harmony Rack Intelligent Discrete I/O Module

Availability: 10 left in stock

ABB SPCIS22 Control I/O Module Configured for high-speed discrete logic execution within Symphony Plus and Harmony rack-based control systems, the...

SKU: SPCIS22

Manufacturer: ABB
Product No.: SPCIS22
Product Type: Digital I/O Cards
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ABB SPCIS22 Control I/O Module

Configured for high-speed discrete logic execution within Symphony Plus and Harmony rack-based control systems, the ABB SPCIS22 (SPCIS22 Control I/O Module) provides direct physical and electrical execution of distributed I/O scanning and safety interlock sequencing.

Hardware Specifications

Parameter	Specification
Model	SPCIS22
Brand	ABB
Origin	USA
Weight	0.8 kg
Dimensions	Single slot MMU
Operating Temp	0 deg C to 70 deg C
Power Consumption	1.2 A (+5 VDC)
I/O Capacity	16 Digital Inputs / 16 Digital Outputs

Distributed Control & Logic Execution

The SPCIS22 functions as an intelligent interface that offloads real-time discrete logic execution from the central controller, effectively reducing communication latency across the Harmony backplane. The module features embedded processing capabilities to evaluate field inputs and drive outputs based on preloaded local logic, ensuring a deterministic input-to-output path typically under 10 ms. To maintain system reliability, the module employs galvanic isolation between field-side connections and system logic, protecting the controller from transient surges. Its distributed architecture allows for local safety interlocking and command sequencing, ensuring that mission-critical tasks maintain execution timing regardless of host CPU scan cycles.

Frequently Asked Questions

Q: Does the SPCIS22 support hot-swapping within the Harmony MMU rack?

A: Yes, the SPCIS22 is designed for hot-swapping in standard Harmony/INFI 90 racks. The module can be removed or replaced while the system is energized, provided that the system configuration software acknowledges the slot status and the physical module seating is performed without disrupting the backplane power rail.

Q: How is the logic execution speed impacted by the host controller's scan cycle?

A: The SPCIS22 offloads discrete logic execution to its onboard processor. Therefore, the input-to-output path (typically < 10 ms) is independent of the host CPU's scan cycle, allowing for deterministic response times required for safety-critical interlocks.

Field Installation Guidelines

Ensure the Module Mounting Unit (MMU) slot is prepared and free of debris before inserting the module.
Align the SPCIS22 with the backplane guides and press firmly to seat the parallel bus interface pins.
Terminate field wiring (dry or wet contacts) to the dedicated terminal board, ensuring proper cable shielding to minimize electromagnetic noise.
Verify the power supply rails by checking the front-panel status LEDs; confirm "Module Status" and "Bus Health" indicators are active.
Use the Symphony Plus configuration software to download the required logic and verify channel-specific input/output addresses before commissioning the loop.
