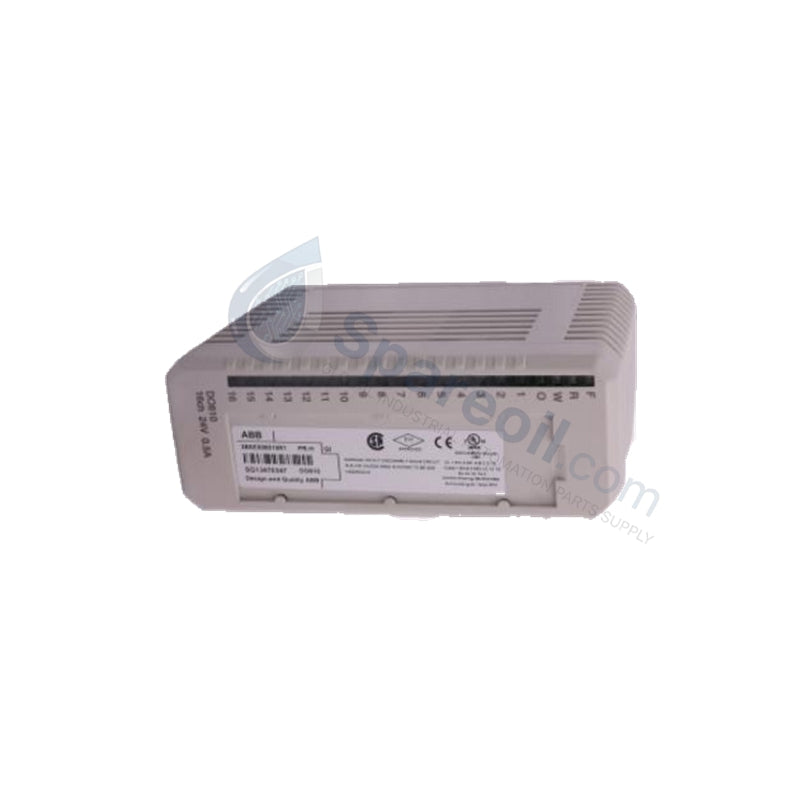

Brand New ABB DO810 | S800 I/O Process Automation Module

Availability: 10 left in stock

Product Overview The ABB DO810 (Part Number: 3BSE008510R1) serves as a high-density digital output interface for the S800 I/O system. It provides 16...

SKU: DO810

Manufacturer: ABB
Product No.: DO810
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The ABB DO810 (Part Number: 3BSE008510R1) serves as a high-density digital output interface for the S800 I/O system. It provides 16 independent channels to control field devices such as solenoids, relays, actuators, and indicators. Engineered for integration with AC 800M and Advant Master controllers, the DO810 facilitates precise 24V DC switching in complex process automation and power generation environments. We supply this module as 100% Brand New and Original, protected by factory packaging to ensure peak performance upon installation.

Technical Specifications

Feature	Specification
Model Number	DO810 (3BSE008510R1)
Number of Channels	16 (Isolated)
Rated Output Voltage	24 V DC
Maximum Output Current	0.5 A per channel
Isolation	Optical isolation (Channel-to-Bus)
Diagnostics	Short-circuit detection & LED status per channel
Power Consumption	5 W (Typical)
Operating Temp	–25°C to +70°C
Mounting Style	DIN Rail via S800 Terminal Base
Dimensions	27 mm x 127 mm x 133 mm

Engineering Advantages

Hot-Swap Capability: The DO810 supports "Hot Configuration in Run" (HCIR). Maintenance teams replace faulty modules while the rest of the S800 I/O station remains powered and operational. This eliminates costly process shutdowns during routine hardware swaps.
Built-in Protection & Diagnostics: Each channel features current limiting and short-circuit protection. If a field-side fault occurs, the module isolates the specific channel and activates a dedicated LED indicator, allowing technicians to pinpoint the error without troubleshooting the entire bus.
High-Density Control: With 16 channels packed into a 27mm wide frame, the DO810 maximizes cabinet space. This density reduces the total number of I/O stations required, lowering hardware costs and enclosure footprint.
Robust Signal Isolation: Optical isolation protects the internal system bus from field-side voltage spikes and electrical noise. This barrier prevents external transients from damaging the central processor, ensuring long-term system stability in electrically "noisy" industrial settings.
Wide Temperature Range: The module operates reliably from -25°C up to +70°C. This thermal resilience allows for installation in non-climate-controlled cabinets or near high-heat process equipment.

FAQs

What is the maximum total current the DO810 can handle?

While each individual channel supports up to 0.5 A, you must verify the total power dissipation for the entire 16-channel cluster. Ensure that the total current draw does not exceed the limits of the specific terminal base and power supply configuration in use.

Does the DO810 provide feedback on open-load conditions?

The DO810 focuses on short-circuit and overload diagnostics. For applications requiring specific open-load detection (wire-break monitoring), consider utilizing the high-integrity or supervised versions of the S800 digital output series.

Can I mix DO810 modules with other S800 series modules on the same cluster?

Yes. The DO810 integrates seamlessly with the full range of S800 modules (Analog, Digital, Pulse, etc.) on the same ModuleBus cluster. Simply ensure your AC 800M or Advant controller configuration reflects the correct slot positions.

Is any special software required for installation?

The module uses standard ABB Control Builder or Advant engineering tools. No unique drivers are necessary; you simply select the DO810 from the hardware library within your existing ABB engineering environment.
