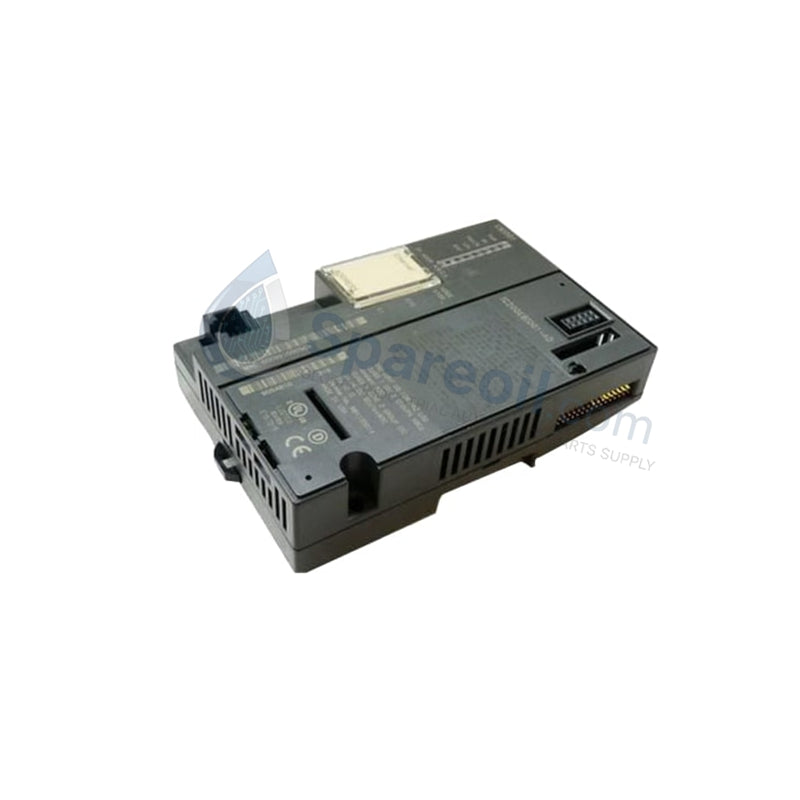

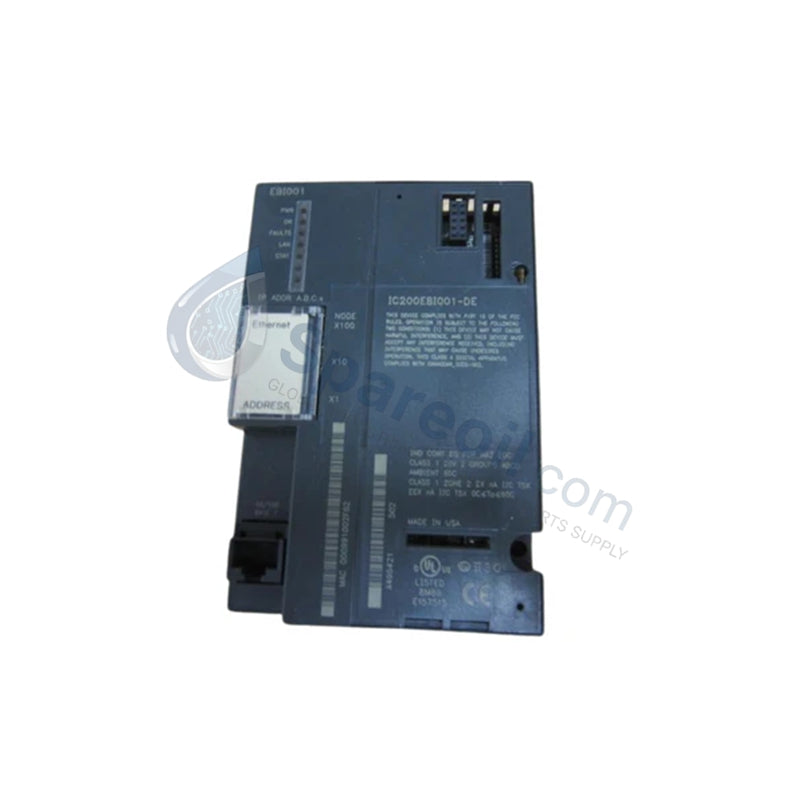

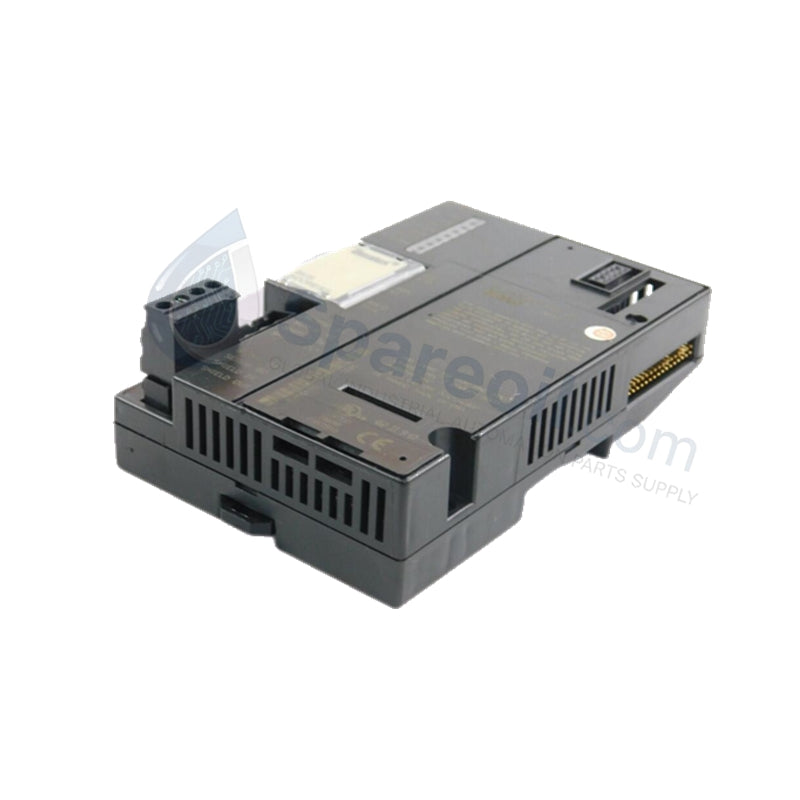

Brand New GE IC200EBI001 Modbus TCP Ethernet NIU

Availability: 99 left in stock

Product Overview The GE IC200EBI001 serves as the high-speed communication backbone for VersaMax expansion racks. This Ethernet Network Interface Unit (NIU) enables...

SKU: IC200EBI001

Manufacturer: GE Fanuc
Product No.: IC200EBI001
Product Type:
Product Origin: USA
Payment:T/T, Western Union
Weight: 680g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The GE IC200EBI001 serves as the high-speed communication backbone for VersaMax expansion racks. This Ethernet Network Interface Unit (NIU) enables a central CPU to manage remote I/O modules over a 10/100Mbaud network. It supports both Ethernet Global Data (EGD) and Modbus TCP server protocols, facilitating seamless integration into multi-vendor automation architectures. We provide this module as 100% Brand New and Original, ensuring high-speed data integrity for large-scale industrial deployments.

Technical Specifications

The IC200EBI001 delivers robust data handling capacities within a standard VersaMax footprint:

Feature	Specification
Manufacturer	GE Fanuc / Emerson
Protocol Support	EGD (Ethernet Global Data) or Modbus TCP Server
Data Capacity	1024 Bytes total (Discrete and Analog)
Transmission Speed	10/100 Mbaud (Auto-negotiating)
I/O Support	Up to 8 modules per NIU station
Maximum Distance	100 meters (Twisted pair media)
Connectors	26-pin D-shell for bus / RJ-45 for Ethernet
Current Draw	120 mA from rack backplane
Dimensions	133.4 mm x 85.9 mm
Operating Temp	0 °C to 60 °C

Engineering Advantages

The IC200EBI001 solves critical infrastructure challenges in distributed control systems:

Scalable Architecture: This module allows engineers to distribute I/O racks across large facilities (up to 100m drops) without degrading signal timing. It eliminates the need for expensive, long-run multi-core copper wiring by utilizing standard Ethernet infrastructure.
Protocol Versatility: By supporting both EGD and Modbus TCP, the IC200EBI001 communicates simultaneously with GE CPUs and third-party SCADA or HMI systems. This dual-protocol capability reduces the cost of protocol converters and gateways.
Simplified Configuration: The onboard rotary switch allows for physical Rack ID selection. This hardware-level addressing ensures that the CPU correctly identifies expansion racks even after a firmware update or network reset, preventing addressing conflicts.
Galvanic Protection: Integrated electrical isolation between the expansion bus and the internal logic protects the main control rack from field-side electrical surges and EMI interference common in heavy utility and energy environments.

FAQs

Where exactly should I install the IC200EBI001 in the expansion rack?

You must install the module in the leftmost slot (Slot 0) of the expansion carrier. This position allows the module to initialize the backplane power and manage the data flow for the subsequent 8 I/O modules.
Does this module support fiber optic connections?

The IC200EBI001 features an Ethernet twisted pair interface. If your site requires fiber optic runs for long distances or extreme EMI environments, you must use an external media converter.
What is the maximum I/O capacity per station?

Each NIU station supports up to 1024 bytes of combined discrete and analog data. This allows for high-density configurations across 8 attached modules while maintaining 10/100Mbaud throughput.
How do the diagnostic LEDs assist in troubleshooting?

The front-facing LEDs provide real-time status for "Power," "Module OK," and "Network Activity." A flashing status LED typically indicates a configuration mismatch or an addressing error on the rotary switch, allowing for rapid visual diagnostics without a laptop.
