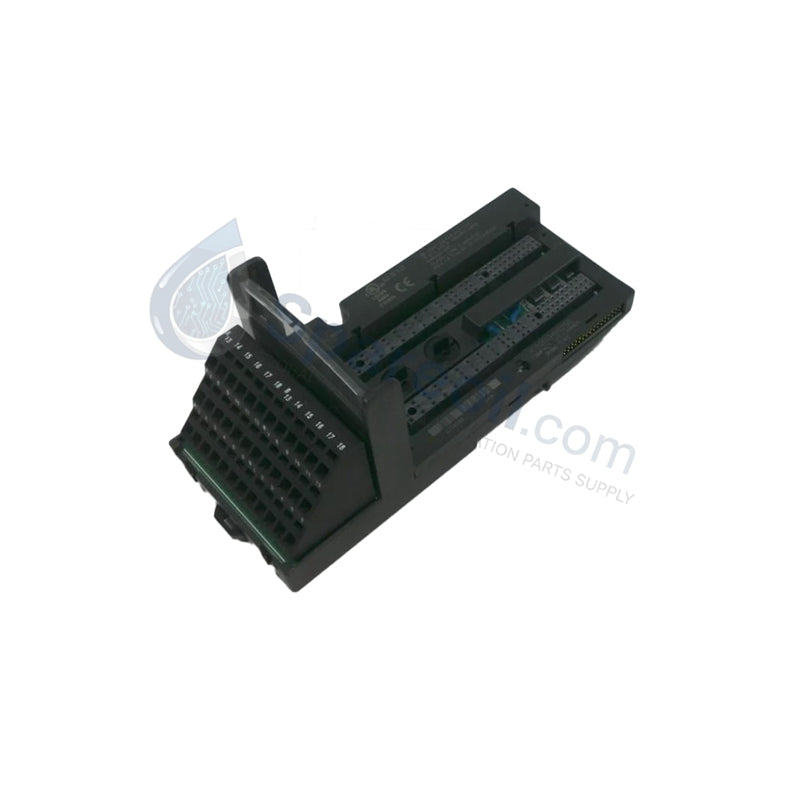

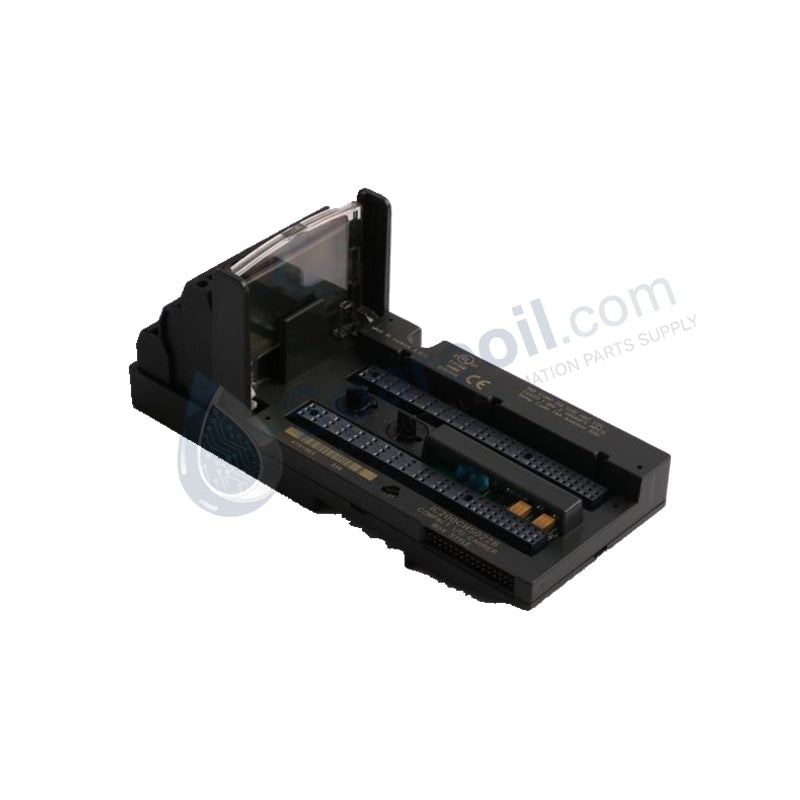

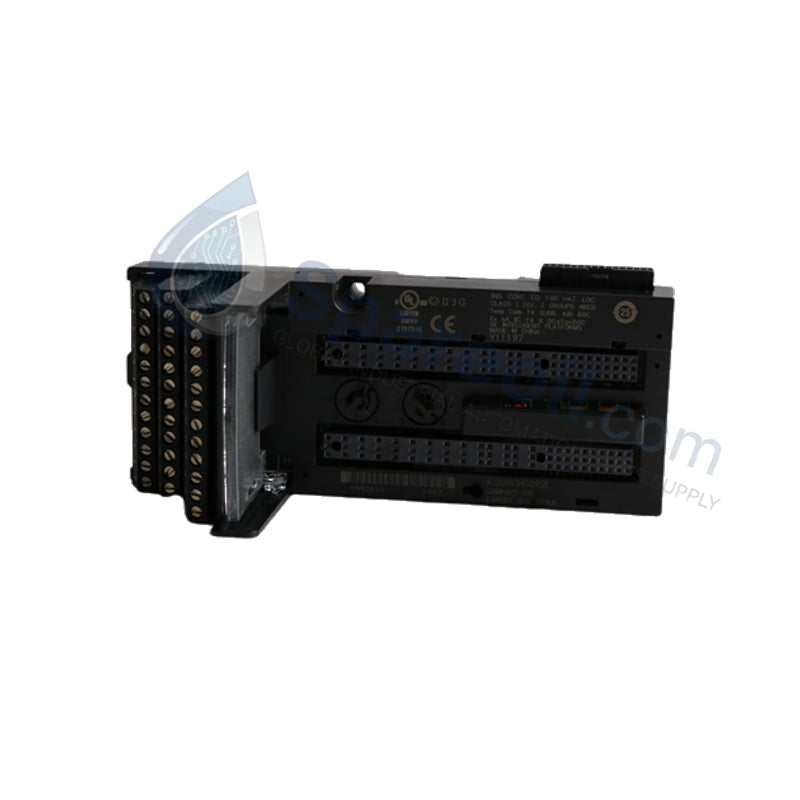

Buy GE Fanuc IC200CHS006 Communication Carrier Original

Availability: 10 left in stock

Product Overview The GE IC200CHS006 functions as the essential backbone for the VersaMax I/O system, acting as both a mechanical mounting base...

SKU: IC200CHS006

Manufacturer: GE Fanuc
Product No.: IC200CHS006
Product Type: Communication Carriers
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The GE IC200CHS006 functions as the essential backbone for the VersaMax I/O system, acting as both a mechanical mounting base and a high-speed electrical interface. This communication carrier facilitates seamless data exchange between I/O modules and the PLC backplane while providing secure termination for field devices. We supply this unit as 100% Brand New and Original, ensuring peak performance for your manufacturing and process control infrastructure.

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc / Emerson
Terminal Type	36 IEC-style screw terminals (A1–A18, B1–B18)
I/O Data Support	Up to 244 bytes
Network Baud Rate	9.6 Kbaud to 12 Mbaud
Voltage Rating	5 VDC (Backplane) / Supports 0–264 VAC Field Voltage
Current Rating	5 mA (Internal) / 2 A per point (Field)
Mounting	35 mm x 7.5 mm DIN rail or Panel Mount
Wiring Gauge	AWG #14 to #22 (Solid or Stranded)
Operating Temp	0°C to 60°C (Standard) / -40°C to +70°C (Extreme Range)

Engineering Advantages

High-Speed Data Throughput: The IC200CHS006 supports a broad network baud rate up to 12 Mbaud. This allows the carrier to handle complex, high-density data packets (up to 244 bytes) without causing latency in distributed control systems.
Space-Efficient Integration: The compact "box-style" architecture reduces footprint requirements within the electrical cabinet. Engineers can maximize I/O density by snapping these carriers directly onto a standard 35mm DIN rail.
Tool-less Backplane Setup: Integrated carrier-to-carrier connectors establish the internal communication bus instantly. This "click-and-connect" design eliminates external ribbon cables, significantly reducing assembly time and potential failure points.
Robust Electrical Protection: The unit tolerates voltage transients up to 300 VAC. This protection layer prevents field-side electrical noise and surges from damaging the sensitive PLC logic circuits.
Simplified Troubleshooting: A built-in wiring card holder provides immediate visual reference for field technicians, accelerating maintenance and reducing the risk of wiring errors during module swaps.

FAQs

Q: Is the IC200CHS006 compatible with both standard and extended temperature environments?

A: Yes. While standard operation covers 0°C to 60°C, the ruggedized design permits storage and specialized operation in environments ranging from -40°C to +70°C, making it suitable for unconditioned utility enclosures.

Q: Can I use this carrier for high-speed PROFIBUS or Genius network modules?

A: Absolutely. This communication carrier specifically supports the high-speed backplane requirements (up to 12 Mbaud) necessary for advanced communication interface modules within the VersaMax family.

Q: Does this unit require a specific type of wiring for the IEC terminals?

A: The IC200CHS006 accommodates both solid and stranded copper wire. For dual-wire connections, use AWG #18. For single-wire runs, the terminals accept a range from AWG #14 to #22, providing high flexibility for different field device requirements.

Q: How does the carrier ensure EMC protection?

A: The carrier utilizes the DIN rail as a primary grounding path. To ensure proper shielding and EMC compliance, you must mount the carrier on a grounded, conductive (zinc-plated) DIN rail.
