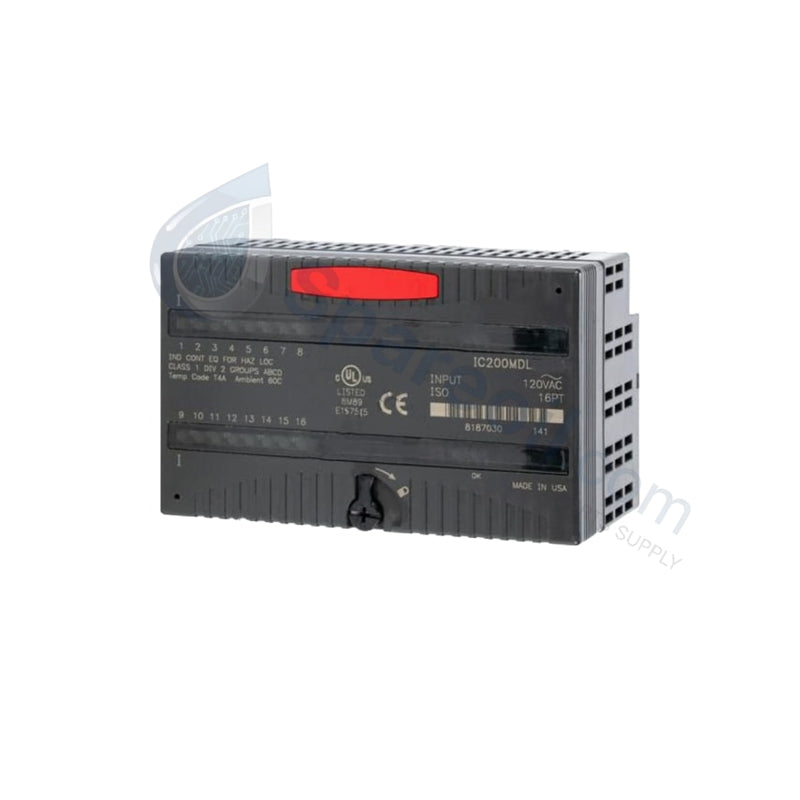

Buy New GE IC200MDL143 VersaMax 120V AC Input Module

Availability: 10 left in stock

Product Overview The IC200MDL143 provides high-voltage discrete sensing for the VersaMax PLC platform. This module interfaces directly with 120VAC field devices, converting...

SKU: IC200MDL143

Manufacturer: GE Fanuc
Product No.: IC200MDL143
Product Type: Isolated Input Technology
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200MDL143 provides high-voltage discrete sensing for the VersaMax PLC platform. This module interfaces directly with 120VAC field devices, converting high-voltage signals into logic-level data for the CPU. Each of the eight channels features full isolation, allowing the module to monitor signals from different power sources or phases within a single unit. We supply this module as 100% Brand New and Original in factory packaging, guaranteeing maximum signal integrity for your distributed I/O and control systems.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Input Type	Discrete AC
Number of Channels	8 (Individually Isolated)
Operating Voltage	120 Volts AC
Backplane Current	50 mA (at 5V DC)
Response Time (On)	1 Cycle (Maximum)
Response Time (Off)	2 Cycles (Maximum)
Isolation	Channel-to-channel and Channel-to-backplane
Status Indicators	8 Individually Numbered LEDs
Dimensions	110 mm x 66.8 mm x 50.0 mm
Mounting	Fits VersaMax I/O Carriers

Engineering Advantages

Phase-Independent Monitoring: The IC200MDL143 isolates every channel from the others. This allows you to monitor eight different 120VAC circuits even if they originate from different phases or completely separate power grids, eliminating the need for interposing isolation relays.
High-Voltage Signal Conversion: This module directly accepts 120VAC signals, removing the cost and cabinet space required for AC-to-DC signal converters. It effectively bridges the gap between high-voltage field equipment (pushbuttons, limit switches, and motor starters) and the low-voltage PLC backplane.
Robust Noise Immunity: The optical isolation barrier prevents high-voltage transients and electrical noise on the field side from reaching the sensitive PLC backplane logic. This architecture ensures the CPU remains stable even in environments with heavy electromagnetic interference (EMI).
Simplified Troubleshooting: Eight numbered LEDs provide real-time status for each input point. These indicators allow maintenance teams to verify field-side activity at a glance, significantly reducing downtime during signal tracing and system commissioning.
Compact Integration: Despite handling high-voltage inputs, the module maintains the standard VersaMax compact form factor. It snaps into any standard VersaMax I/O carrier, allowing for a mix of AC and DC modules in the same rack to optimize panel space.

FAQs

Can the IC200MDL143 detect DC signals?

No. This module is specifically engineered for 120VAC operation. To monitor 24VDC or 125VDC signals, you must select the appropriate DC input module (e.g., IC200MDL240 or IC200MDL140) to ensure accurate signal detection and hardware longevity.
What is the significance of the 1-cycle response time?

The "On" response time of 1 cycle (approx. 16.6ms at 60Hz) includes the time required for the internal filter to debounce the AC signal. This prevents false triggers caused by contact bounce or momentary voltage spikes on the AC line.
Does this module require a separate power supply?

The module draws its logic power (50mA) directly from the VersaMax backplane. However, the field-side devices (switches, sensors) must be powered by an external 120VAC source to provide the necessary input signal to the module terminals.
Is the IC200MDL143 a relay output or a discrete input?

The IC200MDL143 is a Discrete Input Module. While some VersaMax modules share similar numbering, this specific part number is designed to "read" 120VAC signals. If you require relay "outputs" to control loads, please refer to the IC200MDL940.
