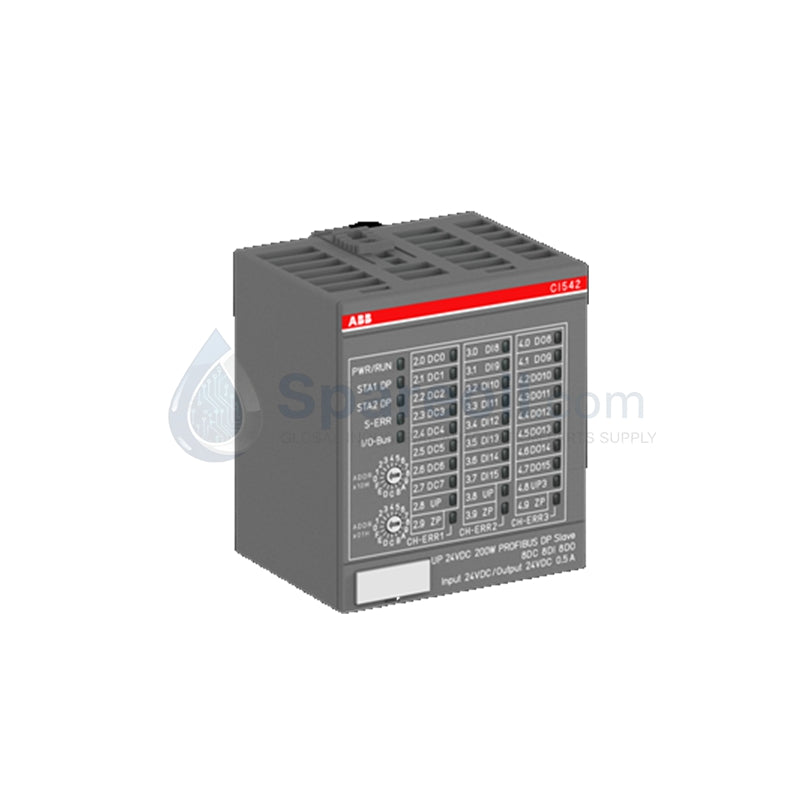

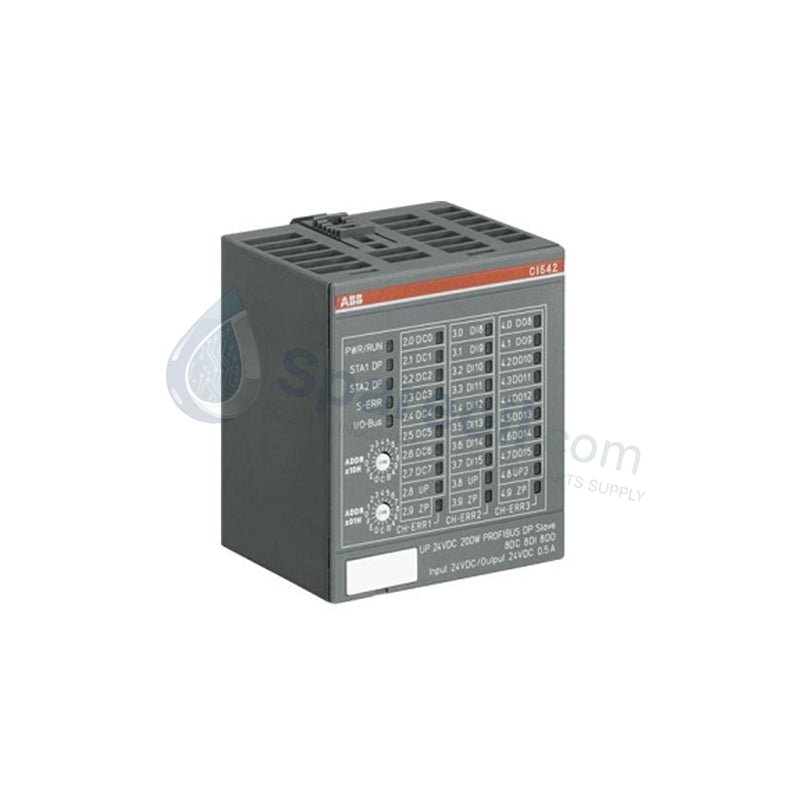

CI542-DP ABB S500 Interface Module 8DI 8DO 8DC

CI542-DP ABB S500 Interface Module 8DI 8DO 8DC

Availability: 10 left in stock

Product Overview The ABB CI542-DP (1SAP224200R0001) serves as a high-density PROFIBUS DP slave interface module within the S500 I/O platform....

SKU: CI542-DP 1SAP224200R0001

Manufacturer: ABB
Product No.: CI542-DP 1SAP224200R0001
Product Type: Fieldbus Interfaces
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 130g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The ABB CI542-DP (1SAP224200R0001) serves as a high-density PROFIBUS DP slave interface module within the S500 I/O platform. This versatile module integrates local I/O processing with fieldbus communication, providing 8 dedicated digital inputs, 8 dedicated digital outputs, and 8 fully configurable I/O channels. Designed for distributed automation, the CI542-DP bridges the gap between PROFIBUS master controllers and field-level sensors/actuators. We supply this unit as 100% Brand New and Original, ensuring seamless integration into your AC500 PLC architecture.

Technical Specifications

Attribute	Specification Details
Model Number	CI542-DP
Product ID	1SAP224200R0001
Protocol	PROFIBUS DP (Slave)
Dedicated Inputs	8 DI (24V DC)
Dedicated Outputs	8 DO (24V DC, 0.5A)
Configurable Channels	8 DC (DI or DO configurable, 24V DC, 0.5A)
Expandability	Supports up to 10 additional I/O modules
Operating Voltage	24V DC
Net Dimensions	67.5 mm (W) x 76 mm (H) x 62 mm (D)
Net Weight	0.13 kg
EAN	4016779866255

Engineering Advantages

The CI542-DP optimizes cabinet space and system flexibility through its hybrid I/O architecture and scalable design.

Hybrid I/O Versatility: The inclusion of 8 configurable DI/DO channels allows engineers to adapt the module to specific site requirements without changing hardware. This flexibility reduces spare part inventory costs and simplifies field wiring adjustments.
Massive Scalability: While providing 24 local I/O points, the CI542-DP also acts as a bus head that supports up to 10 expansion I/O modules. This allows a single PROFIBUS node to manage over 100 signal points, significantly reducing network addressing overhead.
Compact DIN-Rail Footprint: Measuring only 67.5 mm in width, the module maximizes rail space. This compact form factor proves essential in decentralized terminal boxes where mounting volume remains at a premium.
Efficient Power Distribution: The module handles a 0.5A current load per output channel, totaling enough capacity to drive industrial solenoids and indicators directly without requiring interposing relays for standard 24V DC loads.

FAQs

How many total I/O points does the CI542-DP handle locally?

The module provides 24 local points: 8 fixed inputs, 8 fixed outputs, and 8 channels that you can program as either inputs or outputs depending on your application needs.
Can the CI542-DP operate as a PROFIBUS Master?

No. The CI542-DP functions strictly as a PROFIBUS DP Slave. It requires a PROFIBUS Master (such as an AC500 CPU with a CM572-DP master module) to coordinate communication.
What is the maximum expansion capacity for this interface?

You can extend the local bus of the CI542-DP by attaching up to 10 additional S500 I/O modules. This allows you to scale the I/O count significantly while maintaining a single PROFIBUS station address.
Is this a Brand New unit in original packaging?

Yes. We guarantee that every 1SAP224200R0001 is 100% Brand New and Original. The unit ships in its original ABB carton (Level 1 packaging: 84 x 72 x 71 mm) to ensure it reaches your facility in factory condition.
