Product Overview

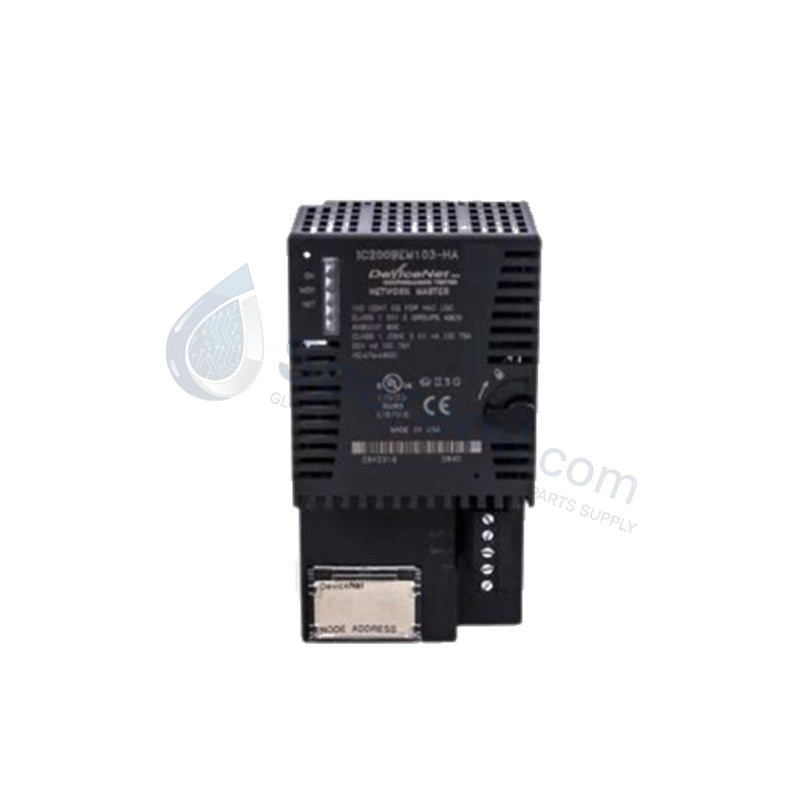

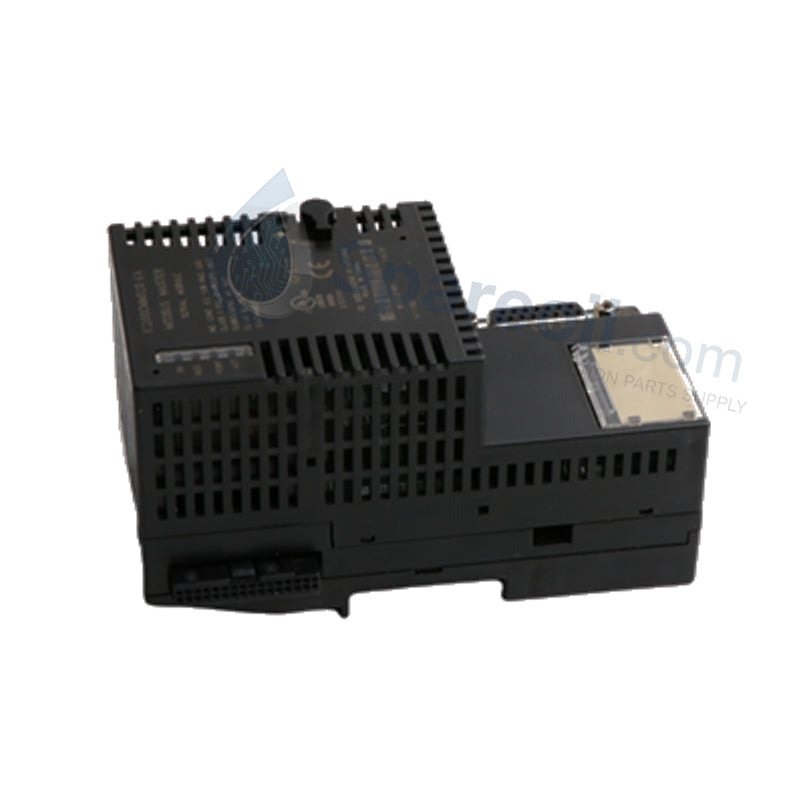

The IC200BEM103 acts as a powerful communication gateway for the VersaMax PLC platform, enabling seamless integration into DeviceNet networks. This module provides versatile functionality by operating as either a DeviceNet Master (Scanner) or a Slave device. It allows a VersaMax CPU to control up to 40 remote slave devices or exchange critical process data with a larger supervisory network. We supply this unit as 100% Brand New and Original, ensuring high-speed data throughput and robust network stability for your distributed I/O architecture.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Product Line	VersaMax
Protocol	DeviceNet (Master or Slave)
Nodes Supported	Up to 64 nodes (without bridging)
Slave Capacity	Controls up to 40 slave devices in Master mode
Baud Rates	125 Kbaud, 250 Kbaud, 500 Kbaud
Data Exchange	512 Bytes Input/Output total
Power Consumption	140 mA @ 5V DC (from backplane)
Required Carrier	IC200CHS006 (Communication Carrier)
Operating Temp	0 to 60 °C (32 to 140 °F)
Diagnostic LEDs	Network Status, Module Status

Engineering Advantages

Dual-Role Flexibility: The IC200BEM103 eliminates the need for separate hardware for different network roles. You can configure it as a Master to manage remote drives and I/O blocks, or as a Slave to present the VersaMax PLC as a component within a larger Allen-Bradley or third-party DeviceNet system.
Simplified Multi-Node Management: The module supports up to 64 nodes on a single segment and can actively scan up to 40 slave devices. This makes it an ideal choice for complex assembly lines or material handling systems requiring high-density peripheral control.
Auto-Baud and Configurable Rates: Supporting 125, 250, and 500 Kbaud, the module adapts to various network lengths and speed requirements. This flexibility ensures reliable data transmission over long distances or high-speed performance for time-critical motion tasks.
Efficient Data Throughput: With a 512-byte I/O data exchange capacity (up to 125 bytes per individual I/O transfer), the module handles large packets of diagnostic and control data without bottlenecking the PLC scan cycle.
Standardized Integration: The IC200BEM103 plugs into the IC200CHS006 carrier, which provides the standard 5-pin open-style connector required for DeviceNet cabling. This modular design allows for rapid hardware swaps without disturbing the network trunk line.

FAQs

Which I/O carrier is required for the IC200BEM103?

You must use the IC200CHS006 Communications Carrier. Standard I/O carriers are not compatible with the pinout and mechanical requirements of this network interface module.
Can this module operate as a PROFIBUS slave?

No. While some VersaMax modules share a similar form factor, the IC200BEM103 is dedicated strictly to the DeviceNet protocol. For PROFIBUS-DP Slave functionality, you would typically require the IC200BEM003.
Does the module require external power for the network side?

Yes. DeviceNet networks require an external 24VDC power supply to power the transceiver circuitry on the network cable. The module draws its logic power (140mA) from the PLC backplane, but the DeviceNet bus itself must be powered separately.
How do I set the MAC ID (Node Address)?

The Node Address (0–63) and Baud Rate are typically configured via software (such as Proficy Machine Edition) or through hardware switches on the carrier, depending on the revision and configuration mode selected.
