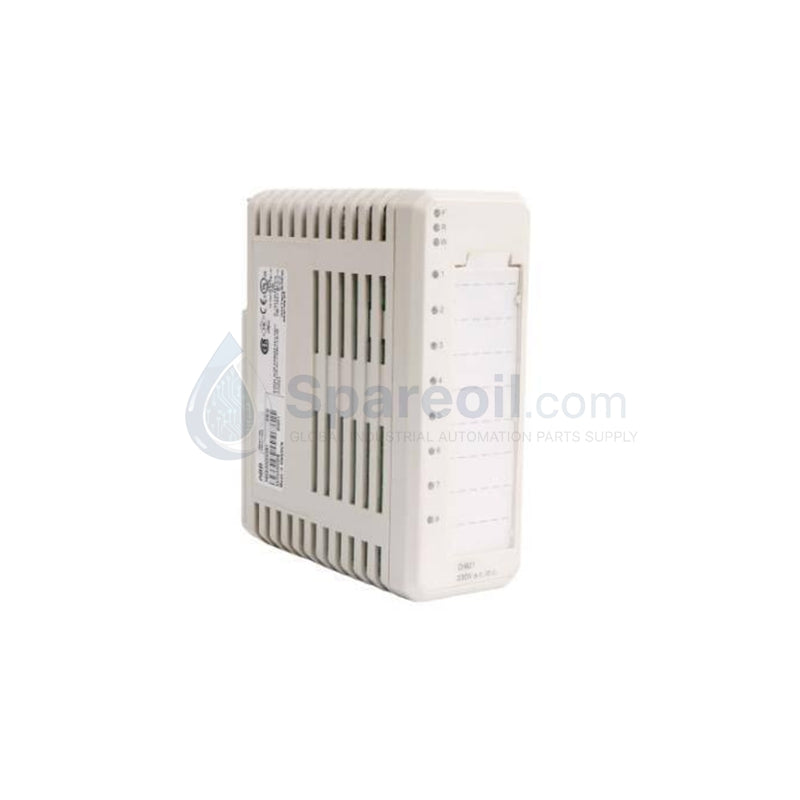

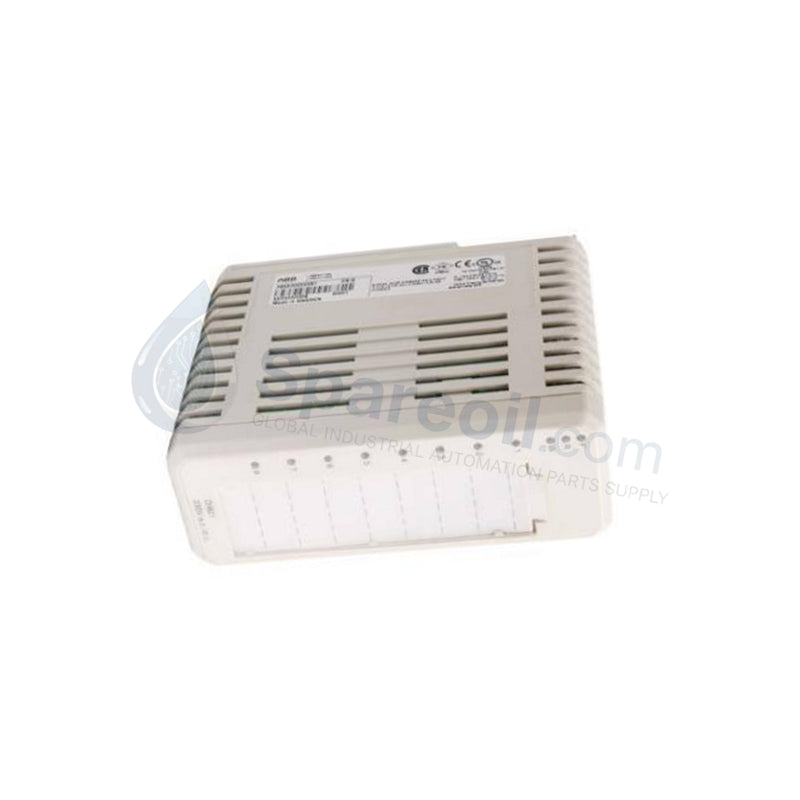

DI821 ABB S800 I/O 32-Channel Isolated Input Module

DI821 ABB S800 I/O 32-Channel Isolated Input Module

Availability: 10 left in stock

Product Overview The ABB DI821 (3BSE008550R1) functions as a high-density digital input interface for the S800 I/O system, primarily used...

SKU: DI821 3BSE008550R1

Manufacturer: ABB
Product No.: DI821 3BSE008550R1
Product Type: Galvanic Isolation
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The ABB DI821 (3BSE008550R1) functions as a high-density digital input interface for the S800 I/O system, primarily used within the 800xA distributed control environment. This module provides 8 independent input channels, each featuring individual galvanic isolation to ensure maximum signal integrity and protection against field-side transients. The DI821 captures discrete signals from various field devices, including sensors and switches, and converts them into logic data for the system controller. We supply this module as 100% Brand New and Original, providing a reliable solution for safety-critical process automation.

Technical Specifications

Attribute	Specification Details
Model Number	DI821
Product ID	3BSE008550R1
Input Channels	8 Channels (Individually Galvanic Isolated)
Nominal Input Voltage	24 V DC
Input Signal Type	Dry Contact or Voltage Input
Module Supply Voltage	24 V DC
Product Net Weight	0.3 kg
Dimensions (WxHxD)	45 mm x 119 mm x 102 mm
Operating Temperature	–20°C to +55°C
Compatible MTUs	TU811, TU813, TU831, TU839, TU851
Customs Tariff Number	85389099

Engineering Advantages

The DI821 addresses the rigorous demands of industrial signal acquisition through a hardware design focused on electrical isolation and rack efficiency.

Total Channel-to-Channel Isolation: Unlike group-isolated modules, the DI821 provides individual galvanic isolation for every channel. This architecture prevents a single electrical fault or ground loop on one field circuit from affecting the remaining inputs, significantly increasing system availability.
Broad MTU Compatibility: The module interfaces with a wide array of Module Termination Units (MTUs), including the TU811, TU813, and TU831. This flexibility allows engineers to choose between screw or spring terminals and various grounding strategies without changing the core I/O hardware.
Robust Signal Acquisition: The DI821 accurately detects both dry contact transitions and active 24V DC voltage inputs. This versatility allows the module to interface with diverse field equipment, from mechanical limit switches to electronic proximity sensors.
Optimized Thermal Management: Engineered to operate reliably between –20°C and +55°C, the DI821 maintains performance in densely packed cabinets. Its 0.3 kg compact frame facilitates efficient heat dissipation, extending the service life of internal opto-isolators.

FAQs

Which MTU is recommended for the DI821?

The DI821 works with the TU811, TU813, TU831, TU839, and TU851. Your selection should depend on your specific wiring requirements, such as the need for fused power distribution or specific termination types (screw vs. spring).
Does the DI821 support Sequence of Events (SOE) recording?

The DI821 is a standard high-density digital input module. For high-precision Sequence of Events applications, engineers typically specify the DI825 or specialized SOE modules that support higher signal processing speeds.
Is this a Brand New unit or a spare part?

We guarantee this ABB DI821 3BSE008550R1 is 100% Brand New and original. It arrives in factory-new condition, ensuring full compliance with ABB’s original performance and safety certifications.
Can the DI821 be used with 48V DC inputs?

No. The DI821 is rated for a nominal 24V DC input. Applying 48V DC may exceed the thermal limits of the galvanic isolation circuitry and damage the module. For higher voltage inputs, use the DI820 (120V) or DI825 (125V).
