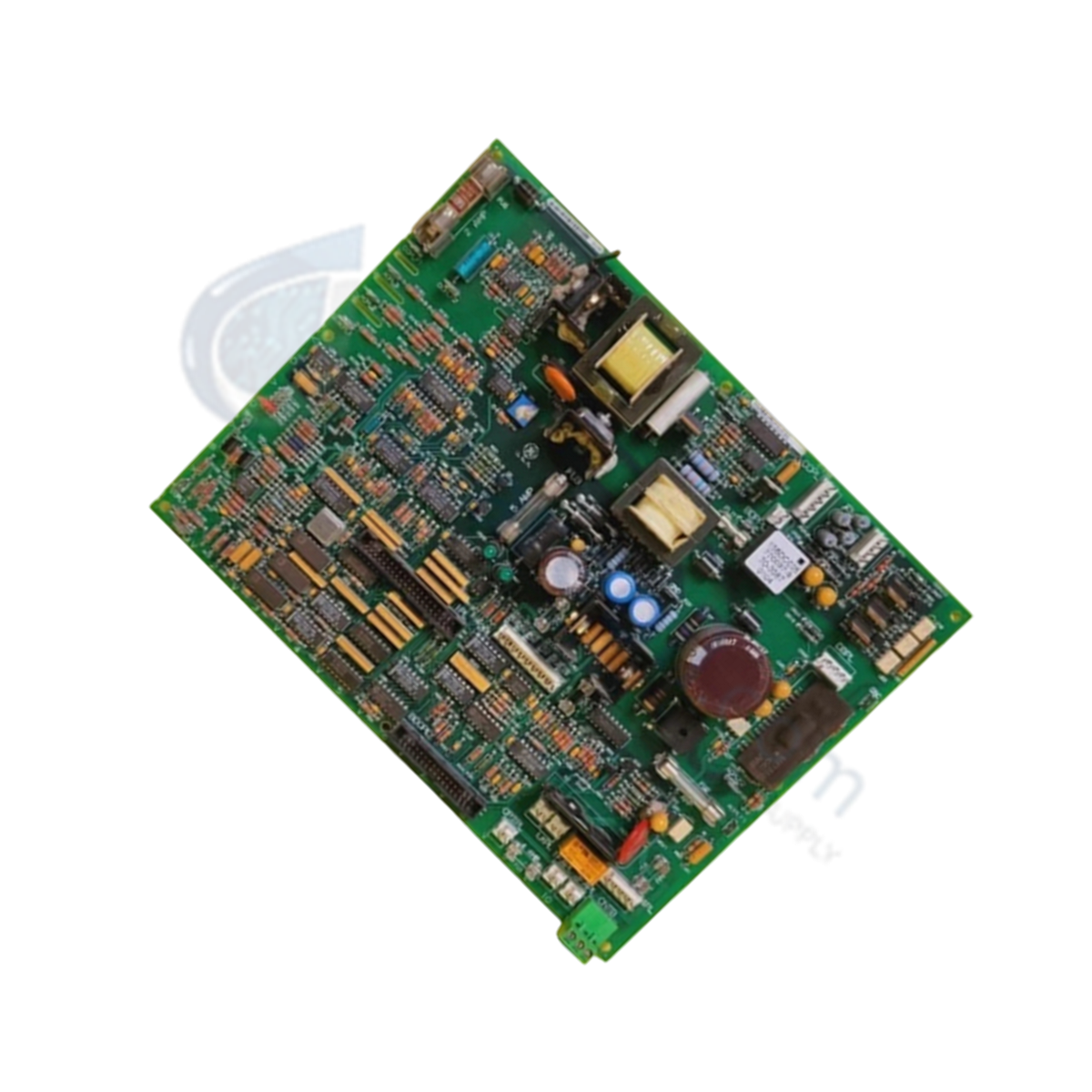

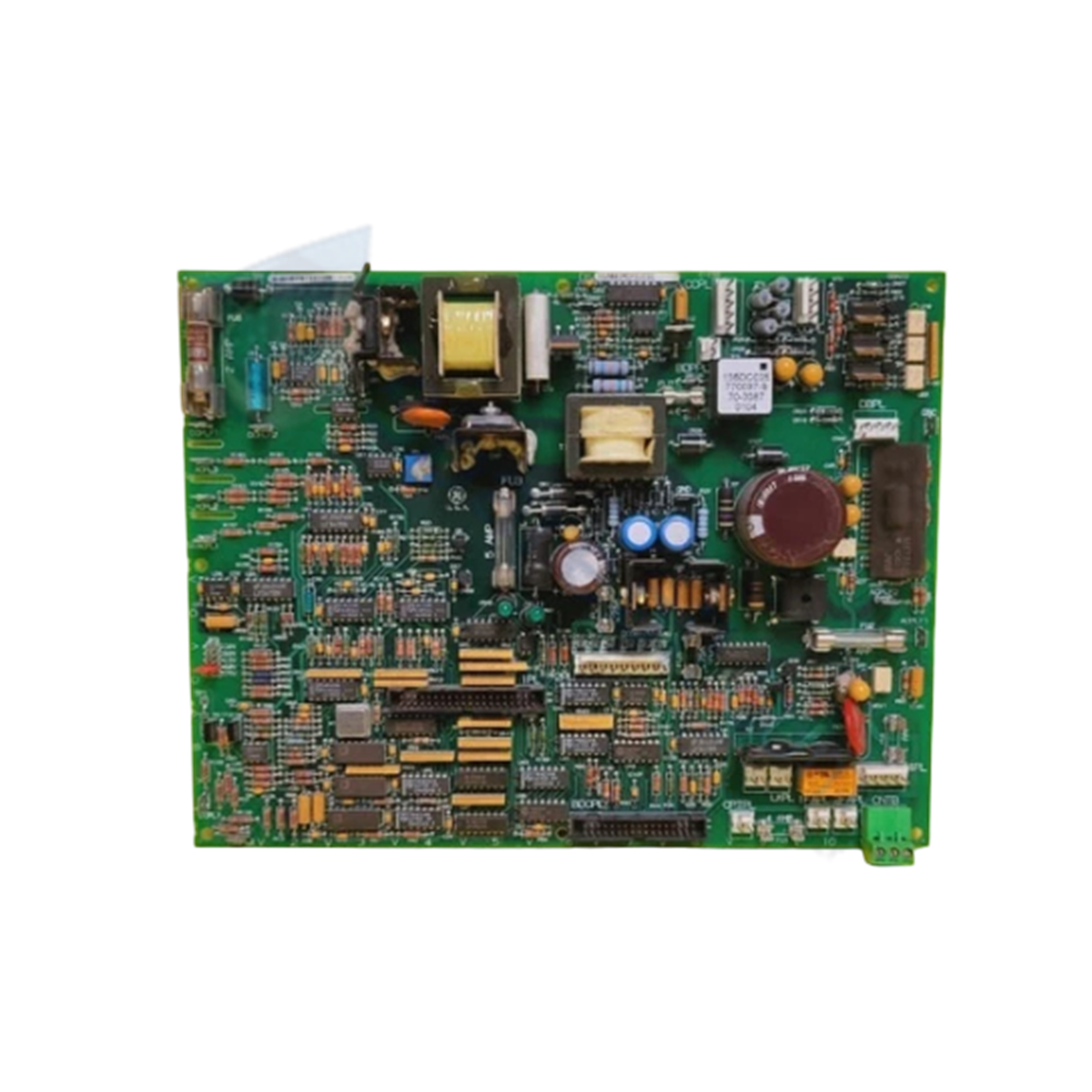

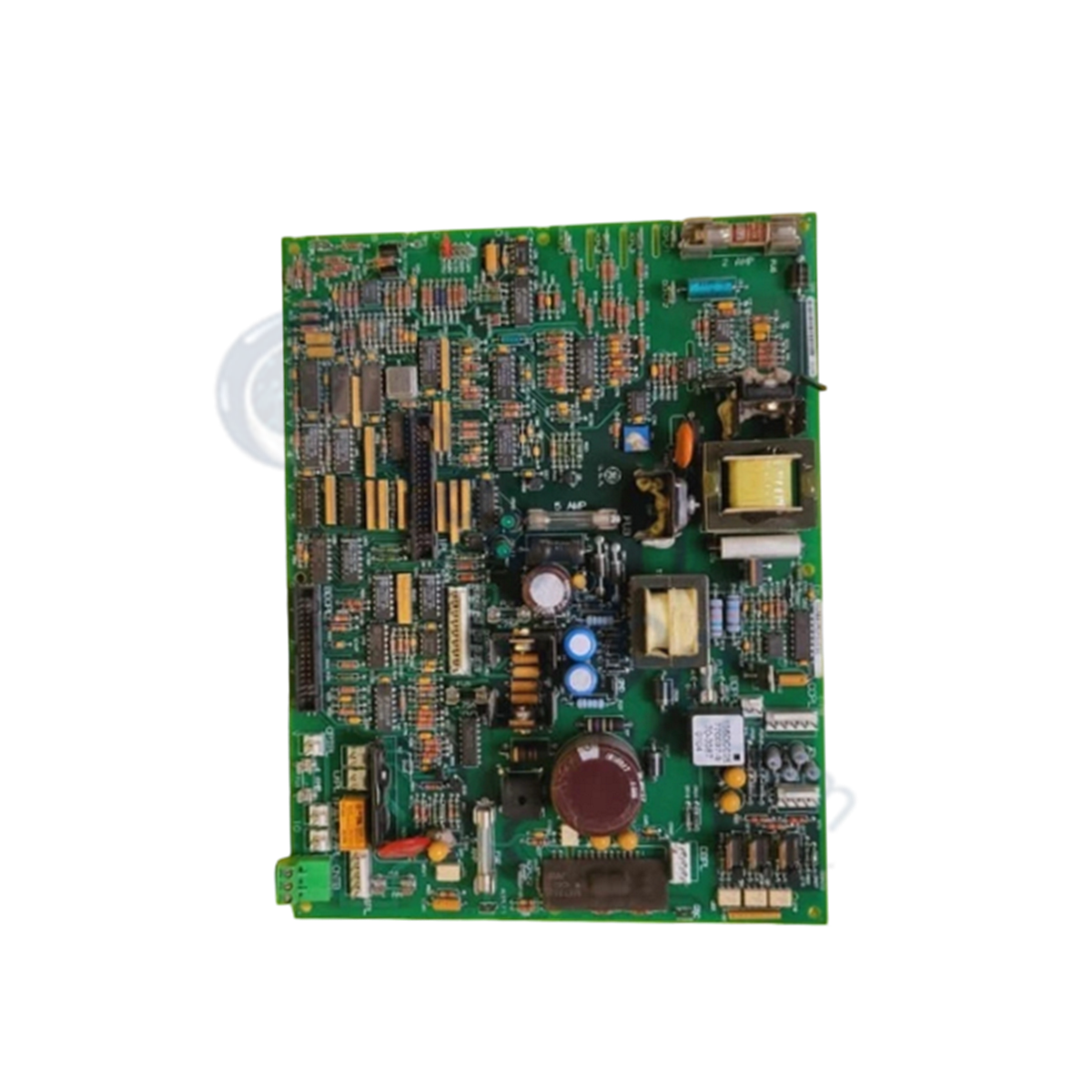

The GE DS200IMCPG1CCA, also cataloged as the IMCP PC Board Assembly IGBT Card, operates as a dedicated hardware component for high-precision motor parameter processing and gate switching control within GE Mark V drive platforms.

Suffix Breakdown & Model Matrix

Revision Component Designator Code Description
Base PCB Architecture DS200 Standard GE Mark V domestic baseline PCB layout
Functional Acronym IMCP IGBT Power Supply Interface Board
Group Variant G1 Group 1 product configuration
1st Functional Revision C Initial functional circuit revision
2nd Functional Revision C Secondary functional circuit revision
Artwork Revision A Base circuit trace layout and artwork revision

Hardware Specifications

Parameter Specification
Model DS200IMCPG1CCA
Brand GE (General Electric)
Origin USA
Weight 1.5 kg
Dimensions 30 cm x 30 cm x 7 cm
Operating Temp -20 to +60 deg C
Power Consumption Operating voltage: 110 V to 240 V AC (current draw varies with load)
Product Series Speedtronic Mark V DS200
Communication Interfaces Ethernet, RS-232, RS-485
Storage Temperature -40 to +85 deg C
Packaging Dimensions 32 cm x 32 cm x 9 cm

Industrial Control & Processing Dynamics

The DS200IMCPG1CCA utilizes an integrated microprocessor-based processing architecture to achieve deterministic control over motor speed, torque, and positional parameters. High-speed backplane bus communication velocity and multi-protocol networking are maintained through onboard Ethernet, RS-232, and RS-485 serial buses. These communication interfaces handle local data transfers to supervisory logic networks while maintaining firmware flash compatibility and real-time execution across connected GE drive nodes.

Frequently Asked Questions

Q: What communication protocols are natively supported by the DS200IMCPG1CCA interface?

A: The card incorporates physical transceiver channels for Ethernet, RS-232, and RS-485 interfaces to facilitate direct data exchanges with PLCs, HMIs, and SCADA control networks.

Q: What are the input operating voltage limits for the board assembly?

A: The board accepts an operating voltage input range from 110 V to 240 V AC, with current consumption scaling based on operational loading conditions.

Q: What physical mounting mechanisms are supported during panel installation?

A: The assembly includes standardized mounting holes and brackets designed for direct attachment to panel subplates or standard DIN-rail hardware.

Field Installation Guidelines

  1. Mount the assembly in the specified vertical or horizontal orientation using appropriate screws and washers to optimize thermal dissipation.
  2. Verify that line power supplies fall within the rated 110 V to 240 V AC operating range before applying control voltage.
  3. Wire signal connections according to terminal schematics, observing strict power supply terminal polarity.
  4. Route signal and serial communication lines using shielded twisted-pair cabling, maintaining physical isolation from high-voltage power lines.
  5. Bond a dedicated low-impedance ground conductor from the board chassis to the main enclosure earth grounding point to minimize electromagnetic interference.
