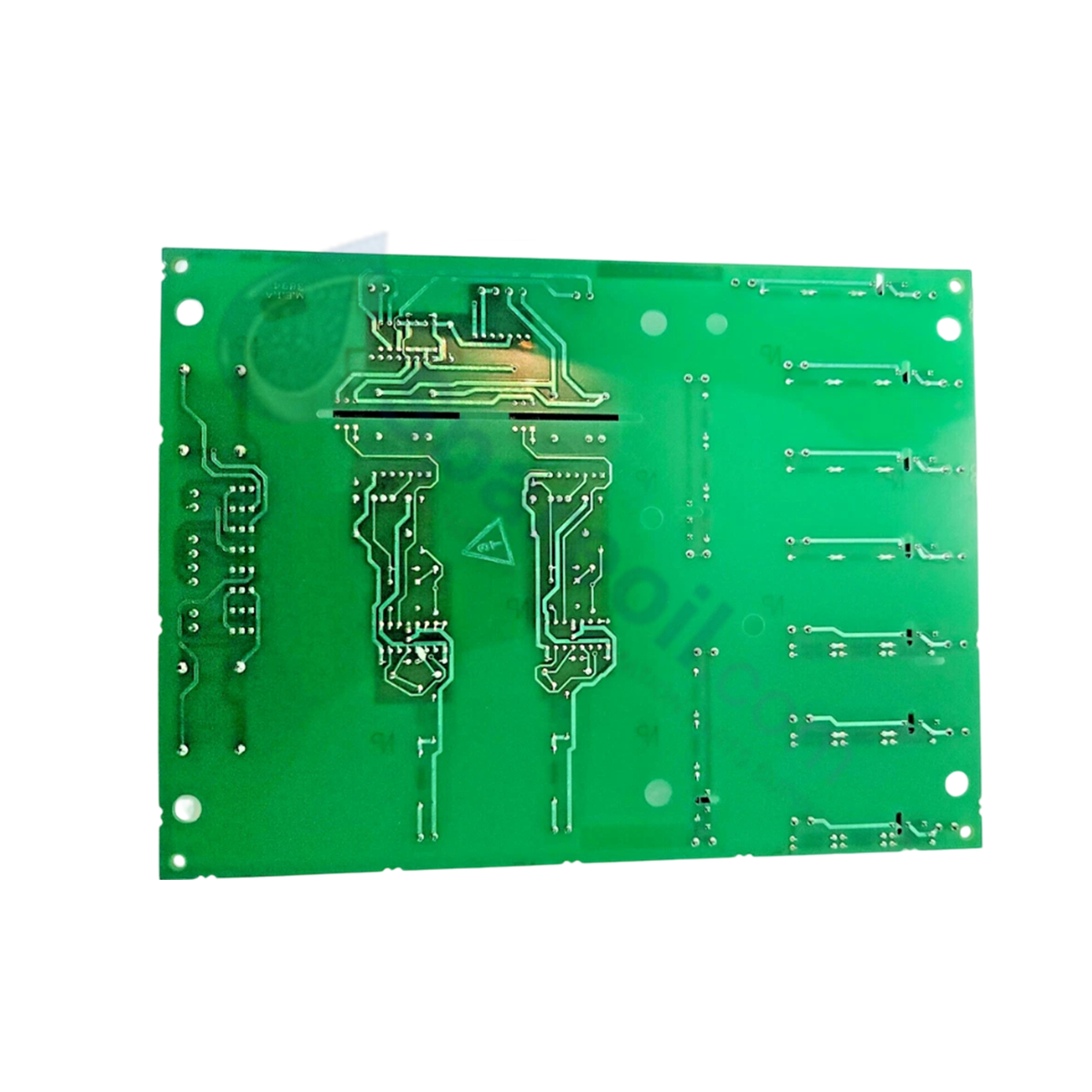

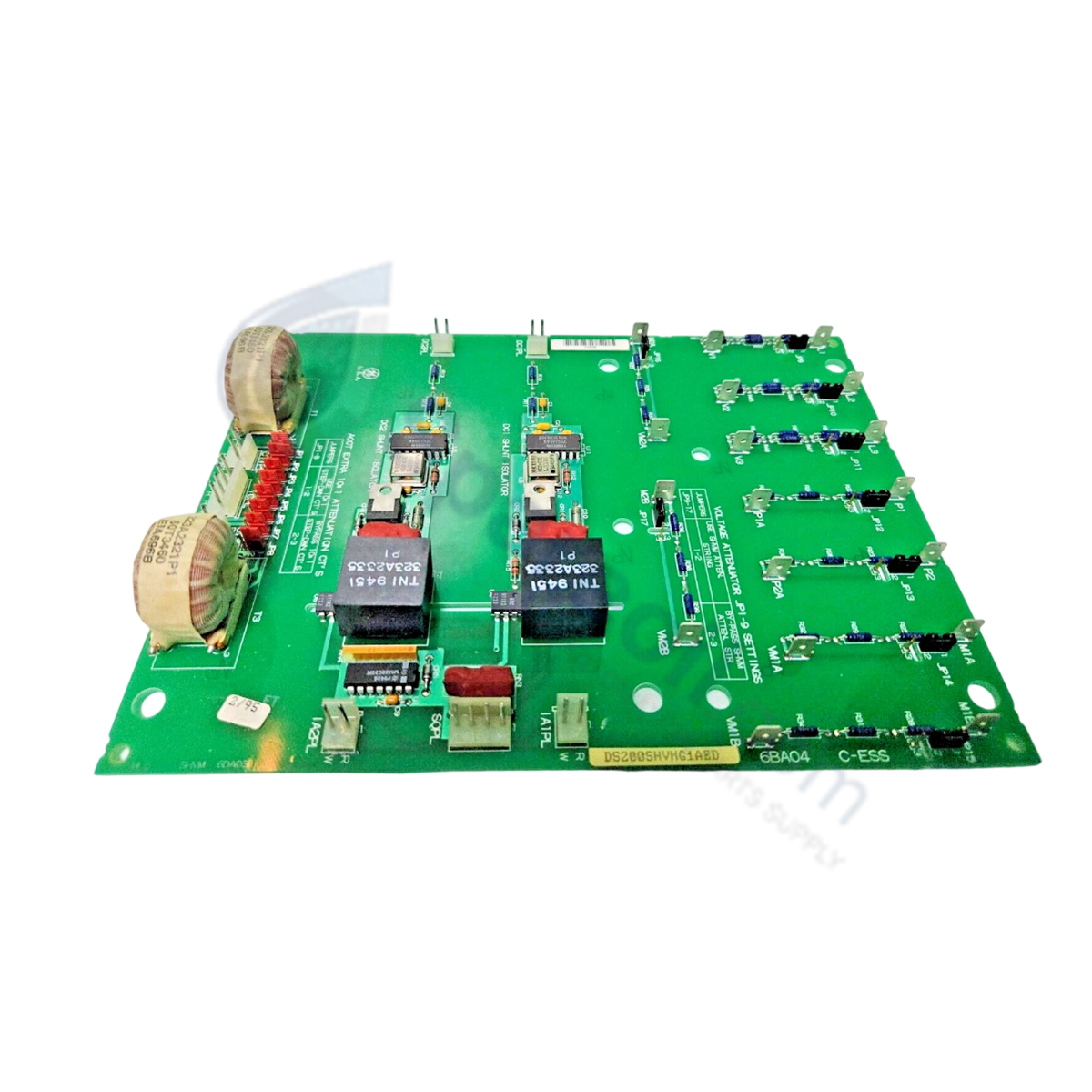

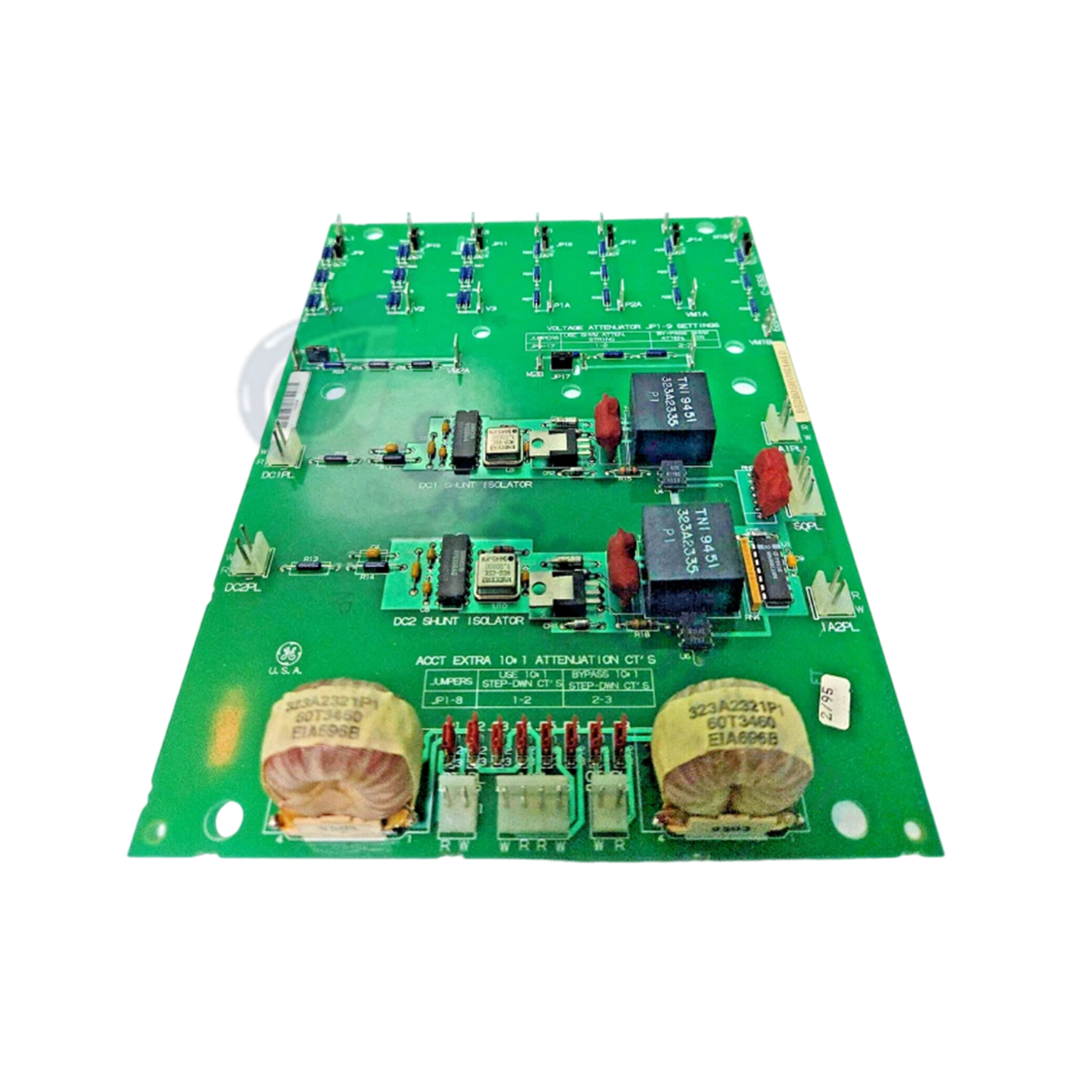

Configured for voltage signal conversion and power bridge isolation in Mark V drive systems, the GE DS200SHVMG1AGE (SHVM SCR High Voltage M-Frame Interface Board) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Revision Component Designator Code Description
Base PCB Architecture DS200 Standard GE Mark V domestic baseline PCB layout
Functional Acronym SHVM SCR High Voltage M-Frame Interface Board
Group Variant G1 Group 1 product configuration
1st Functional Revision A Initial functional design revision
2nd Functional Revision G Secondary functional design revision
Artwork Revision E PCB artwork trace layout revision

Hardware Specifications

Parameter Specification
Model DS200SHVMG1AGE
Brand GE (General Electric)
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Interfaced via DCFB/SDCI power supply board connections
Product Series Speedtronic Mark V
Signal Conversion Converts -500 mV to +500 mV shunt signals to 0 to 500 kHz frequency output
Connectors 8 plug connectors (CT1PL, CT3PL, DC1PL, DC2PL, 1CPL, SQPL, IA1PL, IA2PL)
Jumpers 17 selectable hardware jumpers
Instruction Manual GEI-100174

Industrial Control & Drive Interface Dynamics

The DS200SHVMG1AGE interfaces the SCR bridge on M-frame drives with power supply boards (DCFB or SDCI) and power connect cards (PCCA). Onboard voltage-controlled oscillator (VCO) circuits convert -500 mV to +500 mV positive and negative DC shunt signals into 0 to 500 kHz differential frequency outputs to adjust controller feedback loops. AC line feedback features a 10:1 current transformer attenuation circuit, which can be modified using seventeen onboard jumpers. The module maintains fast backplane bus communication velocity and enforces precise timing to preserve firmware flash compatibility across connected GE exciters and drives.

Frequently Asked Questions

Q: What frequency range is generated by the onboard voltage-controlled oscillator (VCO) circuits?

A: The onboard VCO circuits convert DC shunt inputs ranging from -500 mV to +500 mV into a differential frequency output range of 0 to 500 kHz.

Q: How is AC line current attenuation configured on the DS200SHVMG1AGE?

A: AC current feedback utilizes an onboard 10:1 current transformer attenuation circuit that is configurable via seventeen hardware jumpers.

Q: Which connectors interface current outputs to external circuits?

A: The 1CPL plug connector processes AC current signals through designated pins, including 1CPL-1 (L1 ACCT white), 1CPL-2 (L1 ACCT red), 1CPL-3 (L3 ACCT red), and 1CPL-4 (L3 ACCT white).

Field Installation Guidelines

  1. Disconnect all AC and DC power sources supplying the drive cabinet and verify de-energized conditions before servicing internal circuit boards.
  2. Put on an ESD grounding wrist strap connected to a bare metal enclosure chassis point prior to touching components.
  3. Match the positions of all seventeen selectable jumpers on the replacement DS200SHVMG1AGE to mirror the layout of the original board.
  4. Align and seat all eight multi-pin plug connectors (CT1PL, CT3PL, DC1PL, DC2PL, 1CPL, SQPL, IA1PL, and IA2PL) firmly into their corresponding card headers.
  5. Ensure field current transformer leads and high-voltage wiring maintain adequate spatial separation from low-voltage signal cables to suppress inductive coupling.
