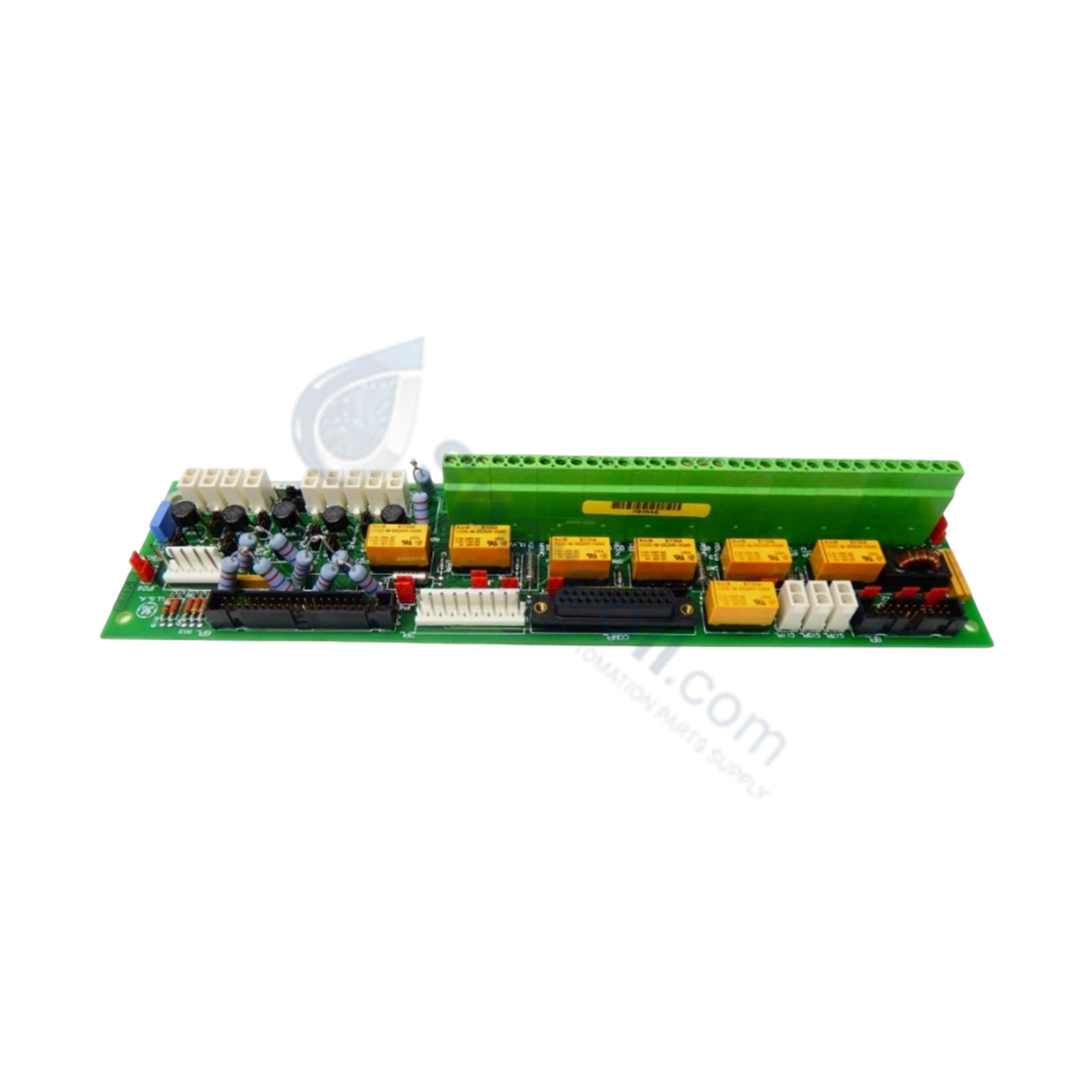

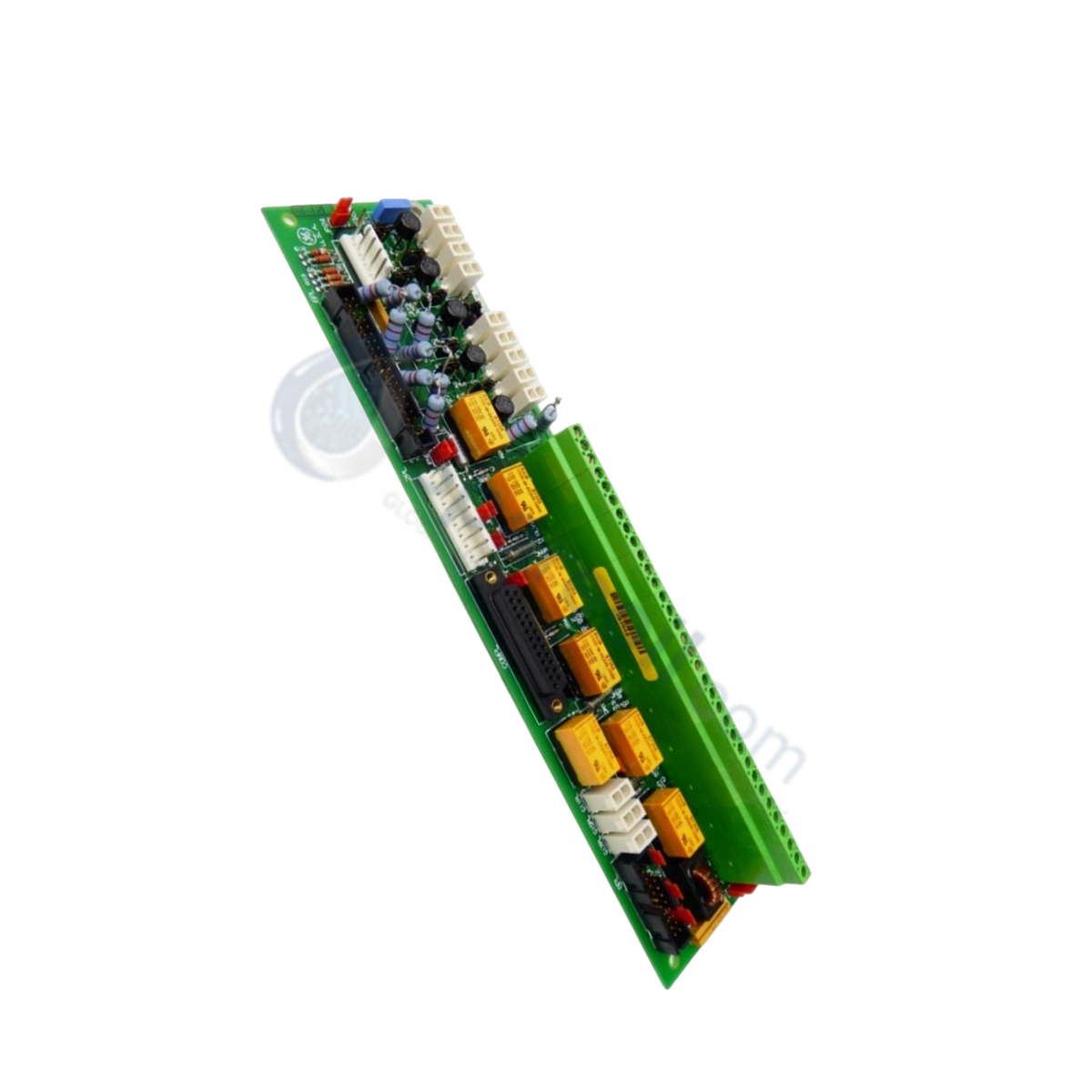

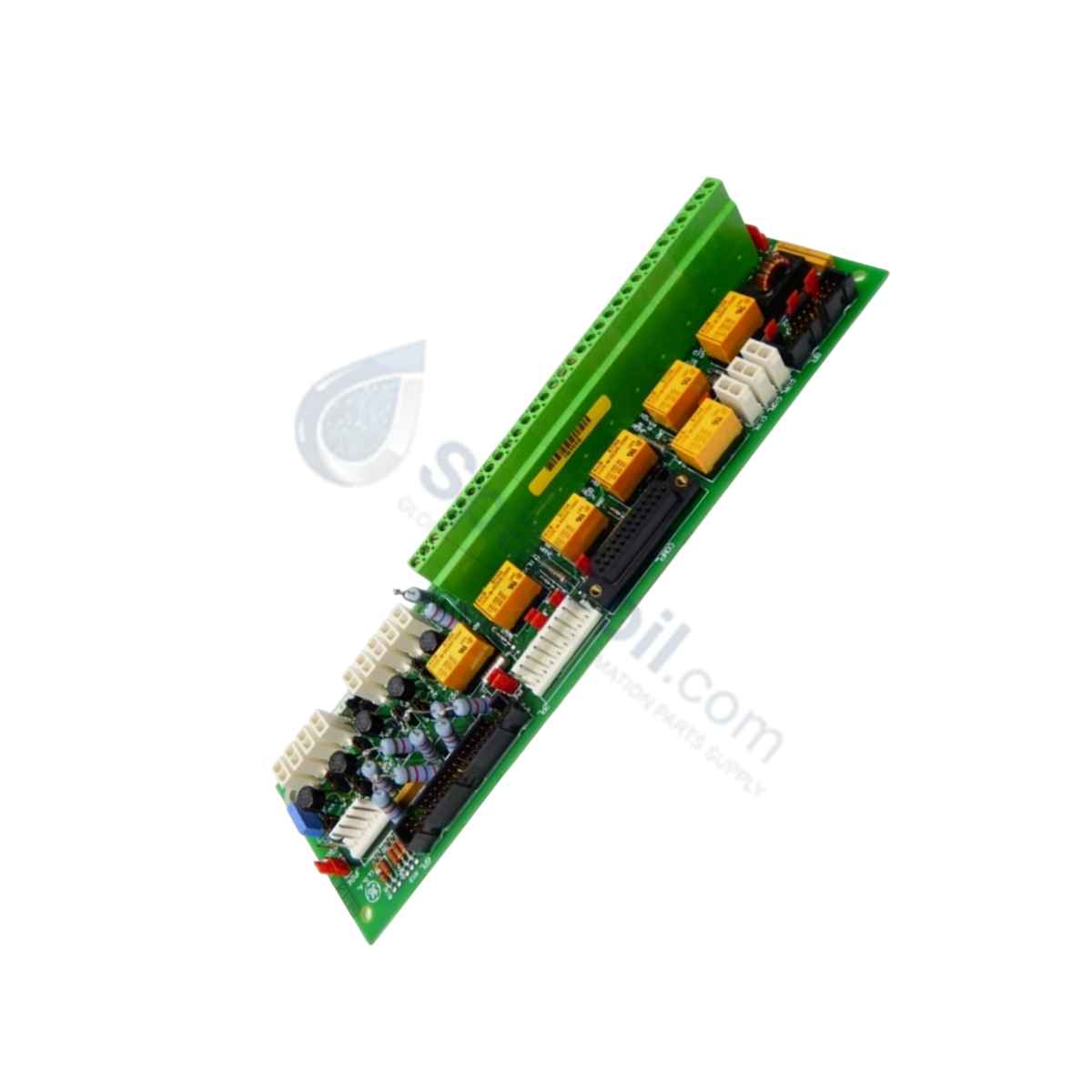

Configured for field I/O termination and analog/digital signal distribution in Speedtronic Mark V turbine control and drive platforms, the GE DS200STBAG1ACB (DS200STBA Basic Drive Terminal Board) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Segment Code Description
Product Family DS200 Speedtronic Mark V Board Series
Board Acronym STBA Basic Drive Terminal Board
Group Identifier G1 Group 1 Standard Functional Circuitry Configuration
Functional Revision 1 A First Functional Revision Level
Artwork Revision B Second Revision Level / Circuit Artwork Layout
Functional Revision 2 C Third Functional Revision Level

Hardware Specifications

Parameter Specification
Model DS200STBAG1ACB
Brand GE General Electric
Origin USA
Weight 0.82 kg (1.81 lbs)
Dimensions Standard Mark V Board Profile
Operating Temp 0 to 60 deg C
Power Consumption Passive Board (Passive bus drawing < 2.0 W)
Interface Type Terminal Blocks and Ribbon Cable Connectors
Technical Manual GEI-100177
PCB Coating Normal Conformal Coating

Backplane Bus & Firmware Architecture

The DS200STBAG1ACB interfaces directly with main processor modules and control racks via internal multi-pin ribbon cables to maintain high backplane bus communication velocity. The passive termination layout executes direct point-to-point physical trace routing, preventing signal transmission bottlenecks during high-frequency control cycles. System-level logic execution and firmware flash compatibility are maintained by the connected main drive controller card, allowing the STBA termination assembly to operate seamlessly across system revisions without requiring onboard flash updates.

Frequently Asked Questions

Q: Does the DS200STBAG1ACB support hot-swapping during drive operation?

A: No. Replacing the board requires de-energizing cabinet power and isolating associated field signal loops to prevent transient electrical spikes across the backplane bus.

Q: How are field wiring connections made to the DS200STBAG1ACB?

A: Field connections attach to on-board screw terminal blocks, which route field signals directly to internal ribbon cable headers.

Q: Is the DS200STBAG1ACB compatible with earlier DS200STBA revisions?

A: Yes. The DS200STBAG1ACB maintains physical mounting dimensions, connector pinouts, and terminal block layouts consistent with earlier DS200STBA models.

Field Installation Guidelines

  • Isolate all AC and DC incoming power supplies to the panel prior to removing or attaching signal cables.
  • Align ribbon cable connectors with mechanical key guides on board headers to prevent pin bending or misconnection.
  • Earth cable shields at designated single-point grounding bars inside the enclosure according to Mark V wiring specifications.
  • Tighten terminal screws to 0.5 to 0.6 Nm (4.4 to 5.3 in-lbs) to ensure secure electrical contact without damaging thread engagement.
