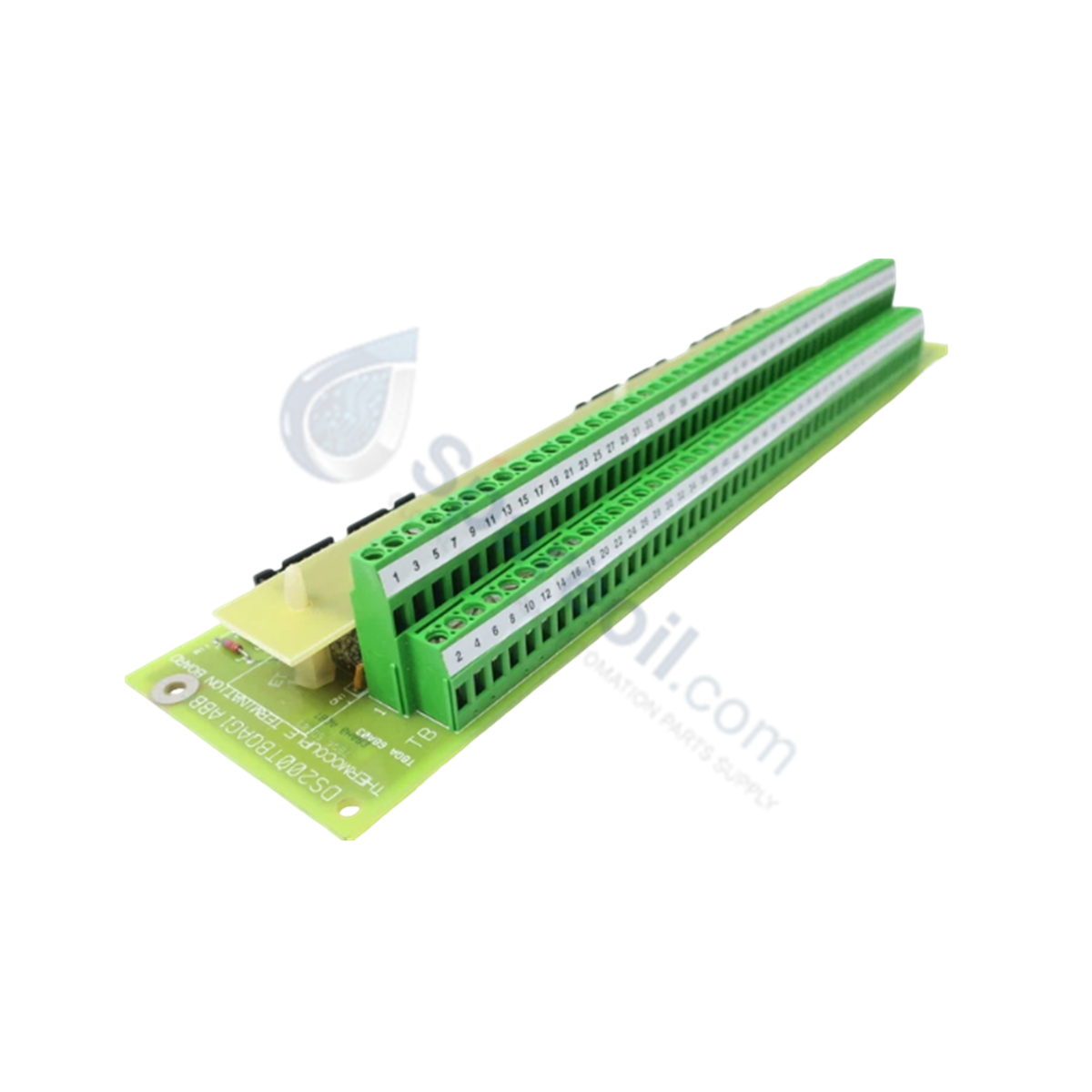

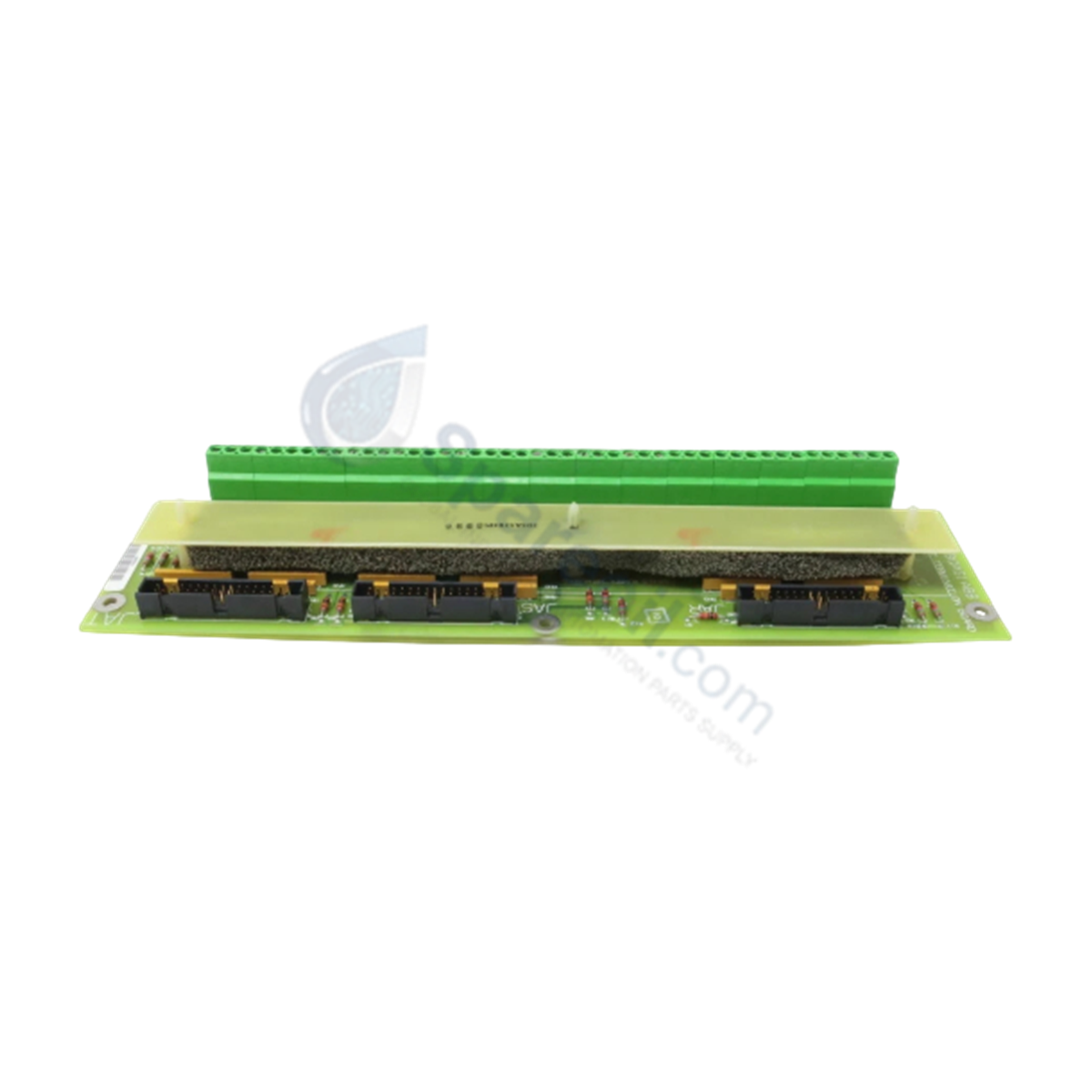

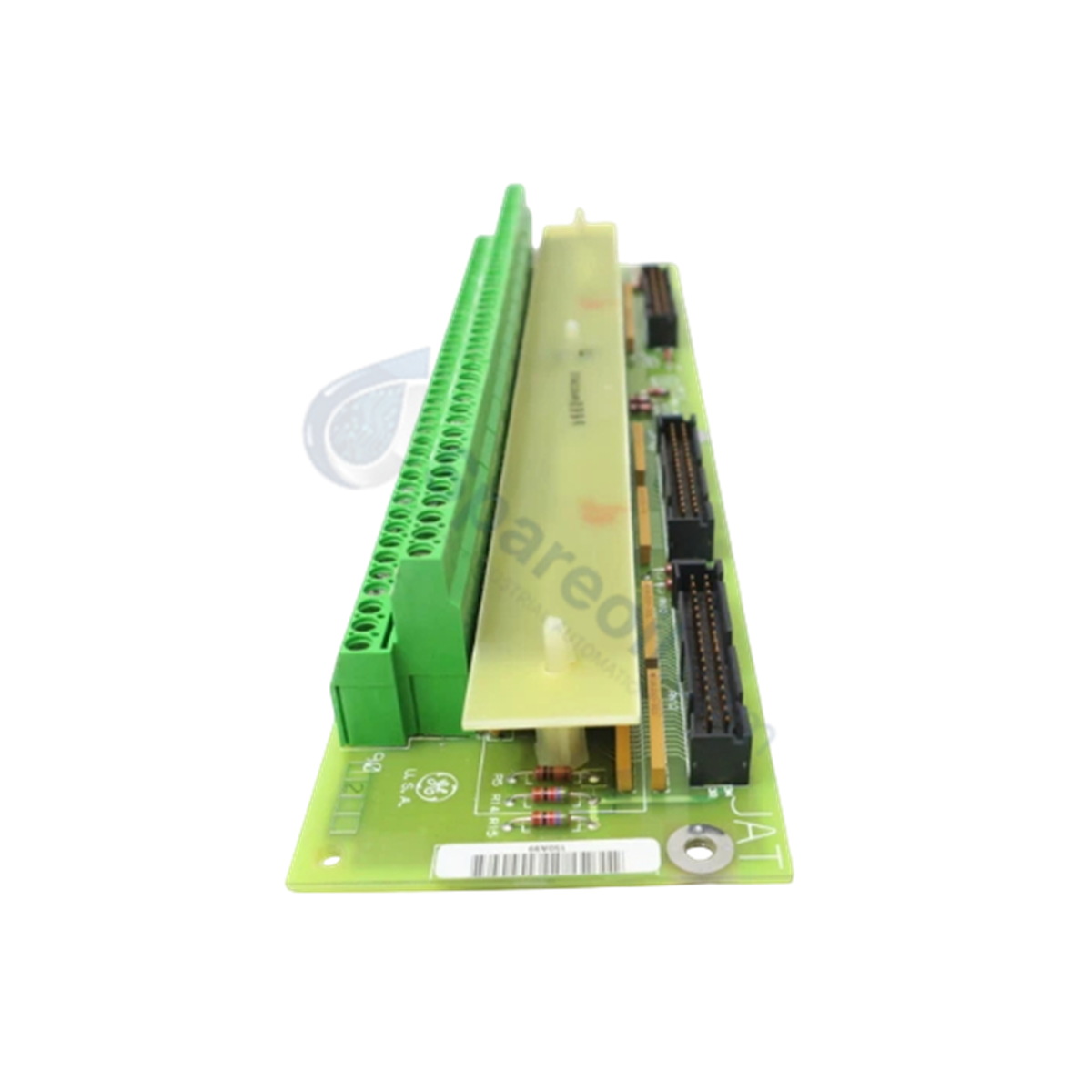

The GE DS200TBQAG1ABB, also cataloged as the DS200TBQA Thermocouple Termination Module, operates as a dedicated hardware component for thermocouple sensor signal termination and cold junction interface processing within Speedtronic Mark V Turbine Control System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TBQAG1ABB |
| Brand | General Electric |
| Origin | USA |
| Weight | 1.10 kg (2.42 lbs) |
| Dimensions | Standard Mark V Board Profile |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive Board (Passive bus drawing < 2.0 W) |
| Signal Interface | Low-millivolt thermocouple input channels |
| Cold Junction Compensation | On-board CJC reference circuitry |
| Assembly Type | Normal Assembly |
| Conformal Coating | Normal Coating |
Deterministic I/O & Firmware Integration
The DS200TBQAG1ABB module processes low-level temperature millivolt signals from field thermocouples and interfaces with primary Mark V I/O cores via dedicated cable assemblies. The hardware design relies on passive signal routing traces to prevent backplane bus communication velocity bottlenecks during high-density analog processing. Signal scaling and cold junction reference calculations are executed deterministically at the processor level. Firmware flash compatibility is governed by the core processor board connected to the ribbon interface, allowing this termination module to maintain backward compatibility with earlier Mark V system revisions without localized firmware requirements.
Frequently Asked Questions
Q: Does the DS200TBQAG1ABB support hot-swapping while the control system is powered?
A: No. Power to the associated Mark V core or rack section must be isolated before replacing the module to prevent transient signal glitches and cold junction calibration shifts.
Q: How is backward compatibility managed across revision levels for this module?
A: Revision DS200TBQAG1ABB retains functional physical pinouts and trace pathways compatible with earlier DS200TBQAG1 revisions, allowing direct slot-in replacement within existing Mark V architectures.
Q: Why are dedicated cold junction compensation (CJC) references required on this board?
A: Thermocouple inputs generate millivolt potentials relative to junction temperatures; local CJC references correct for ambient temperature variations at the field wiring terminal interface.
Field Installation Guidelines
- Isolate system power and field transmitter loops prior to connecting or removing terminal wiring and ribbon cable headers.
- Thermocouple extension wires must be connected directly to the designated terminals using correct polarity to prevent temperature measurement offsets.
- Ground overall cable shields at a single point on the enclosure earthing bar according to Mark V installation drawings to minimize noise coupling.
- Secure mounting screws across all chassis standoffs to ensure physical stability and electrical ground path continuity.
