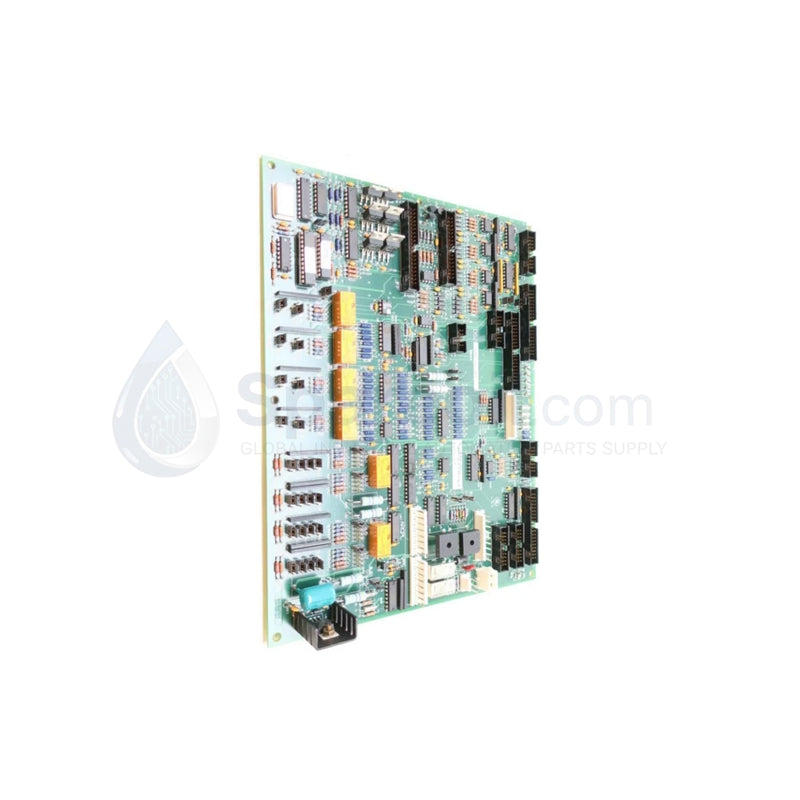

DS200TCQCG1BKG | GE Mark V | Turbine Control Board

Availability: 10 left in stock

Gemini 说 GE DS200TCQCG1BKG Mark V Speedtronic RST Overflow Control Board Product Description The DS200TCQCG1BKG (DS200TCQCG1BKG) is a high-reliability Control Board (TCQC)...

SKU: DS200TCQCG1BKG

Manufacturer: GE Fanuc
Product No.: DS200TCQCG1BKG
Product Type: Turbine Control Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

GE DS200TCQCG1BKG Mark V Speedtronic RST Overflow Control Board

Product Description

The DS200TCQCG1BKG (DS200TCQCG1BKG) is a high-reliability Control Board (TCQC) engineered for the legacy General Electric Mark V Speedtronic turbine control system. Functionally identified as the RST Overflow Board, the DS200TCQCG1BKG (DS200TCQCG1BKG) serves as a vital cross-processor coordination hub. It is responsible for managing high-density communication and signal synchronization across the system’s triple-modular redundant (TMR) architecture, specifically ensuring data alignment between the <R>, <S>, and <T> control cores.

Designed to operate in the demanding environments of power generation facilities, the DS200TCQCG1BKG (DS200TCQCG1BKG) processes mixed-signal inputs, managing both analog sensing data and digital logic commands. Its primary role is to filter and synchronize auxiliary system variables—such as combustion parameters and turbine speed—before they are executed by the main control logic. This hardware is critical for preventing signal drift between cores, thereby maintaining the voting integrity and fault tolerance that the Mark V system is known for.

Detailed Technical Specifications

The following parameters define the hardware and functional profile of the DS200TCQCG1BKG:

Manufacturer: General Electric (GE)
Model / Part Number: DS200TCQCG1BKG
Series: Mark V Speedtronic
Functional Group: TCQC (RST Overflow / Signal Coordination)
Architecture: Triple Modular Redundant (TMR) Compatible
Signal Support: Mixed-signal (Analog/Digital) synchronization
Microprocessor: On-board programmable logic and high-speed processing
Connectivity: Multiple ribbon cable connectors for internal bus communication
Diagnostics: Integrated surface-mount LED indicators for real-time status and fault detection
Power Requirements: Logic power supplied via the Mark V rack backplane
Operating Temperature: 0°C to +55°C (32°F to +131°F)
Dimensions: 30 cm x 20 cm x 3 cm (Standard Full-Height Board)
Weight: 0.65 kg (1.43 lbs)
