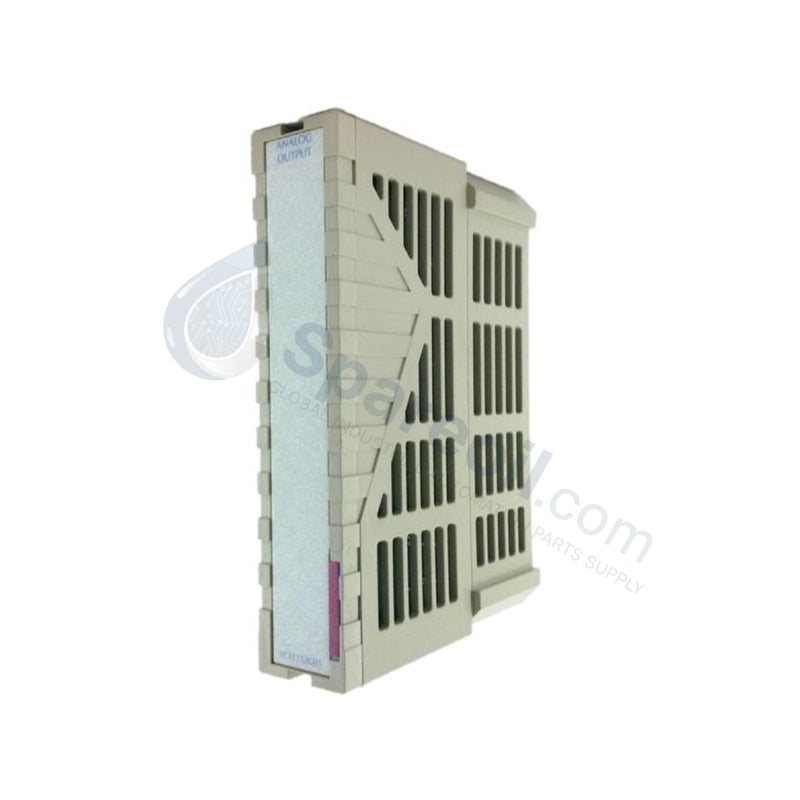

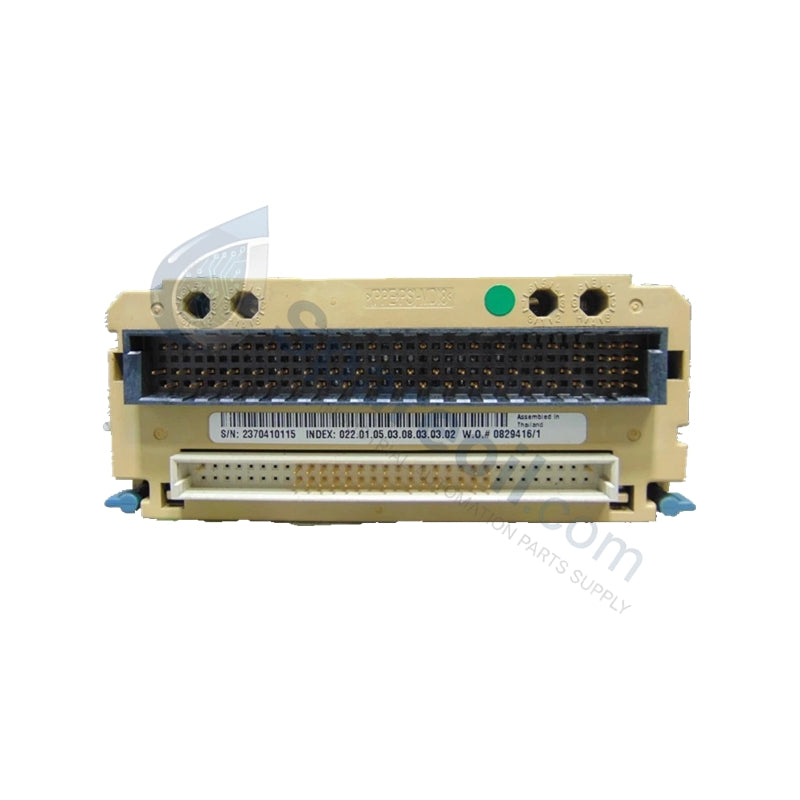

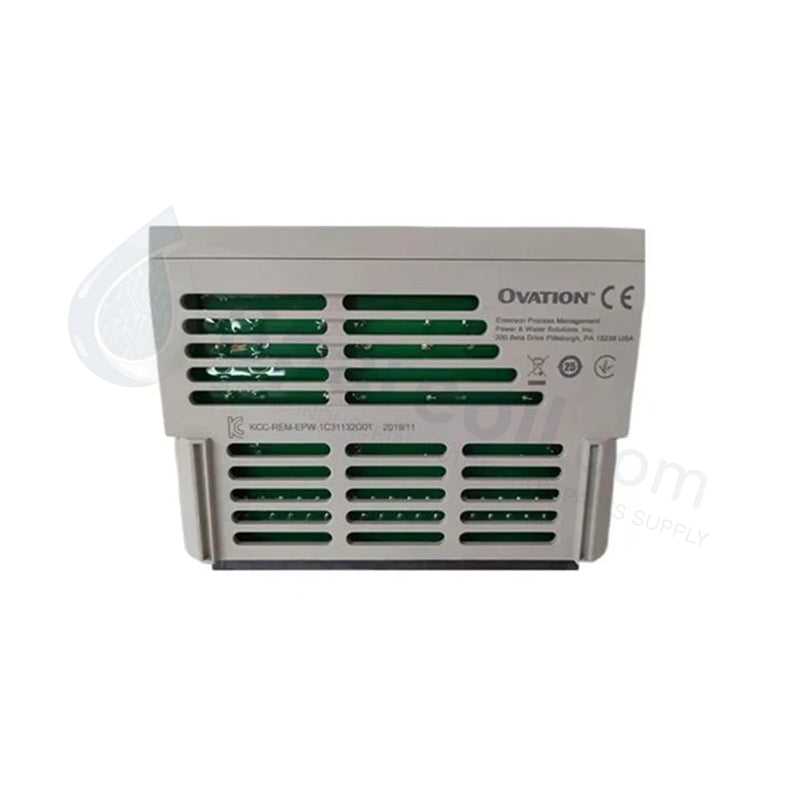

Emerson 1C31129G01 Analog Output Module

Emerson 1C31129G01 Analog Output Module | New & Original Stock

Availability: 99 left in stock

Emerson 1C31129G01 Ovation Series Configured for digital-to-analog signal conversion in Ovation DCS, the Emerson 1C31129G01 (1C31129G01 Analog Output Module) provides...

SKU: 1C31129G01

Manufacturer: Emerson
Product No.: 1C31129G01
Product Type: Analog Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Emerson 1C31129G01 Ovation Series

Configured for digital-to-analog signal conversion in Ovation DCS, the Emerson 1C31129G01 (1C31129G01 Analog Output Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	1C31129G01
Brand	Emerson
Origin	United States
Weight	0.3 kg
Dimensions	12.1 x 5.4 x 14 cm
Operating Temp	-20 to +70 deg C
Power Consumption	24 VDC nominal (rack powered)
Output Channels	8 analog output channels
Signal Range	4-20 mA current loop or 0-10 VDC voltage
Resolution	12-bit digital-to-analog conversion
Accuracy	±0.1% of full scale
Isolation	2500 VDC channel-to-backplane isolation
Diagnostics	Basic fault detection
Response Time	<5 ms typical
Storage Temp	-40 to +85 deg C
Humidity Tolerance	5-95% RH, non-condensing
Certifications	UL, CSA, IEC 61131-2 compliant

Process Control and DCS Instrumentation

The hardware architecture utilizes a dedicated 4-20 mA HART loop protocol configuration to maintain signal transparency across variable impedance fields. Galvanic channel-to-channel isolation parameters minimize localized ground-loop degradation, enforcing signal linearity through standard differential interference suppression networks. External field connections integrate precise cold junction compensation (CJC) algorithms at the terminal block boundary layer to stabilize operational thermal drifting.

Frequently Asked Questions

Q: Does the 1C31129G01 module support advanced channel-level diagnostics?

A: No, this module provides basic fault detection capabilities. For comprehensive advanced diagnostics at the individual loop level, the 1C31129G03 variant must be deployed.

Q: What is the primary isolation boundary specification for this physical interface?

A: The module architecture guarantees a continuous galvanic isolation rating of 2500 VDC between the internal backplane logic and the external analog field circuits.

Field Installation Guidelines

Ensure strict compliance with standard industrial chassis positioning protocols. Secure the module within the designated slot on the rack backplane to confirm mechanical alignment of the multi-pin connector interface. Maintain clear vertical and horizontal clearance metrics around the rack perimeter to support natural convection flow and prevent localized thermal saturation. Field loop wiring must execute separate pathways from high-voltage AC distribution paths to limit inductive coupling. All analog current loop shields must terminate at a single, verified master instrumentation ground point to avoid circulating loop currents.
