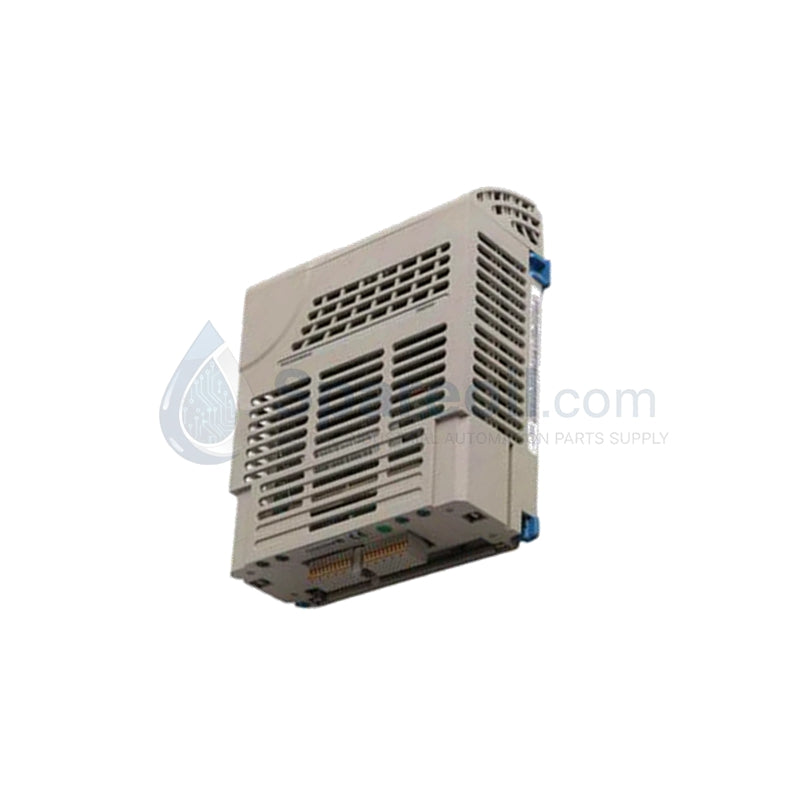

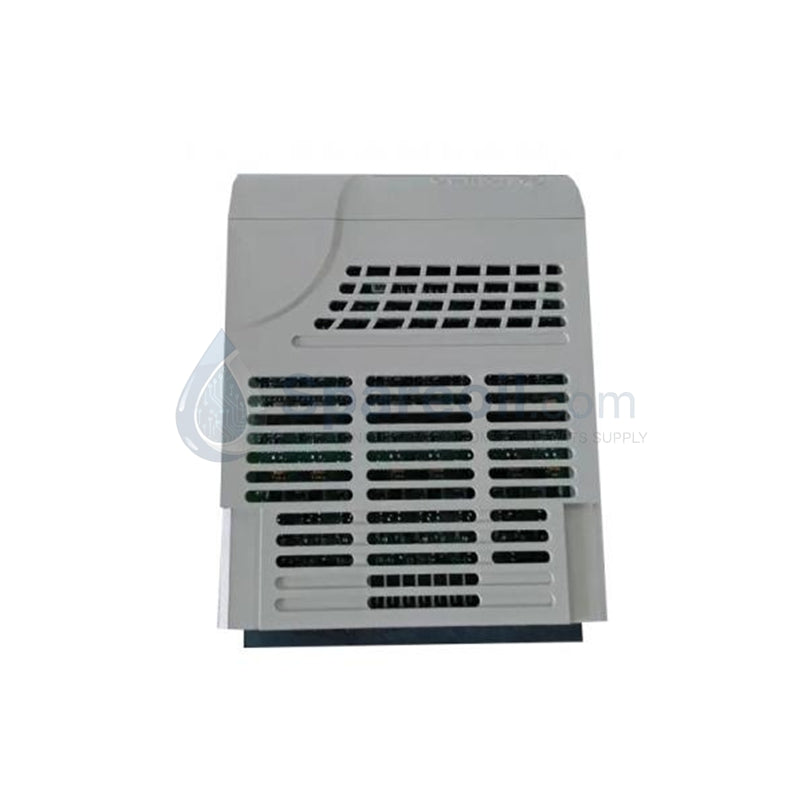

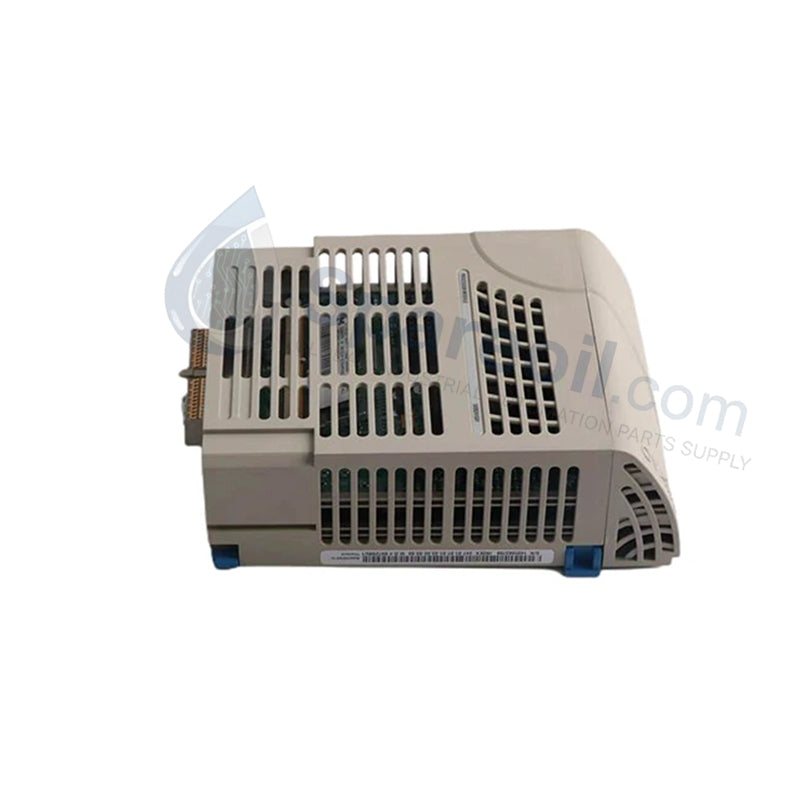

Emerson 5X00357G01 Digital Input Module

Emerson 5X00357G01 Digital Input Module | New & Original Stock

Availability: 99 left in stock

Emerson 5X00357G01 Ovation Series The Emerson 5X00357G01, also cataloged as the 5X00357G01 Enhanced Event Input Module, operates as a dedicated...

SKU: 5X00357G01

Manufacturer: Emerson
Product No.: 5X00357G01
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 330g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Emerson 5X00357G01 Ovation Series

The Emerson 5X00357G01, also cataloged as the 5X00357G01 Enhanced Event Input Module, operates as a dedicated hardware component for accurate event tracking and monitoring within Ovation DCS platforms.

Hardware Specifications

Parameter	Specification
Model	5X00357G01
Brand	Emerson
Origin	United States
Weight	0.33 kg
Dimensions	Standard Ovation module casing footprint
Operating Temp	-40 to +70 deg C
Power Consumption	< 10 W
Channels	16 digital event input channels
Input Voltage	24/48 VDC single-ended
Input Type	Isolated, differential inputs
Channel Protection	0.5 A, 250 V fuse per channel
Response Time	< 5 ms typical
Protection Rating	IP66

Process Control and DCS Instrumentation

The module handles discrete event capture by routing field data frames directly through a programmable event filter designed to eliminate high-frequency electrical noise in electrified environments. The physical infrastructure accommodates 24/48 VDC single-ended signals via isolated differential inputs, maintaining signal integrity and allowing continuous monitoring of 4-20 mA HART loop protocol configurations alongside discrete trip states. Each input path is isolated and bounded by an onboard 0.5 A fuse, protecting the inner logic components from field-side voltage surges.

Frequently Asked Questions

Q: How does the 5X00357G01 module manage noisy digital signals?

A: The module architecture integrates a software-configurable event filter per channel. This routine suppresses electrical noise and contact bounce, ensuring that only valid state transitions are passed to the controller logic.

Q: What onboard diagnostics are performed by the module hardware?

A: The circuit boards execute continuous real-time fault detection loops, tracking loop continuity to identify field wire breaks and blown fuse conditions, with status updates mirrored on individual faceplate LEDs.

Q: Can this module be used in redundant safety-critical topologies?

A: Yes, the 5X00357G01 supports redundant configurations across the Ovation I/O backplane carrier, allowing secondary tracking components to maintain uninterrupted monitoring if the primary module encounters a fault.

Field Installation Guidelines

Chassis Alignment and Mechanical Seating: Slide the module into the designated Ovation rack slot guides, pushing firmly to engage the rear backplane connectors before tightening the faceplate screws.
Shield Grounding Matrix: Connect all differential signal shield drain wires directly to the master copper instrumentation ground bar in the cabinet, ensuring single-point grounding to avoid circulating ground loops.
Cable Channel Segregation: Route the low-voltage 24/48 VDC event wires through dedicated wiring ducts separate from heavy AC lines and motor drive outputs to prevent magnetic cross-talk.
