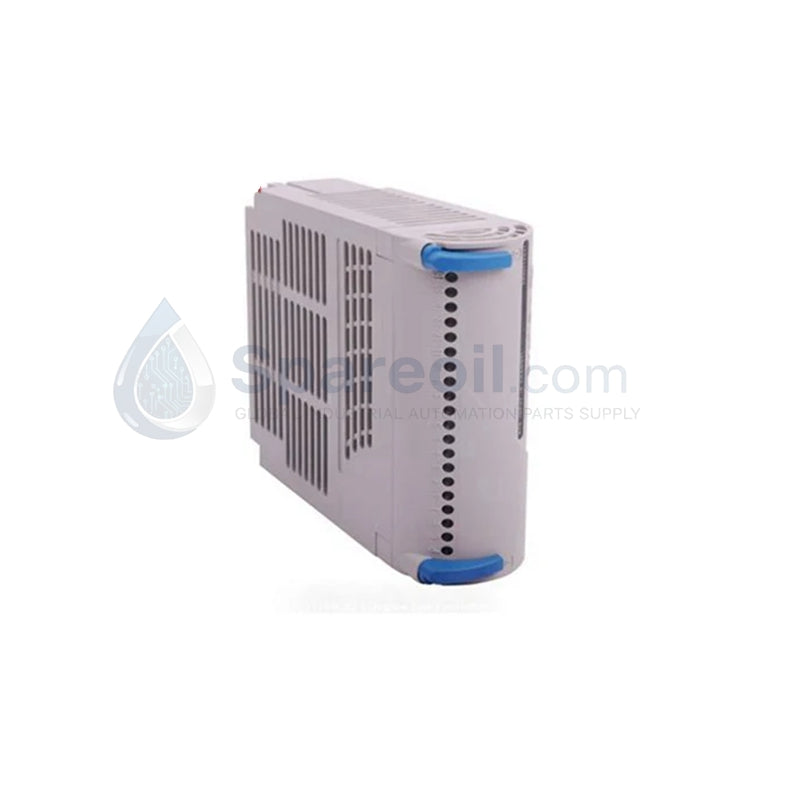

Emerson 5X00357G05 Enhanced Events Module Brand New

Availability: 99 left in stock

Product Overview The Emerson Ovation 5X00357G05 functions as a high-performance 16-channel digital input interface within the Ovation™ Distributed Control System (DCS) architecture....

SKU: 5X00357G05

Manufacturer: Emerson
Product No.: 5X00357G05
Product Type: Ovation DCS
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Emerson Ovation 5X00357G05 functions as a high-performance 16-channel digital input interface within the Ovation™ Distributed Control System (DCS) architecture. This module specializes in high-speed event capturing, allowing operators to monitor discrete signals with millisecond precision. It provides the essential link between field devices—such as limit switches, breakers, and protective relays—and the central control logic. By utilizing 24VDC differential inputs, the module ensures signal integrity even in electrically noisy industrial environments.

Technical Specifications

The following table outlines the core parameters for the 5X00357G05 module:

Feature	Specification
Channels	16 Enhanced Event Input Channels
Input Voltage	24 VDC (Differential)
Detection Speed	High-speed discrete event capturing
Diagnostics	Integrated wire-break and status monitoring
Filtering	Configurable per channel to eliminate signal bounce
Operating Temp	-40°C to +85°C (-40°F to +185°F)
Shock Resistance	15 g, 20 ms half-sine pulse
Vibration	0.05 g RMS, 5–500 Hz
Communication	Modbus, Ethernet/IP, Ovation Internal Bus
Dimensions	4.4 x 10.2 x 10.8 cm (1.73 x 4.02 x 4.25 in)
Condition	100% Brand New, Original Emerson

Engineering Advantages

Precision Sequence of Events (SOE): The 5X00357G05 captures state changes at ultra-high speeds. This allows engineers to reconstruct the exact timeline of a trip or failure, which is critical for root cause analysis in power generation and chemical processing.
Built-in Wire-Break Detection: Unlike standard digital inputs, this module actively monitors the continuity of the field wiring. It immediately alerts the system if a wire snaps or a connection loosens, preventing "frozen" data states that could lead to safety hazards.
Extreme Thermal Resilience: While many modules fail at 50°C or 60°C, the 5X00357G05 operates reliably up to +85°C. This wide range permits installation in non-climate-controlled cabinets or near high-heat machinery without risking hardware degradation.
Advanced Noise Rejection: Configurable filtering allows users to tune the module to ignore mechanical contact chatter. This ensures that only true process events trigger logic actions, reducing "nuisance" alarms in the control room.

FAQs

Does this module support Sequence of Events (SOE) recording?

Yes. The "Enhanced Events" designation indicates its capability to timestamp discrete signal changes with high resolution, making it the primary choice for SOE applications within the Ovation DCS.
Can the 5X00357G05 replace older 5X series input cards?

In most cases, yes. However, you must verify the specific base/rack compatibility and software version of your Ovation Controller to ensure the enhanced diagnostic features (like wire-break detection) are fully supported.
Is any external signal conditioning required for the 24VDC inputs?

No. The module handles 24VDC differential signals directly. The differential design inherently provides superior common-mode noise rejection compared to single-ended inputs.
What is the benefit of the -40°C to +85°C temperature range?

This industrial-grade rating ensures the module survives "cold starts" in outdoor enclosures during winter and maintains performance during peak summer temperatures in heavy industrial plants, significantly extending the Mean Time Between Failures (MTBF).
