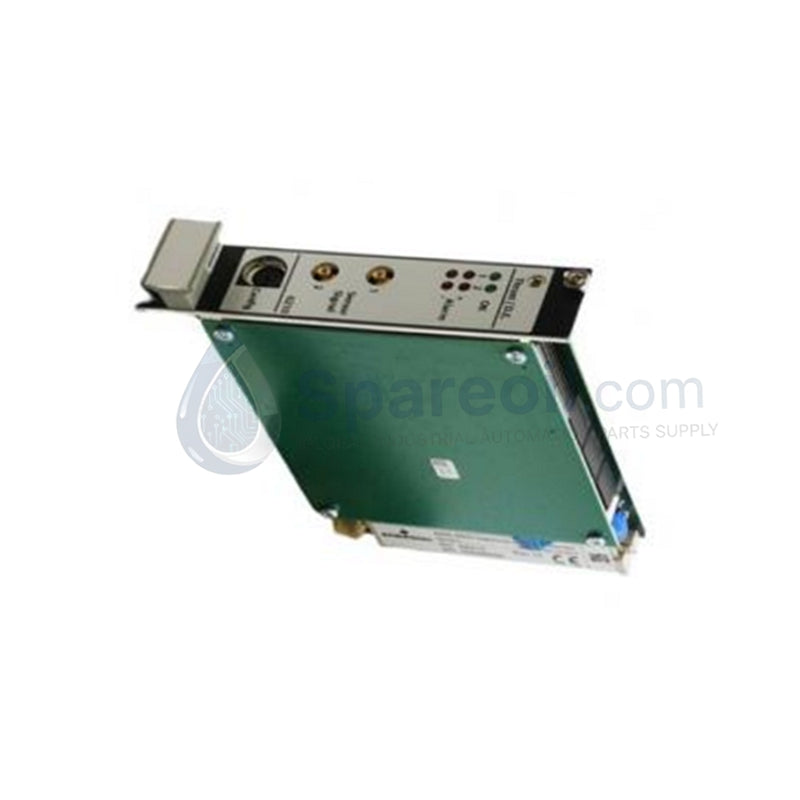

Emerson A6312/06 AMS 6500 Series Speed Monitoring Module

The Emerson A6312/06, also cataloged as the Emerson A6312 Speed Monitoring Module, operates as a dedicated hardware component for high-precision speed and phase monitoring within AMS 6500 (CSI 6500) Machinery Health Monitor system rack networks. Technicians deploy this 3U plug-in card to execute raw high-frequency pulse capture and master synchronization tasks directly from field-mounted eddy current proximity probes, magnetic pickups, or Hall-effect sensors.

Hardware Specifications

Parameter	Specification
Model	A6312/06 (Revision 12)
Brand	Emerson (CSI / EPRO)
Origin	Germany
Weight	0.45 kg
Dimensions	Standard 3U European card profile
Operating Temp	0 to 55 deg C
Power Consumption	5 VDC via backplane, 4.5 W maximum
Input Channels	2 independent, configurable speed/phase channels
Signal Compatibility	Eddy current sensors, Hall-effect pulses, magnetic pickups
Compliance Standard	API 670 machinery protection systems
Buffered Interfaces	Dual front-panel SMB coaxial ports
Proportional Outputs	0-20 mA, 4-20 mA current loops, or 0-10 VDC voltage
Discrete Interface	TTL-compatible pulse outputs

Process Control & DCS Diagnostics

The module integrates a dedicated 4-20 mA HART loop protocol channel interface alongside dual-port signal routing to maintain deterministic process bus interactions. Internal diagnostic circuits supervise channel-to-channel isolation parameters to prevent common-mode electrical transients from cross-contaminating the primary control backplane. Field operations rely on the built-in cold junction compensation (CJC) engine and line monitoring arrays to track raw pulse thresholds, allowing the system to isolate cable open/short anomalies instantly before they affect active automation loops.

Frequently Asked Questions

Q: Can the A6312/06 process inputs from two different sensor families at the same time?

A: Yes, the module enables technicians to configure both input channels independently via utility software, allowing a negative-voltage proximity probe on Channel 1 to function alongside an inductive magnetic pickup on Channel 2.

Q: Does installing a replacement A6312/06 require a complete power-down of the AMS 6500 rack?

A: No, the card features hot-swap component tracking lines that ground the frame and stabilize backplane logic pins before the primary power connections seat, allowing live module swaps without disturbing adjacent protection modules.

Field Installation Guidelines

Insert the 3U card vertically into the designated slot of the AMS 6500 chassis until the rear multi-pin DIN connectors seat firmly into the active rack backplane.
Secure the front panel retention fasteners using standard industrial tools to ensure rigid grounding bonds and prevent loose contacts caused by machine frame vibration.
Route all raw pulse sensor inputs through dedicated, shielded twisted-pair cables, and terminate the outer shields solely at the designated rack ground bus bar.
Verify that the front-panel SMB coaxial ports remain clear of transient wiring paths to allow direct interface access for dynamic vibration analyzers during operational testing.
