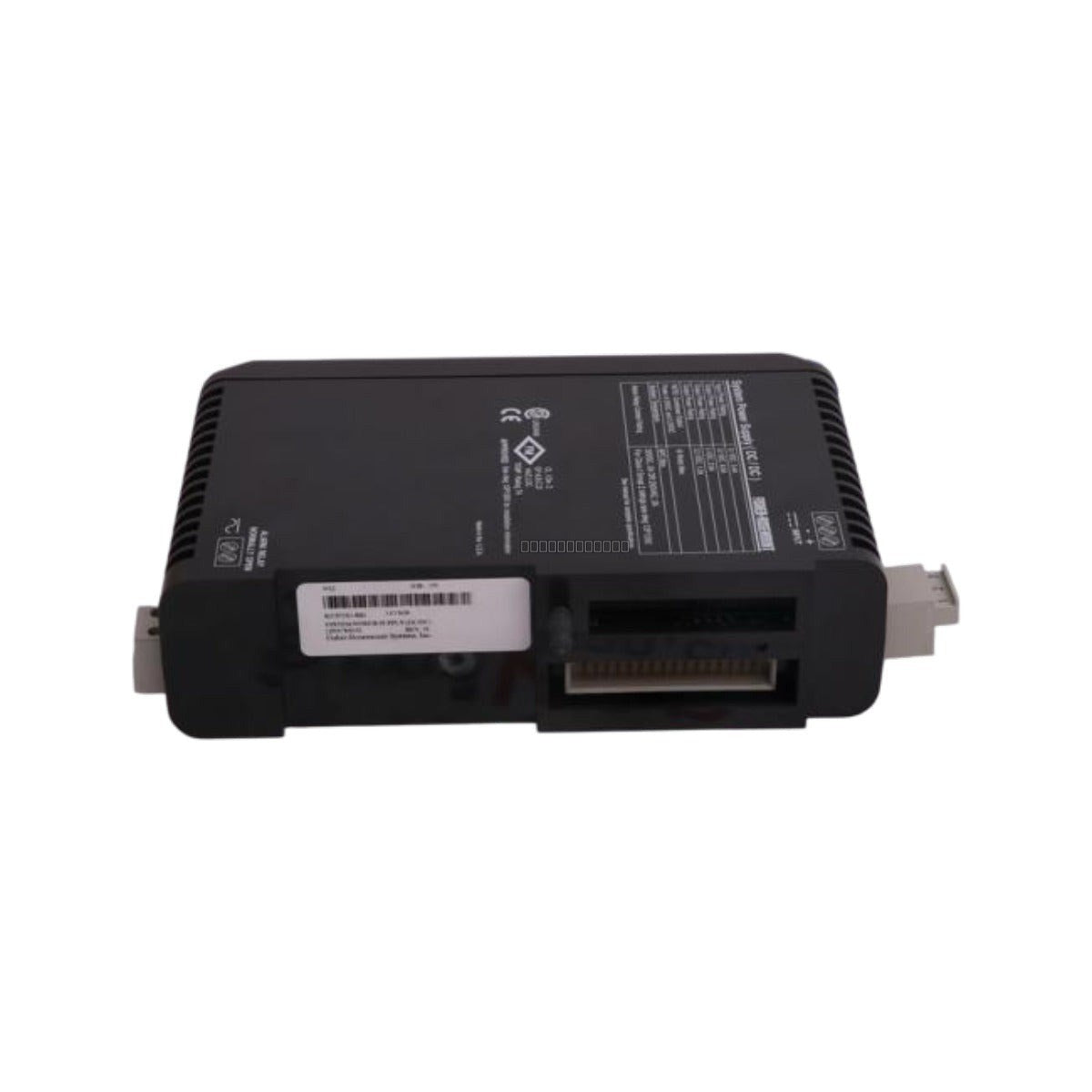

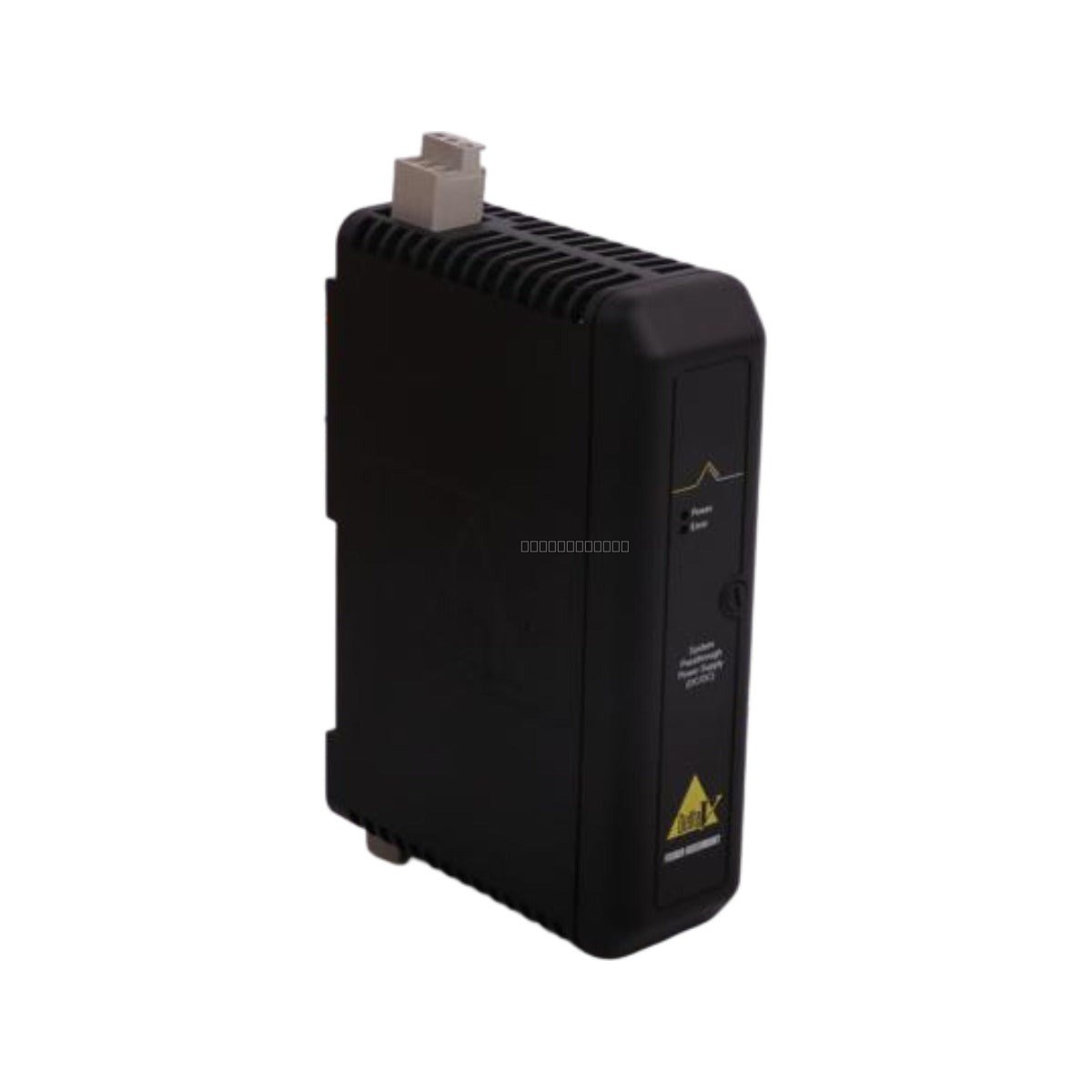

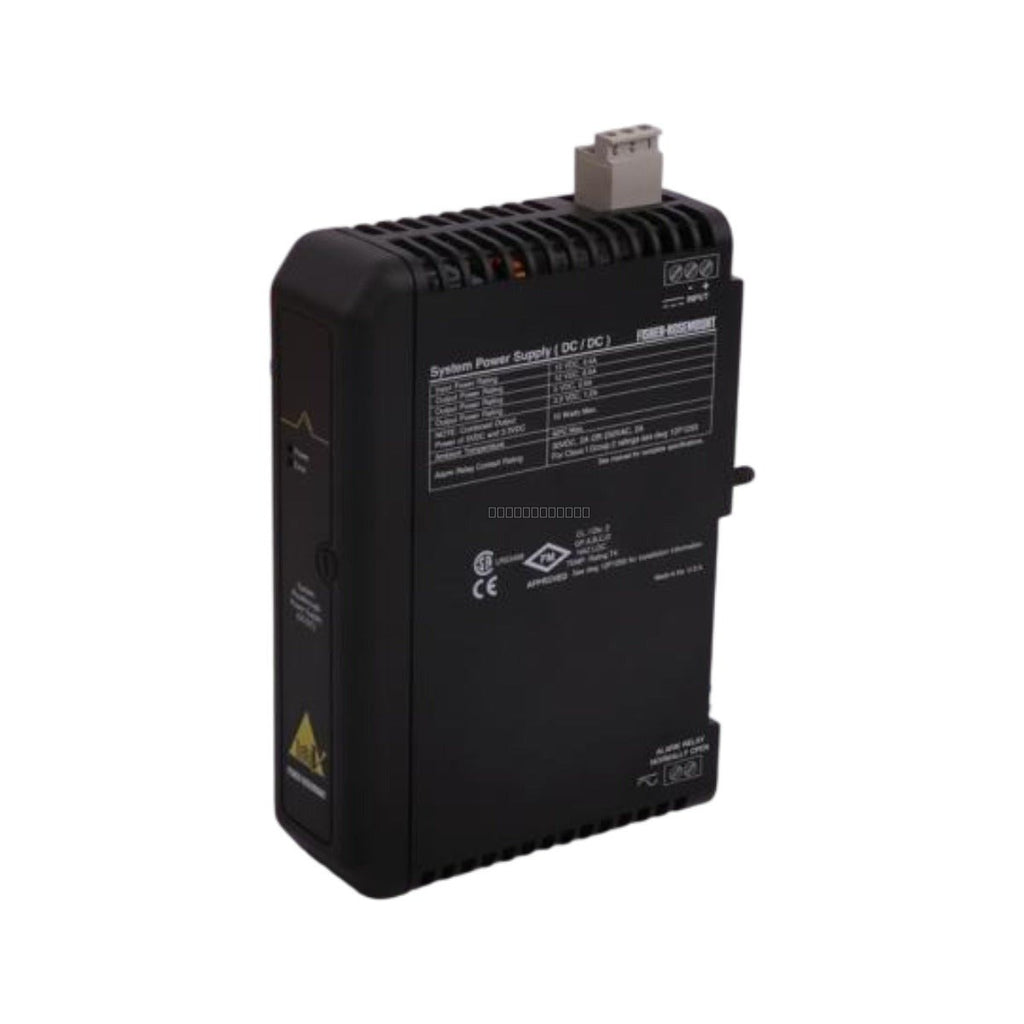

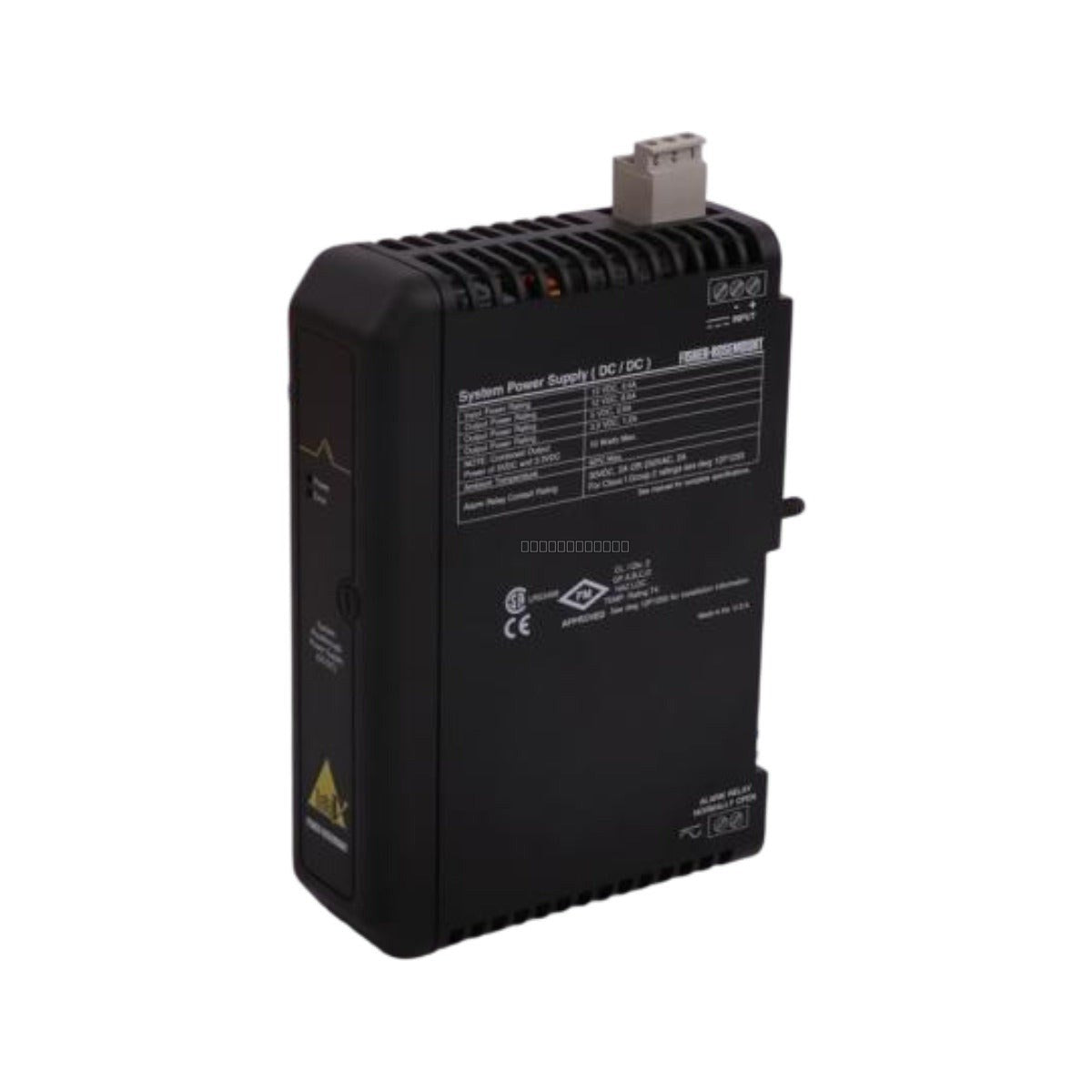

Emerson DeltaV KJ1501X1-BB1 12P0678X032 Power Supply Module

Emerson DeltaV KJ1501X1-BB1 12P0678X032 Power Supply Module

Availability: 9 left in stock

Description The Emerson DeltaV KJ1501X1-BB1 (12P0678X032) is a high-reliability System Dual DC Power Supply module designed for the DeltaV S-Series...

SKU: KJ1501X1-BB1 12P0678X032

Manufacturer: Emerson
Product No.: KJ1501X1-BB1 12P0678X032
Product Type: Power Supply Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Emerson DeltaV KJ1501X1-BB1 (12P0678X032) is a high-reliability System Dual DC Power Supply module designed for the DeltaV S-Series automation platform. This module provides critical power distribution for controller backplanes and I/O subsystems in demanding industrial environments, including chemical processing, oil and gas, and power generation facilities. It converts bulk DC input into regulated voltages required for logic and field operations, ensuring system availability and stability.

Features

Supports dual DC inputs to provide power redundancy for the DeltaV system.
Rated for hazardous atmosphere installations (ATEX Zone 2, II 3G Ex nA nC IIC Gc).
Compliant with ISA-S71.04 Class G3 standards for protection against corrosive airborne contaminants.
Advanced thermal management and internal current limiting to protect downstream components.
Designed for high-reliability operation in harsh industrial climates.

Applications

This power supply module is intended for use in DeltaV S-Series control systems. It is commonly deployed in mission-critical applications such as offshore oil platforms, mineral refineries, and large-scale chemical processing plants where continuous power delivery and environmental resilience are required.

Technical Specifications

Parameter	Specification
Model	KJ1501X1-BB1
Part Number	12P0678X032
Input Ratings	12 VDC @ 14.8 A / 24 VDC @ 6.1 A
Output (Main)	12 VDC @ 13 A (12V input) / 12 VDC @ 8 A (24V input)
Output (Logic)	5.1 VDC @ 2.0 A / 3.4 VDC @ 2.0 A
Total Logic Power	10.2 W
Operating Temperature	-40 to +70 deg C
Humidity	5 to 95 percent (Non-Condensing)
Shock Resistance	10g 1/2 Sinewave for 11 msec
Vibration Resistance	1 mm P-P (2-13.2 Hz); 0.7g (13.2-150 Hz)

Installation Guidelines

Safety First: This module is designed for non-energized maintenance. Power down the system before attempting to insert or remove the module to prevent electrical arcing or logic corruption.
Mounting: Ensure the module is securely seated in the designated DeltaV S-Series backplane slot.
Environment: While rated for Class G3 environments, ensure the cabinet provides adequate ventilation to maintain operating temperatures within the specified -40 to +70 deg C range.
Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Is this module hot-swappable?
No, the KJ1501X1-BB1 is designed for non-energized maintenance. You must power down the system before removal or insertion.

Does this module require manual calibration?
No, the unit is factory-calibrated and contains no user-serviceable parts; it is designed for a maintenance-free lifecycle.
