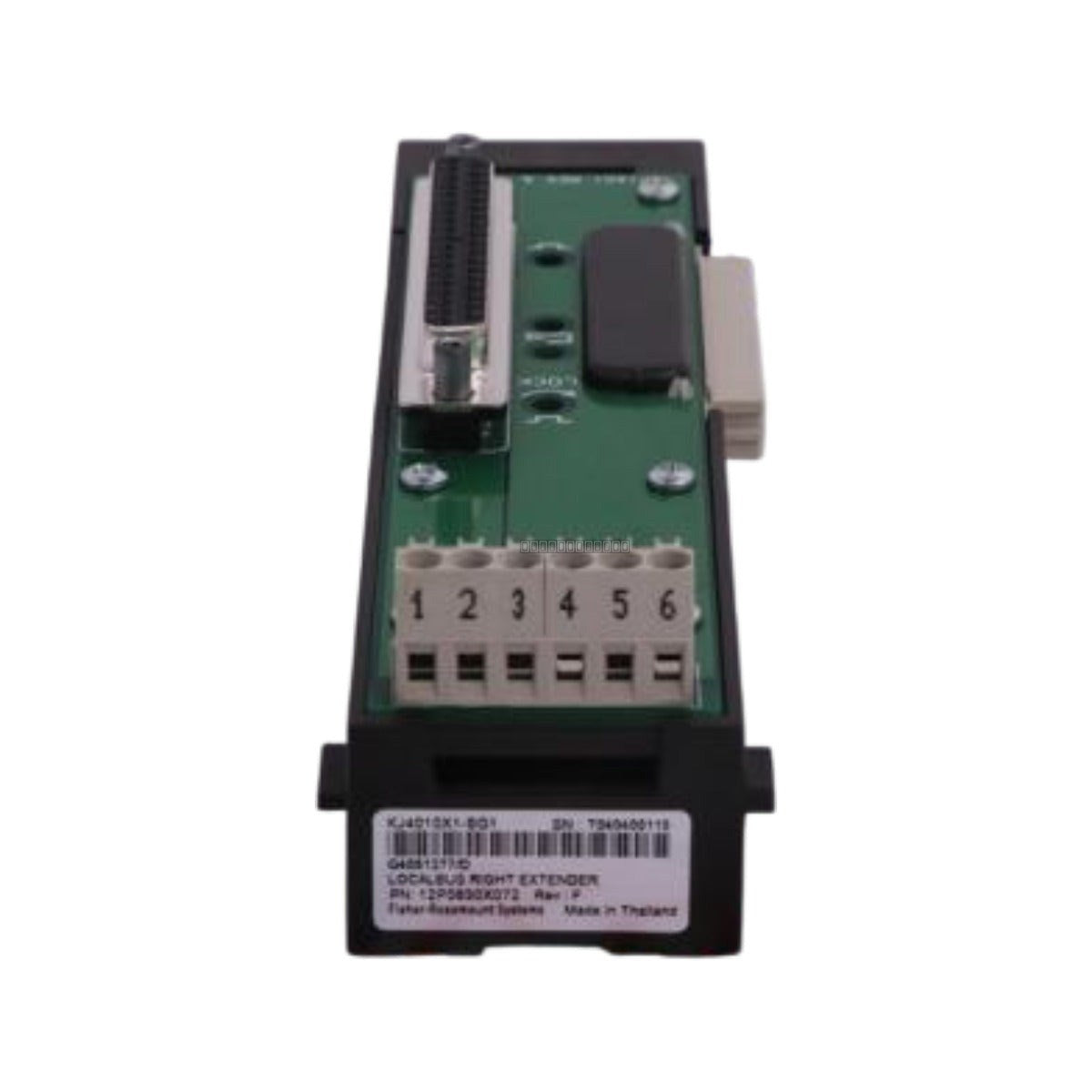

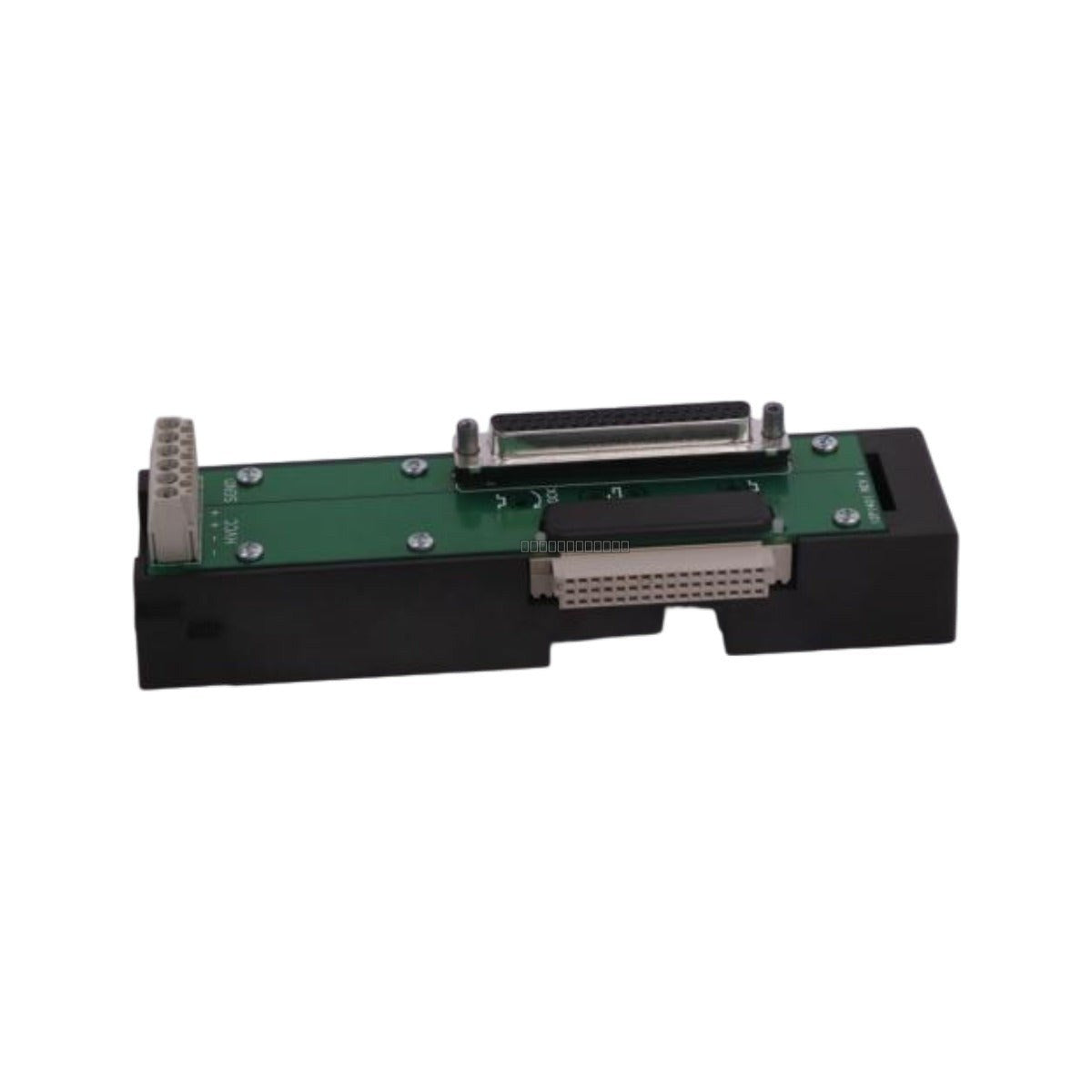

Emerson DeltaV KJ4010X1-BG1 12P0830X072 LocalBus Extender

Emerson DeltaV KJ4010X1-BG1 12P0830X072 Right LocalBus Extender

Availability: 6 left in stock

DescriptionThe Emerson DeltaV KJ4010X1-BG1 (12P0830X072) is a Right LocalBus Extender designed for the DeltaV scalable process control system. This module...

SKU: KJ4010X1-BG1 12P0830X072

Manufacturer: Emerson
Product No.: KJ4010X1-BG1 12P0830X072
Product Type: LocalBus Extender
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Emerson DeltaV KJ4010X1-BG1 (12P0830X072) is a Right LocalBus Extender designed for the DeltaV scalable process control system. This module is essential for expanding the LocalBus backplane, enabling the interconnection of multiple I/O carriers across different rows or enclosures within a control cabinet. It ensures high-speed data synchronization and maintains power distribution integrity across the extended bus, providing the necessary flexibility for large-scale distributed control system (DCS) deployments.

Features

Facilitates physical expansion of the DeltaV LocalBus backplane.
Enables signal transition between carrier rows via dedicated cable assemblies.
Designed for high-availability industrial environments including oil, gas, and chemical processing.
Rated for operation in hazardous locations (Zone 2).
Conformal coating compliant with ISA-S71.04-1985 Class G3 for protection against corrosive contaminants.

Applications

This module is used in industrial automation environments where the I/O count requires multiple carrier rows. It is commonly deployed in oil refineries, chemical processing plants, and mining operations where robust, reliable communication between the controller and remote I/O is required.

Technical Specifications

Model	KJ4010X1-BG1
Part Number	12P0830X072
Module Type	Right LocalBus Extender
LocalBus Power Rating	12.6 VDC at 8 A
Max System Length	6.5 meters (combined carriers and extenders)
Operating Temperature	-40 to 70 deg C
Relative Humidity	5 to 95 percent (non-condensing)
Protection Rating	IP 20
Shock Resistance	10g 1/2 Sinewave for 11 msec
Vibration Resistance	1 mm P-P (5-16 Hz); 0.5g (16-150 Hz)

Installation Guidelines

Ensure all power is de-energized before connecting or disconnecting LocalBus cables.
The module must be installed as the physical termination point on the right side of a carrier row.
Verify that the total combined length of I/O carriers and LocalBus extenders does not exceed 6.5 meters to maintain signal timing integrity.
Handle with standard ESD precautions to prevent damage to internal circuitry.
Ensure the environment meets the specified temperature and humidity ranges for optimal performance.

Compliance and Certifications

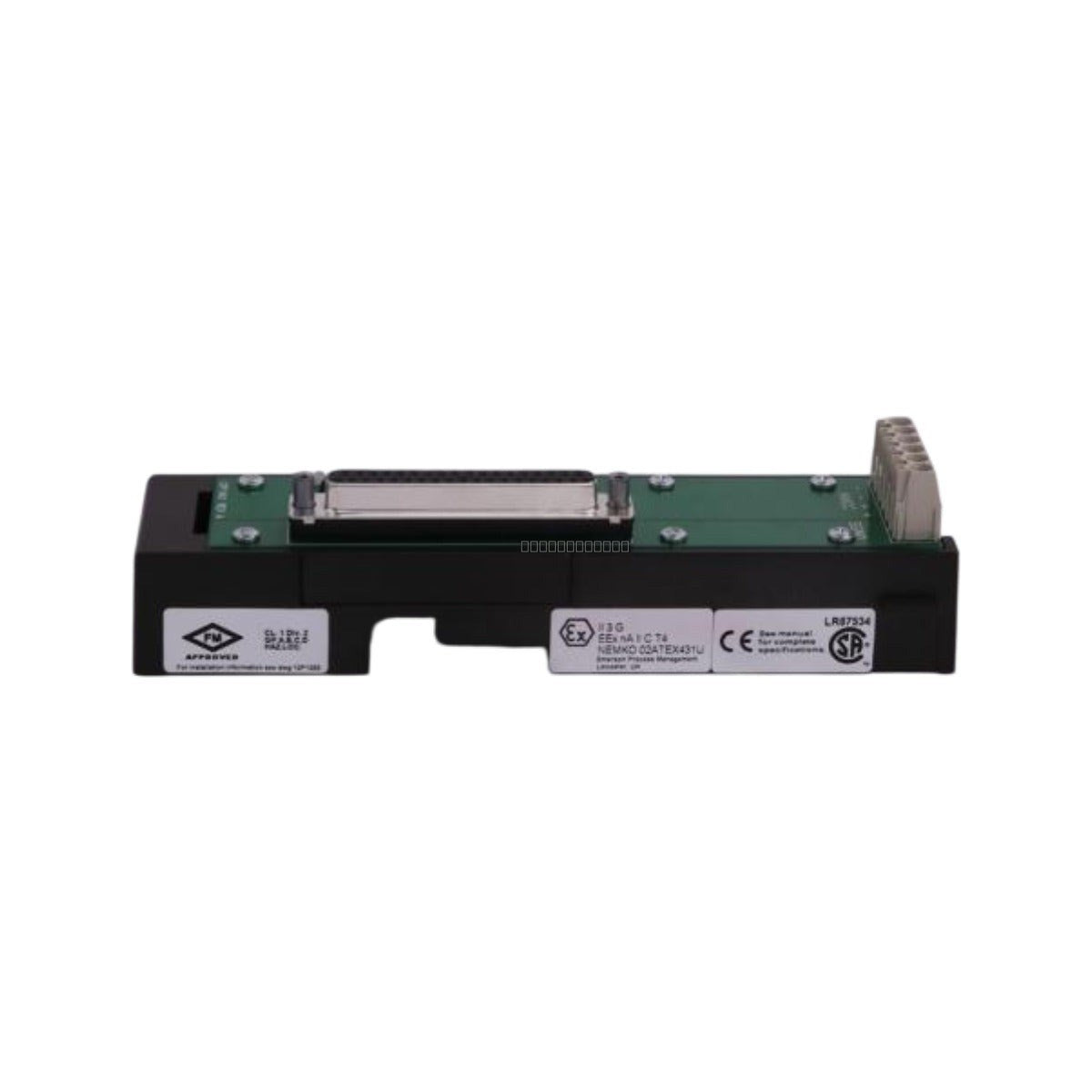

The KJ4010X1-BG1 is certified for use in hazardous atmospheres, specifically II 3 G, Nemko 02ATEX431U, and EEx nA IIC T4, making it suitable for Zone 2 installations.

FAQ

What is the primary function of the KJ4010X1-BG1?

It acts as a right-side interface to extend the DeltaV LocalBus, allowing you to connect I/O carriers across multiple rows or cabinets while maintaining signal and power integrity.

Can this module be used in corrosive environments?

Yes, the module is designed to meet ISA-S71.04-1985 Class G3 standards, providing resistance to corrosive airborne contaminants.

Is it safe to hot-swap this module?

No. All power must be de-energized before connecting or disconnecting the LocalBus cables to prevent electrical damage or signal disruption.
