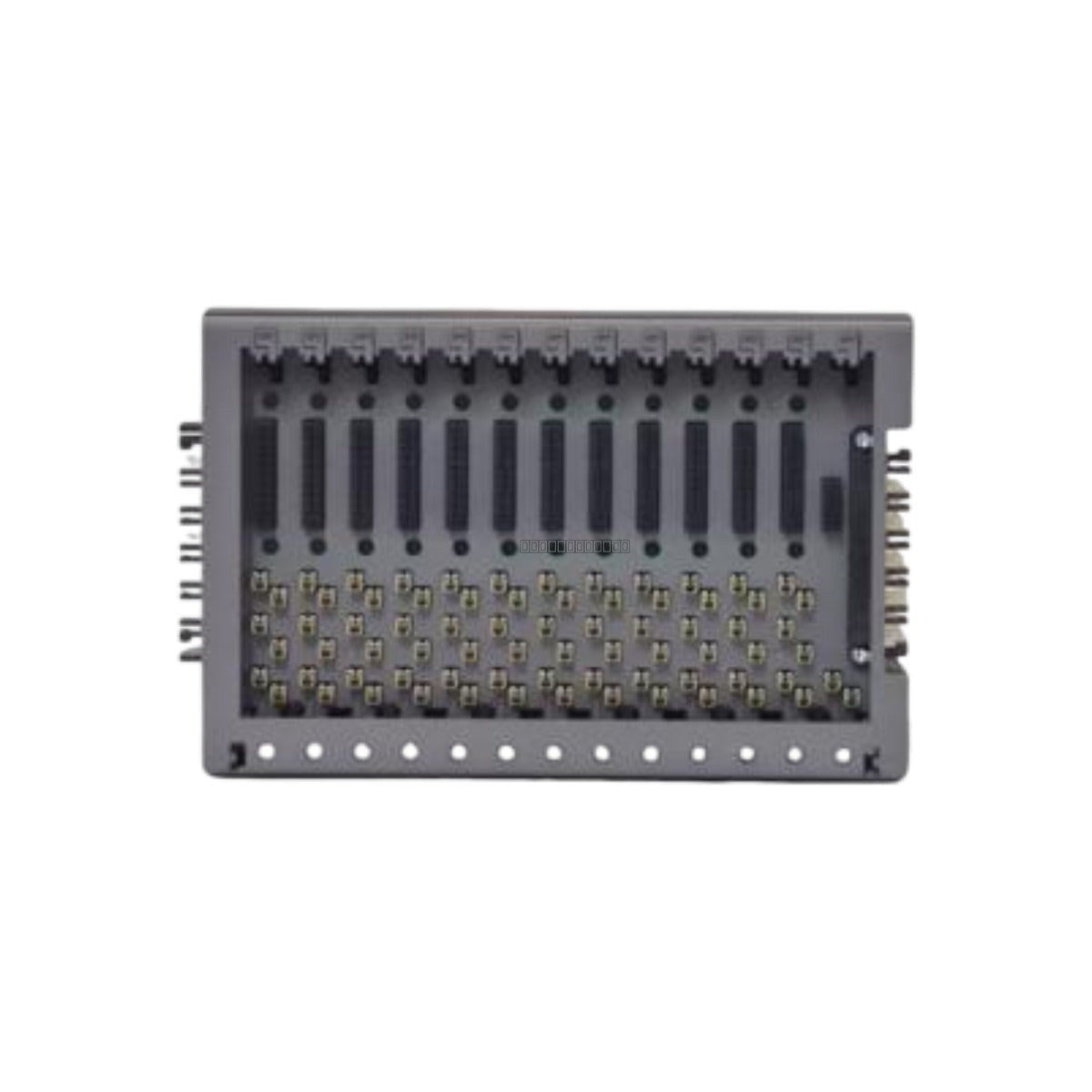

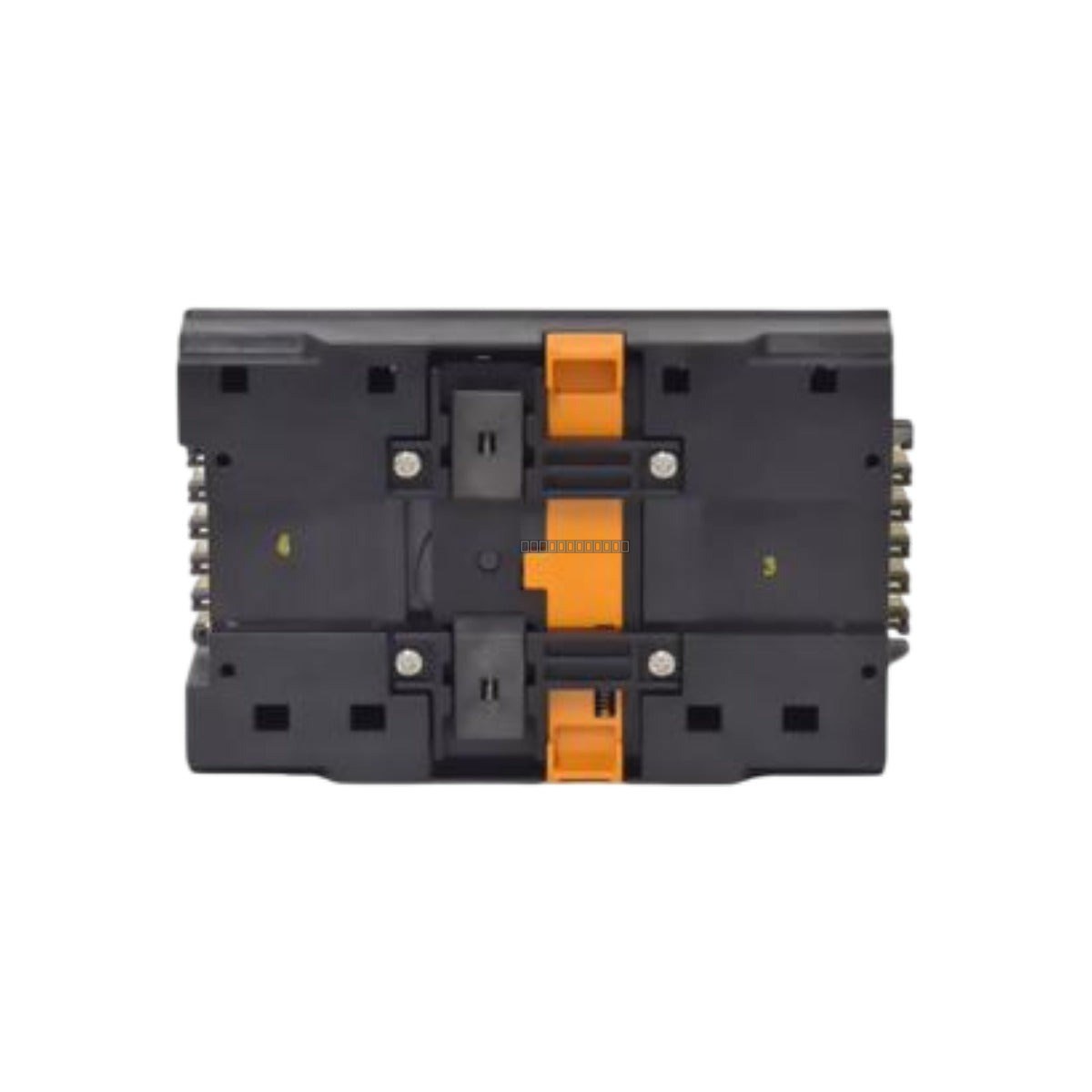

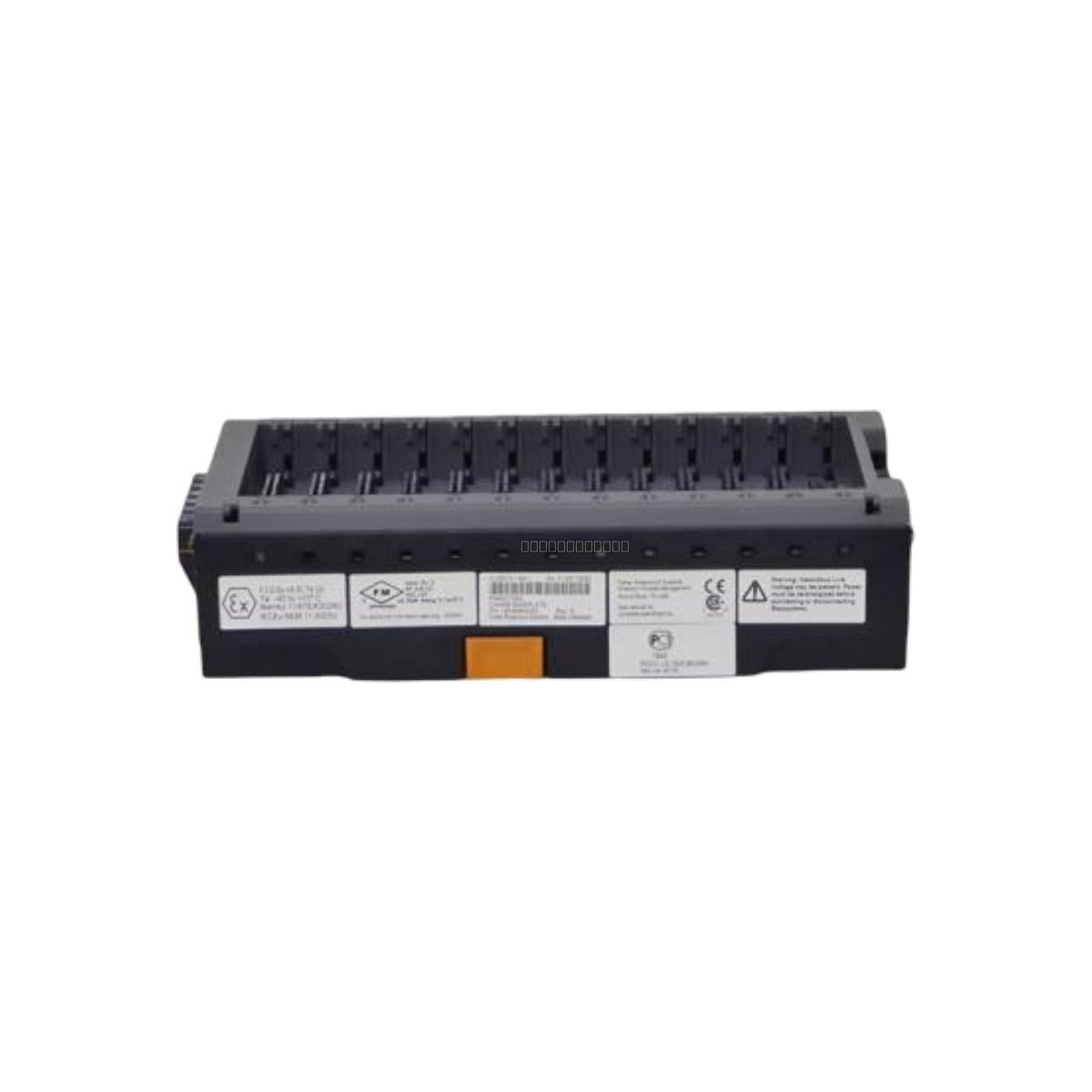

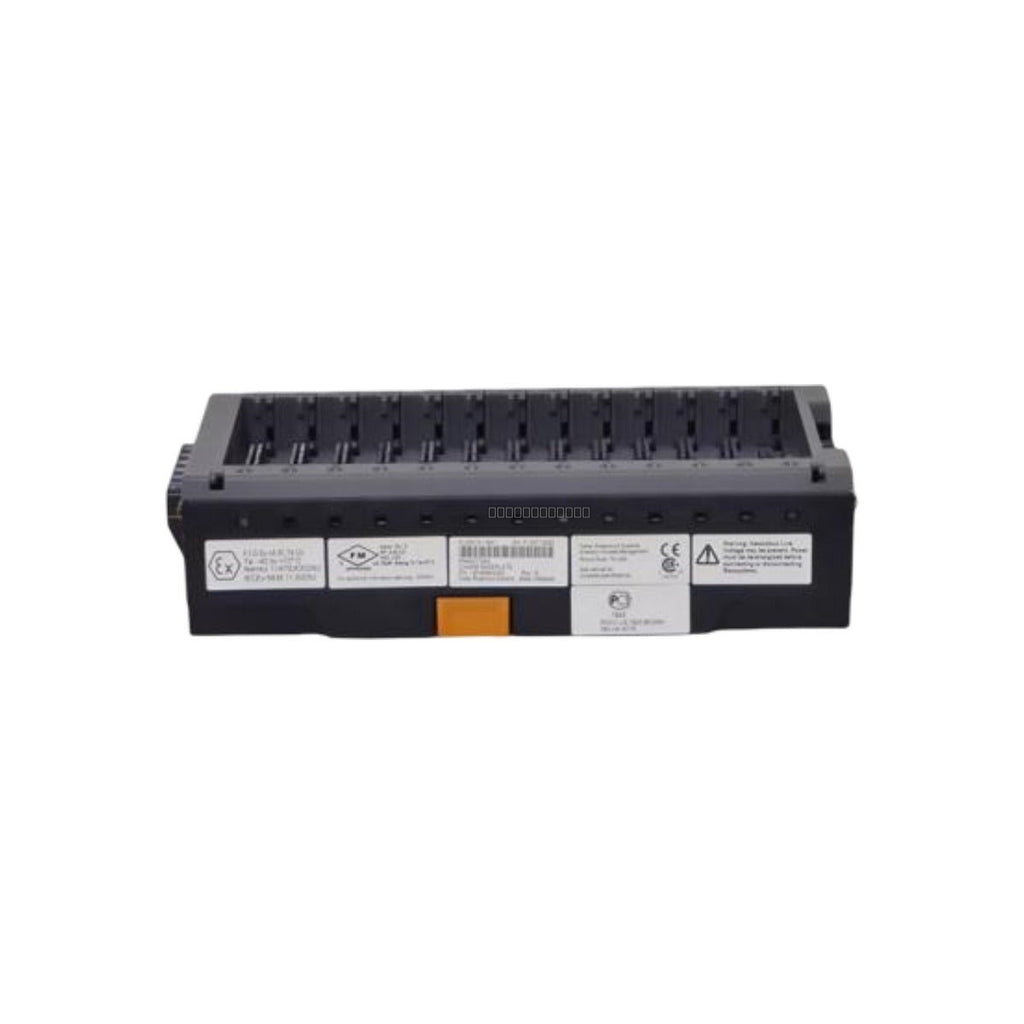

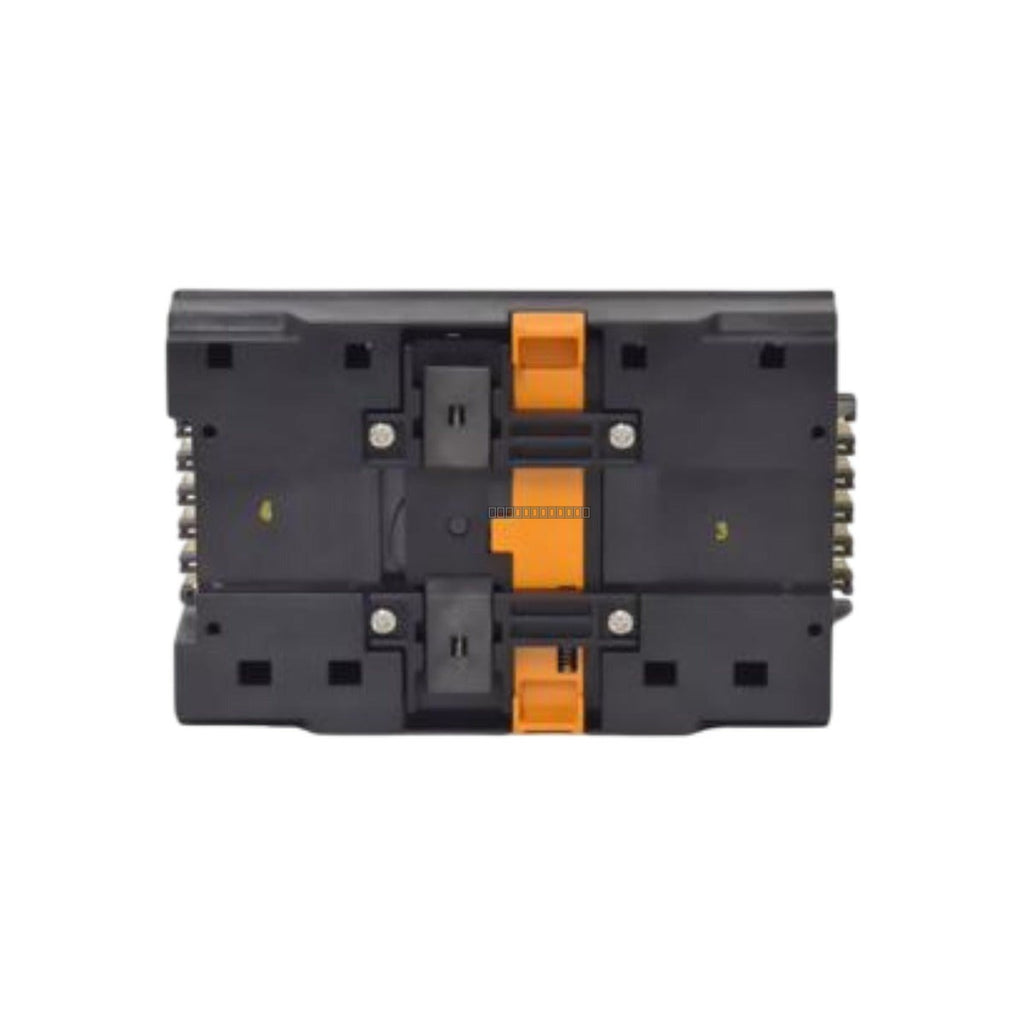

Emerson DeltaV KL4201X1-BA1 12-Slot CHARM Baseplate

Emerson DeltaV KL4201X1-BA1 SE4601T07 12-Slot CHARM Baseplate

Availability: 10 left in stock

DescriptionThe Emerson DeltaV KL4201X1-BA1 (assembly code SE4601T07) is a core infrastructure component of the DeltaV Electronic Marshalling architecture. This 12-slot...

SKU: SE4601T07 KL4201X1-BA1

Manufacturer: Emerson
Product No.: SE4601T07 KL4201X1-BA1
Product Type: I/O Baseplate
Product Origin: USA
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Emerson DeltaV KL4201X1-BA1 (assembly code SE4601T07) is a core infrastructure component of the DeltaV Electronic Marshalling architecture. This 12-slot CHARM Baseplate serves as the physical and electrical mounting platform for Characterization Modules (CHARMs). By facilitating individual channel-to-channel isolation and flexible I/O mapping, it eliminates the requirement for traditional cross-marshalling cabinets. This design supports late-stage I/O definition and hot-swappable module replacement, which reduces commissioning time and enhances system availability in critical industrial control environments.

Features

Supports up to 12 individual CHARM modules in a single high-density footprint.
Redundant power and communication buses ensure high reliability and fault tolerance.
Electrically independent slots prevent fault propagation between connected field devices.
Robust mechanical design featuring an integrated grounding bar for secure DIN-rail mounting.
Compatible with both S-series and M-series DeltaV hardware architectures.
Supports a wide range of signal types, including Analog Input, Digital Input, and Temperature sensing.

Applications

This baseplate is engineered for high-density automation environments, including oil and gas refineries, pharmaceutical manufacturing, and offshore platforms. It is ideal for safety-critical and general-purpose control loops where space optimization and reduced wiring complexity are required.

Technical Specifications

Model	KL4201X1-BA1
Assembly Code	SE4601T07
Capacity	12-Slot
Operating Temperature	-40 to 70 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5 to 95 percent (Non-condensing)
Max Current	3.0 Amps per baseplate
Hazardous Area Rating	ATEX II 3 G, Ex nA IIC T4 Gc
Vibration Resistance	1 mm peak-to-peak (2-13.2 Hz); 0.7 g (13.2-150 Hz)
Airborne Contaminants	ISA-S71.04-1985 Class G3
Ingress Protection	IP 20

Installation Guidelines

Ensure the DIN-rail is securely mounted and properly grounded before installing the baseplate.
Power down the system before inserting or removing any CHARM modules to prevent electrical arcing or damage to the backplane.
Maintain adequate ventilation clearance around the baseplate to operate within the specified -40 to 70 deg C temperature range.
Use shielded cabling for field signals to minimize EMI/RFI interference in high-noise industrial environments.
Handle with care to avoid electrostatic discharge (ESD) damage to the communication pins.

FAQ

Is this baseplate compatible with all CHARM types?

Yes, the KL4201X1-BA1 is designed as a universal carrier for DeltaV CHARMs, supporting Analog, Digital, and Temperature sensing modules.

Can I replace a CHARM module while the system is running?

Yes, the DeltaV Electronic Marshalling system supports hot-swapping of CHARM modules, allowing for maintenance without requiring a system shutdown.
