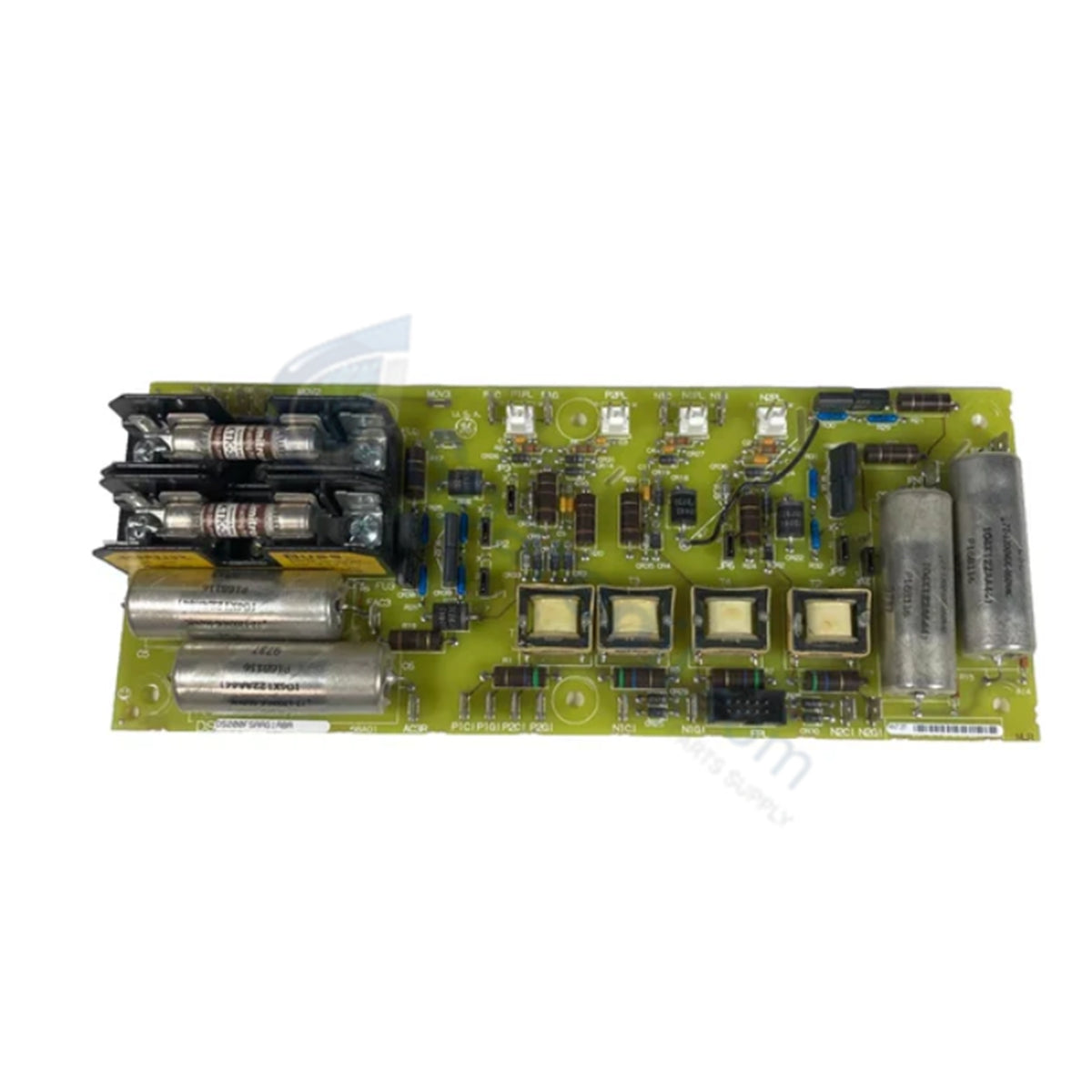

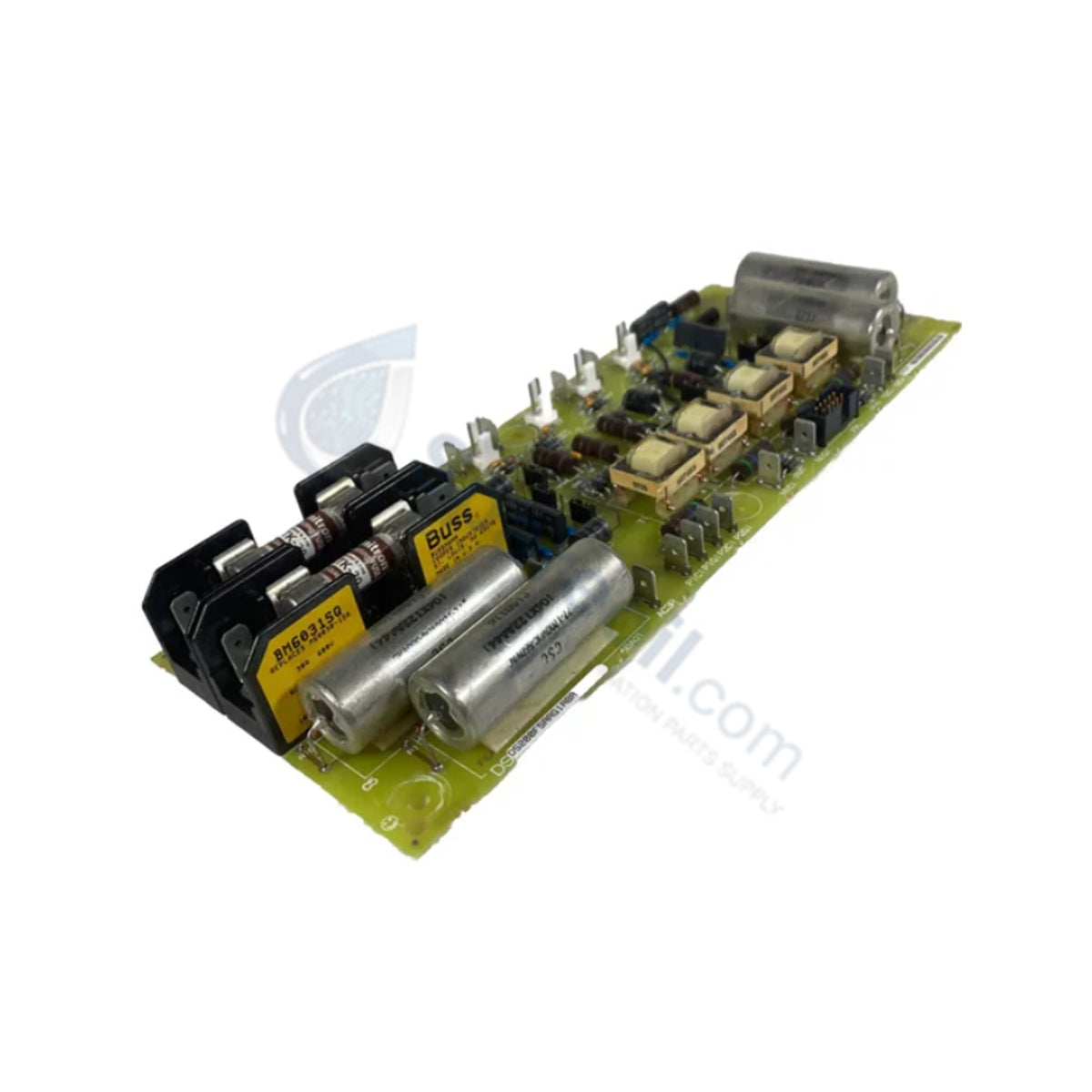

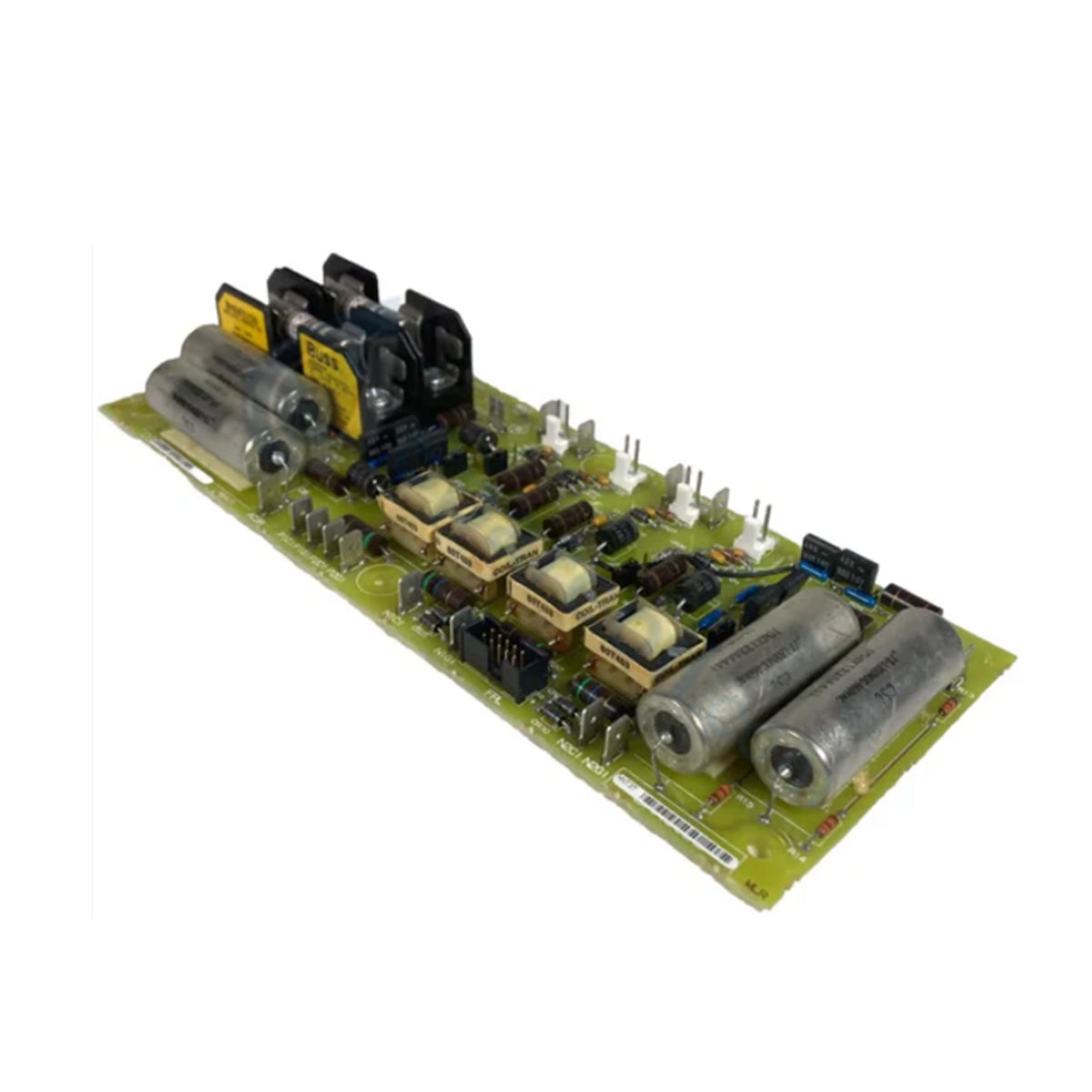

The GE DS200FSAAG1ABA, also cataloged as the DS200FSAA Field Supply Amplifier, operates as a dedicated hardware component for drive field supply gate pulse amplification and firing sequence conditioning within Speedtronic Mark V control systems.
Suffix Breakdown & Model Matrix
| Segment | Code | Description |
|---|---|---|
| Product Family | DS200 | Speedtronic Mark V Board Series |
| Board Acronym | FSAA | Field Supply Gate Amplifier Board |
| Group Identifier | G1 | Group 1 Standard Functional Circuitry Configuration |
| Functional Revision 1 | A | First Functional Revision Level |
| Functional Revision 2 | B | Second Functional Revision Level |
| Artwork Revision | A | First Revision Level / Circuit Artwork Layout |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200FSAAG1ABA |
| Brand | GE General Electric |
| Origin | USA |
| Weight | 0.68 kg (1.50 lbs) |
| Dimensions | Standard Mark V Board Profile |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Gate drive conditioning circuit (< 10.0 W) |
| Primary Function | Gate pulse amplification for field excitation circuits |
| Assembly Type | Normal Assembly |
| PCB Coating | Normal Conformal Coating |
| Backward Compatibility | Fully compatible with base model DS200FSAAG1 |
Backplane Bus & Firmware Architecture
The DS200FSAAG1ABA conditions gate pulse logic from the primary processor and amplifies switching signals to drive field excitation power devices. Internal trace geometry optimizes backplane bus communication velocity and minimizes gate control propagation delay, maintaining rapid current control response during step load changes. The board integrates cleanly into the core control architecture, with timing routines and diagnostic handshakes managed via host firmware flash compatibility without requiring local on-board code flashing.
Frequently Asked Questions
Q: Is the DS200FSAAG1ABA directly interchangeable with the original DS200FSAAG1 board?
A: Yes. The DS200FSAAG1ABA incorporates functional and artwork revisions while maintaining complete physical and electrical backward compatibility with the base DS200FSAAG1 parent card.
Q: Can the DS200FSAAG1ABA be hot-swapped while the field supply circuit is active?
A: No. System power and field excitation circuits must be completely de-energized and verified zero-energy prior to board removal or insertion to prevent gate driver damage or uncontrolled firing.
Q: What is the purpose of the conformal coating on the DS200FSAAG1ABA assembly?
A: Normal conformal coating provides dielectric insulation and environmental protection against airborne contaminants, humidity, and atmospheric oxidation on exposed PCB traces.
Field Installation Guidelines
- Verify that all incoming high-voltage field supplies, logic power channels, and auxiliary inputs are fully de-energized and locked out before installation.
- Wear an approved ESD wrist strap attached to an unpainted enclosure ground frame to prevent static discharge to gate-driver semiconductors.
- Confirm that multi-pin ribbon cables and card connectors are properly aligned before applying seating force to avoid bent pins.
- Fasten all board mounting standoffs and grounding screws securely to maintain continuous chassis frame grounding and mechanical stability under vibration.
