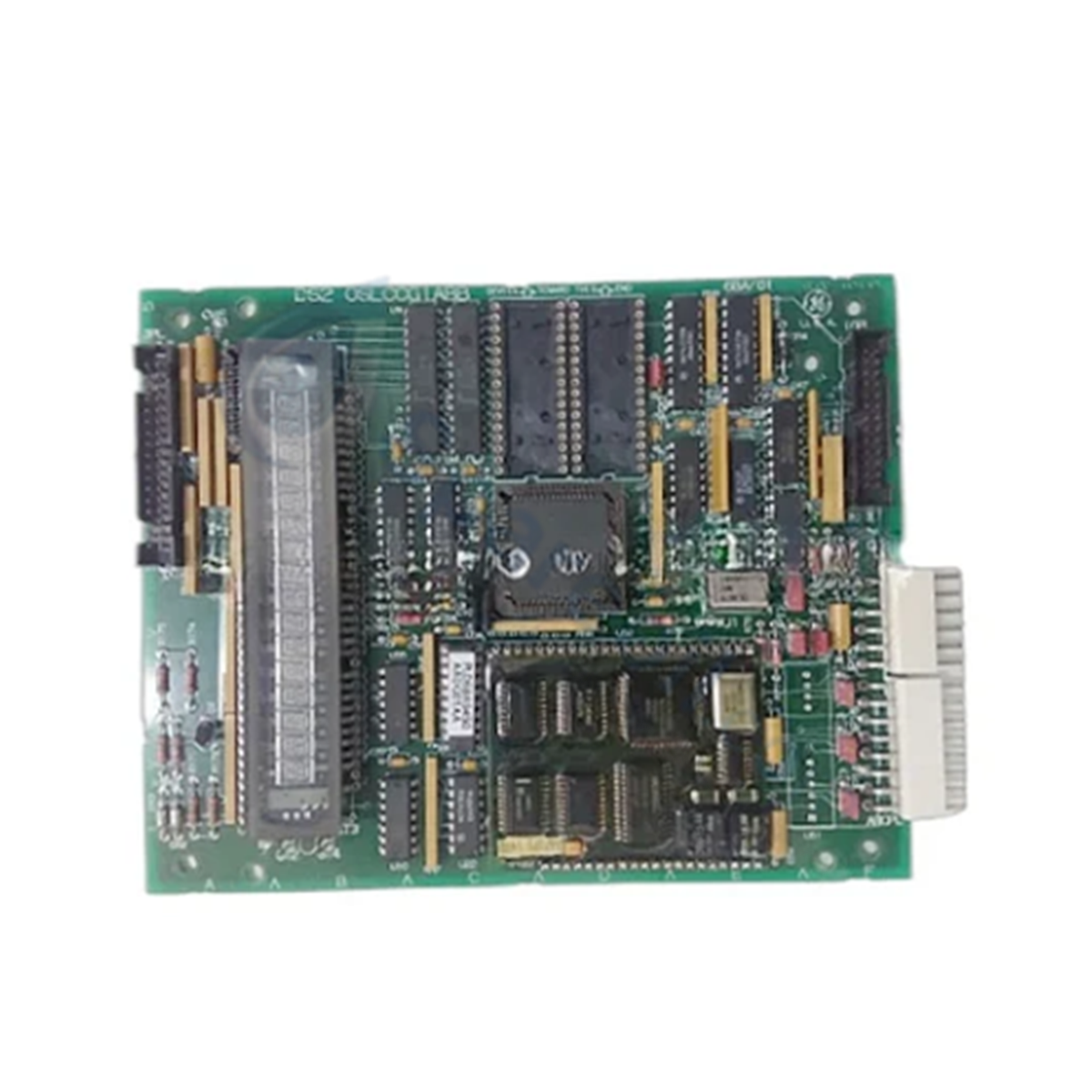

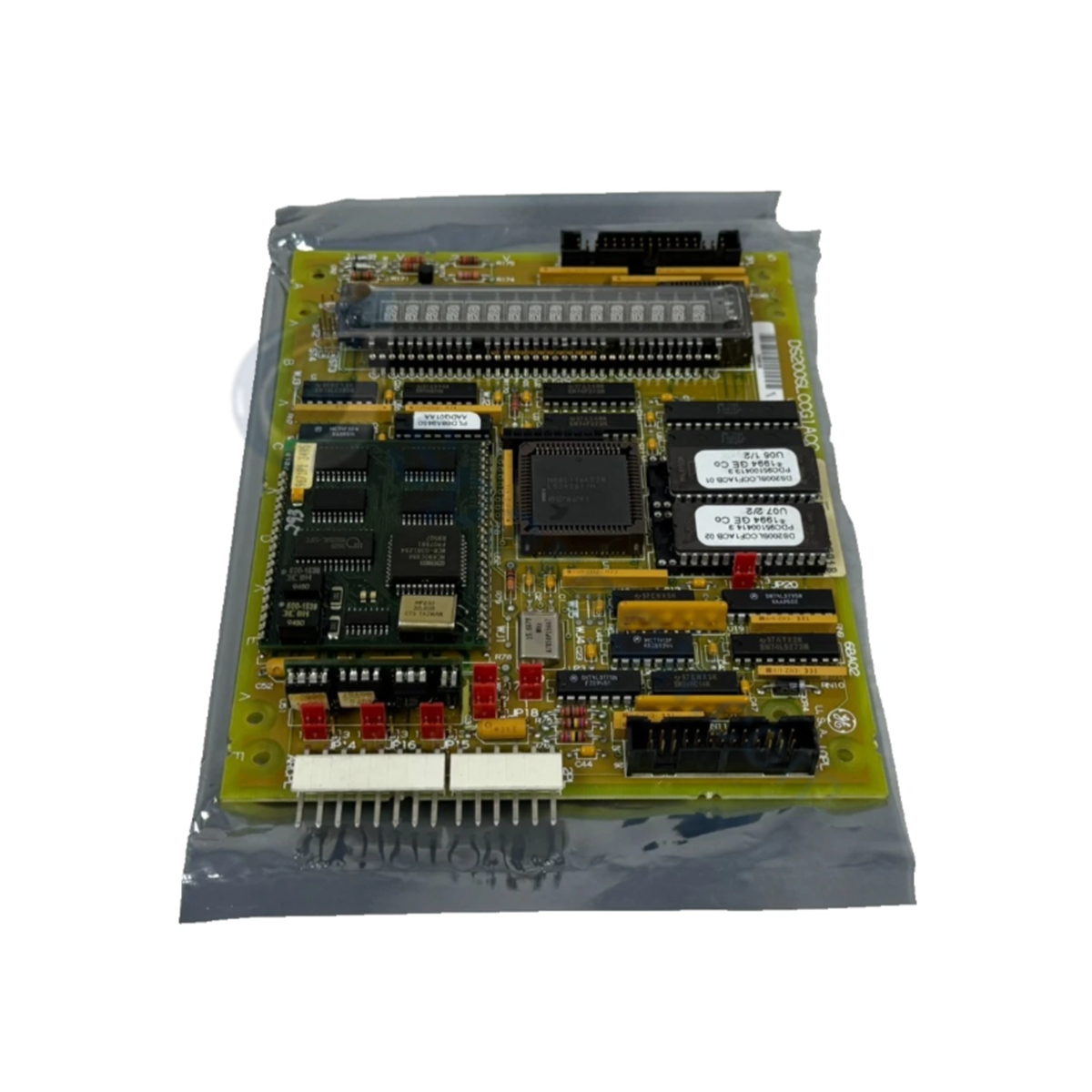

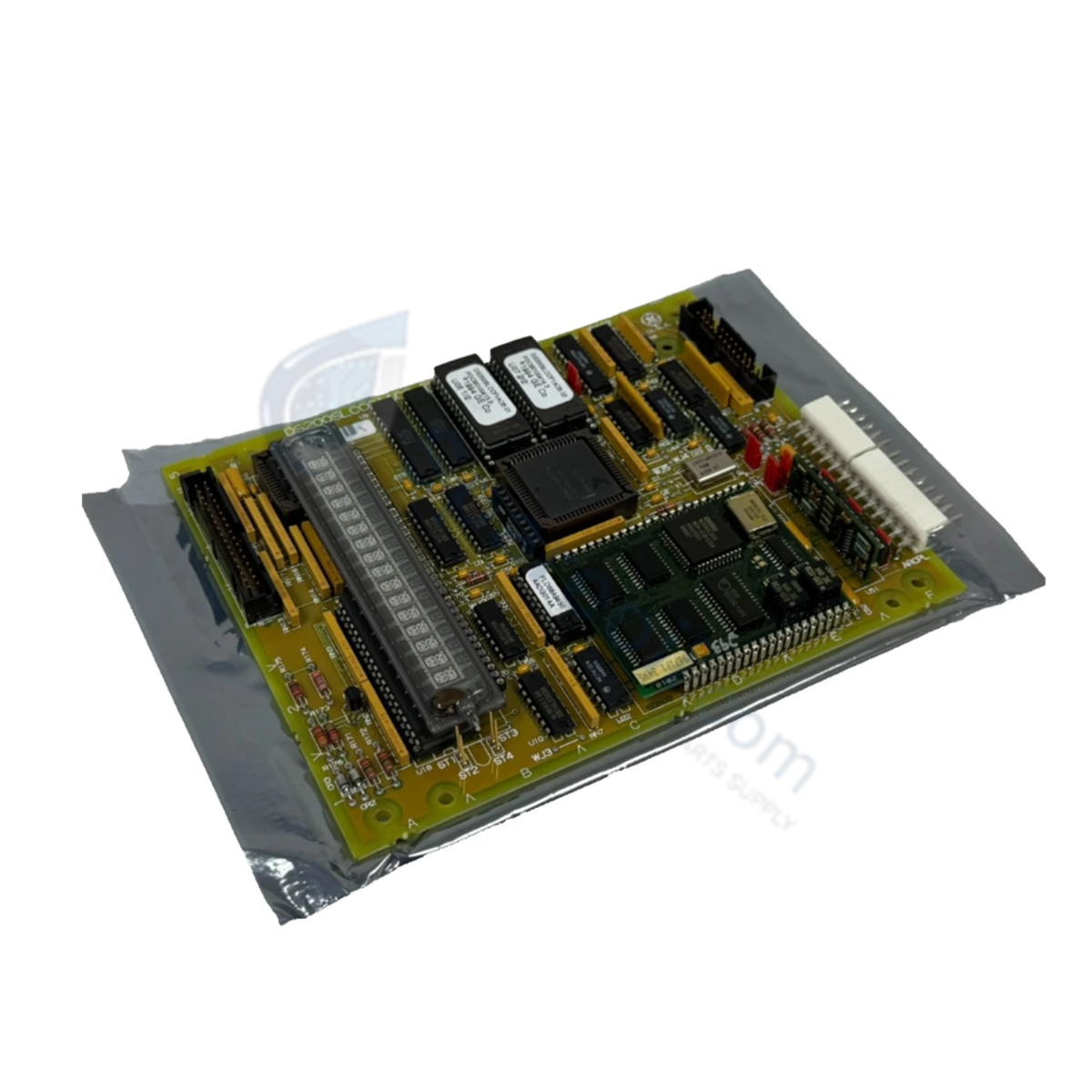

The GE DS200SLCCG1ACC, also cataloged as the SLCC LAN Communications Card, operates as a dedicated hardware component for LAN communication interface routing and diagnostic monitoring within GE Speedtronic Mark V drive control assemblies.

Hardware Specifications

Parameter Specification
Model DS200SLCCG1ACC
Brand GE (General Electric)
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Bus-powered via internal rack backplane
Product Series Speedtronic Mark V
PCB Protective Coating Normal Coating
Network Interfaces DLAN and ARCNET network circuits (isolated and non-isolated)
Processor & Memory Onboard LAN Control Processor (LCP), Dual-Ported RAM, 2 EPROM sockets
User Interface Attachable 16-position alphanumeric display keypad
Instruction Manual GEI-100162

Industrial Control & Network Execution

The DS200SLCCG1ACC executes local area network communications for host drive platforms using an onboard LAN Control Processor (LCP). Operating system parameters and LCP runtime execution programs reside in two onboard EPROM modules. The card establishes high-speed data exchanges with the main drive control board via an integrated dual-ported RAM memory space, maintaining real-time backplane bus communication velocity and I/O density scaling. The module supports both isolated and non-isolated physical network interfaces across DLAN and ARCNET protocols while ensuring long-term firmware flash compatibility.

Frequently Asked Questions

Q: What physical network protocols are natively supported by the DS200SLCCG1ACC?

A: As a Group 1 (G1) variant, the board contains dedicated hardware circuitry to support both DLAN and ARCNET network connections.

Q: How do the onboard LAN Control Processor (LCP) and host drive control board exchange data?

A: Communication between the LCP and the main drive control processor is executed through a shared onboard dual-ported RAM interface.

Q: What user diagnostic hardware interfaces with this module?

A: The card connects to an attachable 16-position alphanumeric display keypad that provides operators direct access to system control parameters and diagnostic fault codes.

Field Installation Guidelines

  1. Power down the drive system and verify that all incoming AC and DC voltage sources are fully isolated before installing the card.
  2. Put on an ESD wrist strap attached to a bare metal enclosure ground point prior to handling the circuit board.
  3. Verify that all EPROM memory chips are correctly oriented and securely seated in sockets U6 and U7 if migrating software from a previous board.
  4. Align the card edge connectors with the mounting guides and press firmly into place to ensure full engagement with the host assembly backplane.
  5. Connect the 16-position alphanumeric keypad ribbon cable to the dedicated onboard header and secure all network communication cables.
