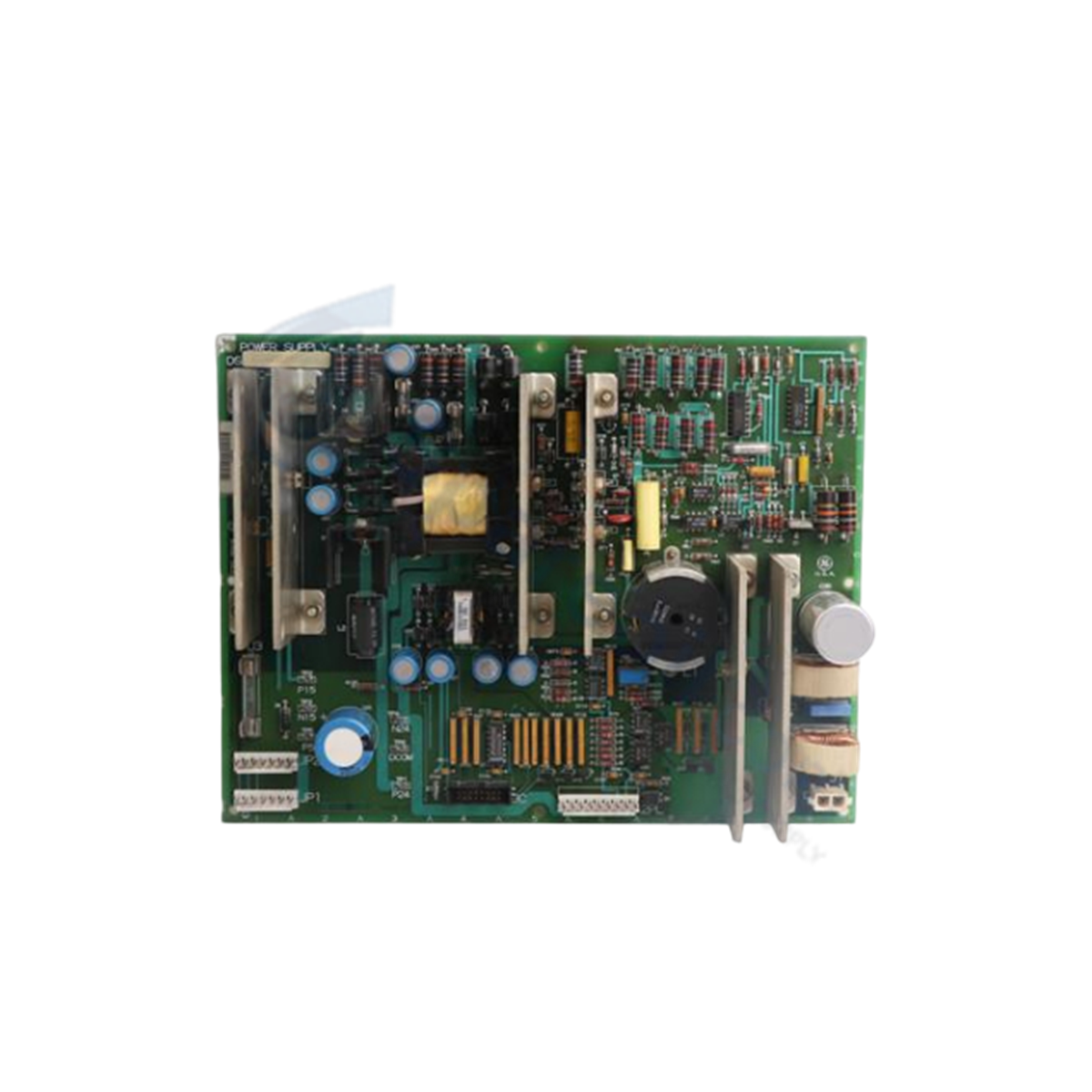

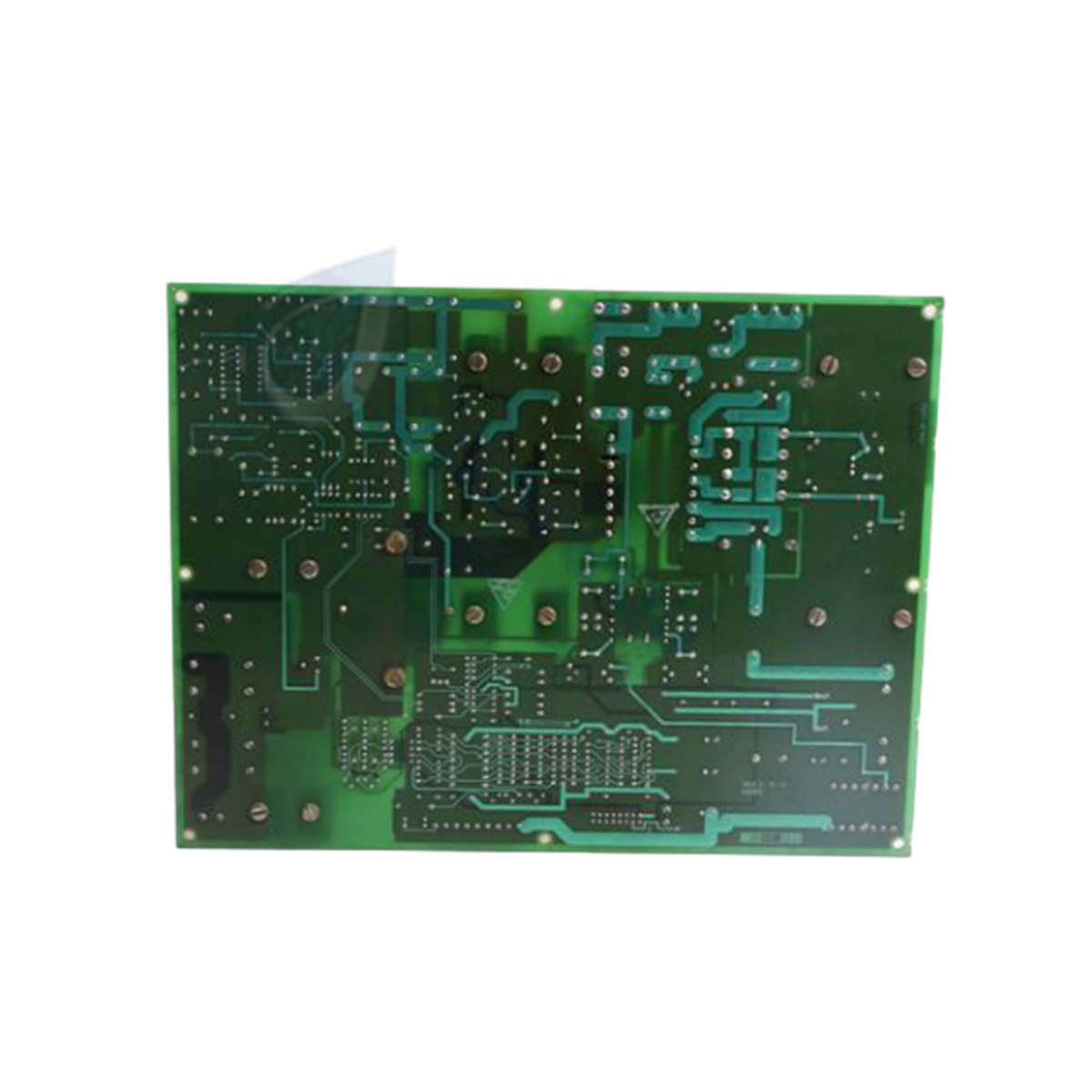

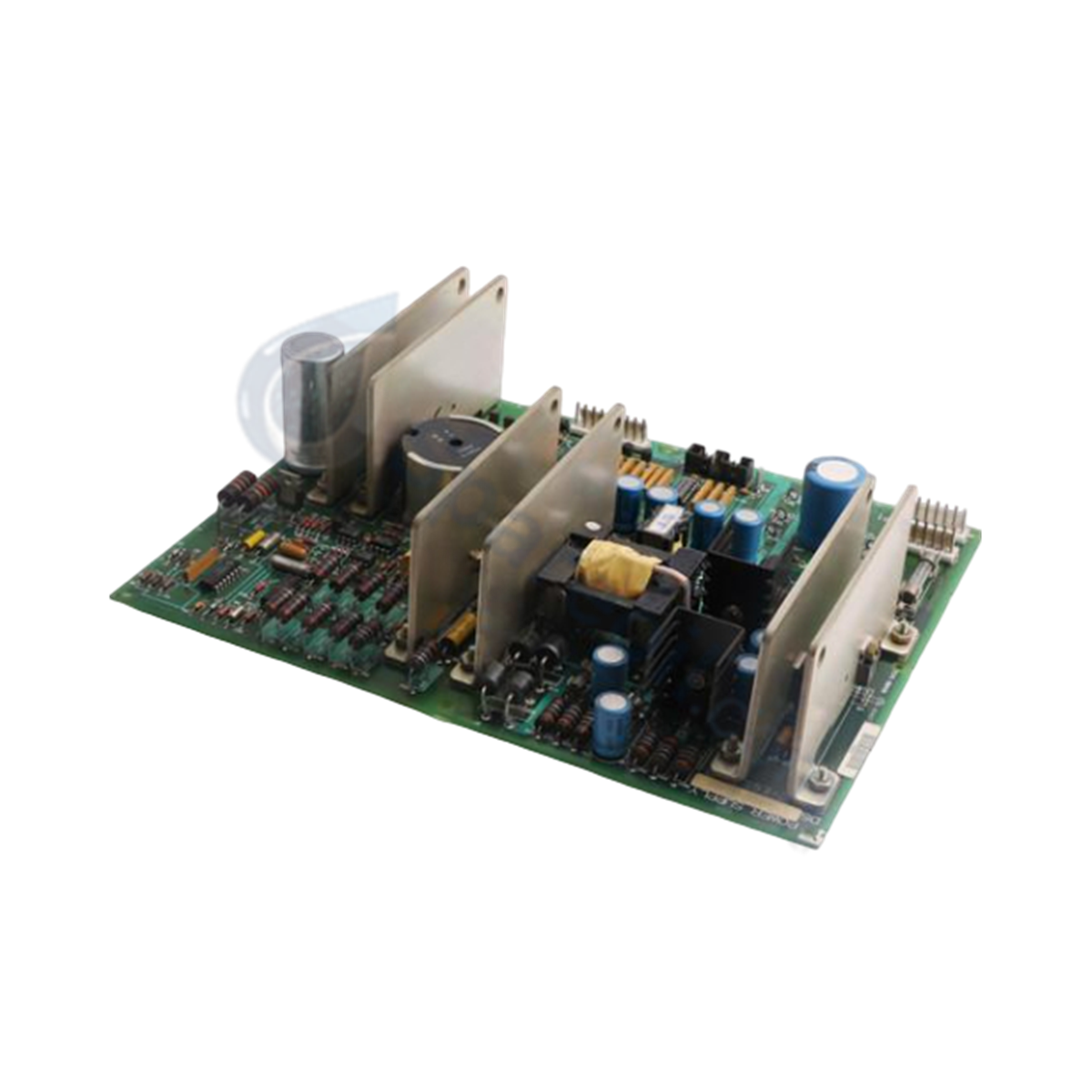

The GE DS200TCPSG1AME, also cataloged as the DS200TCPS Power Supply Board, operates as a dedicated hardware component for DC power supply input conversion and voltage rail distribution within Speedtronic Mark V control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCPSG1AME |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.95 kg (2.09 lbs) |
| Dimensions | Standard Mark V Board Profile |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Power supply input regulation (< 15.0 W) |
| Core Function | DC power input regulation and distribution |
| Assembly Type | Normal Assembly |
| PCB Coating | Normal Conformal Coating |
| Backward Compatibility | Fully compatible with first two revisions (DS200TCPSG1) |
Backplane Bus & Firmware Architecture
The DS200TCPSG1AME processes primary DC power input into regulated internal logic rails delivered across rack backplane connections. High-density bus routing minimizes trace impedance to maintain backplane bus communication velocity during processing spikes. Onboard hardware compatibility routines interface directly with the primary Speedtronic Mark V processor core, maintaining complete firmware flash compatibility across revisions without requiring localized software re-flashing or parameter re-configuration during card replacement.
Frequently Asked Questions
Q: Is the DS200TCPSG1AME backward compatible with earlier DS200TCPSG1 boards?
A: Yes. The board retains full physical form factor, pinout structure, and functional backward compatibility with the original first two revisions of the DS200TCPSG1 series.
Q: Can the DS200TCPSG1AME power supply board be replaced while the system is powered?
A: No. Incoming DC feeder lines must be completely de-energized and isolated prior to board insertion or removal to prevent arcing and backplane supply disruptions.
Q: How does the TCPS board maintain regulated voltage outputs during input line spikes?
A: Integrated power conditioning networks and overvoltage suppression circuits filter incoming DC lines before routing regulated low-voltage power to downstream rack cards.
Field Installation Guidelines
- Isolate all incoming primary power feeders and auxiliary supply lines before removing or installing the card assembly.
- Handle the board using a grounded ESD wrist strap secured to the metal enclosure frame to prevent static damage to power regulation circuits.
- Inspect multi-pin headers and ribbon cable connectors for physical alignment to avoid pin damage during rack mating.
- Verify that all chassis retaining screws are securely tightened to ensure structural grounding and heat sink chassis bonding.
