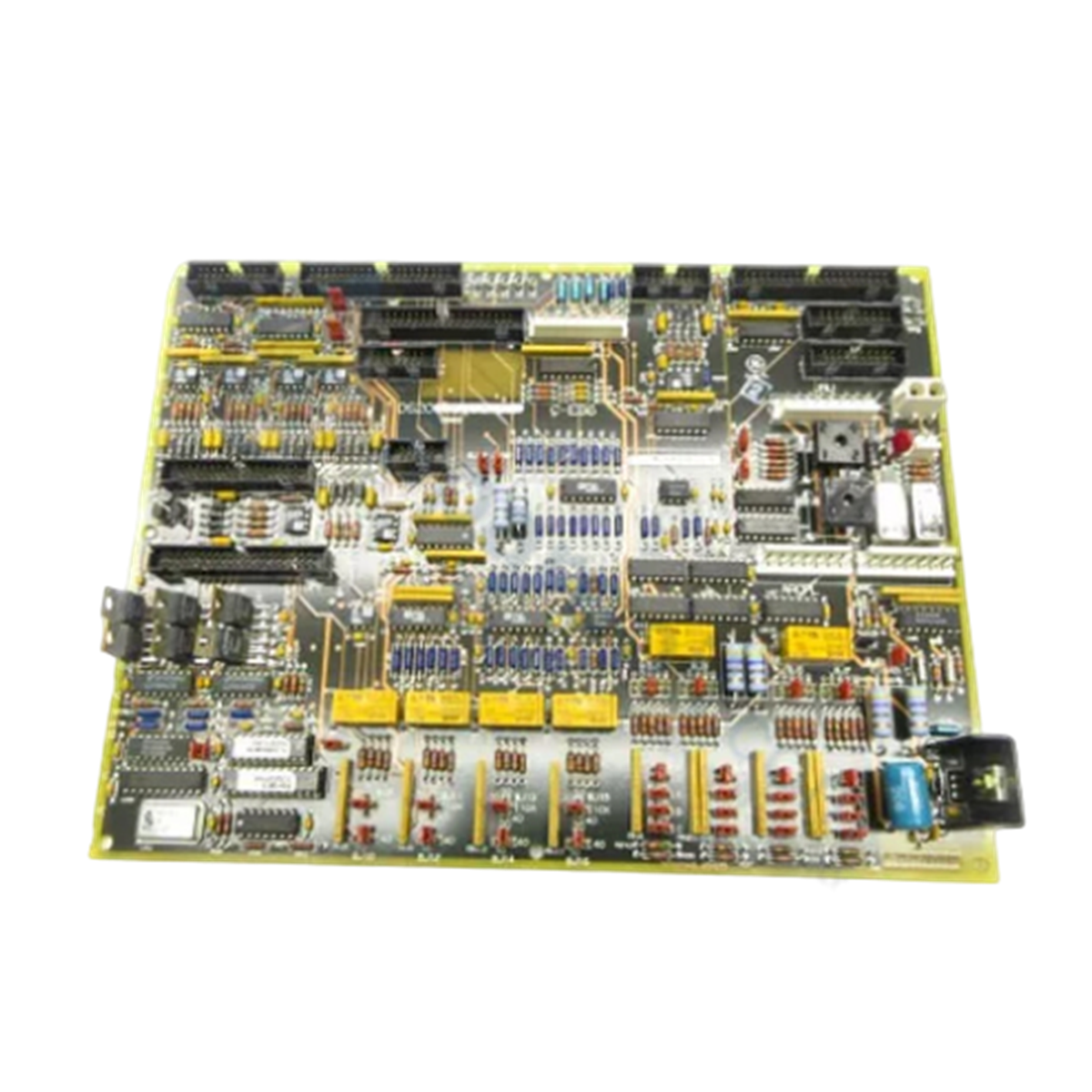

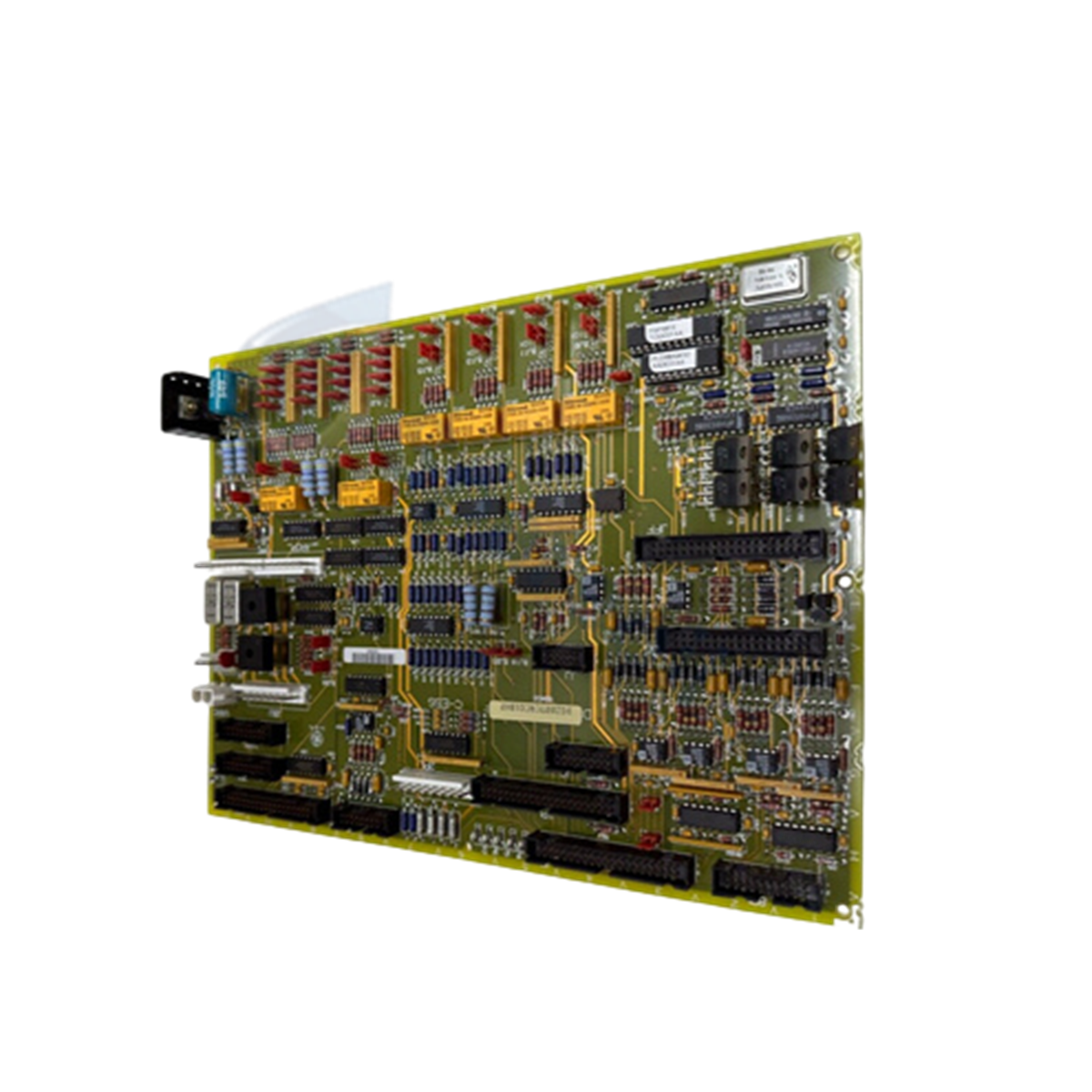

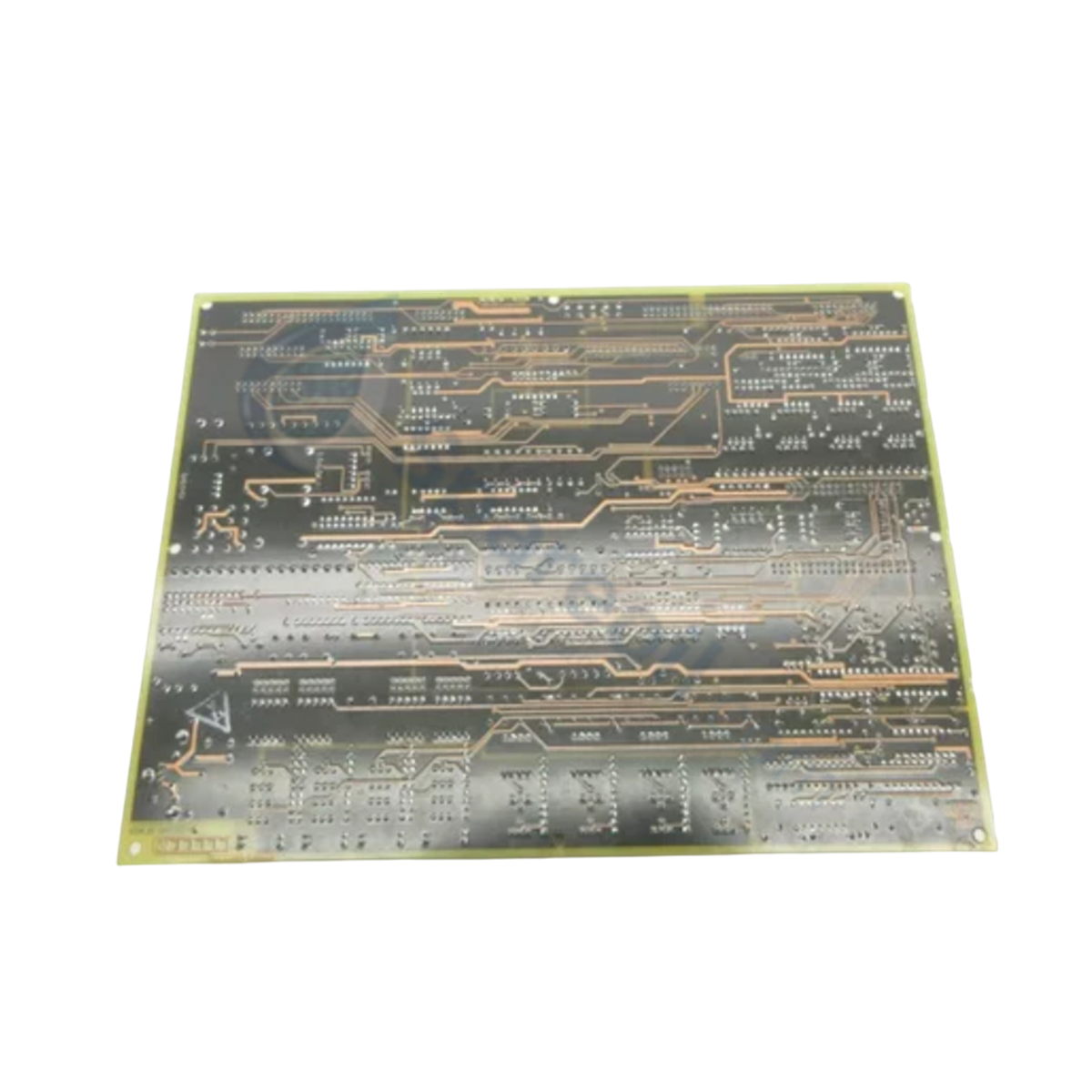

The GE DS200TCQCG1BGK, also cataloged as the TCQC RST Overflow Board, operates as a dedicated hardware component for LVDT/LVDR position feedback excitation and expanded analog signal handling within GE Speedtronic Mark V turbine control systems.

Suffix Breakdown & Model Matrix

Revision Component Designator Code Description
Base PCB Architecture DS200 Standard GE Mark V domestic baseline PCB layout
Functional Acronym TCQC RST Overflow / Analog I/O Expander Board
Group Variant G1 Group 1 base product configuration
1st Functional Revision B First functional circuit revision
2nd Functional Revision G Second functional circuit revision
Artwork Revision K Base circuit trace layout and artwork revision

Hardware Specifications

Parameter Specification
Model DS200TCQCG1BGK
Brand GE (General Electric)
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Bus-powered via internal rack assembly
Product Series Speedtronic Mark V / EX2000
PCB Protective Coating Normal Coating
Interface Hardware Multi-pin vertical connectors, header plugs, test points (TP)
Configuration Components Onboard hardware jumpers, resistor network arrays
Integrated Circuits Multi-channel analog ICs, discrete relay drivers, power dissipation heat sinks

Industrial Control & Processing Architecture

The DS200TCQCG1BGK acts as an analog expansion interface within Triple Modular Redundant (TMR) R/S/T control architectures. It generates excitation signals for Linear Variable Differential Transformers (LVDT) and Rotary Variable Differential Transformers (LVDR), returning conditioned position data directly to primary core processors. By offloading complex sensor excitation and signal conversion from main controller cores, the board optimizes backplane bus communication velocity and I/O density scaling across system racks while maintaining long-term firmware flash compatibility.

Frequently Asked Questions

Q: What primary function does the DS200TCQCG1BGK perform in a Mark V system?

A: The board serves as an analog I/O expander and overflow module, primarily providing excitation voltage and conditioning for LVDT and LVDR valve position feedback sensors.

Q: How is hardware configuration established on the board prior to commissioning?

A: Hardware options and signal routing are set using onboard configurable jumper blocks, which must be physically matched to the positions of the card being replaced.

Q: How does the module interface with TMR control structures?

A: The card distributes analog feedback signals across isolated channels to interface seamlessly with the triple-redundant R, S, and T control cores.

Field Installation Guidelines

  1. Isolate all power sources to the Mark V rack enclosure and confirm that the circuit is completely de-energized.
  2. Put on an ESD grounding wrist strap connected to an unpainted chassis earth point prior to unpacking or handling the module.
  3. Verify that all onboard jumper settings on the DS200TCQCG1BGK match the physical configuration of the original card exactly.
  4. Align the printed circuit board with card cage guide rails and insert the module until all rear backplane connectors are fully seated.
  5. Reattach field wiring harnesses and cable headers firmly to their designated board connectors, ensuring locking latches are engaged.
