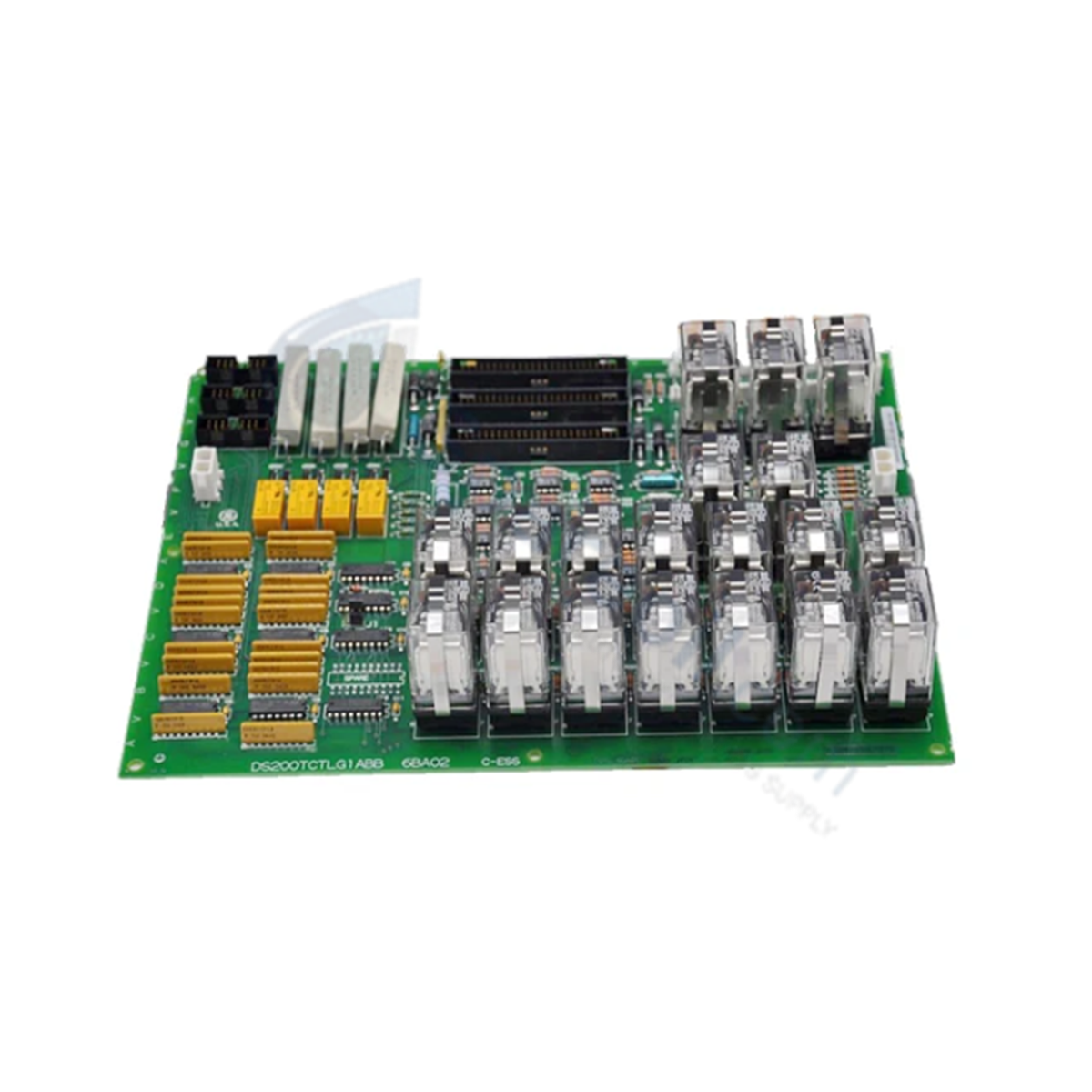

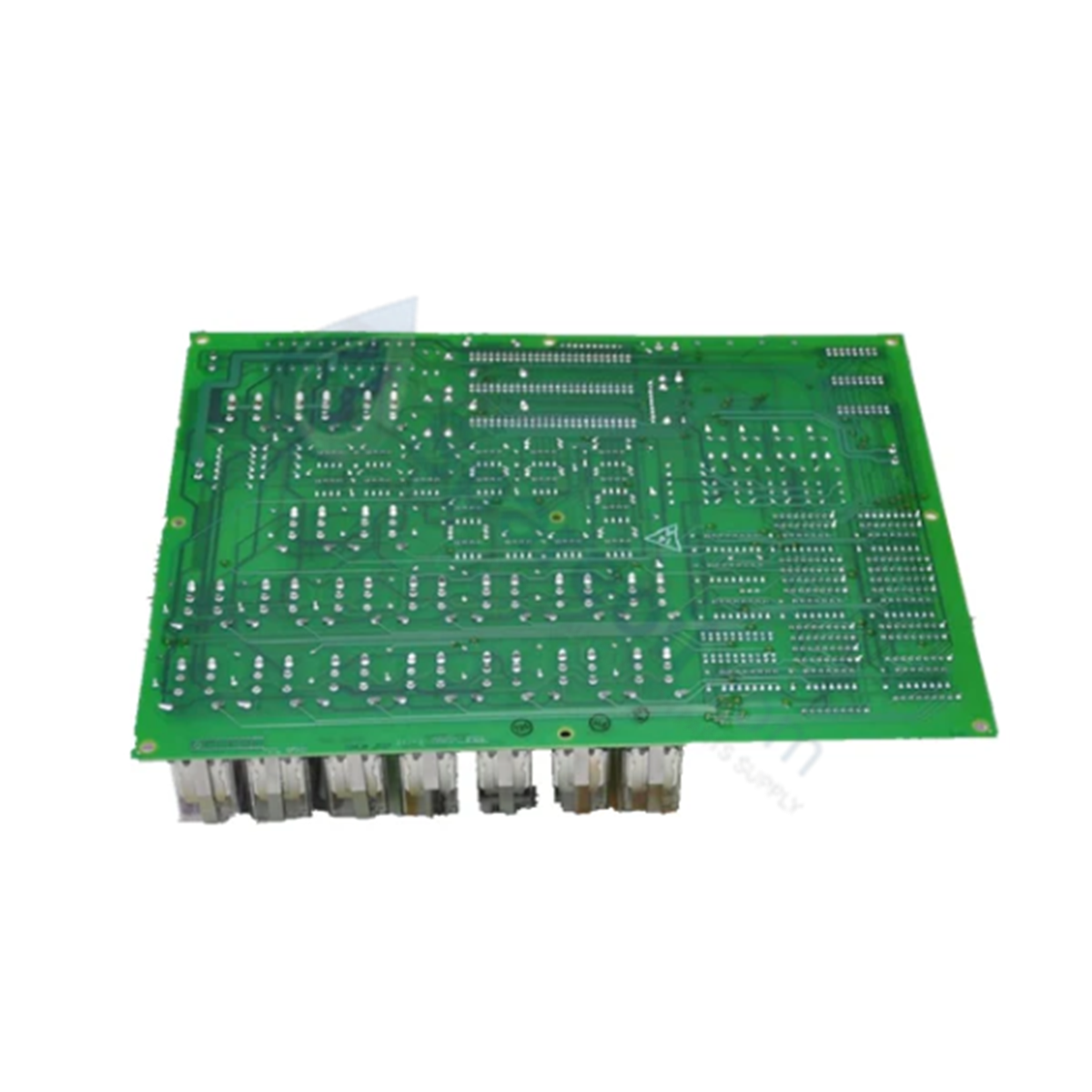

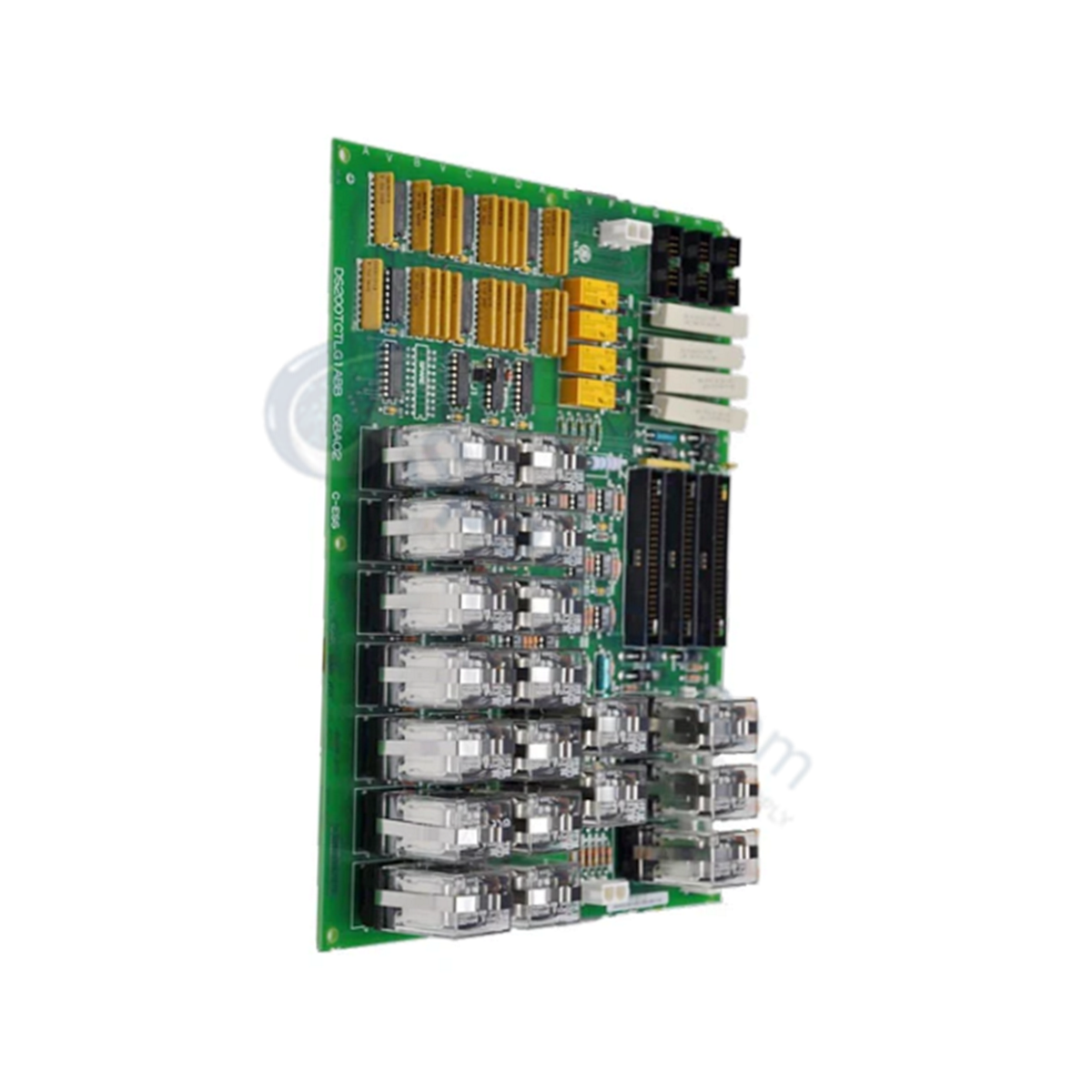

The GE DS200TCTLG1ABB, also cataloged as the DS200TCTL Trip Terminal Board, operates as a dedicated hardware component for emergency turbine shutdown execution within GE Mark V Speedtronic control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCTLG1ABB |
| Brand | GE |
| Origin | USA |
| Weight | 1.35 kg |
| Dimensions | Standard Mark V Board Form Factor |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Passive board topology (relay loop load driven via 125 VDC nominal) |
| System Series | Mark V Speedtronic |
| Board Type | Trip Terminal Board (TCTL) |
| Solenoid Drive Voltage | 125 VDC nominal |
| Ribbons/Headers | Multiple 50-pin ribbon headers (interfacing TCEA / TCQA) |
| Voting Architecture | Hardware-based 2-out-of-3 (2oo3) trip voting |
Suffix Breakdown & Model Matrix
| Part Number Segment | Specification Detail | Technical Description |
|---|---|---|
| DS200 | Series / Assembly | Standard domestic manufacture, normal style Mark V board assembly |
| TCTL | Base Function | Trip Terminal Board functional acronym |
| G1 | Group Classification | Group 1 functional revision classification |
| A | Primary Revision | A-rated functional product revision |
| B | Secondary Revision | B-rated secondary functional revision |
| B | Artwork Revision | B-rated PCB artwork layout configuration revision |
Backplane Bus Communication Velocity and Firmware Compatibility
The DS200TCTLG1ABB operates within the deterministic backplane network structure of the Mark V turbine control architecture. Passive signal routing across its heavy-duty trace array minimizes signal propagation delay, keeping command execution latencies below 10 ms from processor output command to relay drop-out. The board supports backplane bus communication velocity through direct hardware-driven ribbon paths to TCEA and TCQA core processing units. Firmware flash compatibility across various Mark V system revisions (including Speedtronic PROM sets) is maintained via passive signal passing, eliminating software layer dependencies and version mismatches during replacement procedures.
Frequently Asked Questions
Q: What is the hardware voting architecture used on the DS200TCTLG1ABB?
A: The board features integrated 2-out-of-3 (2oo3) hardware relay voting. Signals across processing channels must validate a trip condition to de-energize the trip solenoid loop, preventing single-channel faults from causing nuisance turbine trips.
Q: Are trip solenoids driven directly from this terminal board?
A: Yes. The board incorporates trip relays and suppression circuits designed to directly drive and break high-inductance 125 VDC trip solenoid circuits without damaging upstream control electronics.
Field Installation Guidelines
- Ensure complete system de-energization and isolate the 125 VDC trip supply voltage before touching terminal connections or replacing hardware.
- Wear an ESD grounding wrist strap attached to an unpainted chassis earth ground point prior to handling the board.
- Maintain clean ribbon cable routing between the board headers and upstream TCEA/TCQA cards, verifying pin-1 orientation alignment on all 50-pin ribbon connectors prior to seating.
- Ensure proper grounding of all cable shielding to prevent induced electrical noise on solenoid trip circuits.
- Secure terminal wiring to rated torque specifications and verify relay contact seating before reapplying power.
