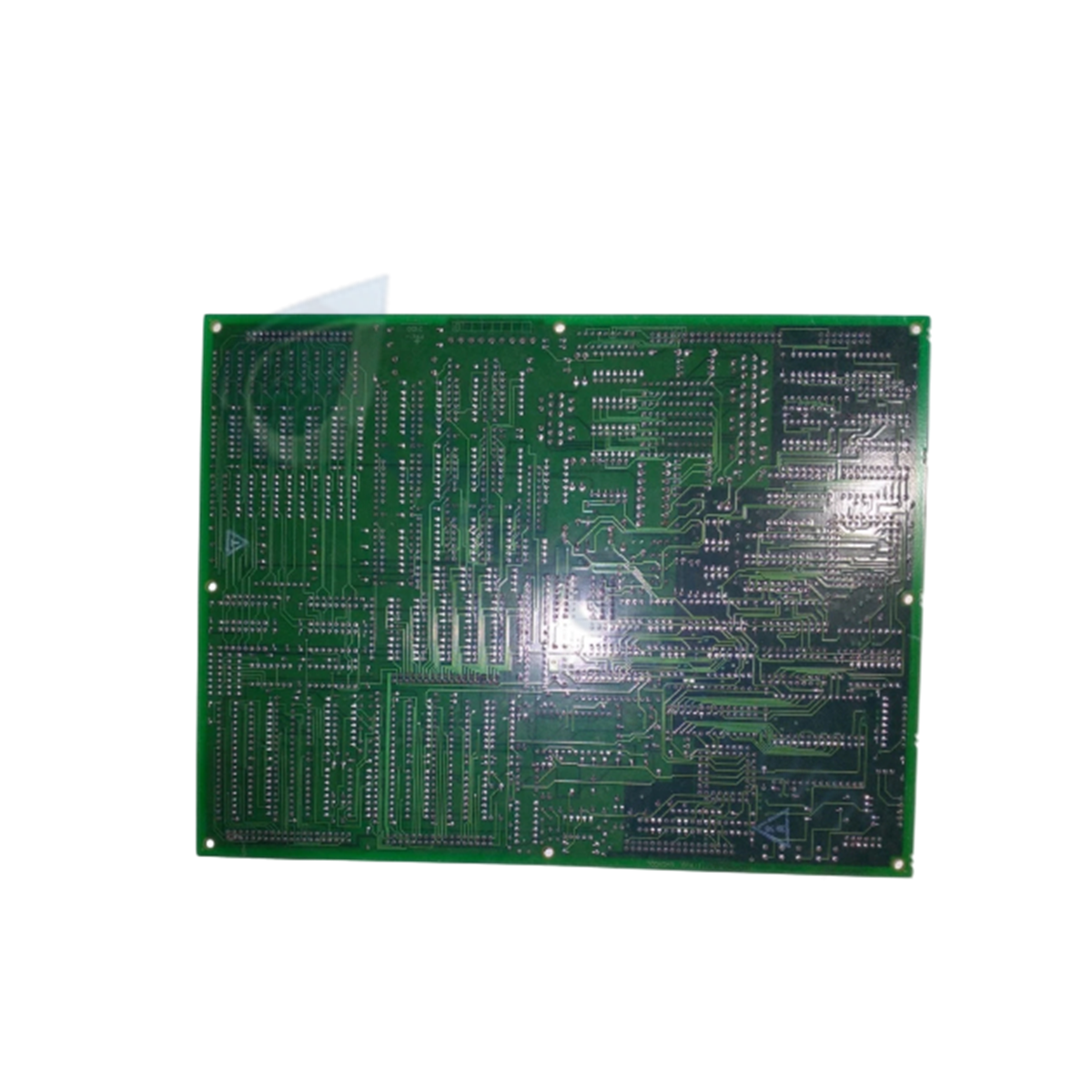

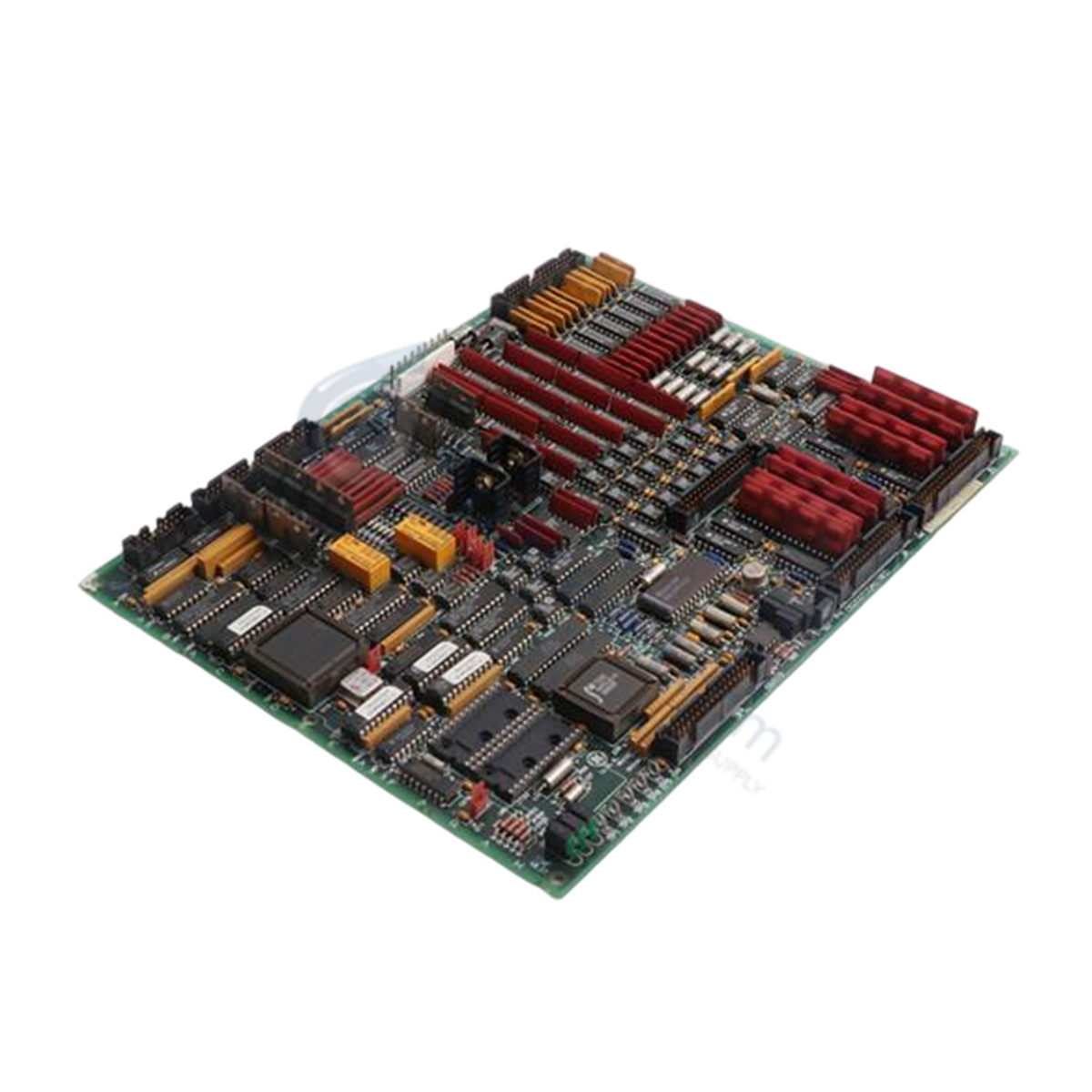

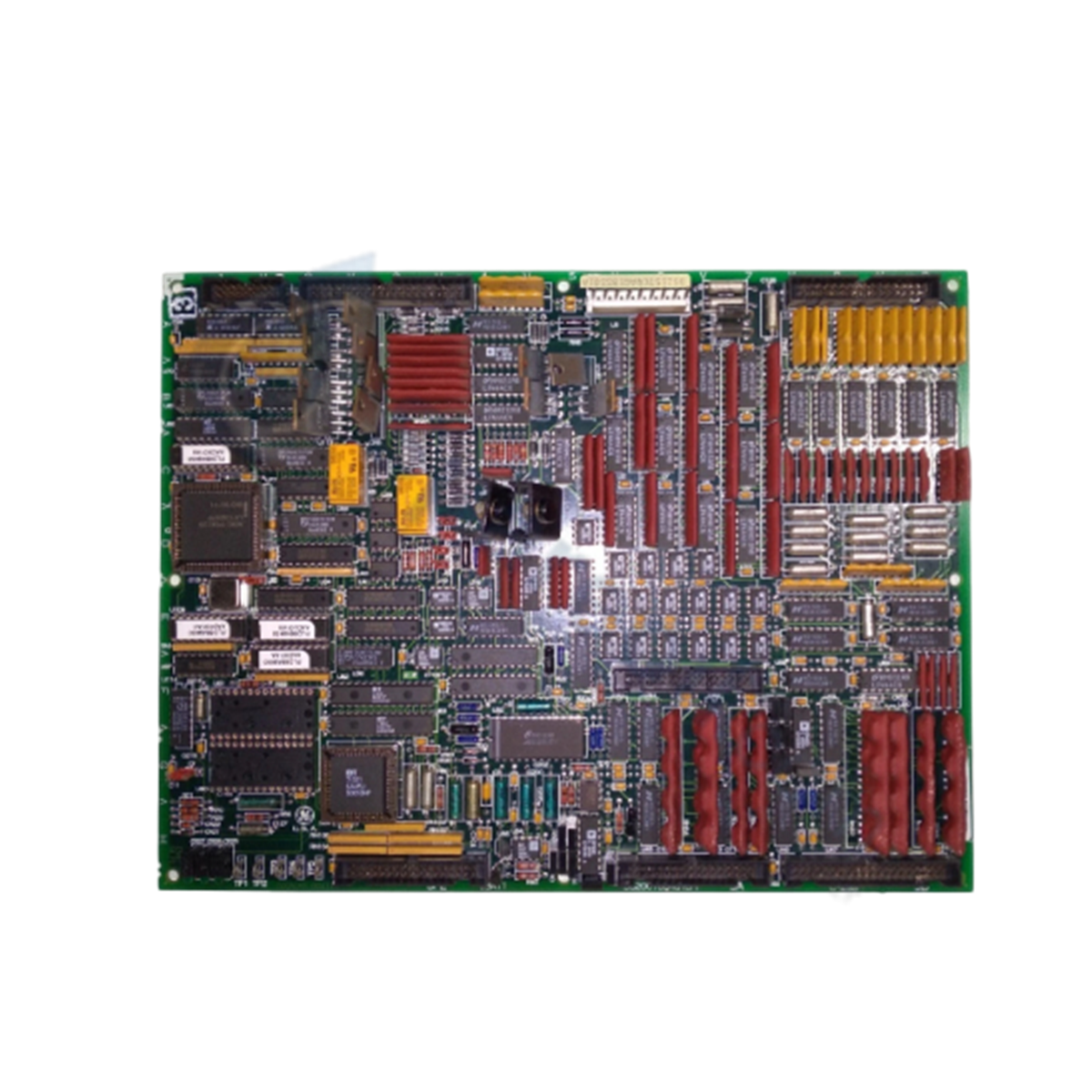

The GE DS215TCQAG1BZZ01A, also cataloged as the DS215TCQA Circuit Board with Firmware, operates as a dedicated hardware component for analog signal conditioning and micro-controller instruction execution within Speedtronic Mark V control systems.

Hardware Specifications

Parameter Specification
Model DS215TCQAG1BZZ01A
Brand GE General Electric
Origin USA
Weight 0.85 kg (1.87 lbs)
Dimensions Standard Mark V Board Profile
Operating Temp 0 to 60 deg C
Power Consumption Logic board execution load (< 12.0 W)
Core Function Analog signal conditioning and firmware execution
Manual Reference GEH-6195
PCB Coating Normal Conformal Coating
Backward Compatibility Compatible with base model DS215TCQAG1

Firmware Flash Compatibility & Backplane Execution

The DS215TCQAG1BZZ01A integrates dedicated EPROM memory chips containing factory-flashed execution routines. Onboard trace topology optimizes backplane bus communication velocity during multi-channel analog sampling cycles. The hardware layer establishes direct register alignment with the main Mark V processor rack, enabling dynamic firmware flash compatibility and ensuring real-time synchronized bus cycles without external software intervention during replacement.

Frequently Asked Questions

Q: Does the DS215TCQAG1BZZ01A require field firmware programming prior to commissioning?

A: No. The board is equipped with pre-flashed onboard firmware ICs that match the Mark V operating system requirements upon proper bus insertion.

Q: Can the DS215TCQAG1BZZ01A card be hot-swapped while the turbine control panel is energized?

A: No. The main rack power must be de-energized and verified zero-voltage to prevent logic damage or firmware memory corruption during insertion or extraction.

Q: What is the primary operational difference between the DS215TCQA and DS200TCQA board families?

A: The DS215 series incorporates updated hardware layouts with direct onboard firmware memory chips required for specific processing tasks under manual GEH-6195.

Field Installation Guidelines

  • Disconnect and lock out all primary control power sources to the Mark V panel before removing the existing card assembly.
  • Ground yourself using an ESD wrist strap bonded directly to the unpainted metal surface of the control cabinet frame.
  • Inspect multi-pin edge connectors and backplane bus sockets for debris, surface contamination, or bent pin headers.
  • Align the board along the chassis card guides and apply even pressure until fully seated, securing all mounting screws to maintain chassis ground continuity.
