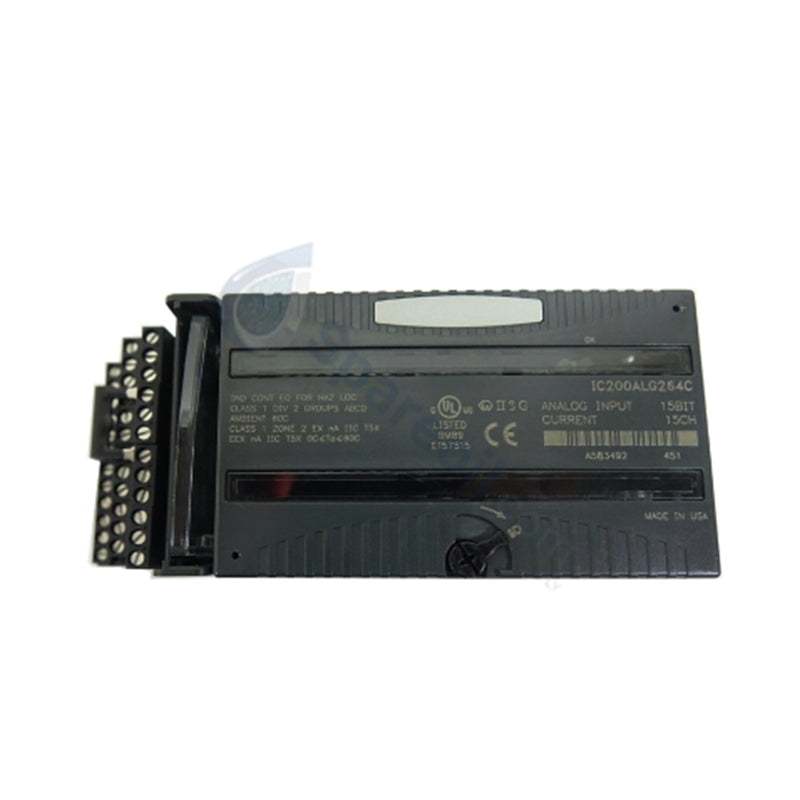

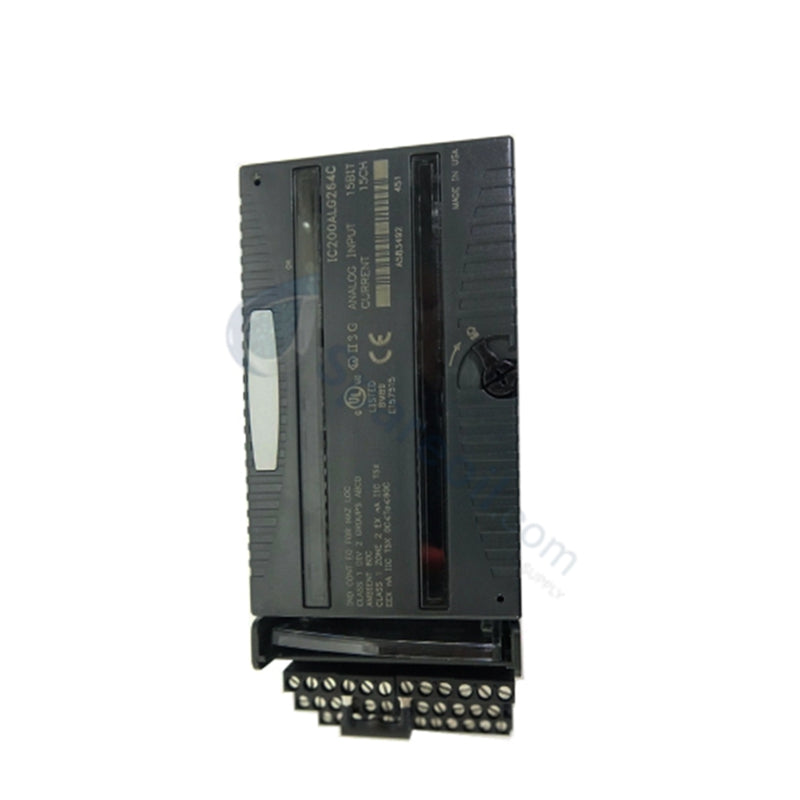

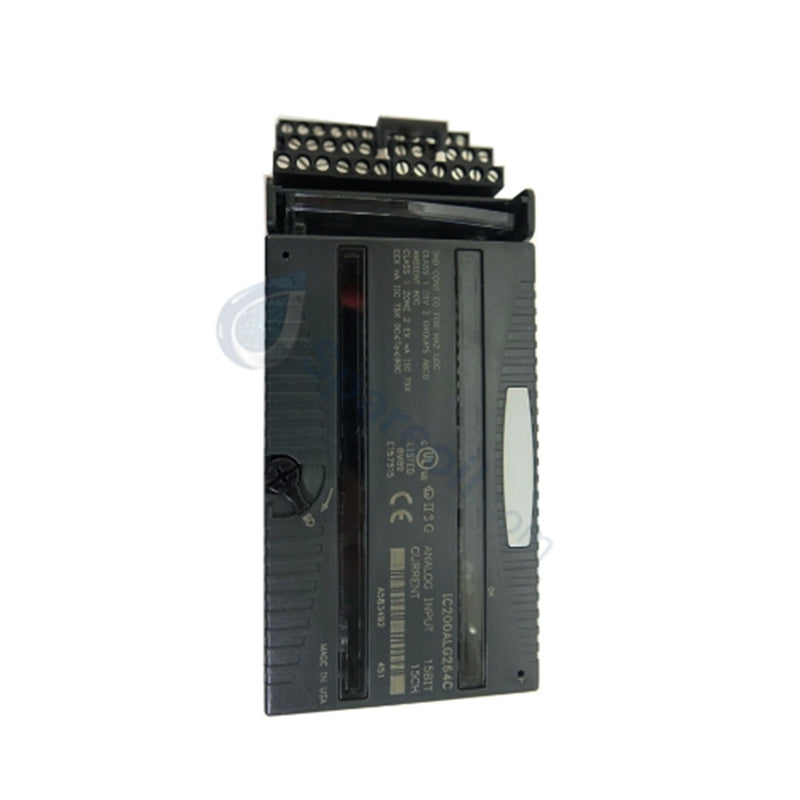

The GE Fanuc IC200ALG264, also cataloged as the IC200ALG264 15-Point Analog Current Input Module, operates as a dedicated hardware component for single-ended current signal acquisition within VersaMax I/O platforms. The module processes 15 analog current channels configured in a single group, converting 0-20 mA or 4-20 mA signals into 15-bit digital values for backplane transmission to the main CPU.

Hardware Specifications

Parameter Specification
Model IC200ALG264
Brand GE Fanuc
Origin USA
Weight 0.50 lbs (0.23 kg)
Dimensions Single slot VersaMax footprint
Operating Temp 0 deg C to 60 deg C
Power Consumption 100 mA maximum at 5 VDC from PLC backplane
Number of Channels 15 single-ended inputs (1 group)
Analog Resolution 15 bits
Input Ranges 0-20 mA, 4-20 mA
Digital Resolution 0.5 uA (4-20 mA), 0.625 uA (0-20 mA)
Input Impedance 100 Ohms
Filter Response 24 Hz +/-20% (3dB corner frequency)
Update Rate 7.5 ms maximum
Isolation 250 VAC continuous, 1500 VAC for 1 minute
Diagnostic Features Loss of internal power, open wire detection (4-20 mA mode)

Backplane Bus Communication Velocity & Firmware Flash Compatibility

The module executes high-speed serial data exchanges over the VersaMax backplane bus, completing full 15-channel data updates within a maximum cycle time of 7.5 ms. Field signals pass through dedicated Analog-to-Digital Converter (ADC) circuits with hardware 24 Hz low-pass filtering, suppressing ambient electrical transients before writing 15-bit digital outputs directly to CPU memory tables. Range execution operates via terminal hardware jumpers; removing the jumper selects default 4-20 mA processing, while installing the jumper configures 0-20 mA operation without requiring firmware re-flashing.

Frequently Asked Questions

Q: How is the input range switched between 4-20 mA and 0-20 mA?

A: Signal range selection is determined physically by the terminal jumper configuration. Leaving the terminal jumper uninstalled configures 4-20 mA operation, whereas installing the jumper sets the module to 0-20 mA operation.

Q: Does open wire diagnostic detection function in both signal range modes?

A: No, open wire detection is active only when operating in the 4-20 mA mode. Loss of internal power diagnostics remains active in both operating modes.

Q: Is channel-to-channel isolation provided on the 15 input channels?

A: No, all 15 single-ended channels belong to a single common group and share the same return potential, providing group isolation of 250 VAC continuous to the backplane, but no isolation between individual channels.

Field Installation Guidelines

  1. Mount the module chassis firmly onto a standard DIN rail or panel plate within the VersaMax rack alignment.
  2. Ensure system power is disconnected before seating the module into its corresponding terminal carrier interface.
  3. Wire field transmitters to the 15 single-ended channel terminals, ensuring sensor power supplies match loop compliance requirements.
  4. Set hardware jumpers on the terminal block base according to the targeted input signal format (uninstalled for 4-20 mA, installed for 0-20 mA).
  5. Terminate input cable shields at a dedicated system grounding bar to maintain noise immunity and backplane signal integrity.
