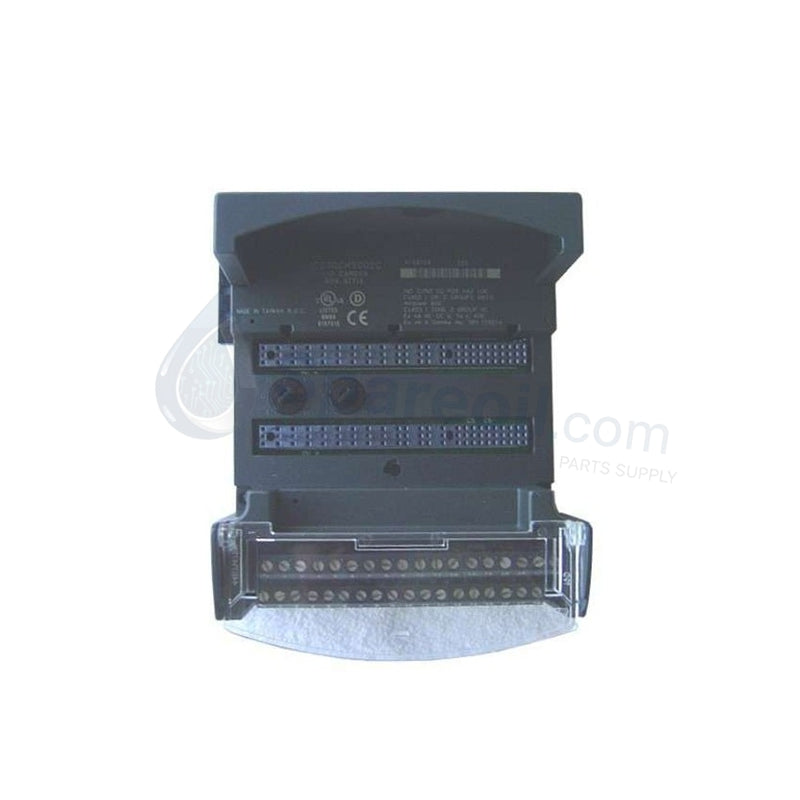

GE Fanuc IC200CHS001 VersaMax Barrier Terminal Base

Configured for high-density field signal wire retention and structural backplane interconnectivity in VersaMax I/O platforms, the GE Fanuc IC200CHS001 (IC200CHS001 Barrier Terminal Base) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model IC200CHS001
Brand GE Fanuc / Emerson
Origin USA
Weight 0.40 kg
Dimensions 110 mm x 66.8 mm x 50 mm
Operating Temp 0 to 60 deg C
Power Consumption Passive carrier (no active power draw)
Series VersaMax I/O
Terminal Type Barrier-Style Screw Terminals (36 points)
Wire Gauge Support AWG 22 to AWG 14 (0.36 to 2.1 mm2) solid or stranded copper
Current Capacity 2.0 A max per terminal point, 8.0 A max per power/ground bus
Voltage Rating 264 VAC continuous, 300 VAC transient
Terminal Torque 0.5 to 0.68 Nm
Mounting Options 35 mm DIN rail or direct panel mount

Backplane Bus and Firmware Compatibility

The IC200CHS001 incorporates an integrated slide-locking bus structure designed to maintain backplane bus communication velocity and logic power distribution across adjacent carriers. Internal backplane routing preserves channel-to-channel physical separation and ensures full firmware flash compatibility between mounted I/O modules and the central controller unit.

Frequently Asked Questions

Q: Does removing the mounted I/O module from the IC200CHS001 interrupt field wiring or adjacent backplane signals?

A: No. The barrier terminal base maintains field terminal screw connections and backplane bus continuity independently, allowing hot-swapping of the attached module without disturbing field wiring or adjacent rack communication.

Q: What is the maximum current limit supported by the barrier terminal connections?

A: Each individual terminal point supports a maximum current rating of 2.0 A, with the total power and ground bus trace limited to 8.0 A across the carrier assembly.

Field Installation Guidelines

Mount the base securely onto a 35 mm DIN rail or directly to a backpanel using appropriate hardware. Strip field wiring ends cleanly and secure them into the 36 barrier screw terminals within the AWG 22 to AWG 14 wire gauge window. Torque terminal screws between 0.5 and 0.68 Nm to prevent connection looseness from vibration. Route high-voltage wiring away from low-level analog signal cables to minimize electromagnetic interference, and ensure proper grounding across the DIN rail contact points.
