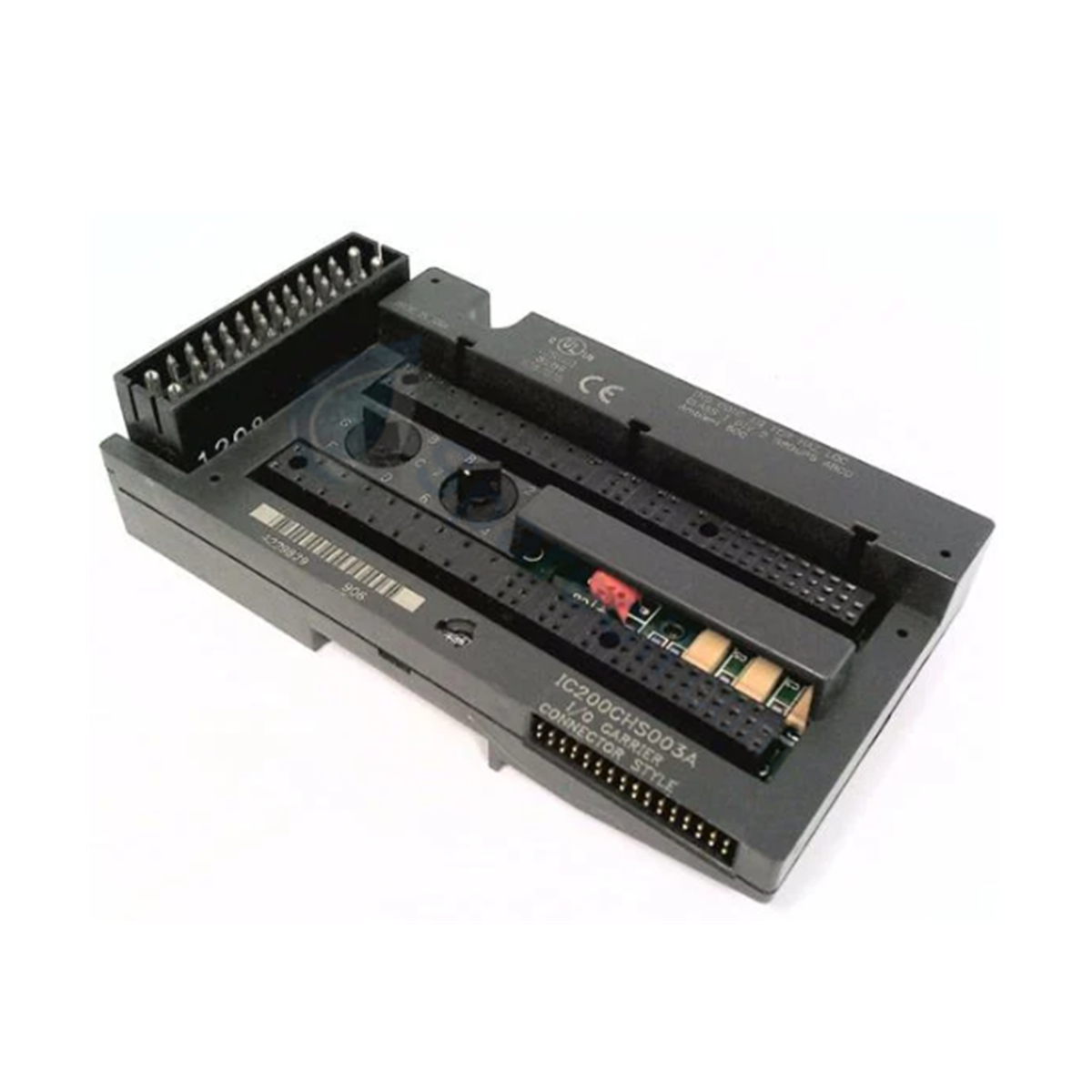

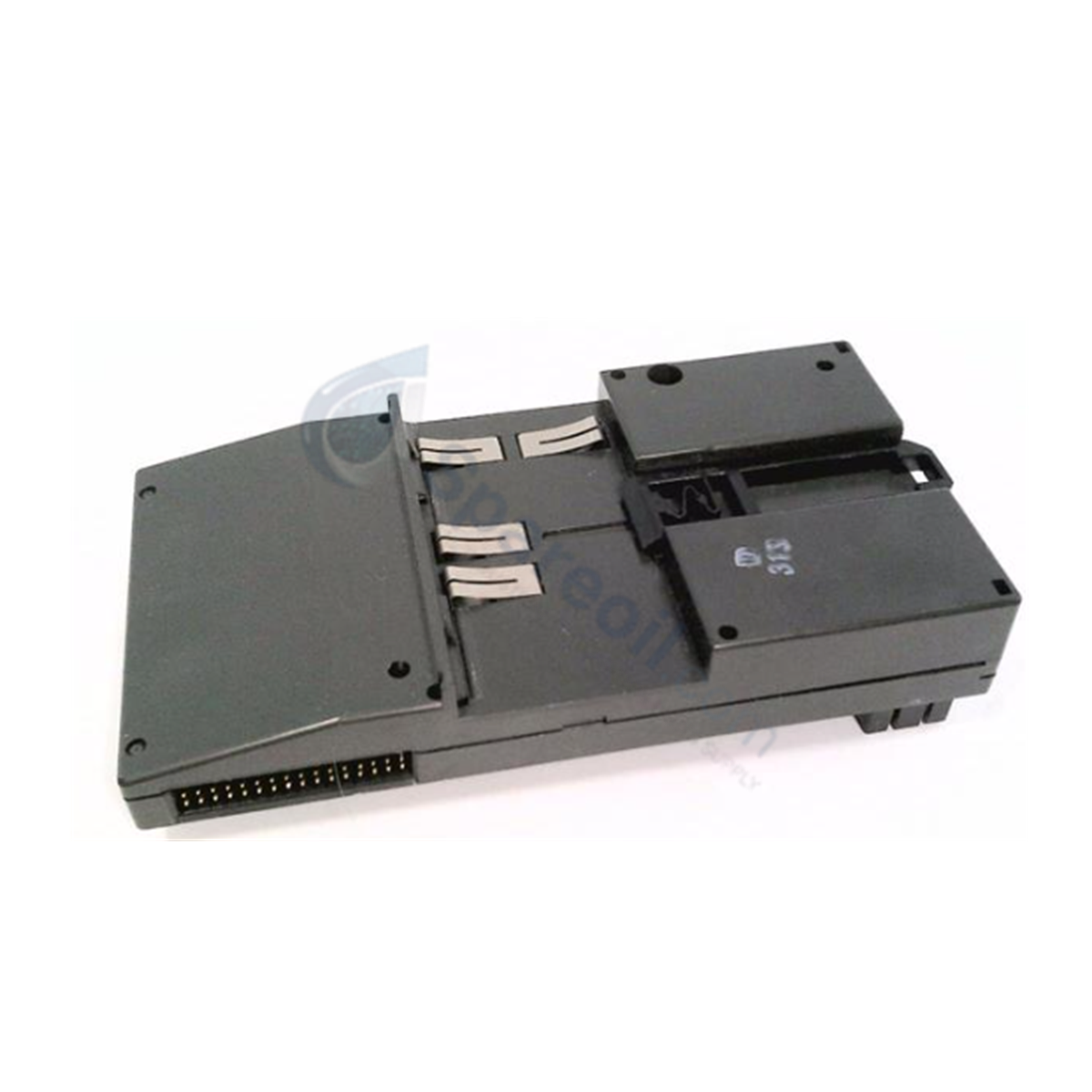

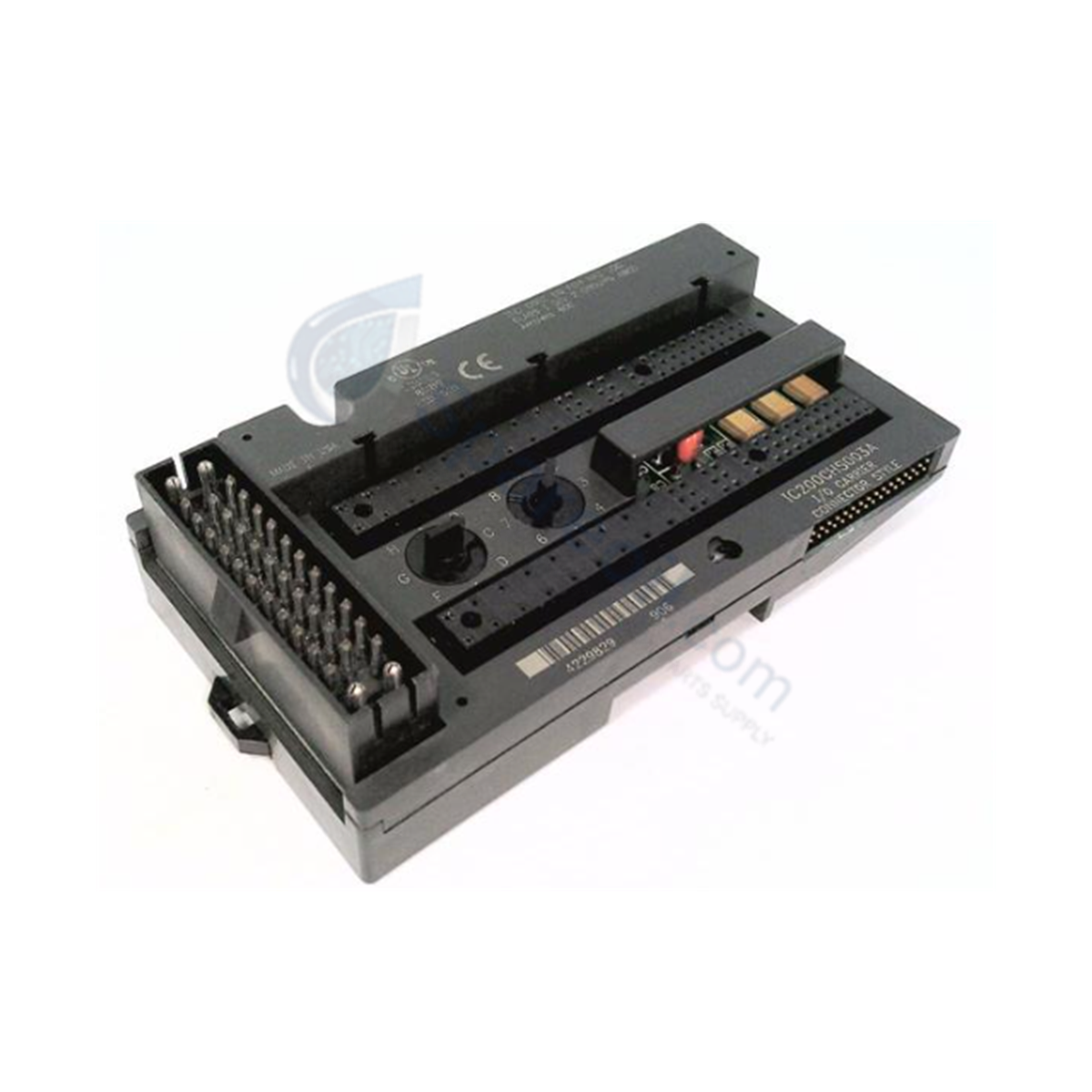

Configured for field signal termination and backplane interfacing in VersaMax PLC systems, the GE Fanuc IC200CHS003 (IC200CHS003 Input/Output Carrier) provides direct physical/electrical execution for up to 32 I/O points via an integrated 36-pin connector interface.

Hardware Specifications

Parameter Specification
Model IC200CHS003
Brand GE Fanuc Emerson
Origin USA / Various
Weight 0.11 kg (0.25 lbs)
Dimensions Standard VersaMax carrier footprint
Operating Temp 0 to 60 deg C
Power Consumption Passive physical base (0 W internal power draw)
Total I/O Capacity Up to 32 input/output points
Field Termination Style Integrated 36-pin connector
Contact Resistance Less than 10 milliohms
Rated Current Per Point 2 A maximum
Power/Ground Current 8 A maximum per terminal
Transient Voltage Rating 300 VAC maximum
Common Power Connections Up to 4 common power connections
Housing Material Acrylonitrile Butadiene Styrene (ABS) plastic
Ingress Protection IP20
Mounting & Orientation 35 mm DIN rail, vertical mounting orientation

Backplane Bus Communication Velocity & I/O Density Scaling

The IC200CHS003 carrier functions as the structural and electrical backbone for VersaMax I/O modules, establishing low-resistance backplane bus communication velocity across its internal signal traces. By supporting high I/O density scaling with up to 32 points on a single base, the unit maintains steady contact integrity with less than 10 milliohms resistance. Integrated transient suppression protection up to 300 VAC prevents external voltage surges on field lines from disrupting logic-side signals or firmware flash compatibility across attached controller modules.

Frequently Asked Questions

Q: What are the continuous current limits for the signal contacts and power terminals on the IC200CHS003?

A: Individual signal channels support up to 2 A per point, while the power and ground distribution paths support a continuous current rating of 8 A per terminal across up to 4 common power connections.

Q: Can VersaMax I/O modules installed on the IC200CHS003 carrier be replaced under power?

A: Module removal and insertion depend on the primary controller and I/O module capabilities, but the passive carrier itself maintains continuous field wiring connections and backplane bus continuity during module servicing.

Q: What mounting requirements apply to ensure proper thermal dissipation and structural retention?

A: The carrier is designed for vertical mounting orientation on standard 35 mm DIN rail or direct panel mounting, providing IP20 protection inside an enclosure with unassisted air convection flow.

Field Installation Guidelines

  • DIN-Rail Fastening: Snap the ABS plastic housing securely onto a clean 35 mm DIN rail in a vertical orientation. Ensure the base latch mechanism engages fully to prevent lateral movement along the rail.
  • 36-Pin Connector Termination: Connect pre-wired multi-conductor field harnesses using the integrated 36-pin connector style interface. Verify that connector locking screws or clips are seated completely to prevent intermittent contact resistance above 10 milliohms.
  • Protective Earth Grounding: Ensure the DIN rail or panel mounting plate is directly bonded to cabinet protective earth with heavy copper grounding straps to establish a low-impedance path for transient voltage dissipation up to 300 VAC.
