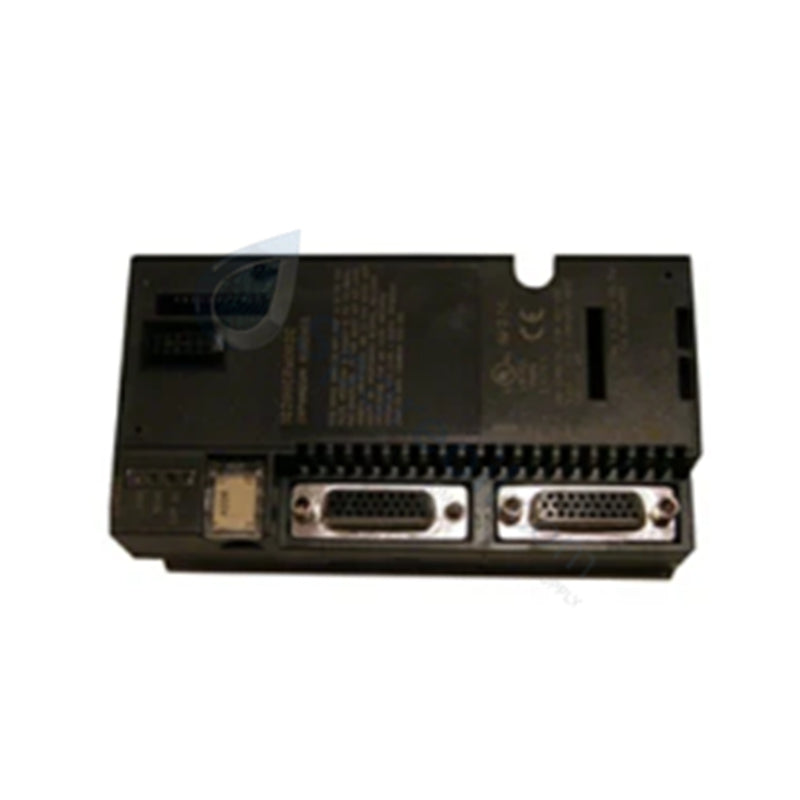

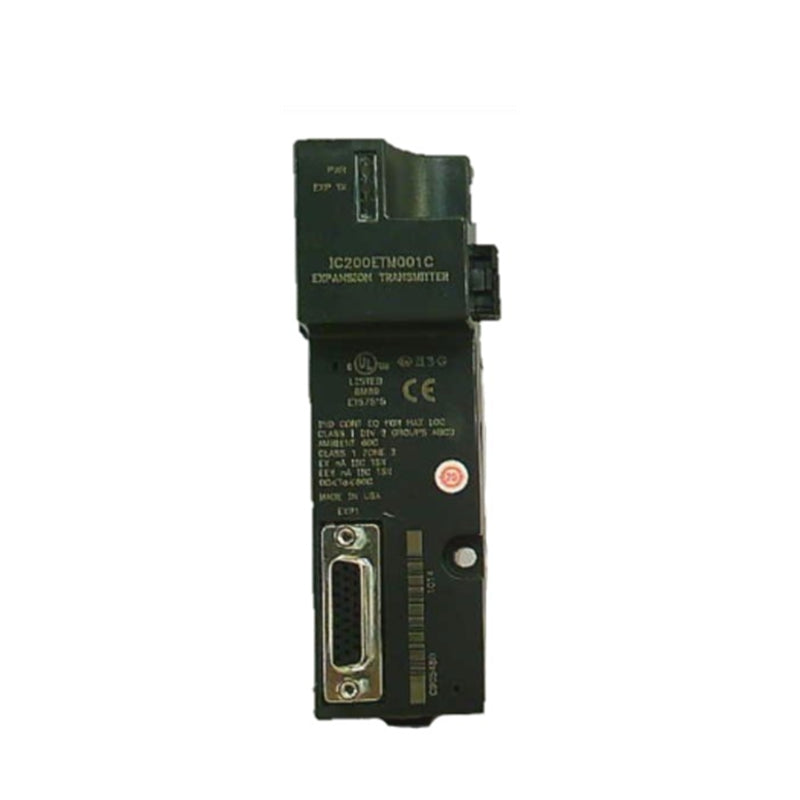

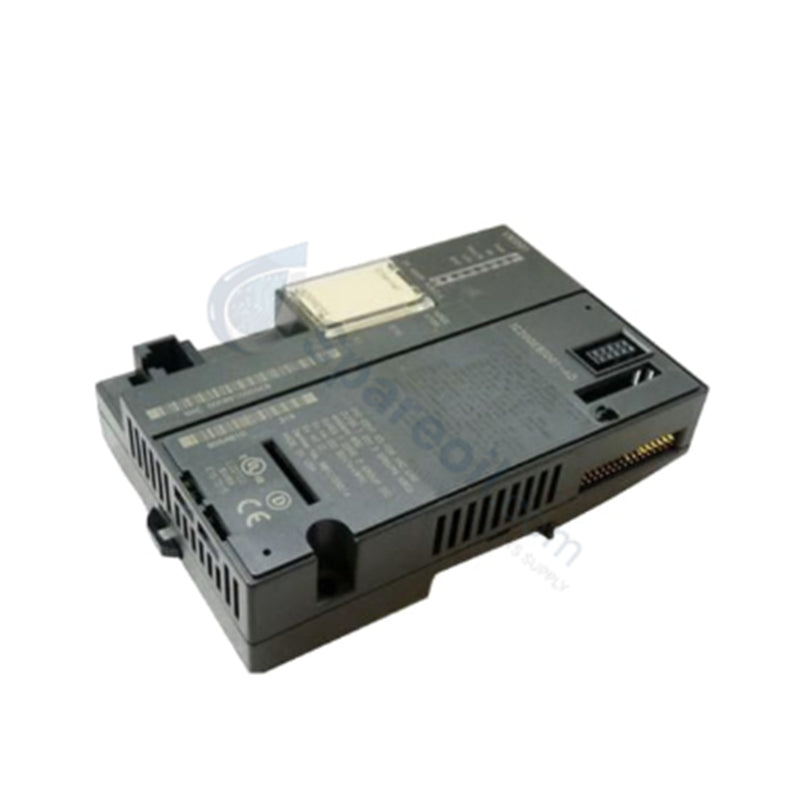

The GE Fanuc IC200ETM001, also cataloged as the IC200ETM Expansion Transmitter Module, operates as a dedicated hardware component for multi-rack I/O expansion within VersaMax PLC platforms. The module interfaces directly with a host CPU or Network Interface Unit (NIU) via its 26-pin female D-shell port to drive serial expansion communication across up to seven remote expansion racks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200ETM001 |
| Brand | GE Fanuc |
| Origin | USA / Standard Industrial Operations |
| Product Type | Expansion Transmitter Modules |
| Expansion Capacity | Up to 7 expansion racks |
| Interface Ports | 26-pin female D-shell (Expansion), 16-pin male (Serial Pass-Through) |
| Backplane Power Consumption | 44 mA @ 5 VDC |
| Maximum Cable Distance | 750 m (ERM001 Isolated), 15 m (if ERM002 Non-Isolated used) |
| Data Communication Rate | 250 Kbps default, up to 1 Mbps (PLC mode, <250 m, ERM001 only) |
| Electrical Isolation | 500 VDC (ERM001 isolated setup) |
| Cable Compatibility | IC200CBL601, IC200CBL602, IC200CBL615 |
| Operating Temp | 0 to +60 deg C |
Backplane Bus Communication Velocity and Deterministic Networks
The module regulates parallel expansion frames to ensure continuous backplane bus communication velocity across distributed baseplates and connected Profinet or EtherNet/IP deterministic networks. Higher communication speeds up to 1 Mbps reduce propagation latency, maintaining high I/O density scaling throughout local and remote baseplates. Integrated system registers enforce strict firmware flash compatibility across attached I/O and communication modules.
Frequently Asked Questions
Q: What determines the maximum expansion cable distance for the IC200ETM001 module?
A: Maximum cable distance is 750 m when using ERM001 isolated receivers; if any ERM002 non-isolated receiver is present in the line, total bus length is restricted to 15 m.
Q: What is the backplane current draw of the IC200ETM001?
A: The module draws 44 mA from the local 5 VDC backplane bus.
Field Installation Guidelines
- Module Insertion: Ensure baseplate power is turned off before sliding the expansion module into the designated slot on the host CPU or NIU rack.
- Connector Cable Coupling: Secure the 26-pin female D-shell cable using the integral thumbscrews on IC200CBL series cables to prevent physical disconnects under panel vibration.
- Grounding and Isolation: When operating at extended distances up to 750 m, verify that 500 VDC isolation boundaries are maintained using ERM001 receiver modules and properly bonded cable shields.
- Firmware Port Maintenance: The 16-pin male serial pass-through connector must be kept free of metallic contaminants and reserved exclusively for local maintenance and firmware flashing.
